PULSE PANEL

Merge explosive strobe power and visual creativity with the PULSE PANEL! Yet another offering in the innovative Pulse line of strobe lights, the PULSE PANEL adds a burst of dynamism and inspiration to any show!

Designers have asked for effect lights that are more than a one-trick pony and the PULSE PANEL delivers with multi-functionality as a powerful strobe, bright blinder, high-output wash light or creative eye candy effect all in one.

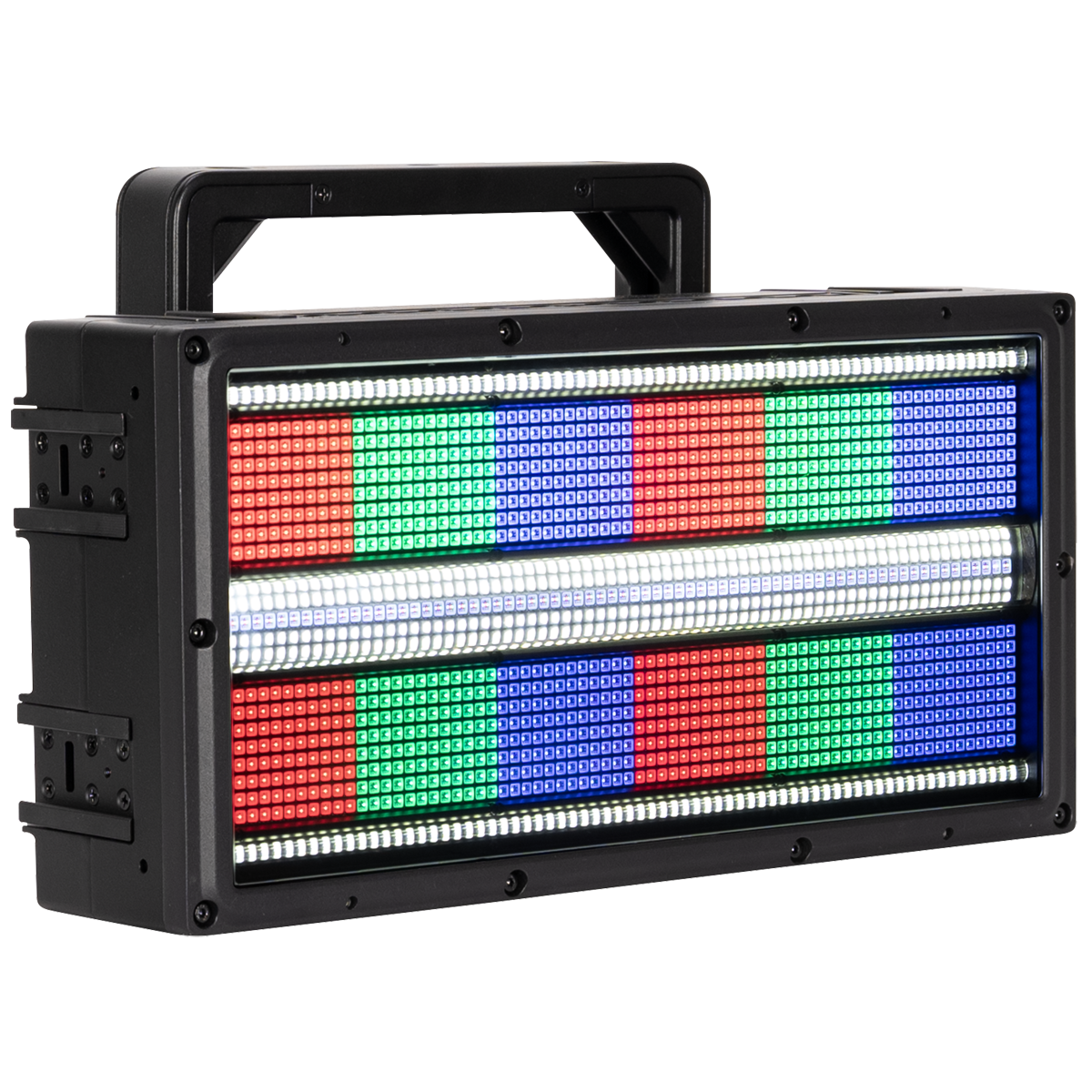

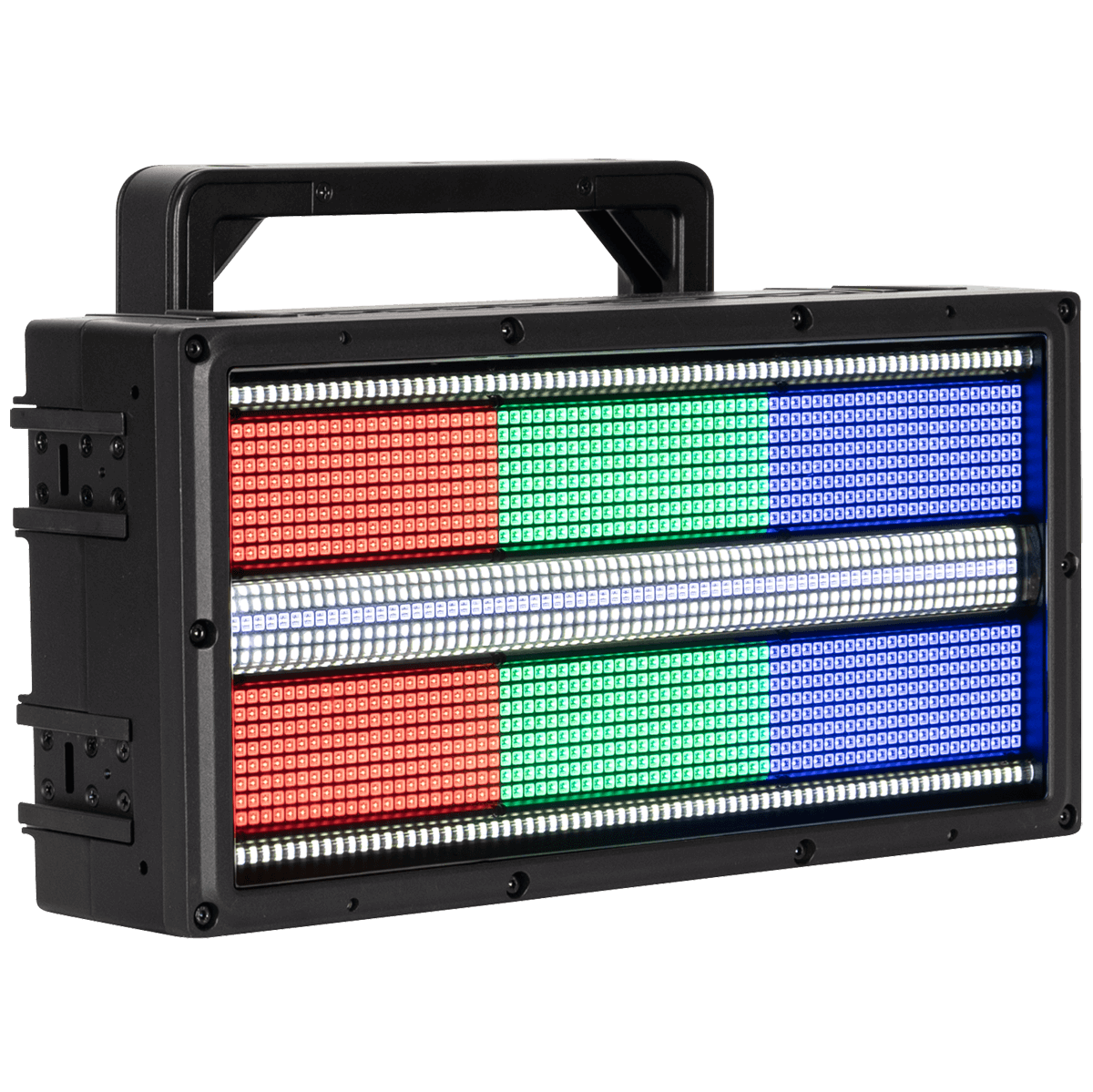

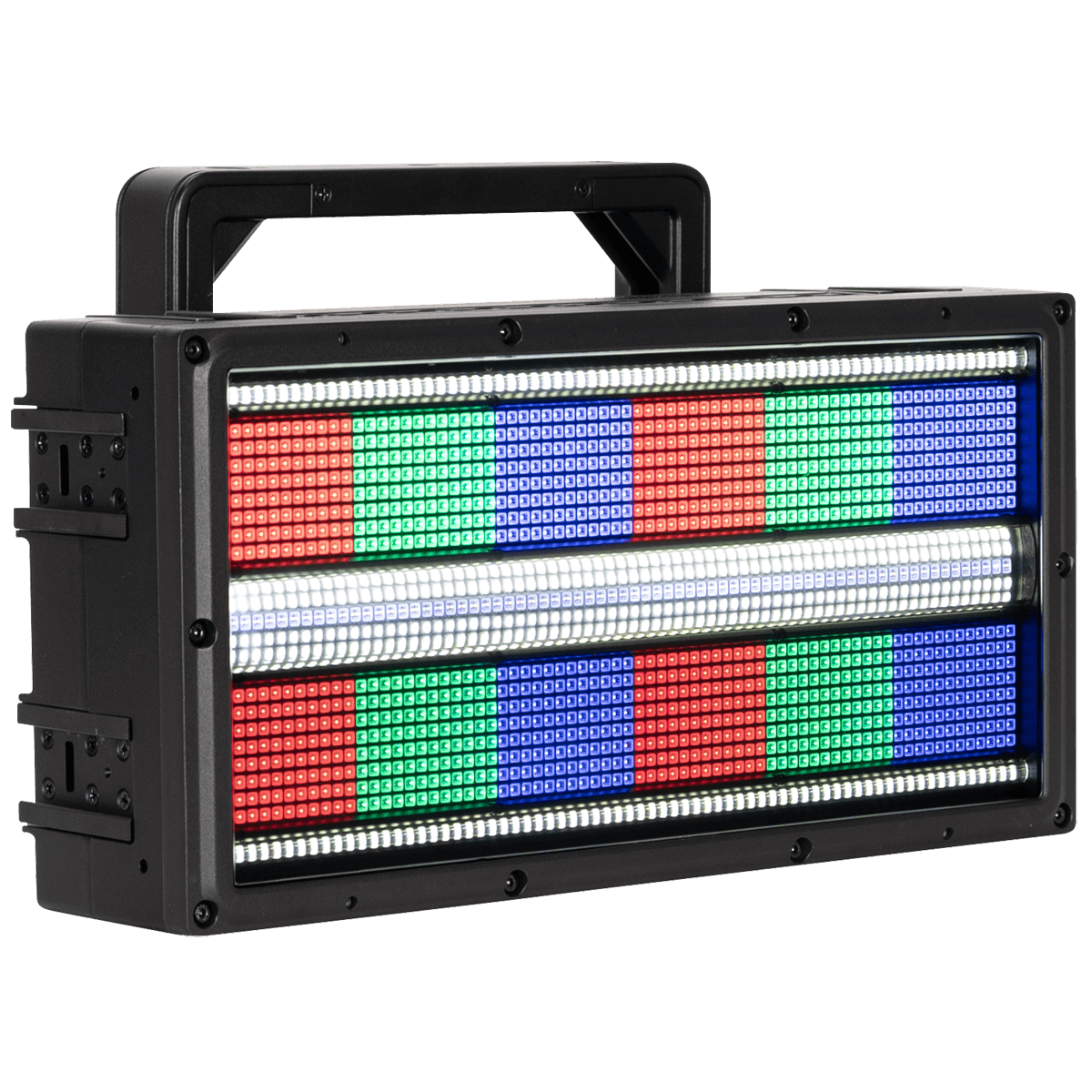

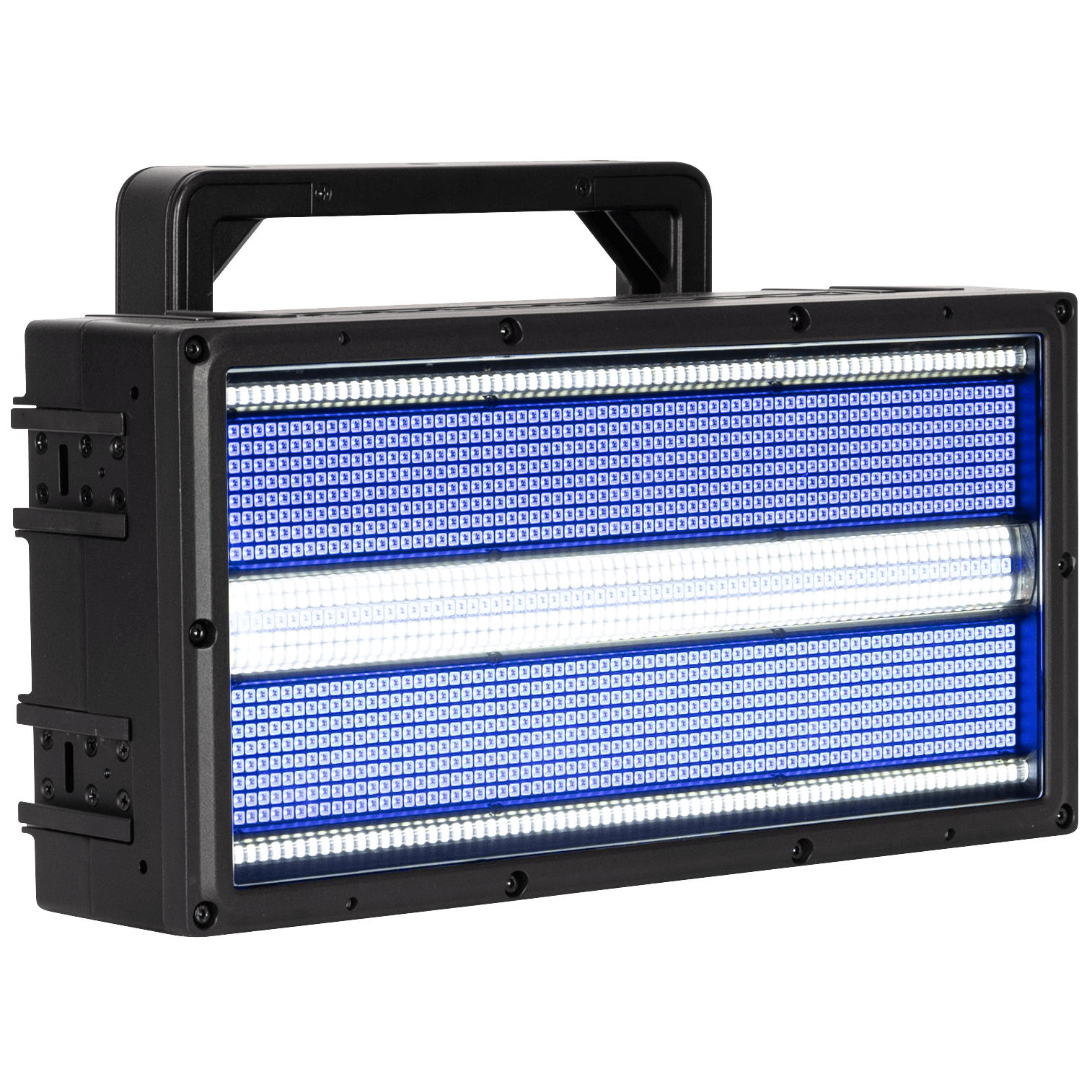

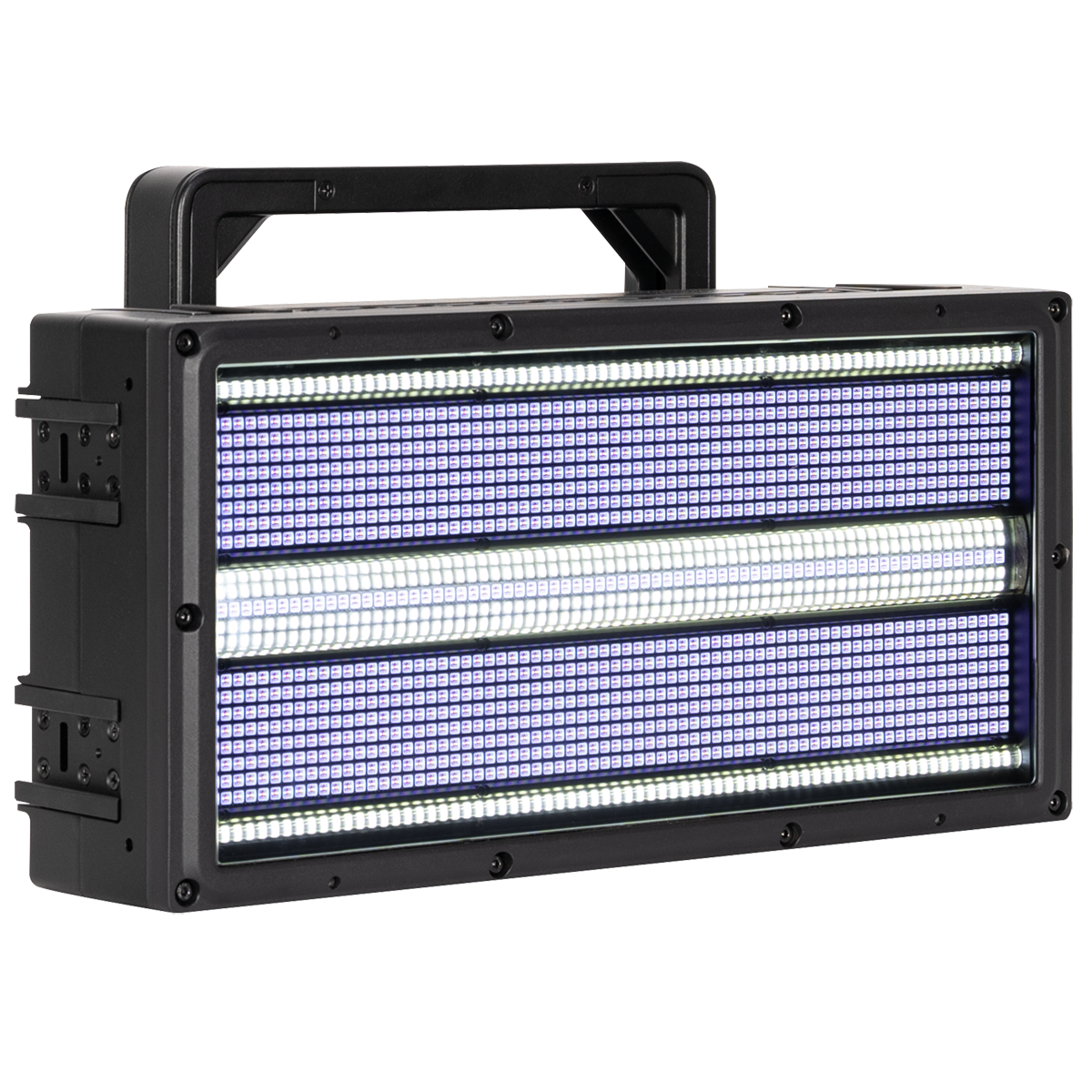

The PULSE PANEL features the same LED layout found on the Pulse Panel FX. 1,152 1.5W RGB LEDs spread across 24 zones around its perimeter, arranged in a grid of 6 zones wide and 4 zones tall. In addition to this, it includes a central strobe line comprising 288 5W cool-white LEDs organized into 24 zones, with 12 zones across and 2 zones tall. These are separated by a line of 96 1.5W RGB LEDs divided into 12 zones. Furthermore, there are 144 additional 5W cool-white LEDs divided into 24 zones, with 12 zones at the top and 12 at the bottom of the fixture's face. These outer LEDs utilize a linear prismatic lens similar to those used in our Rayzor Blade fixtures. When combined, these components deliver an astonishing output exceeding 100,000 total lumens.

PULSE PANEL also includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming. The PULSE PANEL offers the ability to mirror control of the external strobe lines and center RGB strobe line via DMX control channel, or the menu to make cloning easier.

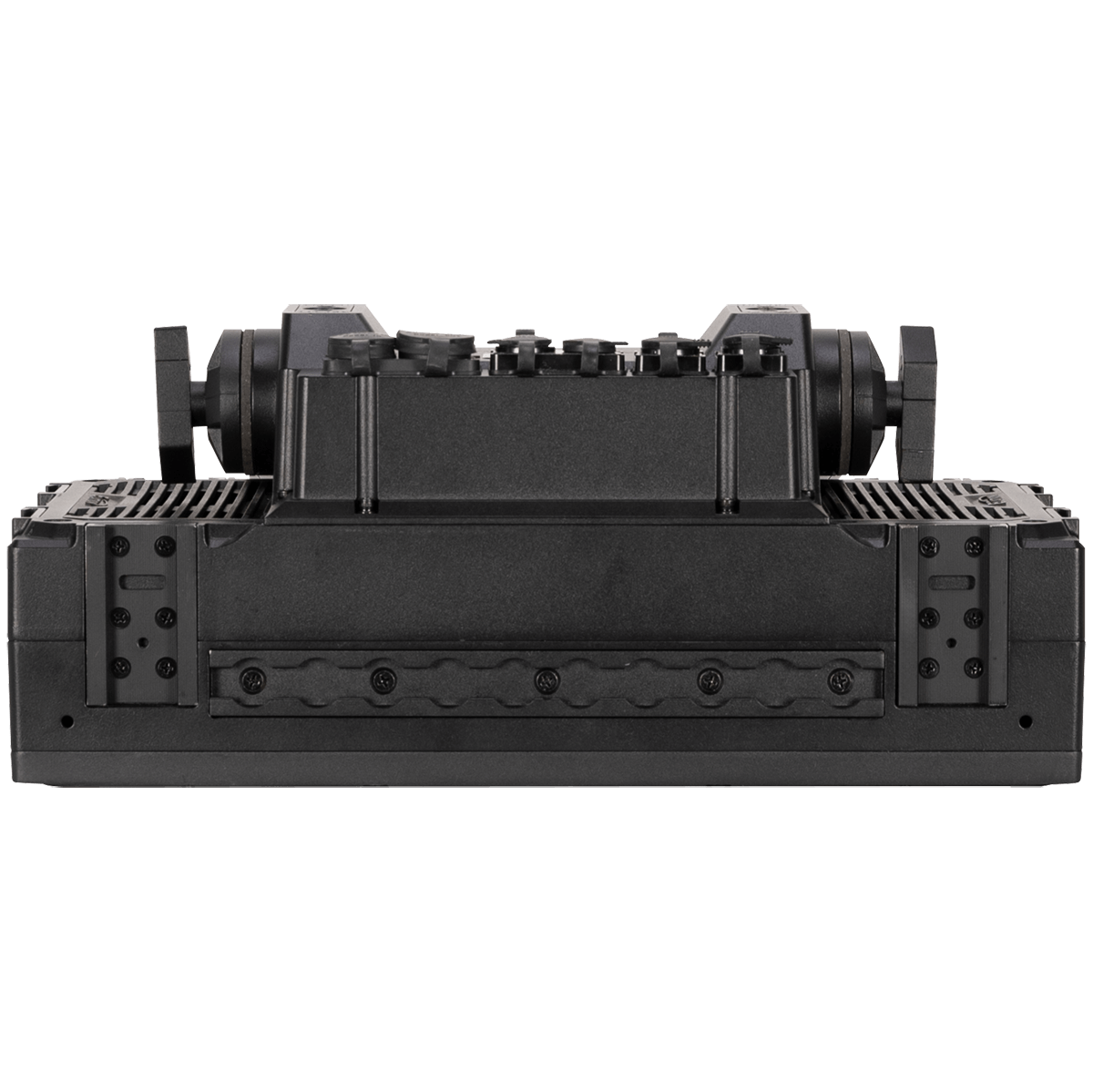

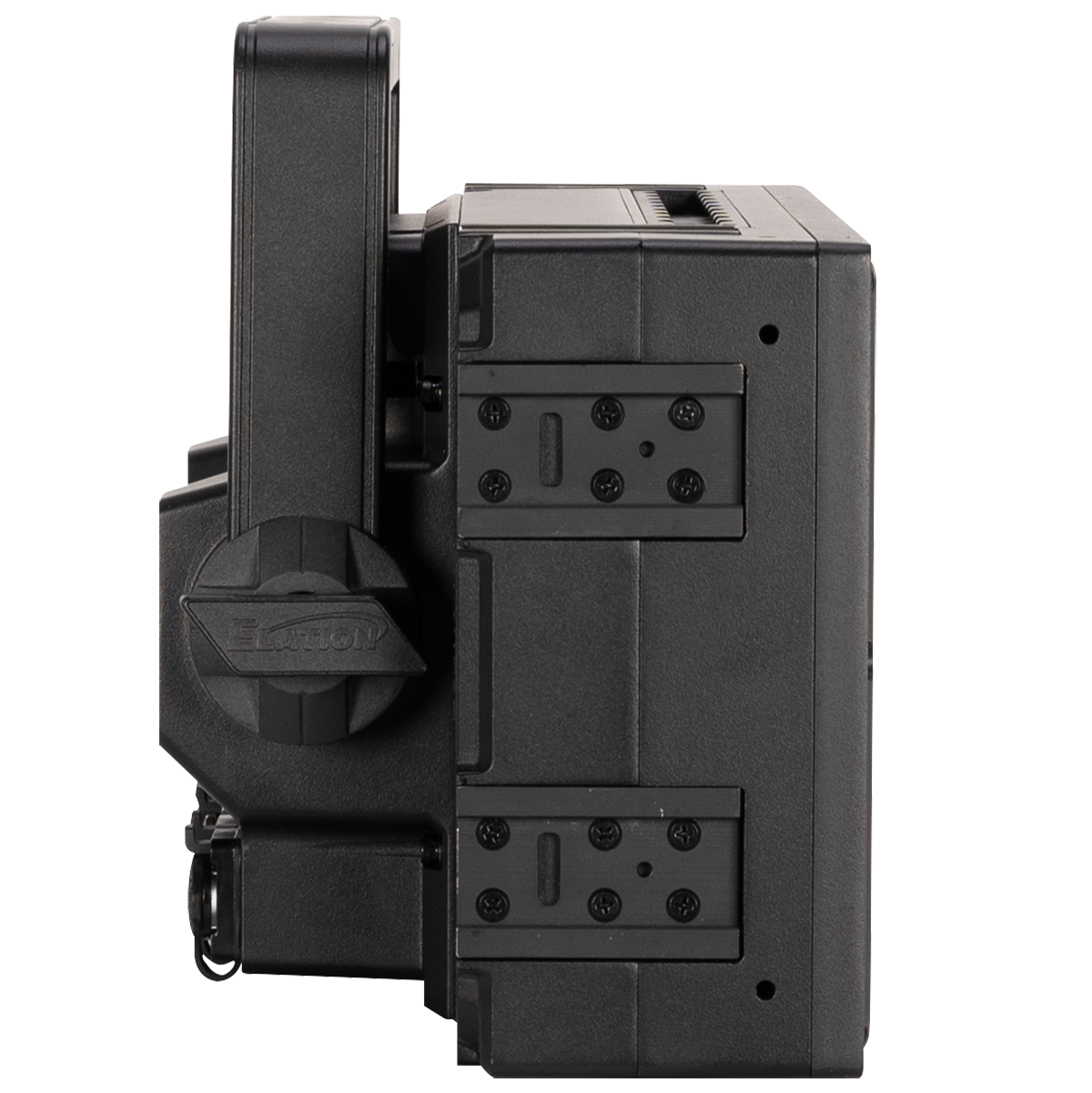

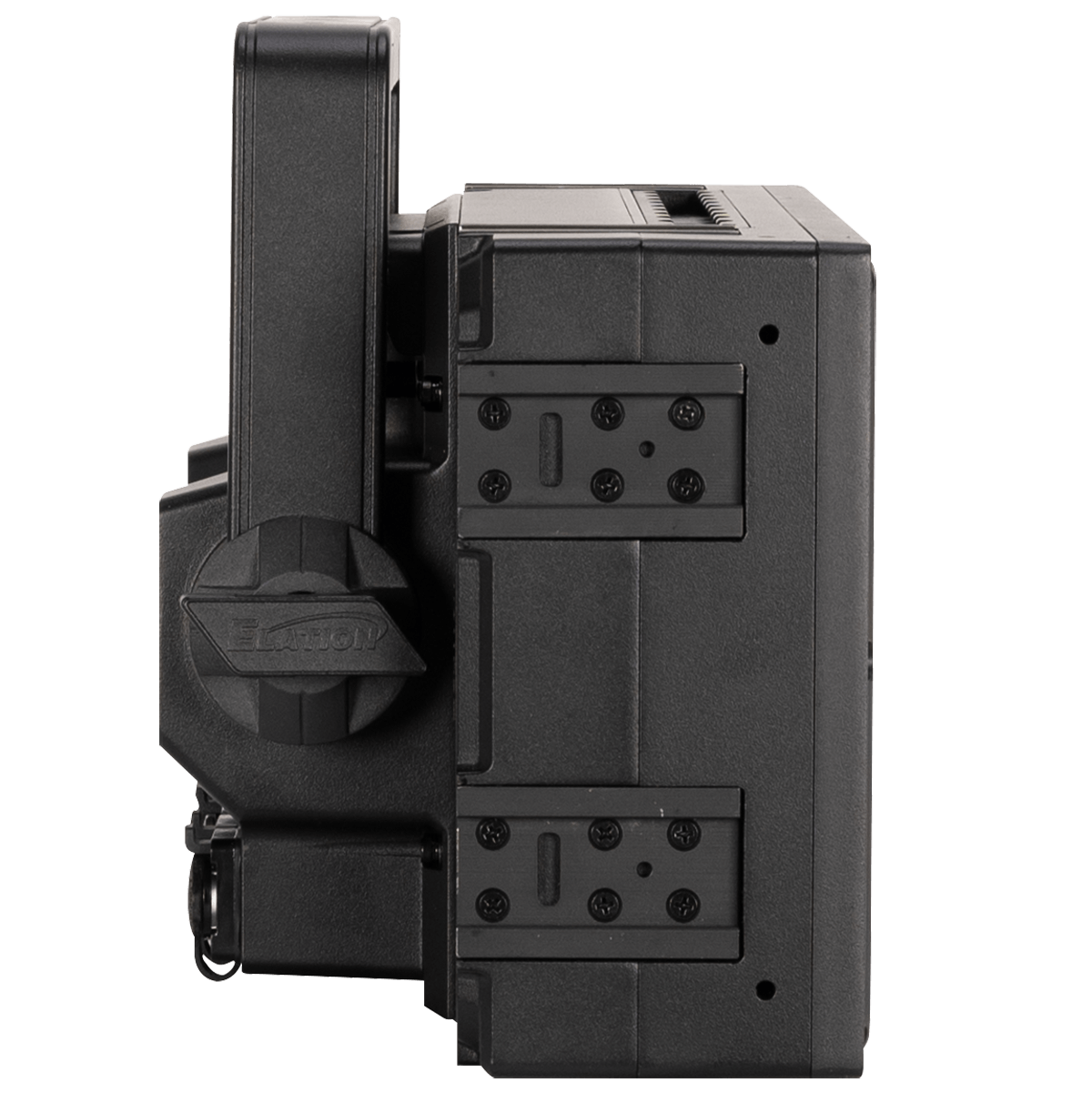

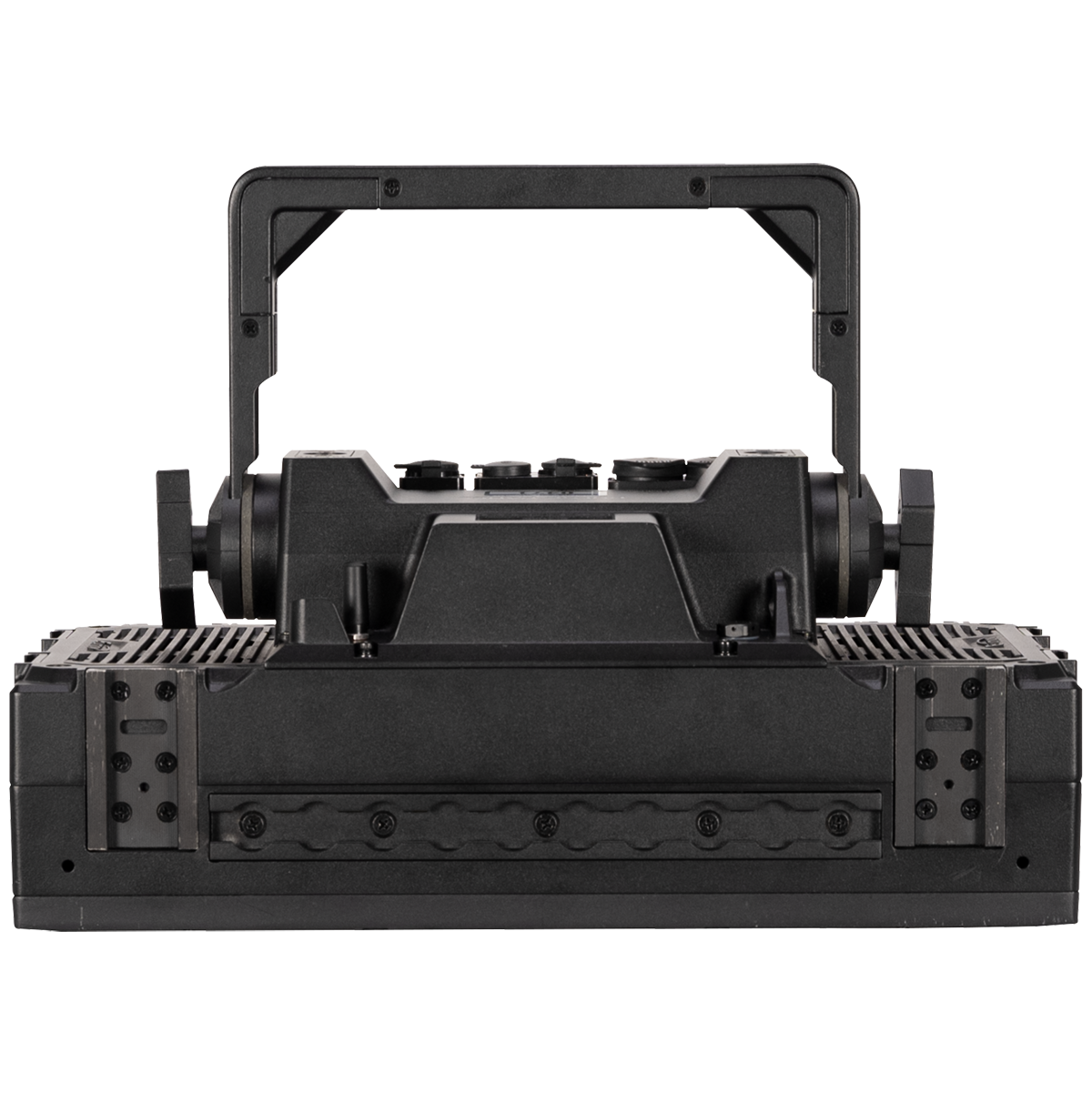

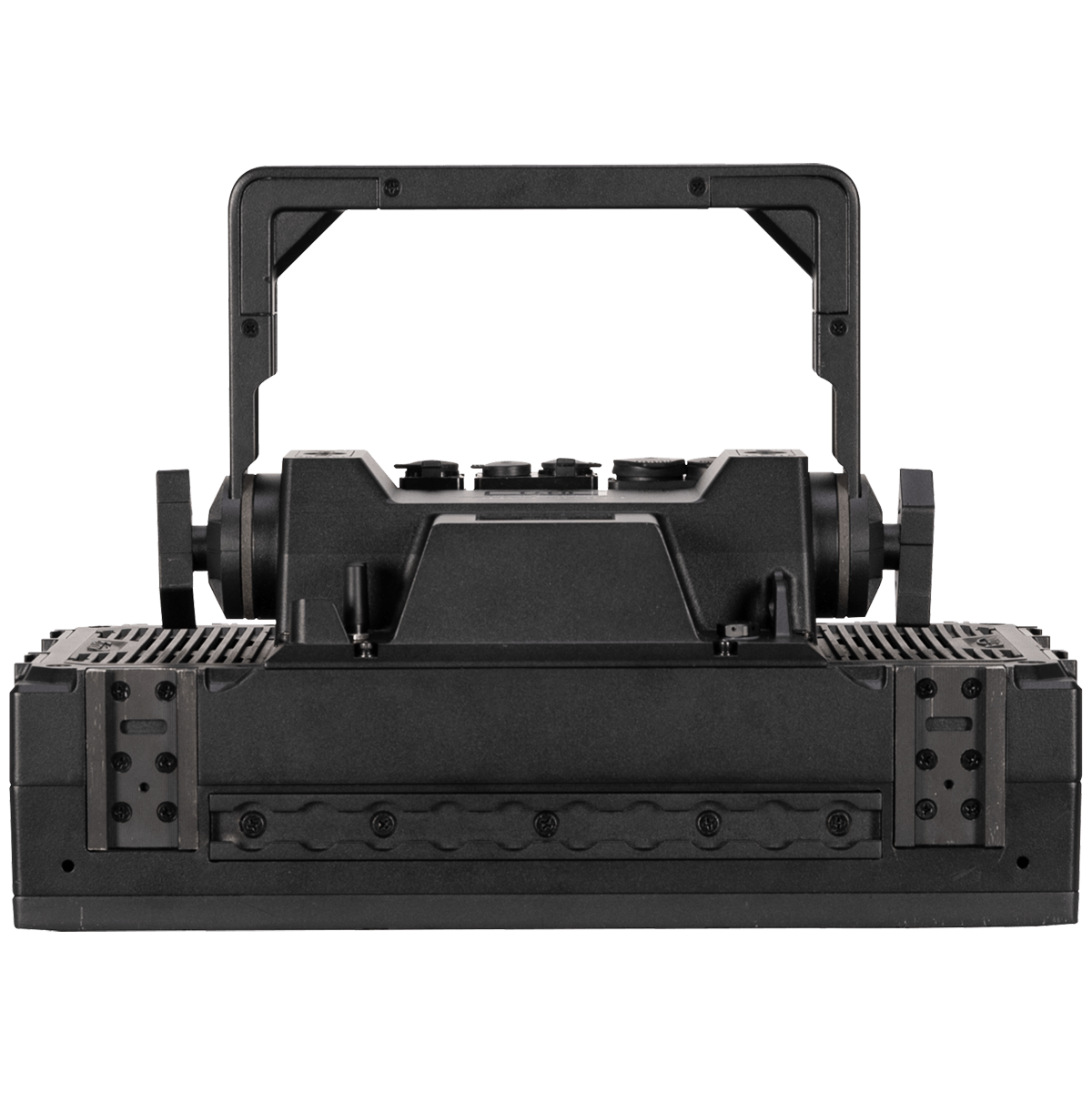

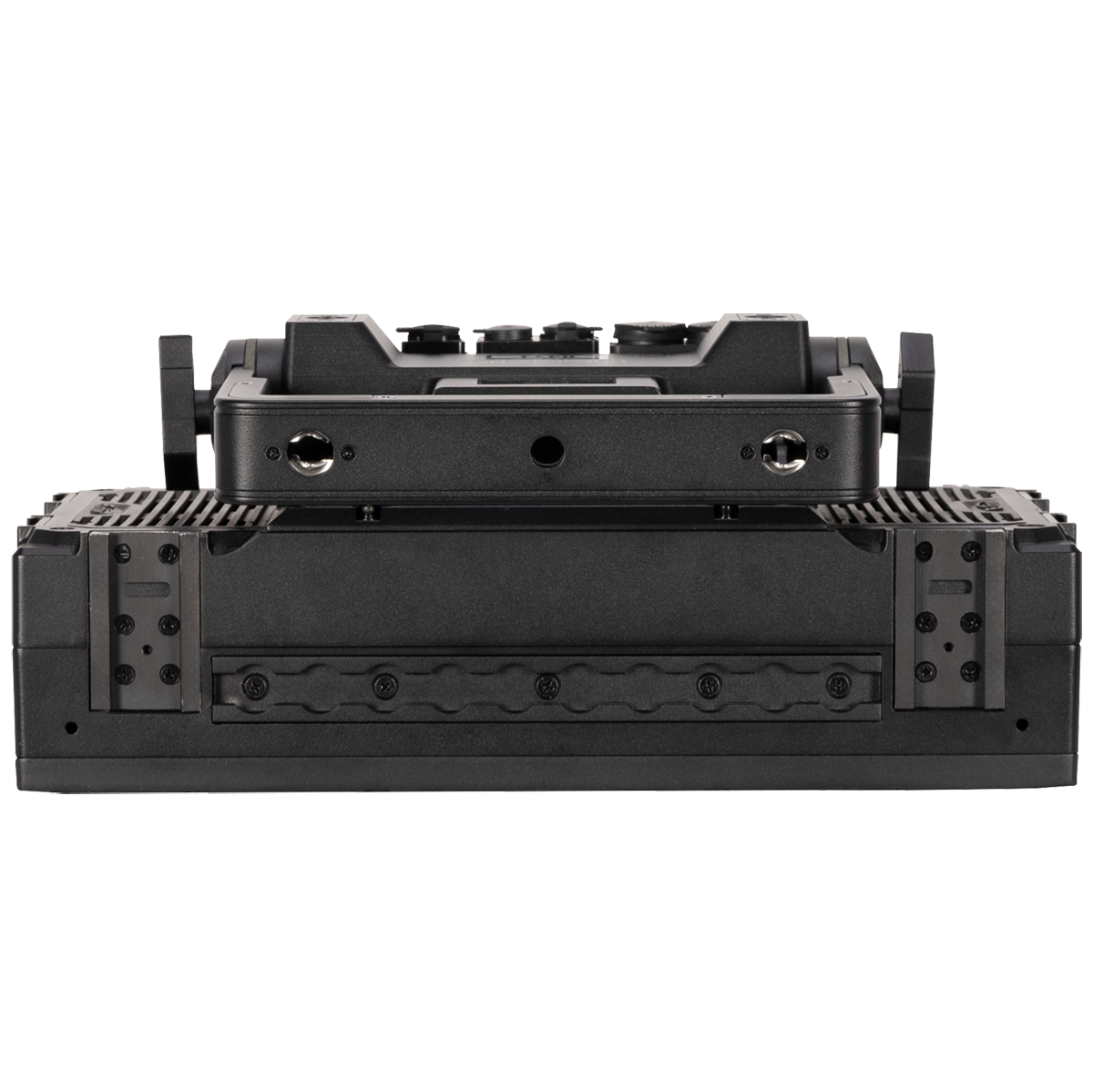

The PULSE PANEL is encased in a durable, fully IP65-rated housing, making it suitable for any environment, indoors or outdoors. The housing includes a unique interlocking mechanism to allow the unit to be hung vertically, or horizontally from other PULSE PANEL fixtures, or SŌL Blinder Frame arrays as well. The unit also integrates airline track on the top and bottom. The housing can accept optional diffusion filters, ND filters and other optics.

Controlled via DMX/RDM, it also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.

(1152) 1.5W RGB LED's in 24 Zones
(432) 5W CW Strobe LED's in 48 Zones
(96) 1.5W RGB StrobeLine LED's in 12 Zones
Unique Array Interconnection System
IP65 Rated

Specifications

SOURCE

(1248) 1.5W RGB LEDs

(432) 5W CW Strobe LEDs

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output:
Integrating Sphere:
All LED: 77,919 Lumens
CW LED:110,709 Lumens
RGB LED: 49,868 Lumens

CRI: >70

Beam Angle: 68°

Field Angle: 112°

EFFECTS

24 Zones of RGB Plate LEDs (6 x 4)

48 Zones of CW Strobe LEDs (12 x 4)

12 Zones of RGB StrobeLine LED's (12 x 1)

1- 20Hz Strobe Rate

Library of Customizable RGB and CW Strobe Effects

Variable Dimming Modes and Curves

COLOR

RGB Color Array

CONTROL / CONNECTIONS

9 DMX Channel Modes (3ch, 12ch, 22ch, 45ch, 60ch, 170ch, 88ch, 178ch, 156ch)

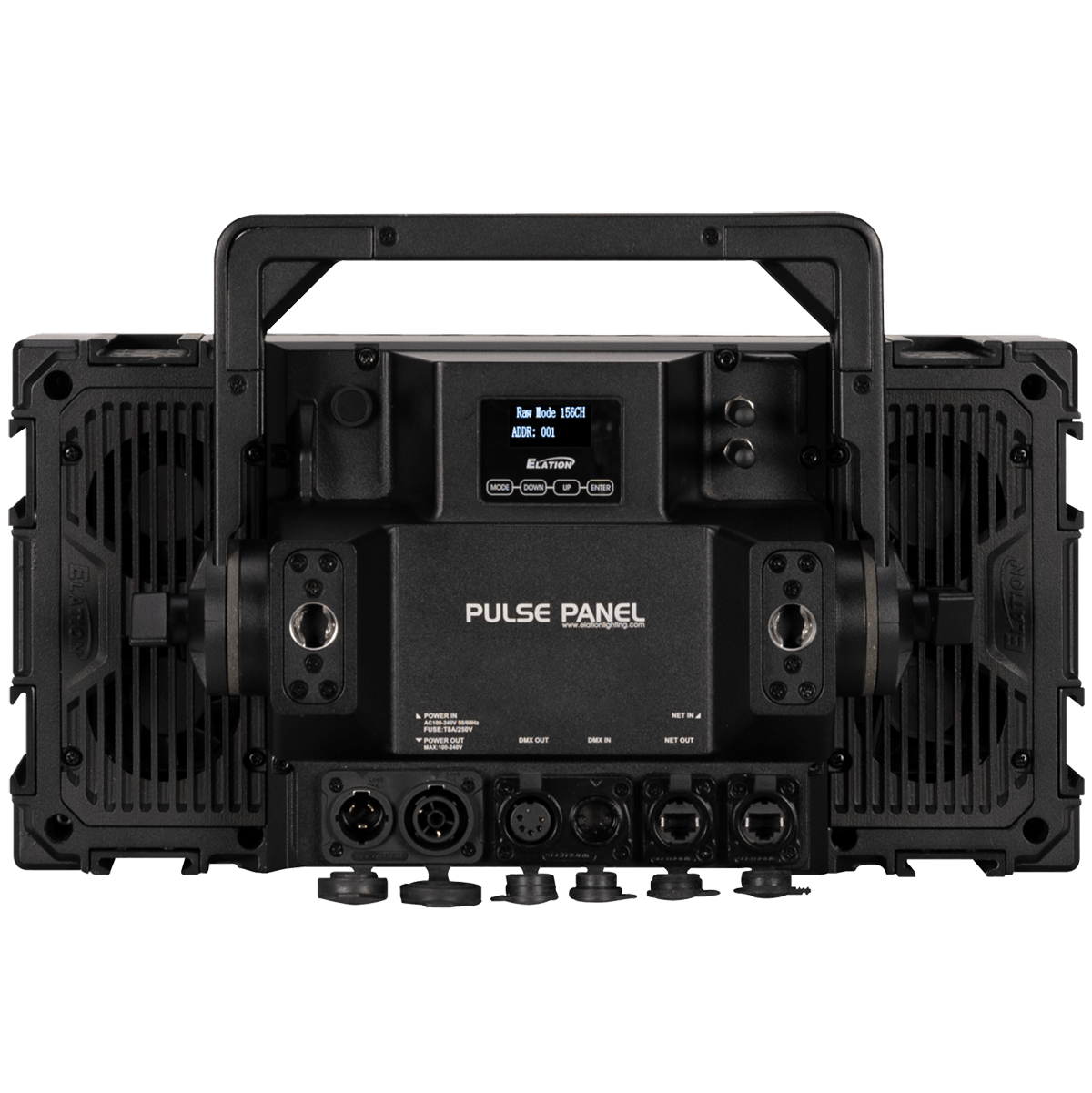

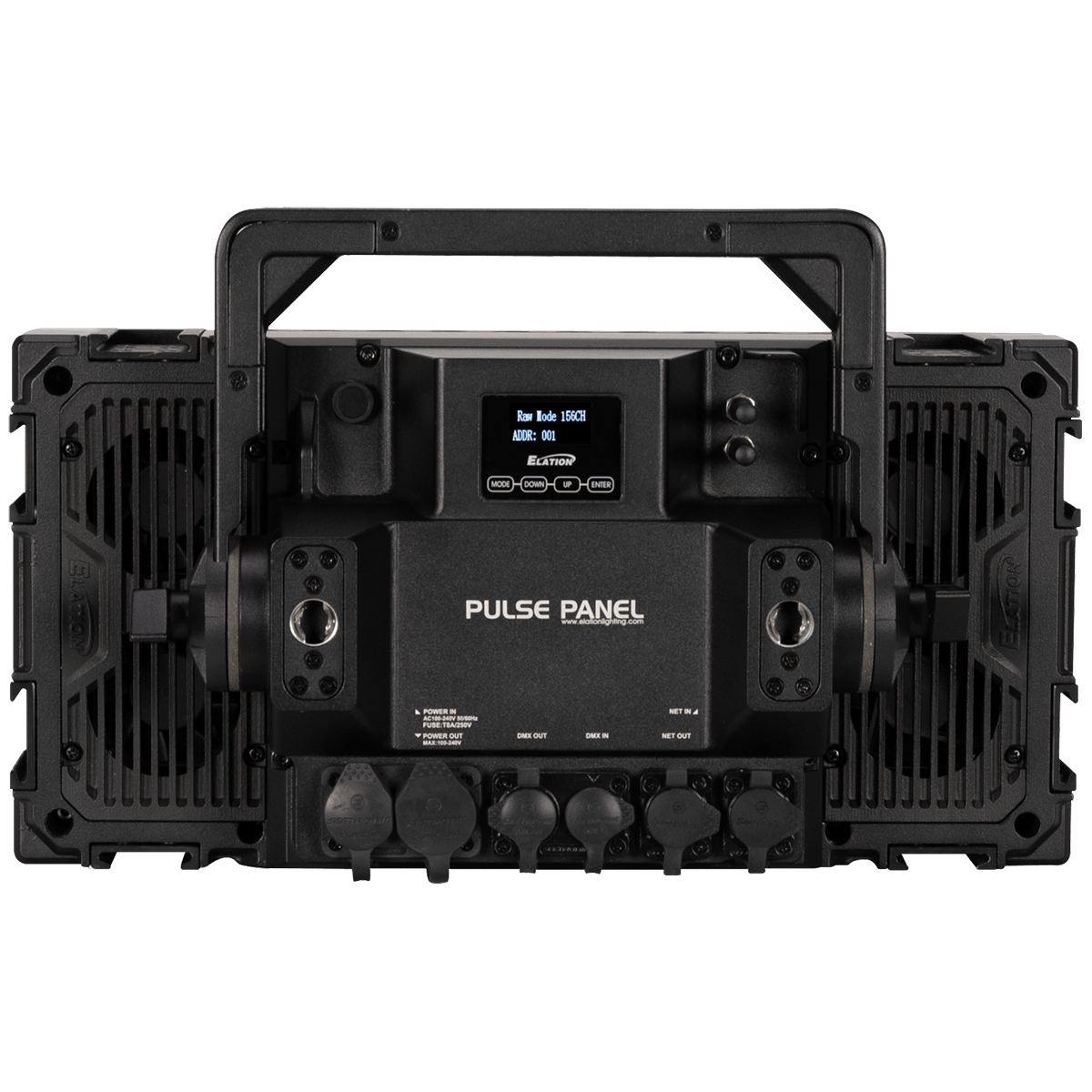

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

RDM (Remote Device Management)

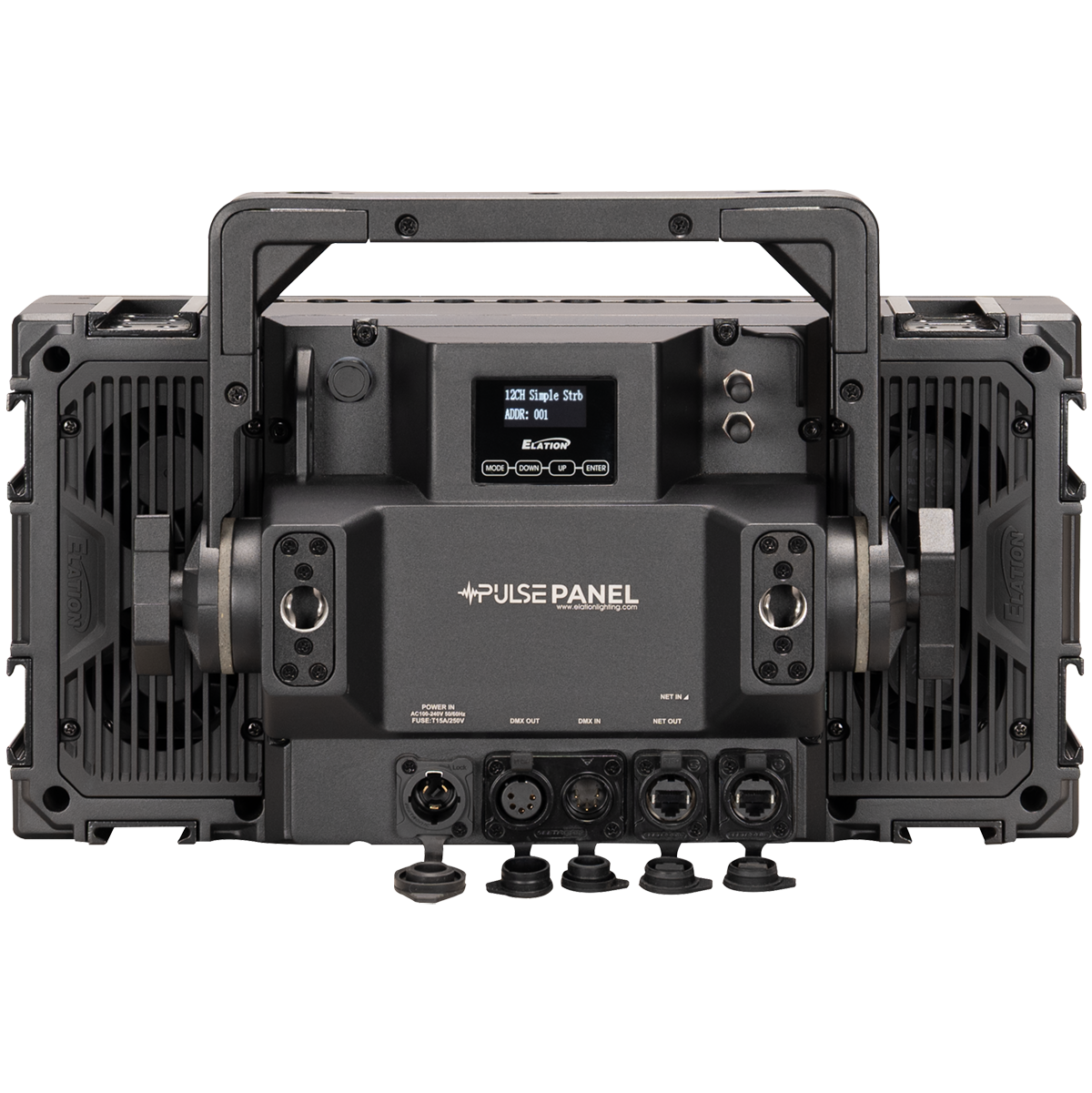

IP65 5pin XLR DMX In/Out

IP65 Locking Power Cable In

SIZE / WEIGHT

Length: 16.5 in (420mm)

Width: 11.8 in (299mm)

Height: 8.3 in (210mm)

Weight: 29.5 lbs. (13.4kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

Max Power Consumption 1400W

-4°F to 113°F (-20°C to 45°C)

BTU/hr (+/- 10%) 4774

INCLUDED ITEMS

Safety Cable

IP65 Locking Power Cable

2x Fixture Interconnect Splice

OPTIONAL ITEMS

SŌL/PULSE HD Yoke (SPHDY)
Fixture Interconnect Splice Package (FISP06)

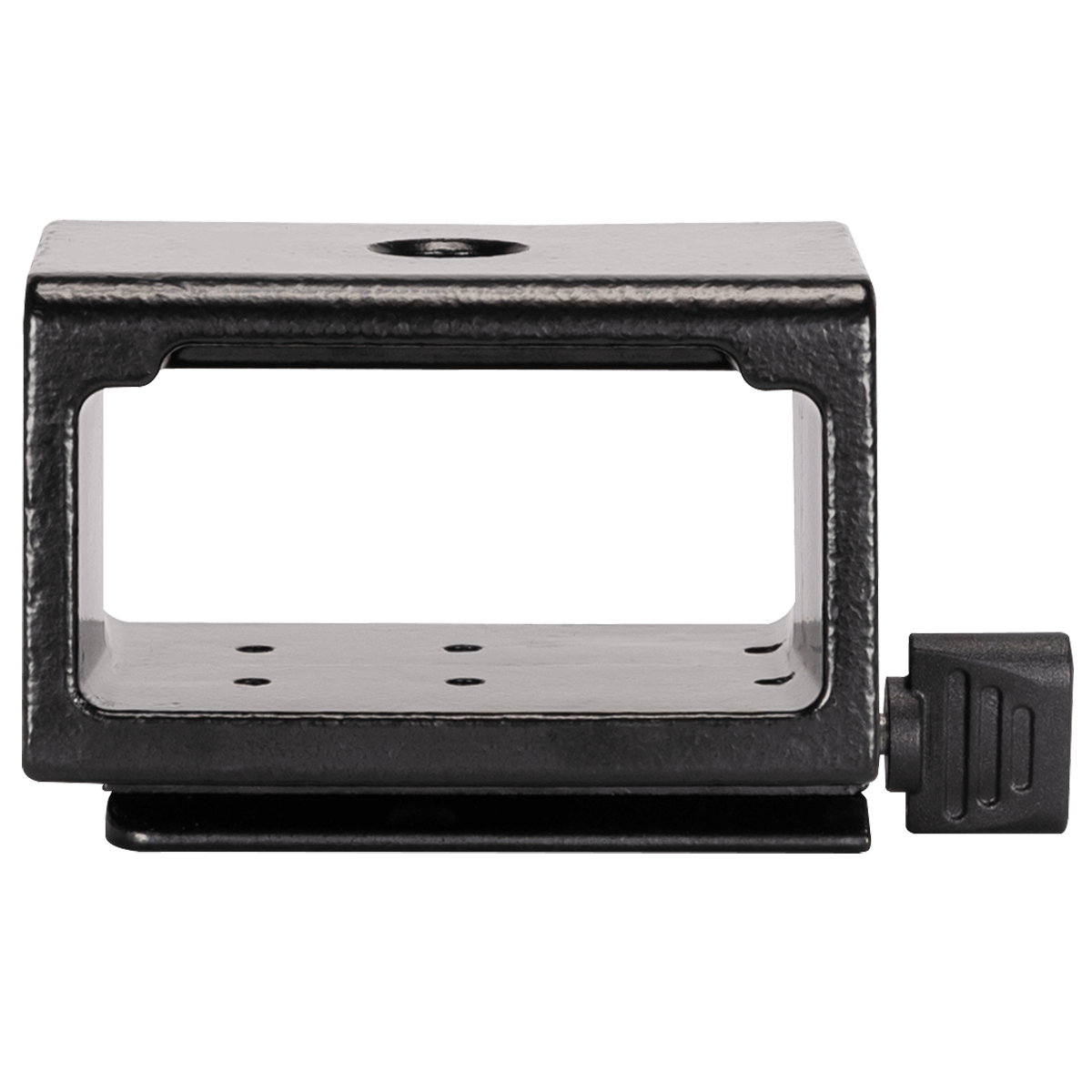

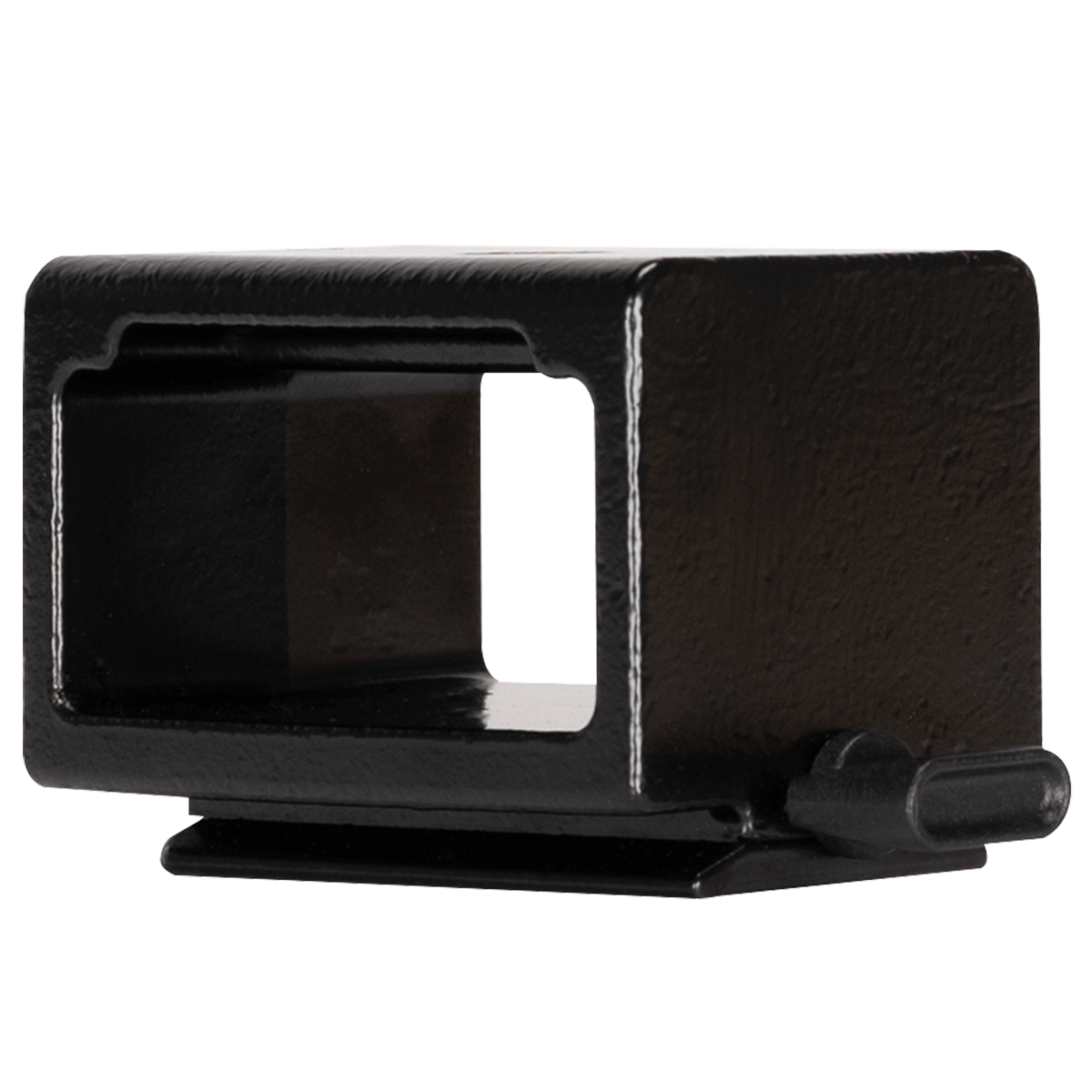

Interconnect Clamp Adapter (FICA01)
PULSE PANEL Frost (PPL101)
PULSE PANEL Black Lens (PPL202)
50501990448 (180mm Zinc Omega Bracket)

APPROVALS / RATINGS

CE | cETLus | IP65 | FCC | UKCA

FIRMWARE UPDATE

Current Update:

Specifications and documentation subject to change without notice.

Downloads

Cad drawing

How do they compare?

Find the option that is right for you and your production.

PULSE PANEL

PULSE PANEL FX

PULSE BAR S

PULSE PANEL

PULSE PANEL FX

PULSE BAR S

Total Lumens

77919

78265

10400

Color System

Blue
Cold White
Green
Red

—

Blue
Green
Red
White

Framing

No

No

No

Beam Angle

0° - 68°

—

IP Rating

65

Weight

29.5 lbs

38.58 lbs

15.9 lbs

MAX Power Consumption

1400

1750

750

Size (In Inches)

16.5 x 11.8 x 8.3

8.28 x 16.54 x 15.59

19.7 x 7.9 x 8.11
