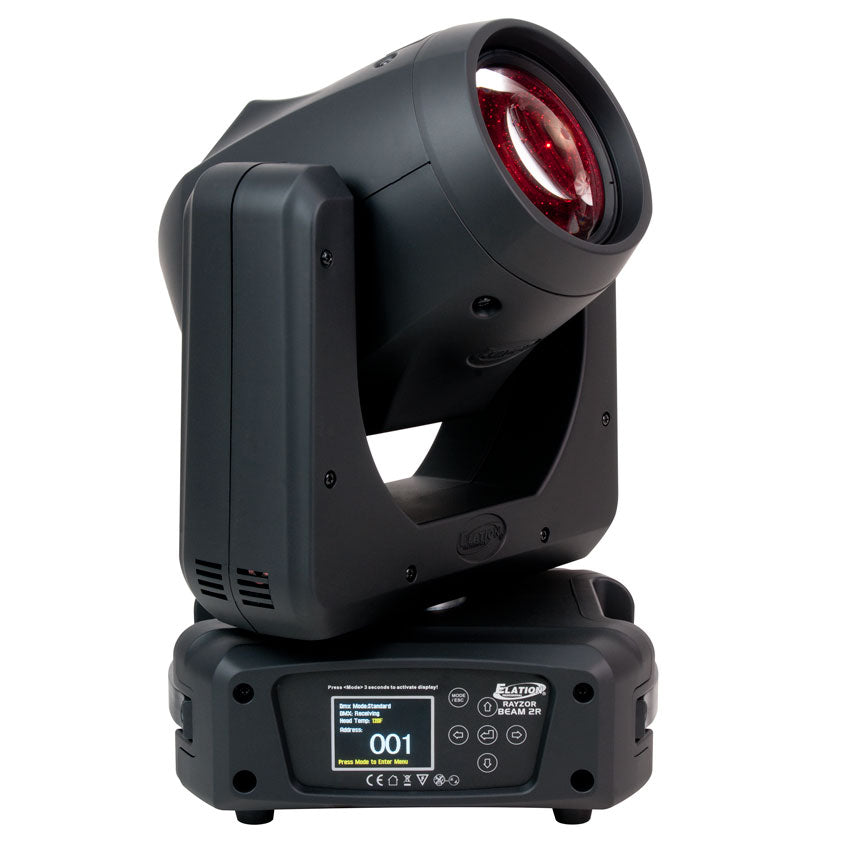

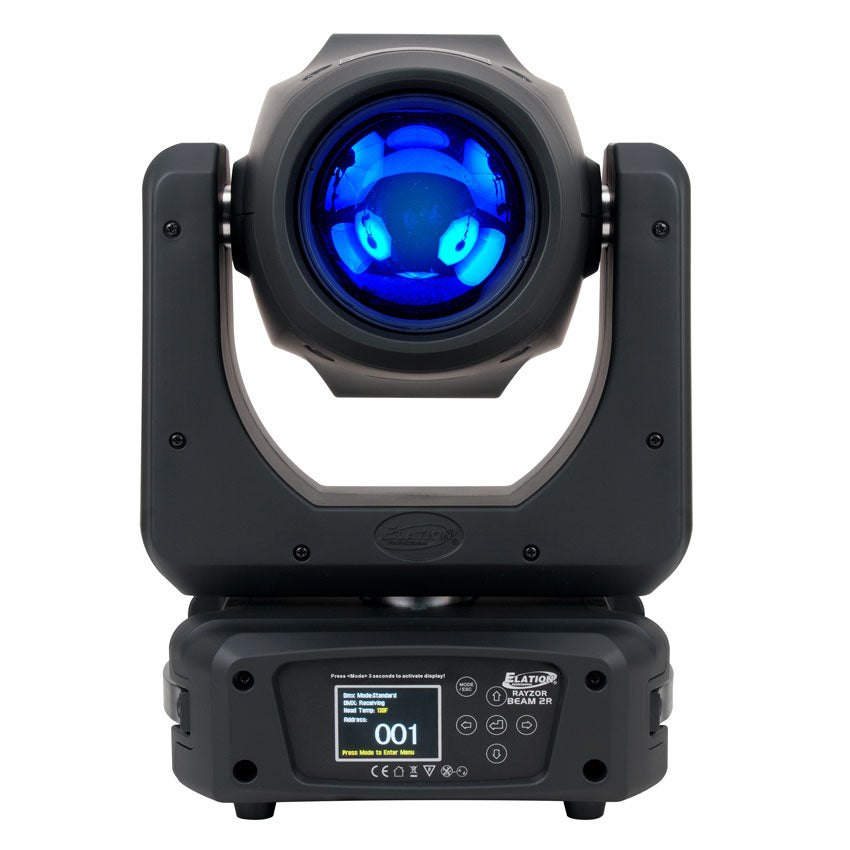

RAYZOR BEAM 2R
Rayzor Beam 2R is a professional-grade lighting solution.
RAYZOR BEAM 2R
The Rayzor Beam 2R™ features the 132W Platinum 2R lamp, 3° sharp narrow beam, 8 facet rotating prism, super fast 16 bit 3-phase pan/tilt motors, variable strobe and 0-100% dimming, (13) dichroic colors including UV, CTO, CTB, plus white, (14) static gobos including (6) multi-sized beams, flicker free operation for TV and FILM, remote device management protocol support, 5pin in/out DMX and Locking Power in/out connections, (6) button touch control panel, 230W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
The Rayzor Beam 2R™ features the 132W Platinum 2R lamp, 3° sharp narrow beam, 8 facet rotating prism, super fast 16 bit 3-phase pan/tilt motors, variable strobe and 0-100% dimming, (13) dichroic colors including UV, CTO, CTB, plus white, (14) static gobos including (6) multi-sized beams, flicker free operation for TV and FILM, remote device management protocol support, 5pin in/out DMX and locking power in/out connections, (6) button touch control panel, 230W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
- FEATURES
- 3° Sharp Narrow Beam
- Super Fast 16 bit 3-Phase Pan and Tilt Motors
- CTO and CTB Color Correction
- Flicker Free Operation for TV and FILM
- Remote Device Management Protocol Support
Specifications
132W Platinum 2R Lamp
6,000 Hour Average Life
PHOTOMETRIC DATA
49,470 LUX 4596 FC @42.9’ (15M) / 7,500K, gt;75 CRI
EFFECTS
8 Facet Rotating Prisms and Macros
Variable Strobe Settings
Dimming: 0% - 100%
COLOR
(13) Dichroic Colors Including UV, CTO, CTB + White
GOBOS
(14) Static Gobos Including (6) Multi-Sized Beams
CONTROL / CONNECTIONS
(3) DMX Channel Modes (10/12/16)
Remote Device Management
Pan Movement: 540°/630° / Tilt Movement: 270°
6 Button Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit 3-Phase Pan/Tilt Motors

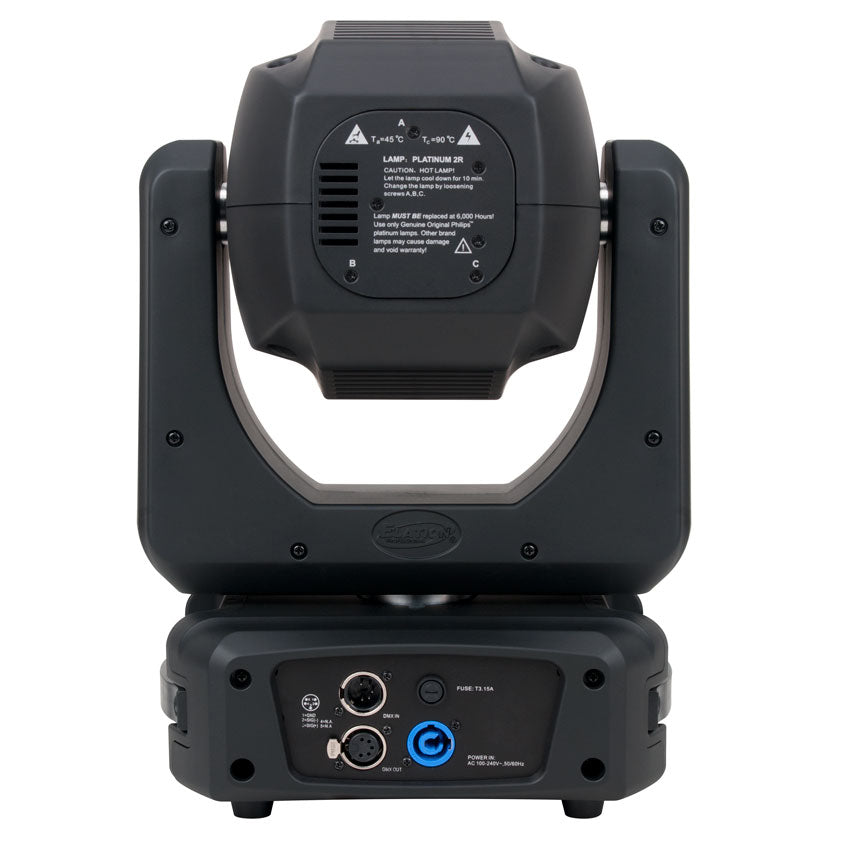

5pin DMX In/Out
Locking power In
SIZE / WEIGHT
Length: 11.6” (295mm)
Width: 9.6” (245mm)
Vertical Height: 16.6” (421mm)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
210W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION
Rigging: Omega Bracket
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(1) Omega Bracket
(1) 5pin XLR Cable
OPTIONAL ACCESSORIES:
6-PACK ROAD CASE(click for more info)
CLAMPS(click for more info)
PRO CABLES(click for more info)
DMX SOLUTIONS(click for more info)
Specifications and documentation subject to change without notice.
