RAYZOR Q12 ZOOM
Discontinued
Rayzor Q12 Zoom is a professional-grade lighting solution.
RAYZOR Q12 ZOOM
Sale price$0.00
Related Products
RAYZOR Q12 ZOOM

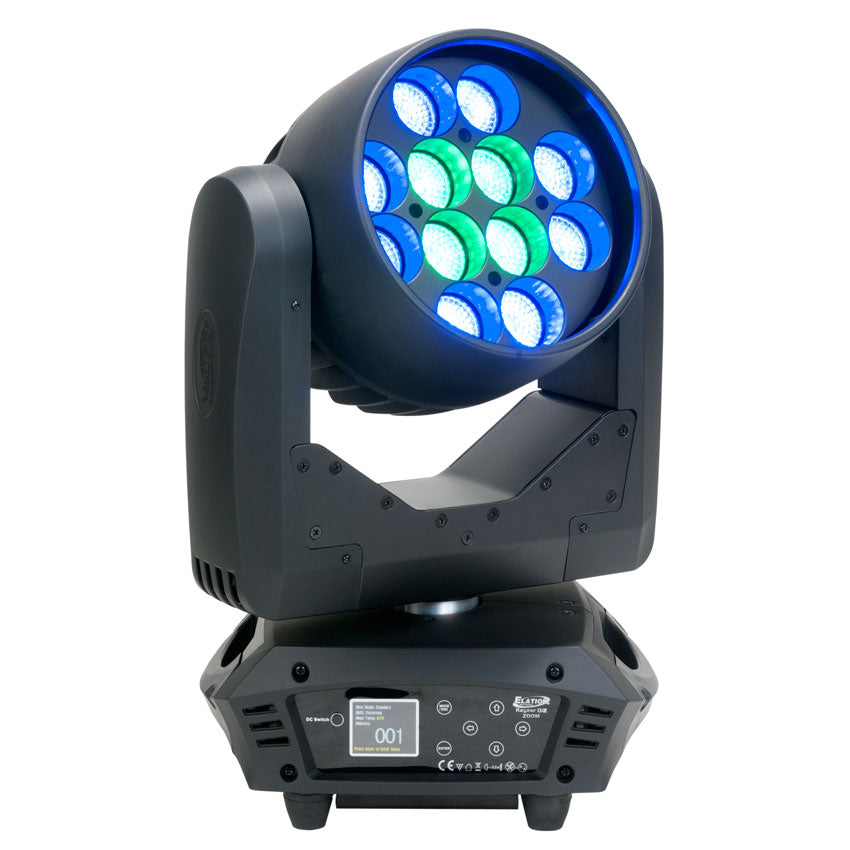

The new Rayzor Q12 Zoom™ is a compact and fast wash lluminare featuring (12) 15W Quad Color RGBW LEDs, 13° to 29° motorized zoom, RGBW color mixing and color macros, variable color temperatures (2,700K - 8,000K) and dimming modes, multiple pixel zone control and chase effects, 16bit 3-phase motors, 5pin DMX and powerCON in/out connections, RDM (remote device management), flicker free operation for broadcast TV and FILM, (6) button control full color 180° reversible menu display, 260W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Compact and Fast Zoom Wash LED Illuminare
- 13° - 29° Motorized Zoom
- RGBW Color Mixing and Color Macros
- Variable Color Temperatures (2,700K - 8,000K)
- Variable Dimming Modes
- Multiple Pixel Zone Control and Chase Effects
- 16bit 3-Phase Motors
- RDM - Remote Device Management
- Flicker Free Operation for Broadcast TV and FILM
Specifications
SOURCE
(12) 15W Quad Color RGBW LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA
Distance @8.2 ft (2.5m)
5,680 LUX 528 FC (13deg; Min Zoom Full ON)
3,200 LUX 297 FC (13deg; Min Zoom WHITE LEDs Full ON)
806 LUX 75 FC (29deg; Max Zoom Full ON)
470 LUX 44 FC (29deg; Max Zoom WHITE LEDs Full ON)
EFFECTS
Multiple Pixel Zone Control
Color Macro and Chase Effects
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Modes
COLOR
RGBW Color Mixing
Variable Color Temperatures (2,700K - 8,000K)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 20/ 28)
RDM (Remote Device Management)

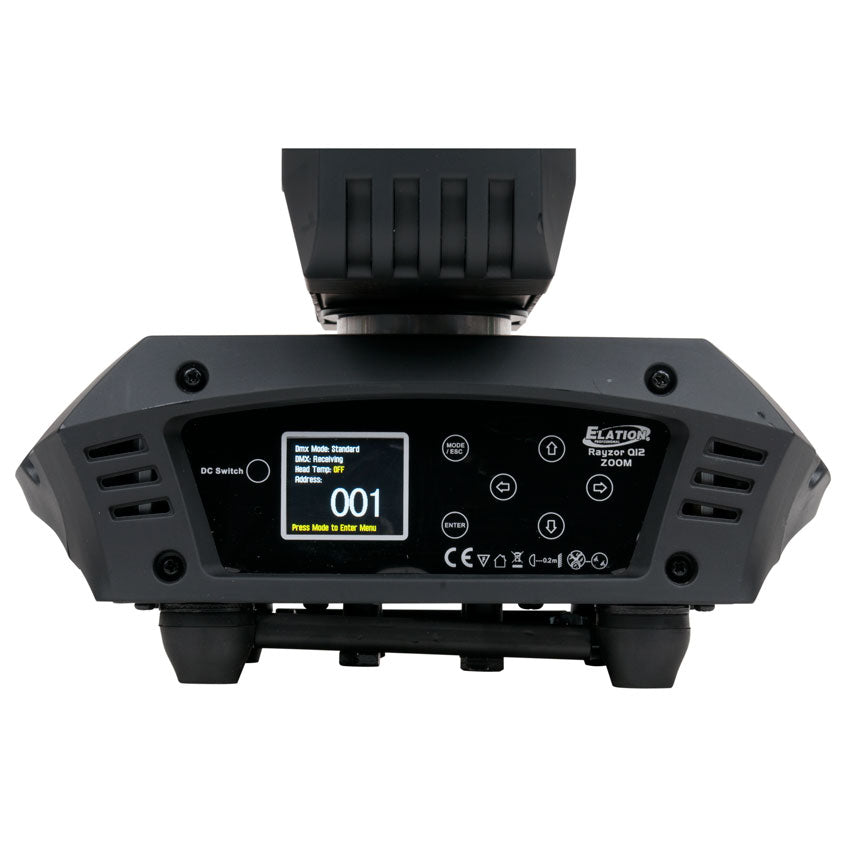

6 Button Touch Control Panel
Full Color 180deg; Reversible LCD Menu Display
16 Bit 3-Phase Motors
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
powerCON Power In/Out
SIZE / WEIGHT
Length: 11.9" (302mm)
Width: 8.4" (214mm)
Vertical Height: 17.1" (434)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
260W Max Power Consumption
-13deg;F to 113deg;F (-25deg;C to 45deg;C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180deg;)
INCLUDED ITEMS
Omega Brackets
5pin DMX Cable
Safety Cable
powerCON Cable
Specifications and documentation subject to change without notice.
(12) 15W Quad Color RGBW LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA
Distance @8.2 ft (2.5m)
5,680 LUX 528 FC (13deg; Min Zoom Full ON)
3,200 LUX 297 FC (13deg; Min Zoom WHITE LEDs Full ON)
806 LUX 75 FC (29deg; Max Zoom Full ON)
470 LUX 44 FC (29deg; Max Zoom WHITE LEDs Full ON)
EFFECTS
Multiple Pixel Zone Control
Color Macro and Chase Effects
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Modes
COLOR
RGBW Color Mixing
Variable Color Temperatures (2,700K - 8,000K)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 20/ 28)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180deg; Reversible LCD Menu Display
16 Bit 3-Phase Motors
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
powerCON Power In/Out
SIZE / WEIGHT
Length: 11.9" (302mm)
Width: 8.4" (214mm)
Vertical Height: 17.1" (434)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
260W Max Power Consumption
-13deg;F to 113deg;F (-25deg;C to 45deg;C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180deg;)
INCLUDED ITEMS
Omega Brackets
5pin DMX Cable
Safety Cable
powerCON Cable
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
- Rayzor Q12 Zoom 13° Photometric Test Report
- Rayzor Q12 Zoom 29° Photometric Test Report
- Rayzor Q12 Zoom Photometric Data
