RDM6 IP


6-Port IP66 DMX RDM Splitter

RDM6 IP is a professional-grade lighting solution. The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

UPC: 810008264232SKU: NIP101

RDM6 IP

The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

  • IP66 DMX Data Splitter
  • (6) XLR 5pin outputs
  • DMX and RDM compliant
  • Optically isolated ports
  • Power / DMX Thru connectors
  • Powder-coated aluminum chassis
  • For technical details and documentation of NETRON devices please visit
  • https://obsidiancontrol.com/netron

Specifications

Mounting
Standalone
Truss-mount (M10 or M12)
Wall-mount

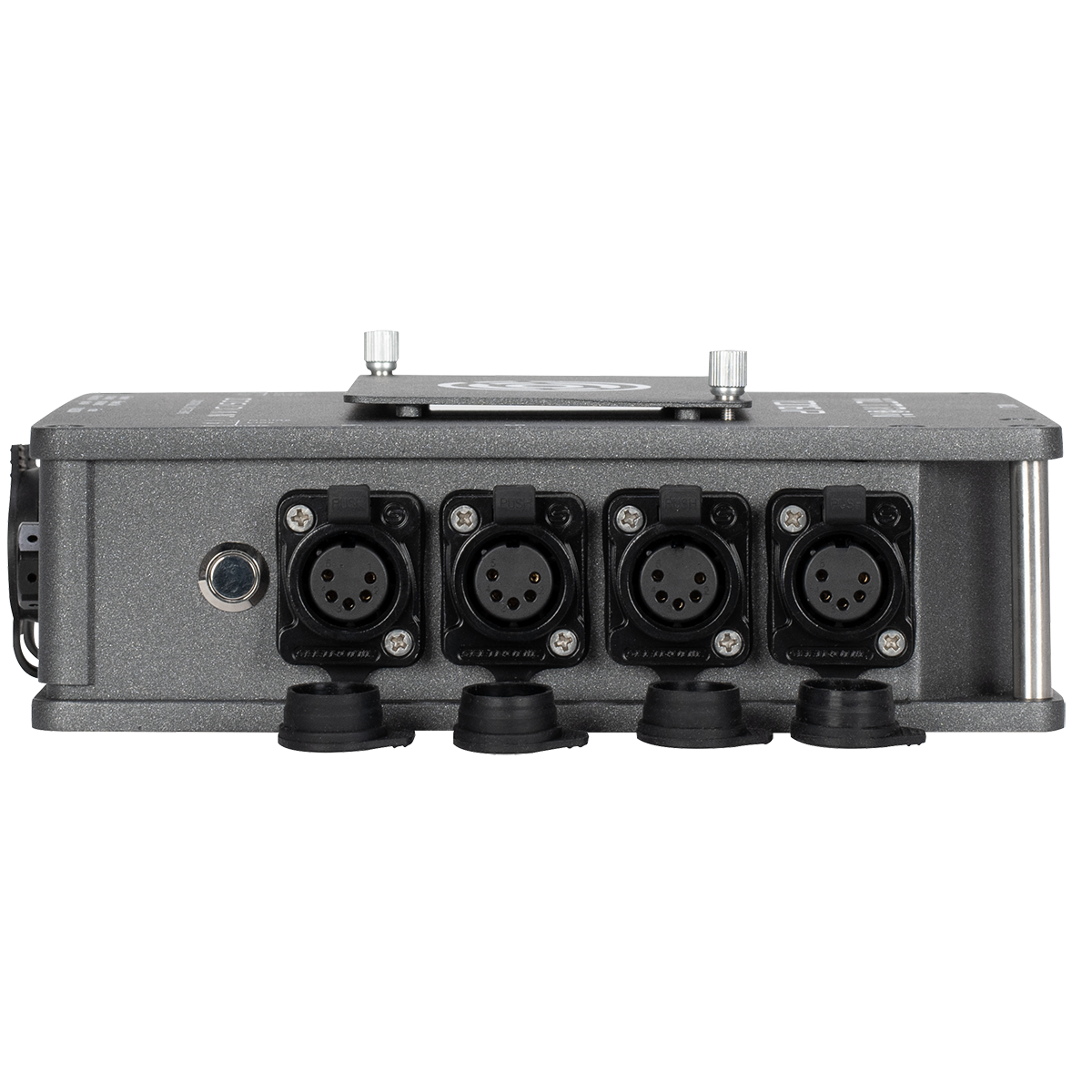

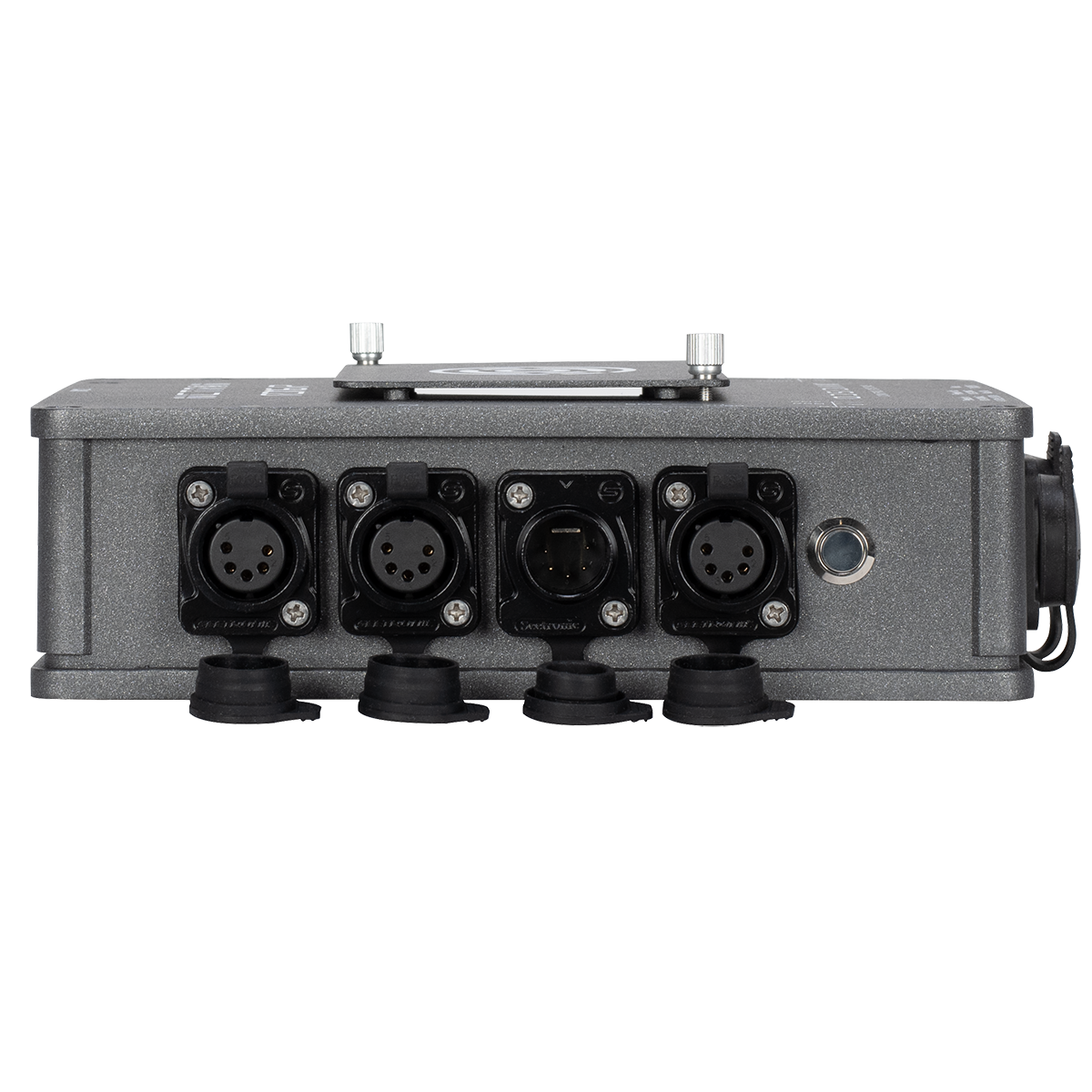

Sides
(1) 5pin IP66 DMX In
(1) 5pin IP66 DMX Thru
(6) 5pin IP66 DMX/RDM optically isolated ports
DMX Termination Button
RDM Enable / Disable Button

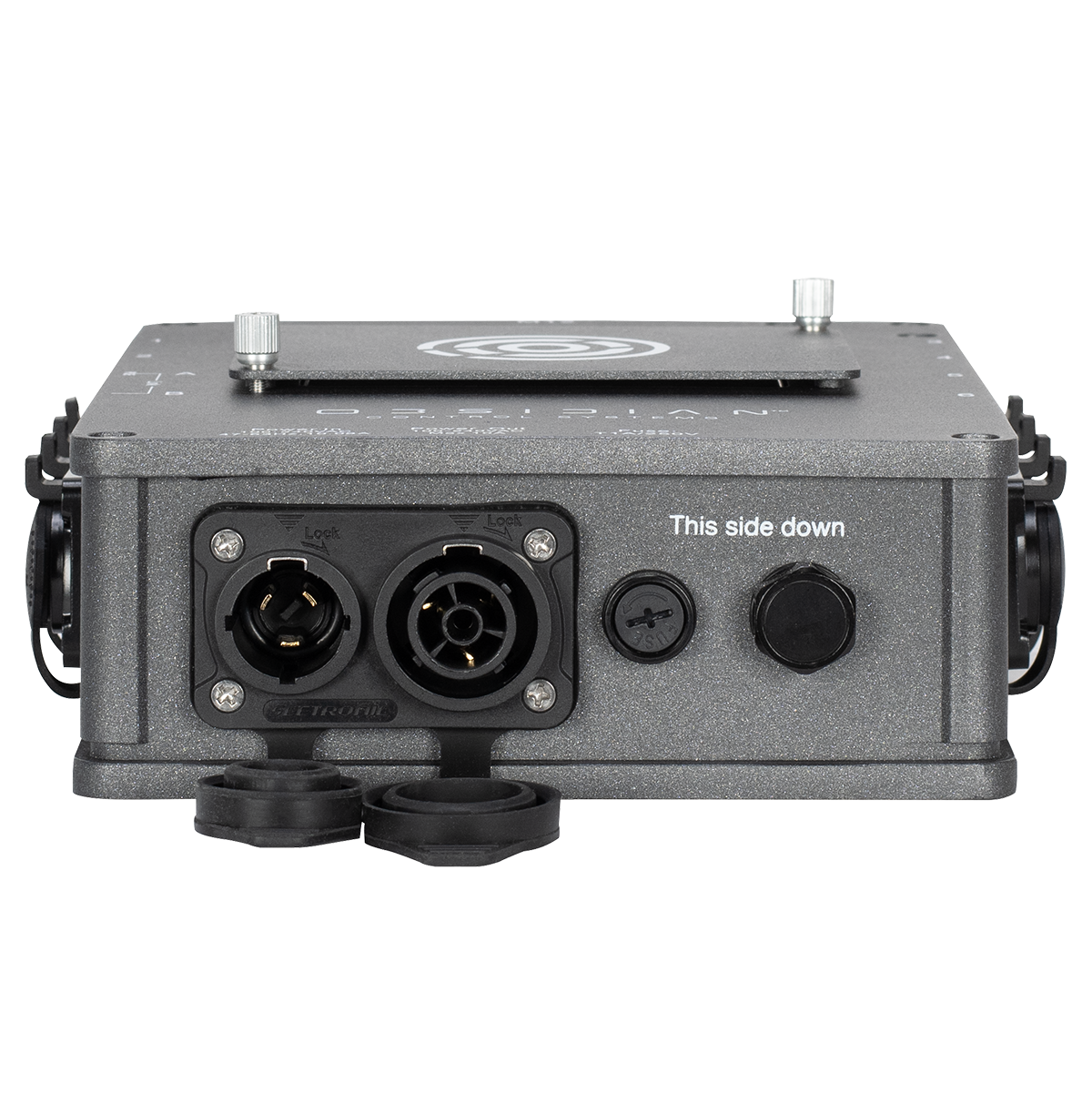

Bottom
Locking IP66 Power In/Thru

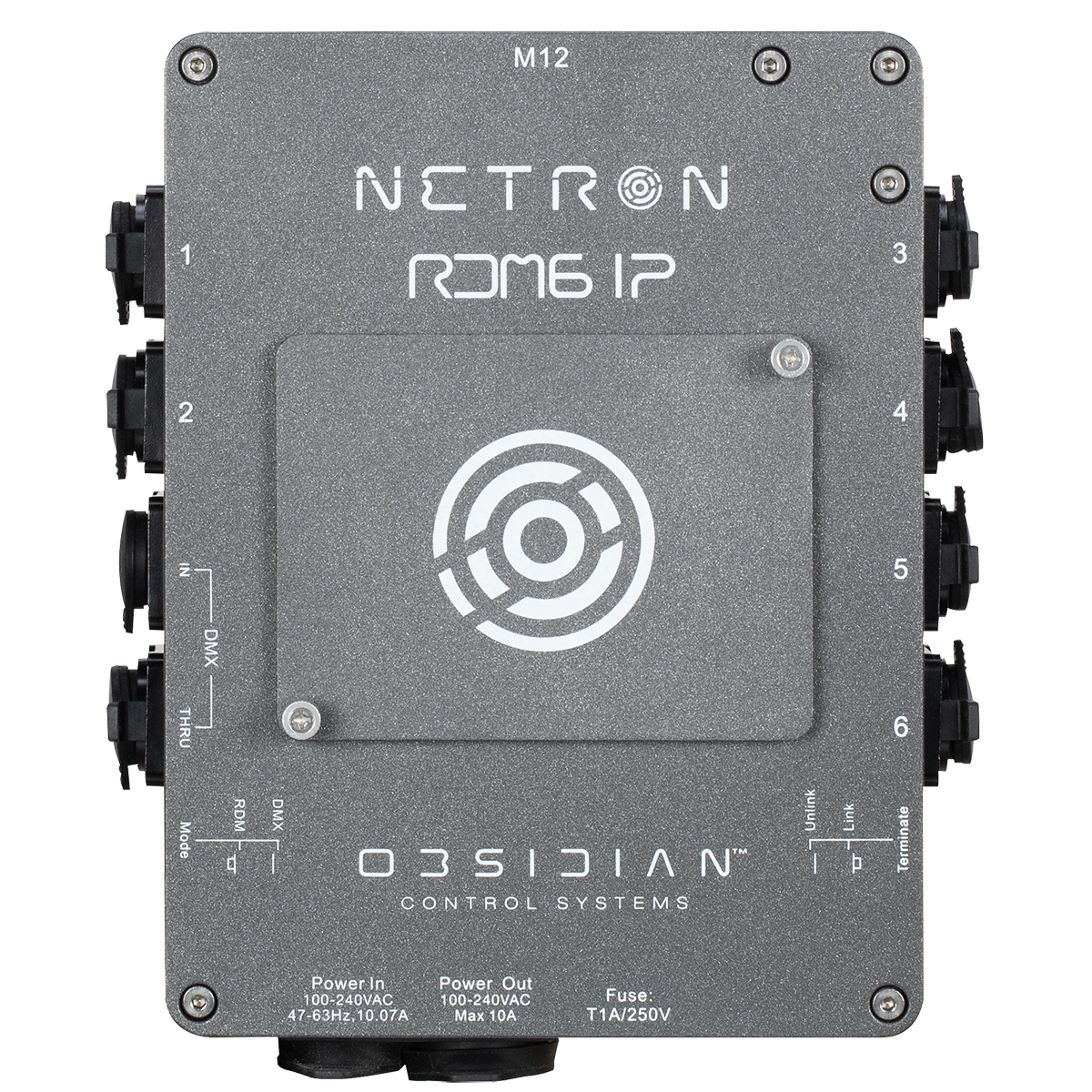

Front
LED Port Feedback

Physical
Length: 242mm (9.5 in.)
Width: 183mm (7.2 in.)
Height: 82mm (3.2 in.)
Weight: 2 kg (4.41 lbs)

Electrical
100-240 V nominal, 50/60 Hz, 5W

Approvals / Ratings
cETLus / CE / UKCA / IP66

Included Items
1.5m IP65 locking power cable (EU or US version)
(2) Wallmount brackets
M10 to M12 adapter
Metal display protection cover

Specifications and documentation subject to change without notice.
