RDMX6S
RDMX6S is a professional-grade lighting solution. Housed in a die-cast aluminum housing, it features a multi-voltage universal auto switching power supply (100-240v), and includes a single unit mounting bracket for truss/clamp installation. RDM E1.20 Compliant 5pin DMX Loop Thru Output with Built-In Termination 6 Opto-Isolated 5pin DMX Outputs powerCON In Universal Multi-Voltage Auto Switching Power Supply Mounting Bracket for Truss/Clamp Installation Included Optional Single and Dual Unit Rack Mount Kits Available.
RDMX6S
The RDMX6S™ is an easy-to-use RDM E1.20 compliant 6-way RDM/DMX data splitter featuring a 5pin DMX input, a 5pin DMX loop thru output with built-in termination, and (6) opto-isolated 5pin DMX outputs. Housed in a die-cast aluminum housing, it features a multi-voltage universal auto switching power supply (100-240v), and includes a single unit mounting bracket for truss/clamp installation. Optional single and dual unit rack mount kits are available.
- RDM E1.20 Compliant
- 5pin DMX Loop Thru Output with Built-In Termination

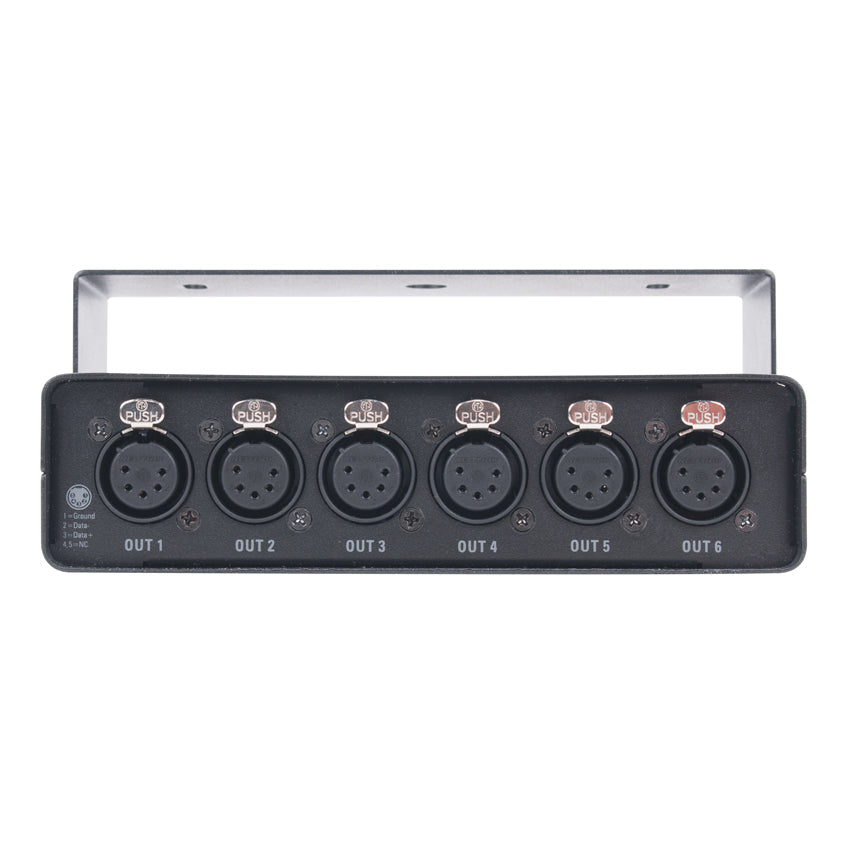

- 6 Opto-Isolated 5pin DMX Outputs
- powerCON In
- Universal Multi-Voltage Auto Switching Power Supply

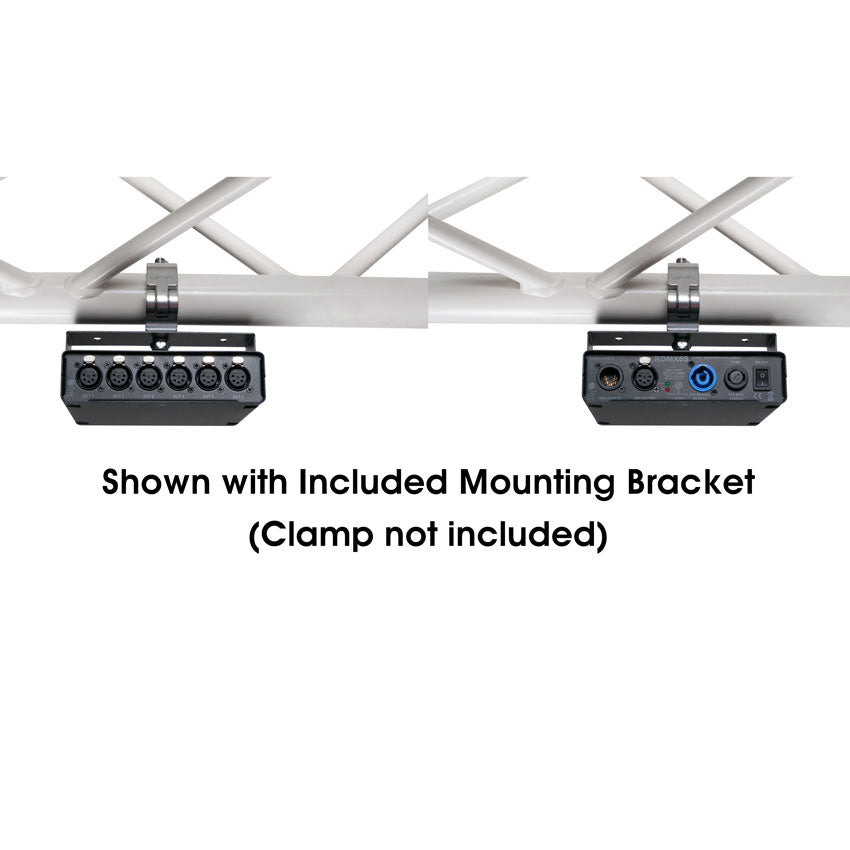

- Mounting Bracket for Truss/Clamp Installation Included
- Optional Single and Dual Unit Rack Mount Kits Available
Specifications

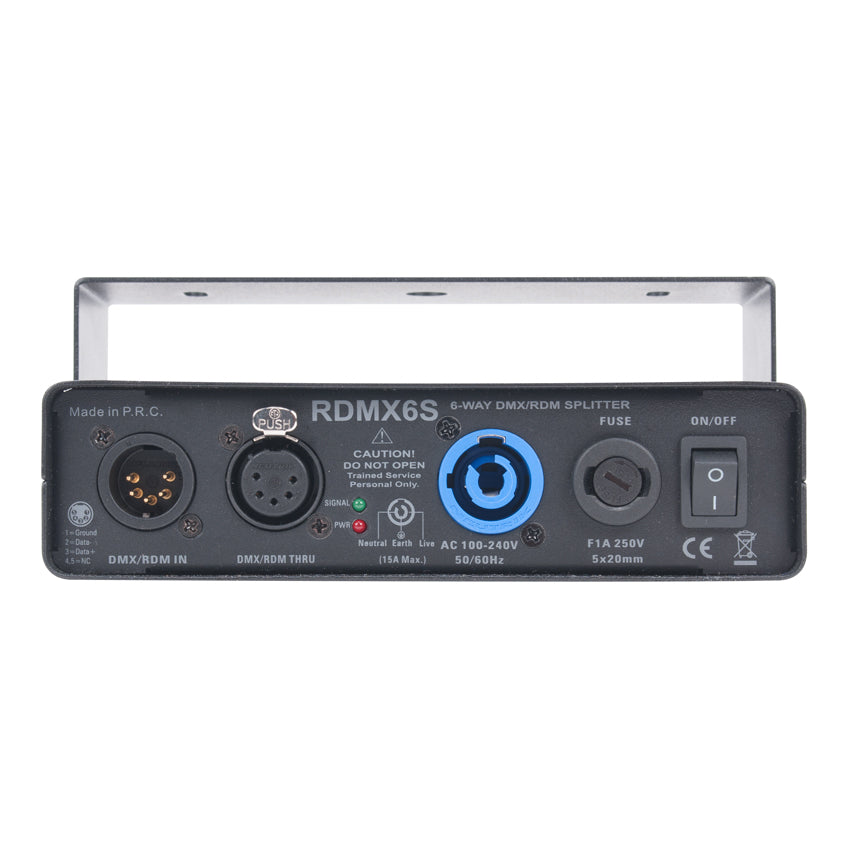

5pin DMX Input
5pin DMX Lopp Thru Output w/Built-In Termination
(6) 5pin Opto-Isolated DMX Outputs
powerCON In
SIZE / WEIGHT
Length: 6.8” (173mm)
Width: 6.7” (170mm)
Vertical Height: 2.9” (74mm) (with mounting bracket)
Weight: 2.1 lbs. (1.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
3W Max Power Consumption
14°F (-10°C) to 113°F (45°C)
APPROVALS / RATINGS
CE | RoHs
Downloads
Cad drawing
Specification sheet
User manual
