SATURA SPOT LED PRO
Satura Spot LED PRO is a professional-grade lighting solution.
Related Products
SATURA SPOT LED PRO
The new Satura Spot LED PRO™ is a powerful moving head lluminare featuring a dynamic 300W RGBW LED engine comparable to a 575W discharge fixture, RGBW color mixing and color macros, variable color temperatures (2,700K - 8,000K) and dimming curve modes, motorized 14° to 32° zoom and focus, high speed shutter and iris, 13 gobos (6 rotating-interchangeable, 7 static-stamped), 3-facet rotating and indexing prism and frost filter, 16bit 3-phase motors, internal EWDMX wireless DMX receiver, 3pin and 5pin DMX and powerCON connections, RDM (remote device management), flicker free operation for broadcast TV and FILM, (6) button control full color 180° reversible menu display, 450W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Motorized 14° - 32° Zoom and Focus
- RGBW Color Mixing and Color Macros
- Variable Color Temperatures and Dimming Curve Modes
- Internal EWDMX Wireless DMX Receiver
- RDM - Remote Device Management
- Flicker Free Operation for Broadcast TV and FILM
Specifications
300W LED Engine
60,000 Hour Average LED Engine Life
PHOTOMETRIC DATA
Distance @8.2 ft (2.5m)
14,780 LUX 1,373 FC (14° Min Zoom Full ON)
8,978 LUX 834 FC (14° Min Zoom WHITE LEDs Full ON)
3,411 LUX 317 FC (32° Max Zoom Full ON)
2,083 LUX 194 FC (32° Max Zoom WHITE LEDs Full ON)
EFFECTS
3-Facet Rotating-Indexing Prism and Frost Filter
High Speed Shutter and Iris
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curve Modes
COLOR
RGBW Color Mixing and Color Macros
Variable Color Temperatures (2,700K - 8,000K)
GOBOS
Wheel #1: (6) Rotating-Interchangeable Gobos
Wheel #2: (7) Static-Stamped Gobos

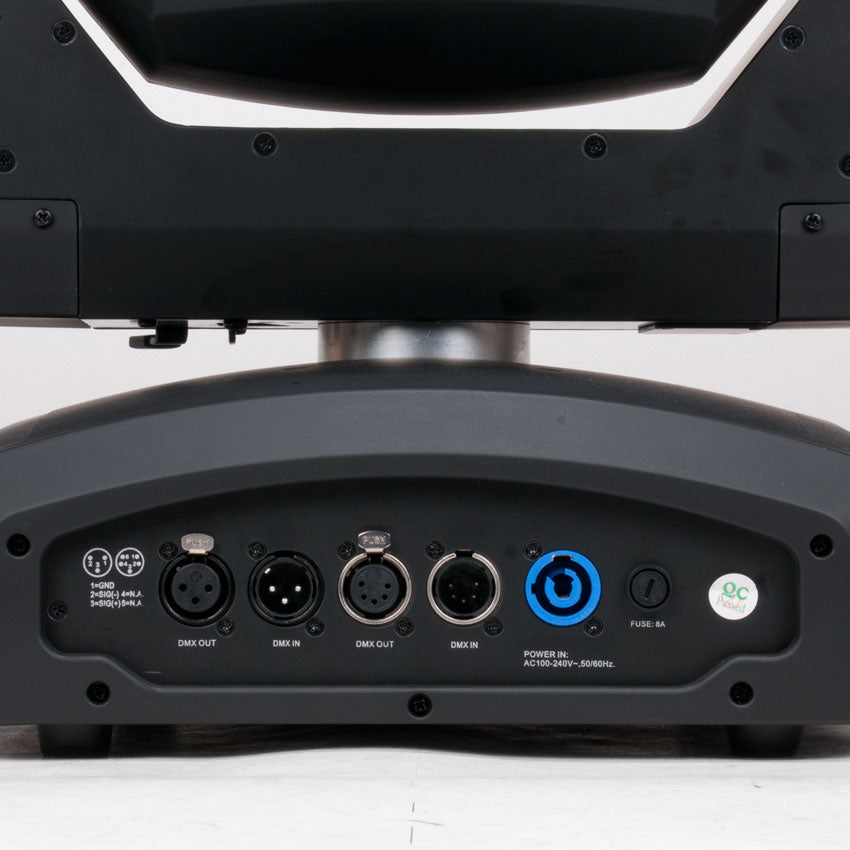

CONTROL / CONNECTIONS
(3) DMX Channel Modes (22 / 24 / 32)
6 Button Touch Control Panel
RDM (Remote Device Management)
Full Color 180° Reversible LCD Menu Display
16 Bit 3-Phase Motors
8 / 16 Bit Resolution Adjustable Movement
Internal EWDMX Wireless DMX Receiver (Not compatible with E-FLY)
3pin and 5pin DMX In/Out
Locking Power Cable In
SIZE / WEIGHT
Length: 16.9” (430mm)
Width: 20.0” (508mm)
Vertical Height: 28.4” (721mm)
Weight: 65.0 lbs. (29.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
450W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(2) Omega Brackets
(1) 3pin DMX Cable,
(1) Locking Power Cable
Specifications and documentation subject to change without notice.
