SIX+ PAR S

Name: SIX+ PAR S
Brand: Elation
SKU: SIX201
Availability: InStock

7x 20W RGBLA+UV LED Par

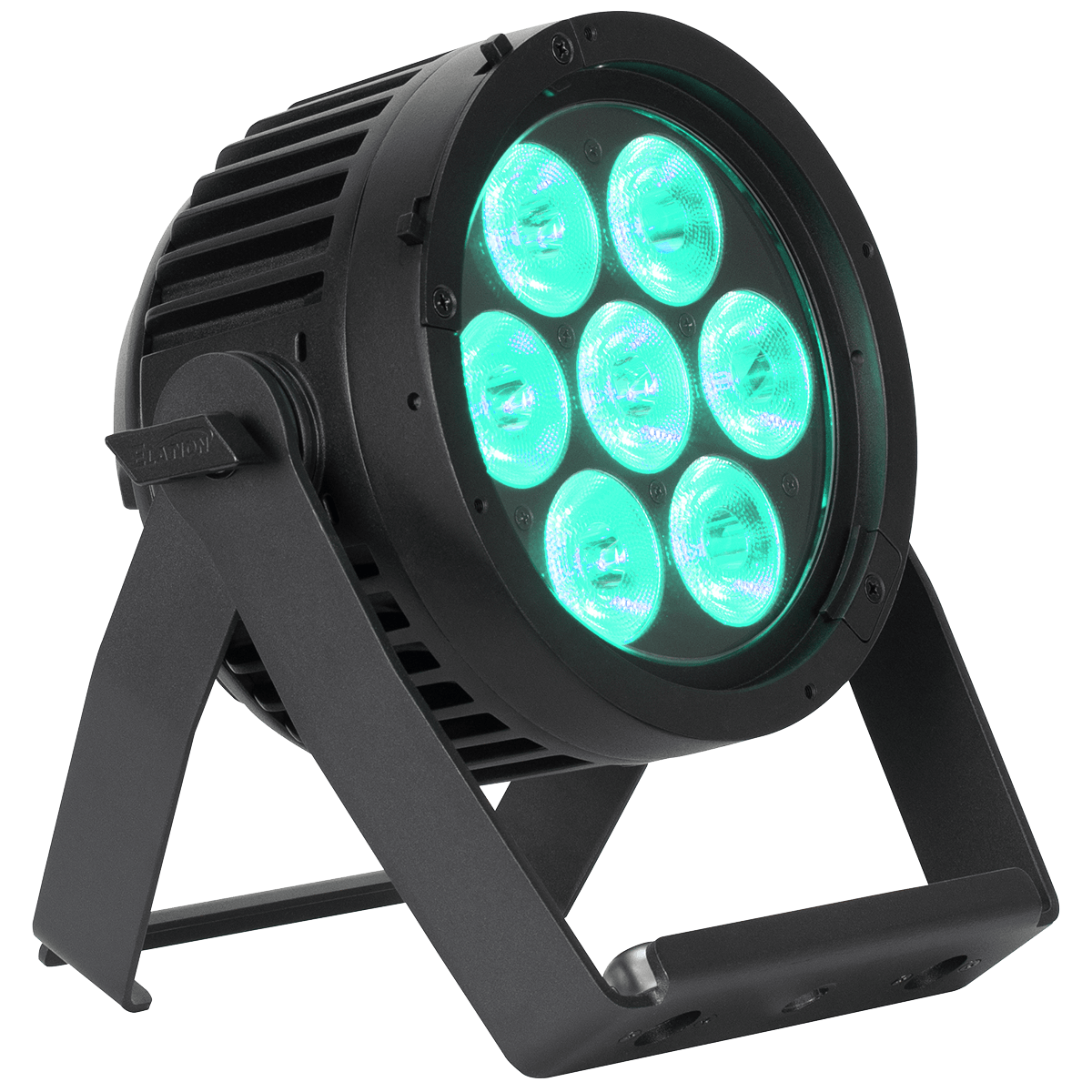

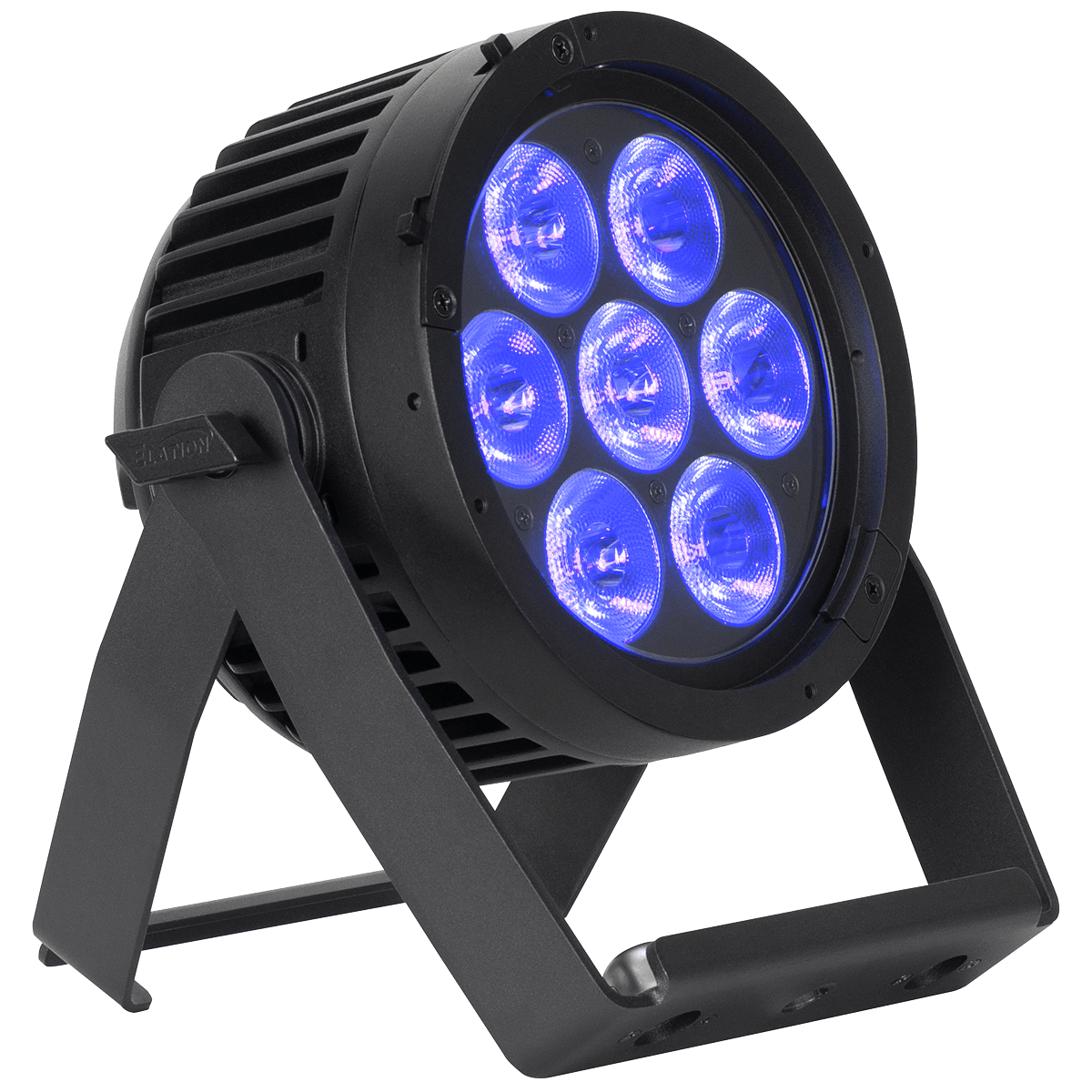

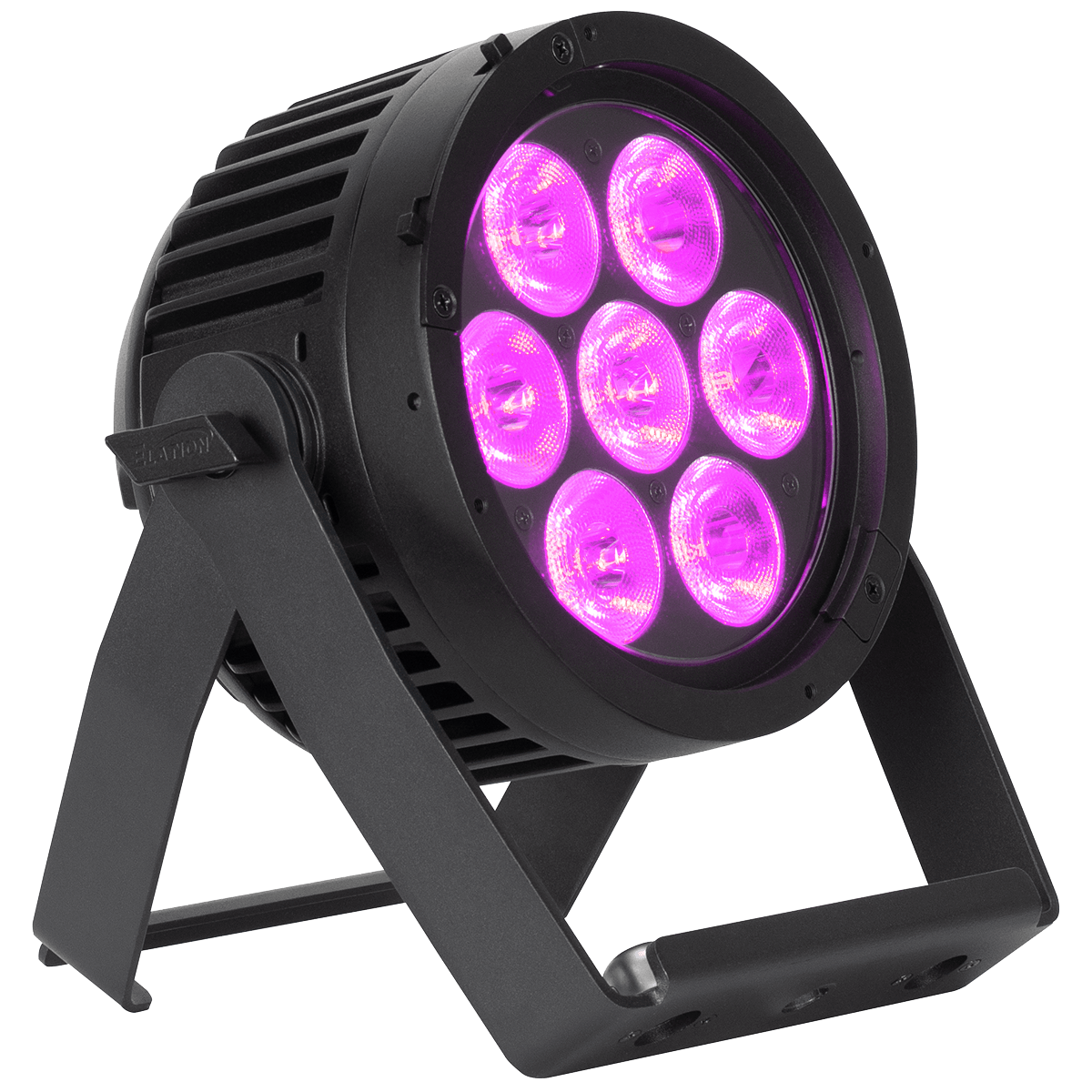

The SIX+ PAR S is a compact and rugged LED fixture that features (7) 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light while still offering up to 4,570 lumens of output.. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, it’s IP65 rating can handle any environment, and with it's C4-M marine grade coating, it's even safe in harsh costal environments. The fanless cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.

UPC: 810008264195

SKU: SIX201

Replaced By

Related Products

SIX+ PAR S

The SIX+ PAR S is a compact and rugged LED fixture that features (7) 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light while still offering up to 4,570 lumens of output.. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, it’s IP65 rating can handle any environment, and with it's C4-M marine grade coating, it's even safe in harsh costal environments. The fanless cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.

With a six color LED array, the SIX+ PAR S is able to offer outstanding color rendering capabilities with a high CRI of 91.7. This, paired with its remotely variably LED refresh frequency allows it to be easily integrated into any TV and Film application.

To expand the control capabilities on the SIX+ PAR S, precise color temperature control via a dedicated variable CCT control channel has been integrated. Programming a six-color LED fixture can be complicated so, a CMY emulation mode has been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included. This new fixture also includes our new Aria x2 wireless device management system for easy system maintenance and support.

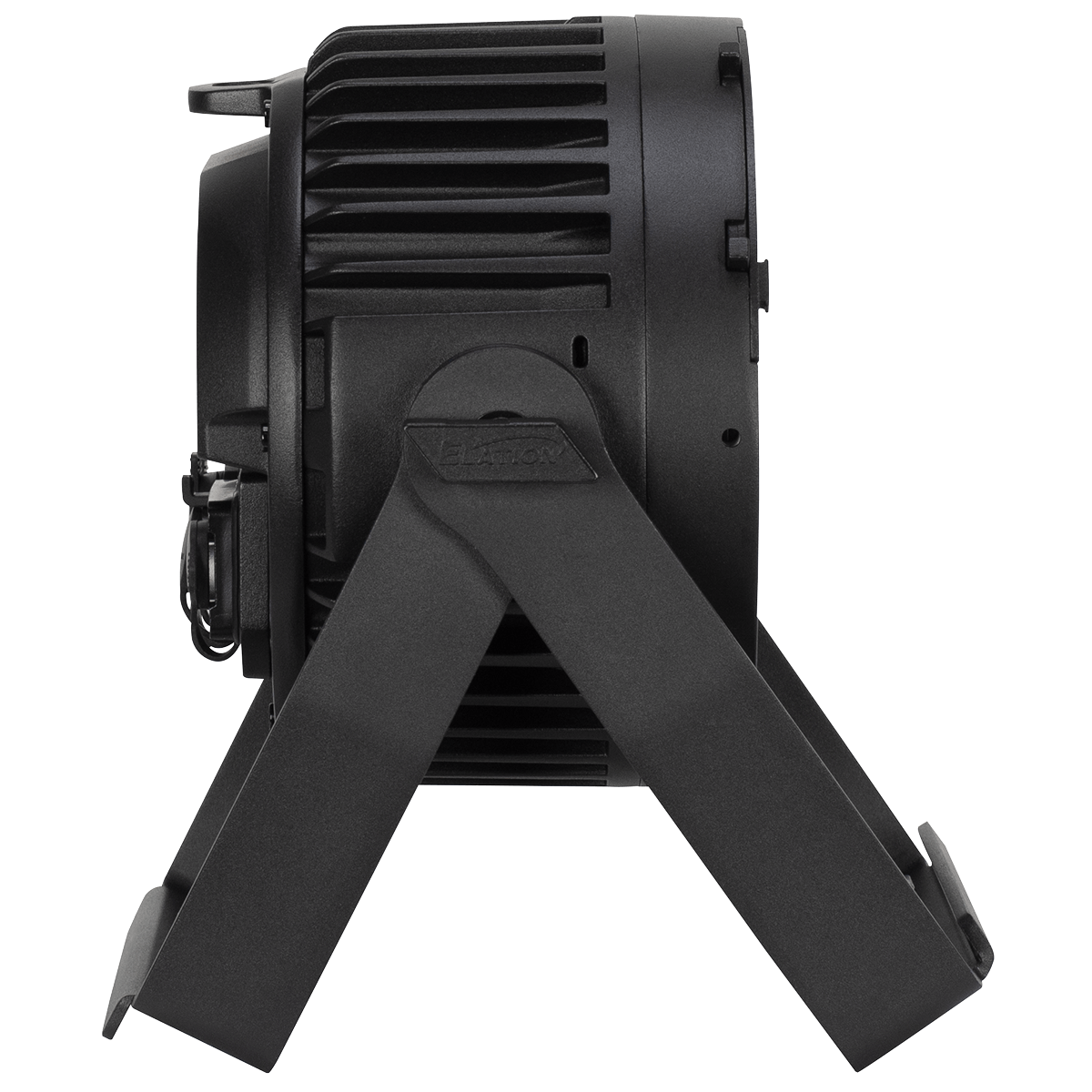

The IP65 housing includes a dedicated diffusion lens holder and the optional gel frame holder can accommodate industry standard 7.5” accessories. One MFL (20°) lens is included with the fixture, and other optional lenses are also available. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.

To ensure the SIX+ PAR S can be integrated seamlessly alongside original SixPar fixtures, great care has been taken to ensure that the new LED array colors match the original. A unique SixPar Emulation DMX mode has been developed, so that the new fixtures can be controlled with the same DMX mapping as the original. The color mixing has also been calibrated to virtually emulate the White LED included in the SixPar array and an output limit master setting has been added so your new lights don’t overpower any older fixtures in the rig.

The SIX+ PAR S is an ideal fixture for Theatre, Houses of Worship, Live Events, Themed Environments, Hospitality or Installations where high output, small form factor, simple design and easy deployability are required.

(7) 20W RGBLA+UV LED Array

4,570 Total Fixture Lumen Output (Sphere)
91.7 CRI

12° Beam Angle, MFL (20°) Lens Included

Completely Fanless Cooling

16-bit Selectable Dimming Modes and Curves

Remote LED Refresh Rate

Flicker Free Operation for TV and Film

Optional 7.5” Accessory Holder

IP65 Rated

Specifications

SOURCE

(7) x 20W RGBLA+ UV LEDs

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

Total Lumen Output
4,570 (Integrating Sphere)
4,329 (Goniometer)
CRI - 91.7
TCLI- 81

EFFECTS

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves

COLOR

RGBLA+ UV Color Array

CMY Emulation

Variable CCT 2400K - 8500K

Virtual Gel Swatch Book

CONTROL / CONNECTIONS

9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)

4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)

Manual and DMX Controlled Dimmer and Color

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

RDM (Remote Device Management)

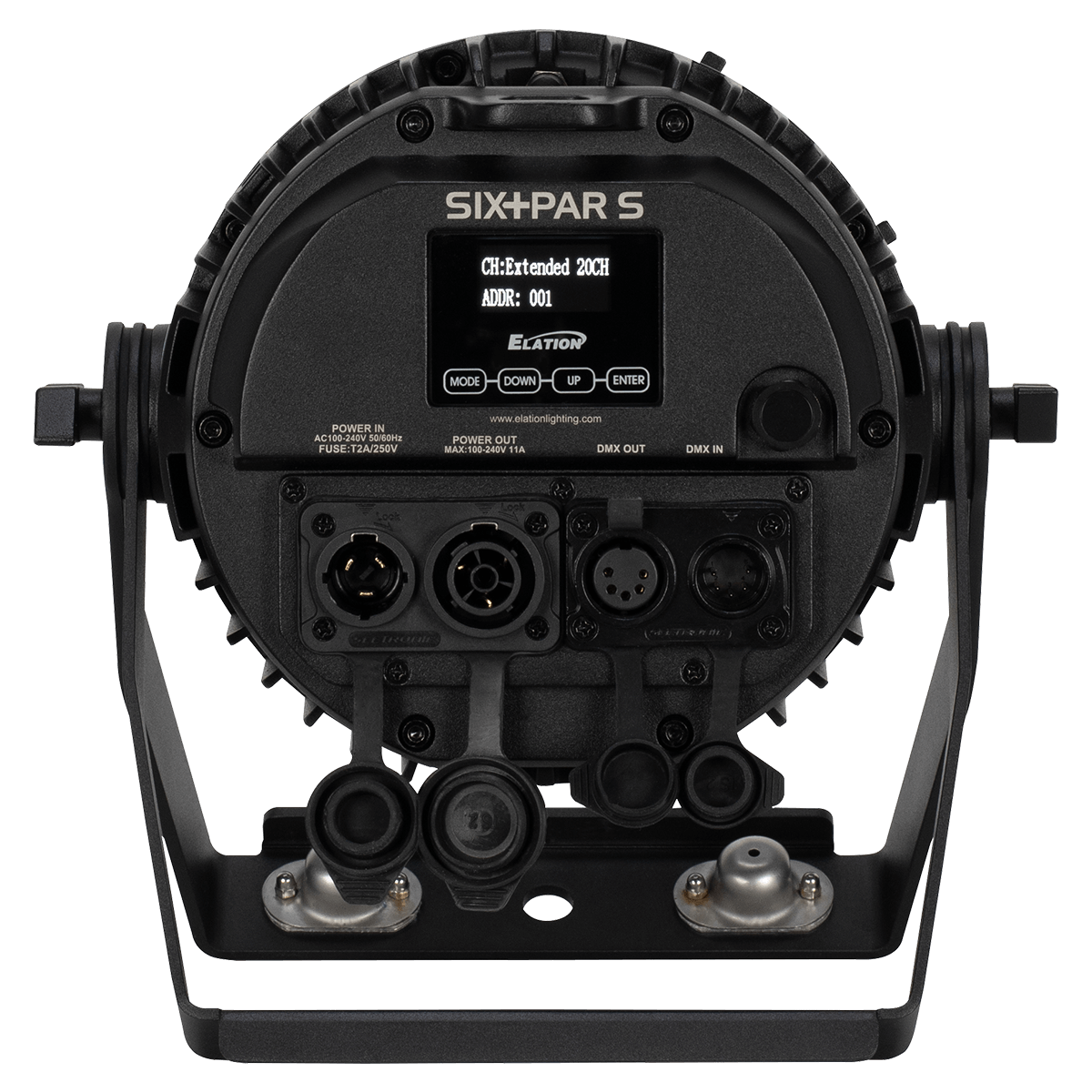

5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT

Length: 7.4" (188mm)

Width: 9.7” (247.1mm)

Vertical Height: 9.1” (230mm)

Weight: 9.48 lbs / 4.30kg

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

100W Max Power Consumption

Power Thru Capacity: 11A (12 units @110V, 26 units @240V)

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 341

INCLUDED ITEMS

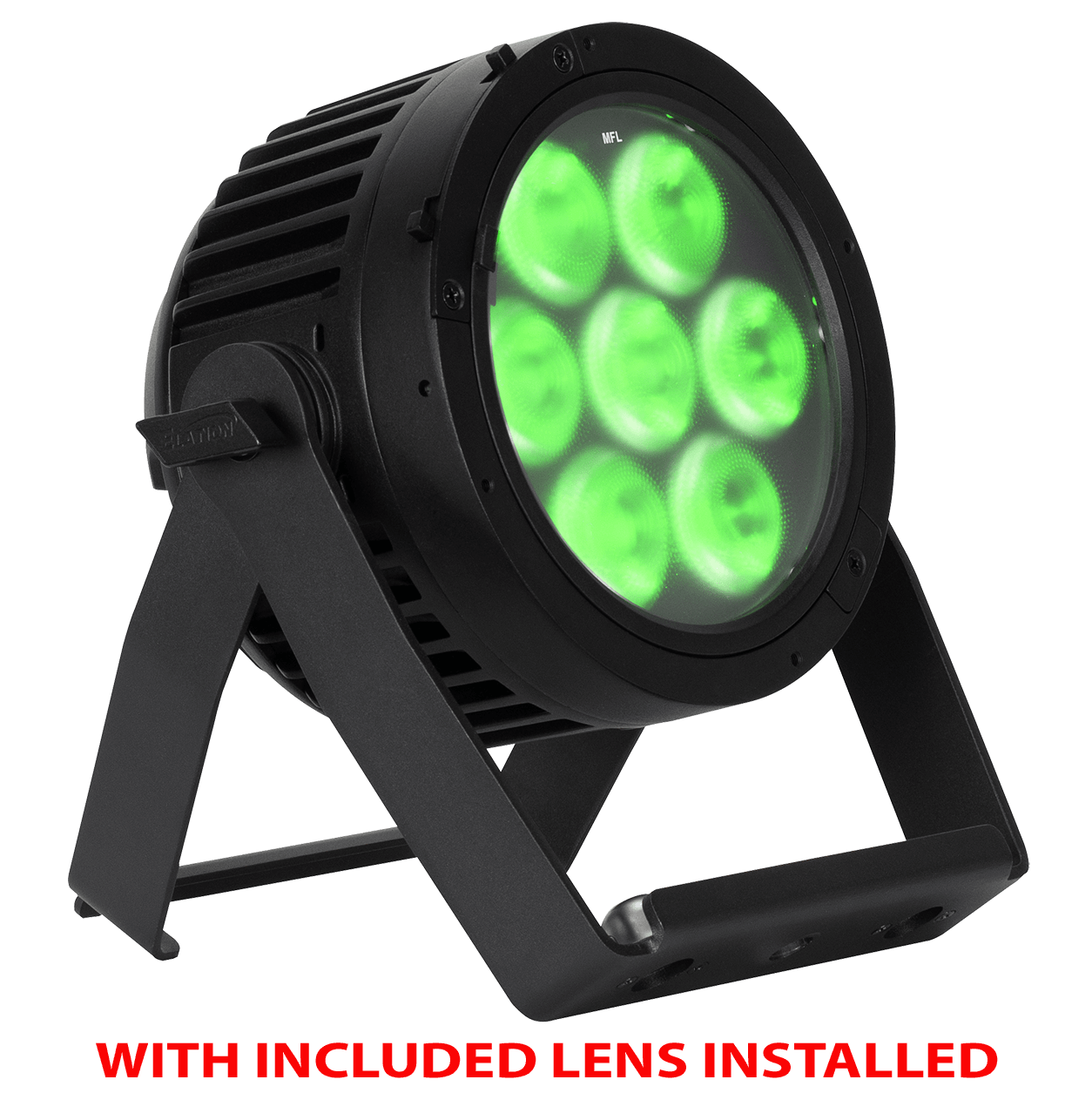

MFL (20°) Lens

Safety Cable

IP65 Locking Power Cable

OPTIONAL ITEMS

60° Lens (SIX+S WFL)

100° Lens (SIX+S XFL)

1°x 40° Lens (SIX+S L140)

10°x 60° Lens (SIX+S L1060)

Gel Frame Holder Kit (SIX+S GFK)

7.5" Barndoor (KLP959)

4 Wire Hardwire Installation Plate (HWP404)

2 Wire Hardwire Installation Plate (HWP202)

# 8050000053 - Omega Bracket

10' Tour Link 5-pin DMX Cable (TOU027)

10' IP65 Locking Power Extension Cable (SIP139)

APPROVALS / RATINGS

CE | cETLus | IP65 | FCC | UKCA

FIRMWARE UPDATE

Current Update: V1.04

Click HERE for software update

Specifications and documentation subject to change without notice.

Downloads

Cad drawing

Dimensional drawings

Six+ Par S Dimensional Drawing

Dmx traits

Six+ Par S DMX Traits

Ies files

Photometrics

Specification sheet

Six+ Par S Specification Sheet

User manual

Six+ Par S User Manual

How do they compare?

Find the option that is right for you and your production.

SIX+ PAR S

SIX+ PAR L

KL PAR FC

SIX+ PAR S

SIX+ PAR L

KL PAR FC

Total Lumens

4570

7300

11000

Light Source Wattage

140

280

Color System

UV

UV

—

Framing

—

Yes

Beam Angle

0° - 12°

—

IP Rating

65

20

Weight

9.48 lbs

15.7 lbs

15.98 lbs

MAX Power Consumption

100

165

284

Size (In Inches)

7.4 x 9.7 9.1

10.2 x 13.5 x 9.7

13.94 x 11.97 x 14.96
