SIX+ PAR S OPS

Name: SIX+ PAR S OPS
Brand: Elation
SKU: SIX434
Availability: InStock

7x 20W RGBLA+UV LED Par, Outdoor Permanent Spec

SIX+ PAR S OPS is a professional-grade lighting solution. The SIX+ PAR S OPS includes the same features as the standard SIX+ PAR S model but adds a Marine Grade exterior coating and Hard Wired (bare wire) IP-rated power and data cables and is designed for permanent marine/coastal environment installations. The SIX+ PAR S OPS is a compact and rugged LED fixture that features (7) 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light.

UPC: 810008265246

SKU: SIX434

Related Products

New

SIX+ PAR S OPS

The SIX+ PAR S OPS includes the same features as the standard SIX+ PAR S model but adds a CX Marine Grade exterior coating and Hard Wired (bare wire) IP-rated power and data cables and is designed for permanent marine/coastal environment installations.

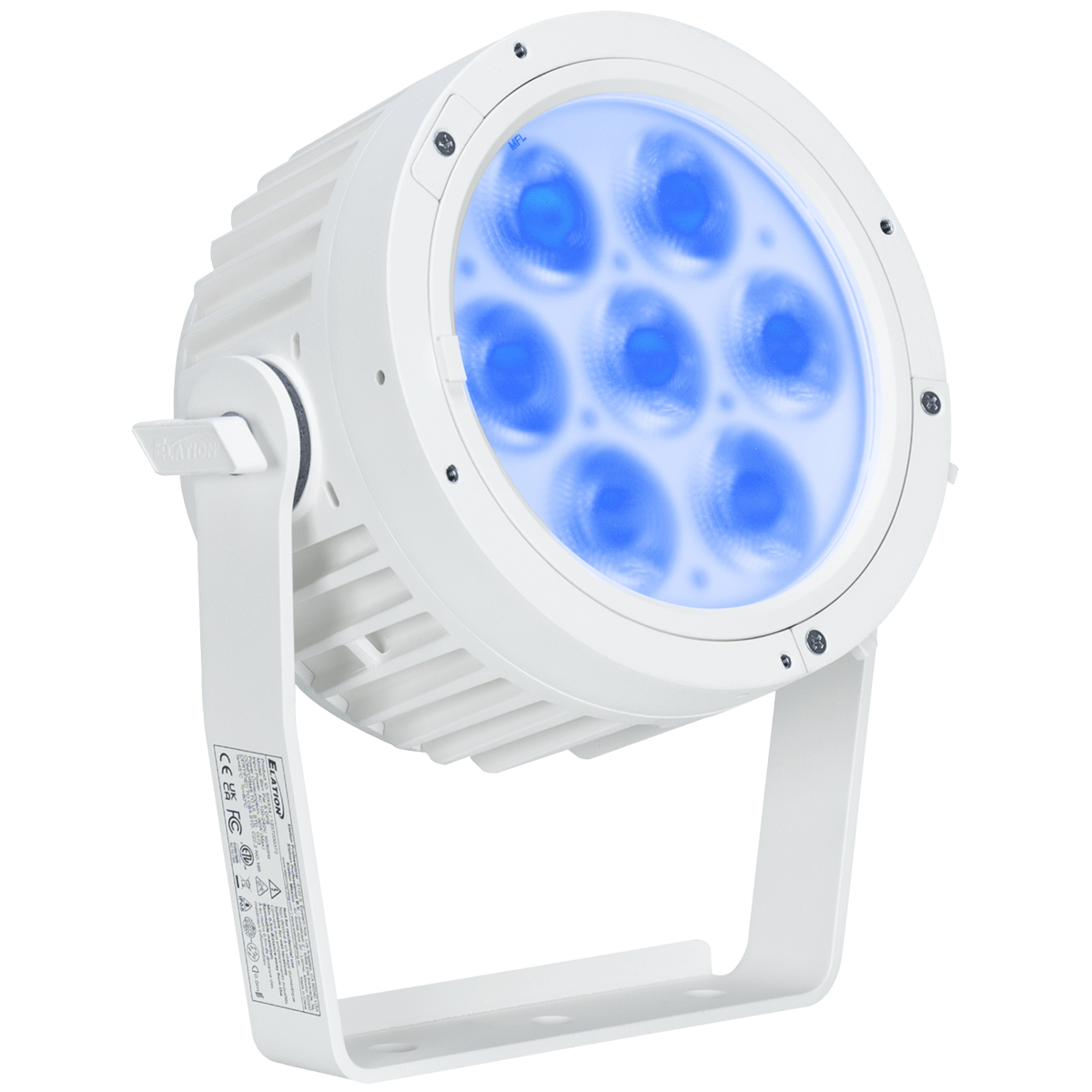

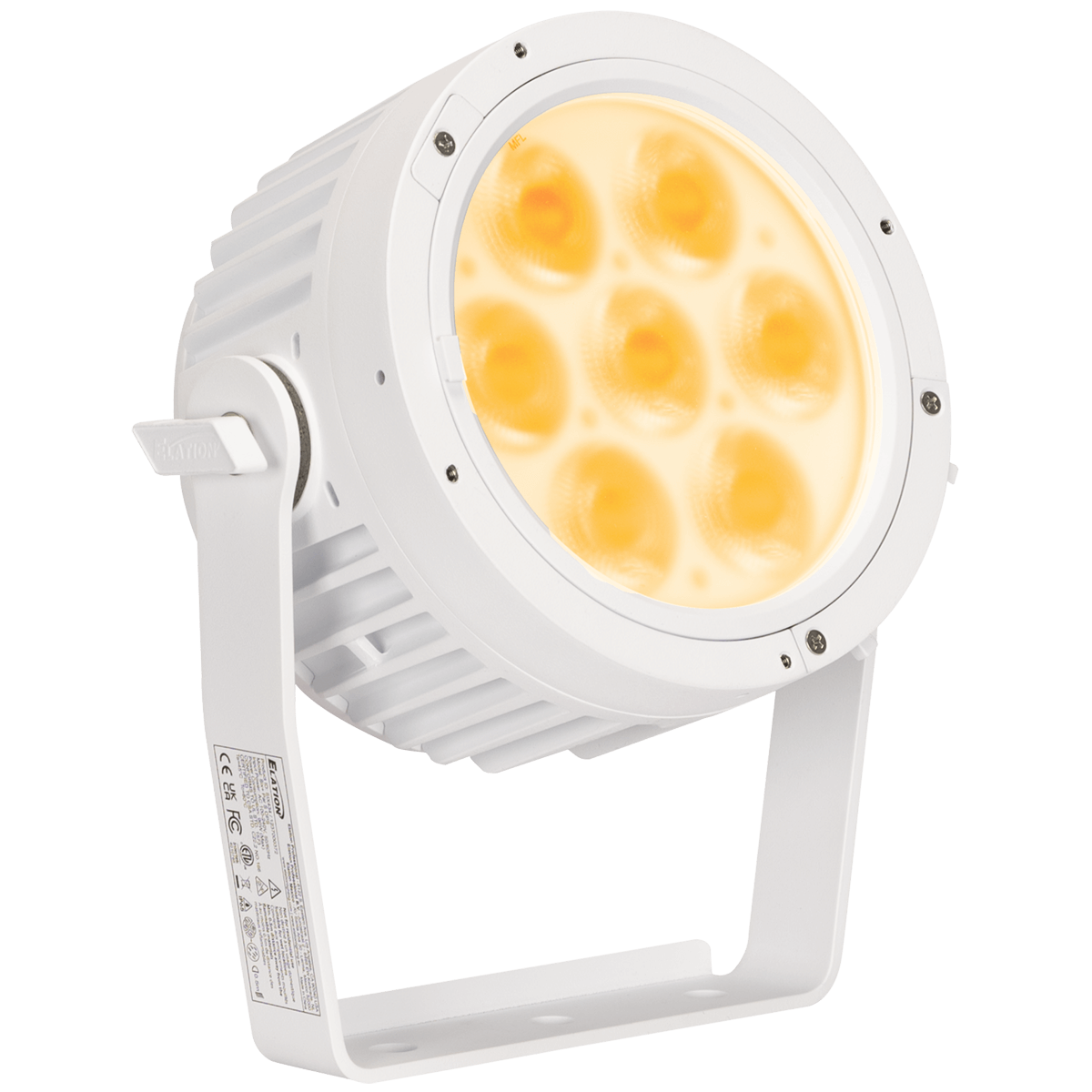

The SIX+ PAR S OPS is a compact and rugged LED fixture that features (7) 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, it’s IP65 rating can handle any environment. The fanless cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.

With a six color LED array, the SIX+ PAR S OPS is able to offer outstanding color rendering capabilities with a high CRI of 87. This, paired with its remotely variably LED refresh frequency allows it to be easily integrated into any TV and Film application.

To expand the control capabilities on the SIX+ PAR S OPS, precise color temperature control via a dedicated variable CCT control channel has been integrated. Programming a six-color LED fixture can be complicated so, a CMY emulation mode has been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.

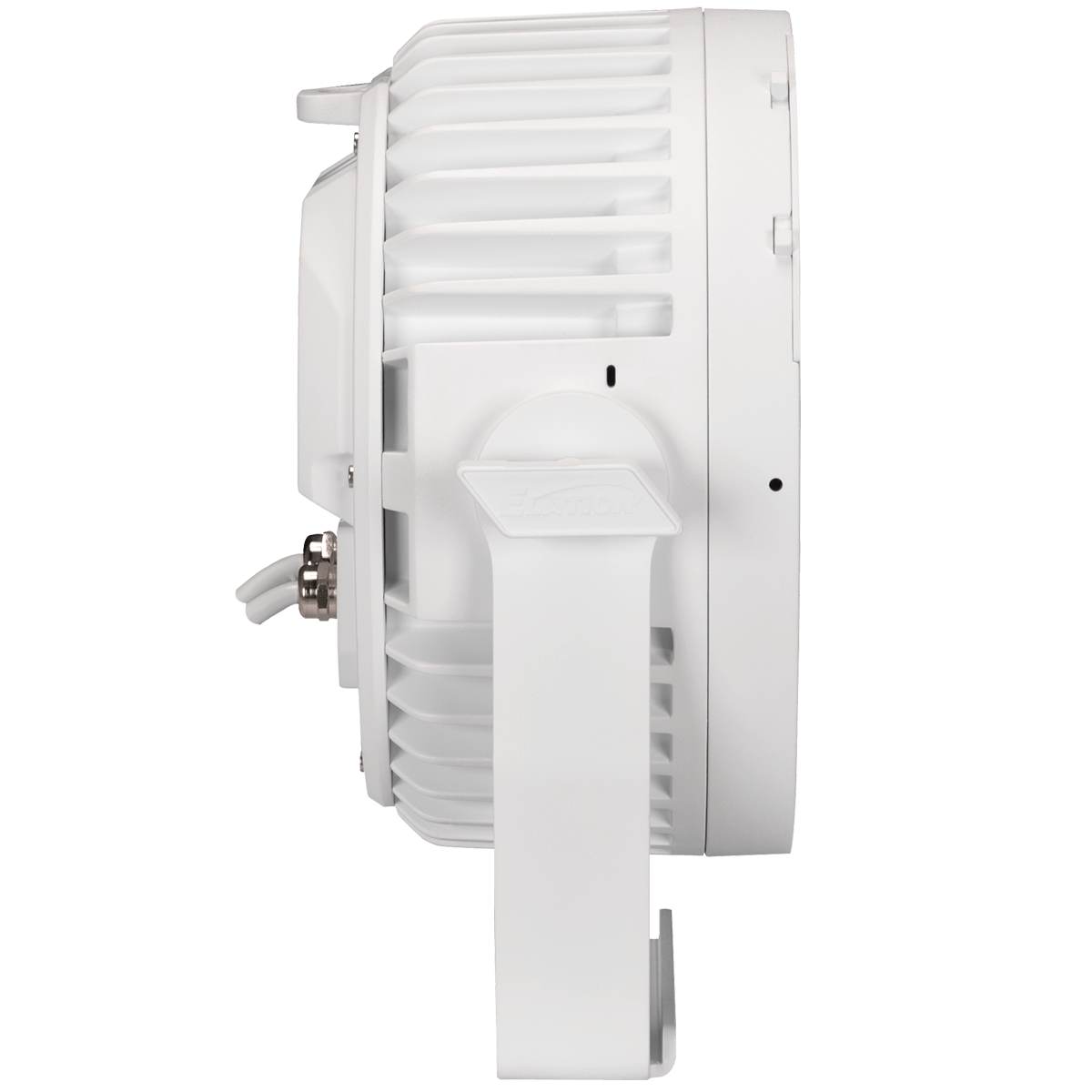

The IP65 housing can be ordered in BLACK or WHITE color and includes a dedicated diffusion lens holder and the gel frame holder can accommodate industry standard 7.5” accessories. One 20° lens is included with the fixture, and other optional lenses are also available. The single yoke design allows the fixture to be mounted using the same bolt spacing as the SIXPAR 100 for retrofit applications.

To ensure the SIX+ PAR S OPS can be integrated seamlessly alongside original SixPar fixtures, great care has been taken to ensure that the new LED array colors match the original. A unique SixPar Emulation DMX mode has been developed, so that the new fixtures can be controlled with the same DMX mapping as the original. The color mixing has also been calibrated to virtually emulate the White LED included in the SixPar array and an output limit master setting has been added so your new lights don’t overpower any older fixtures in the rig.

The SIX+ PAR S OPS is an ideal fixture for Themed Environments, Hospitality or Installations where high output, small form factor, simple design and permanent installation are required.

(7) 20W RGBLA+UV LED Array

3200 Lumens, 87 CRI

12° Beam Angle, 22° Lens Included

Completely Fanless Cooling

16-bit Selectable Dimming Modes and Curves

Remote LED Refresh Rate

7.5” Accessory Holder

Hard Wired (Bare Wire) IP Rated Power and Data Cables Attached

Special White Marine Grade Exterior Coating

Specifications

SOURCE

(7) x 20W RGBLA+ UV LEDs

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

3200 Total Lumen Output

CRI - 87

EFFECTS

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves

COLOR

RGBLA+ UV Color Array

CMY Emulation

Variable CCT 2400K - 8500K

Virtual Gel Swatch Book

CONTROL / CONNECTIONS

9 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 9ch, 11ch, 14ch, 14ch, 20ch)

4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)

RDM (Remote Device Management)

NFC Configuration (If Equipped)

Hard Wired (Bare Wire) IP Rated Power and Data Cables, 3 meters with the following cable options:

2-Wire- Power In Combination DMX In/Out Cables

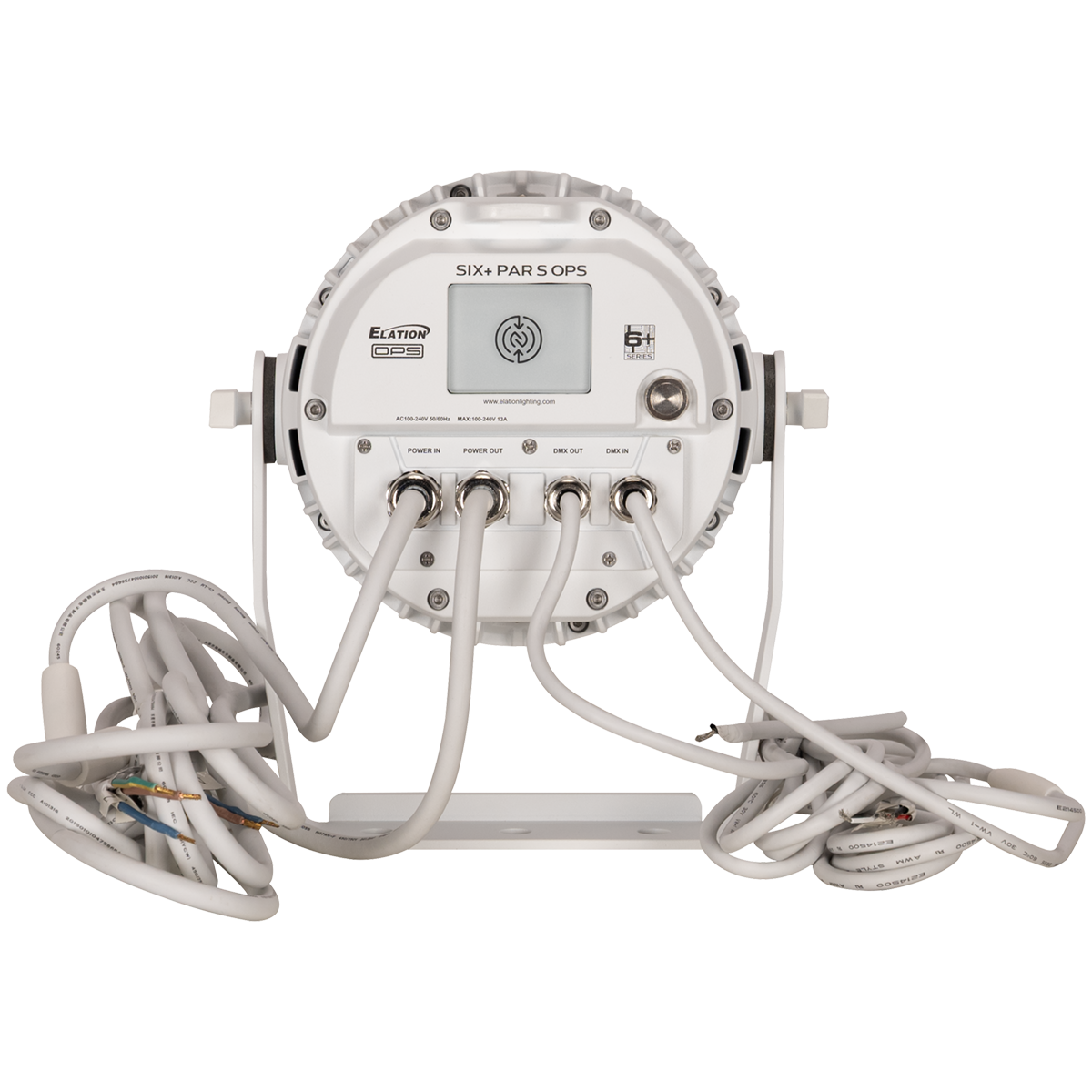

4-Wire- Power In, Power Out, DMX In and DMX Out Cables

**This fixture includes advanced DMX filtering and protection circuitry. To ensure proper signal performance, Do NOT connect more than 6 units in a single DMX daisy chain. Exceeding this limit may result in signal loss**

SIZE / WEIGHT

Length: 7.6" (193mm)

Width: 9.5” (241mm)

Vertical Height: 9.1” (230mm)

Weight: 9.5 lbs (4.3 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

100W Max Power Consumption

-40°F to 113°F (-40°C to 45°C)

BTU/hr (+/- 10%) 341

INCLUDED ITEMS

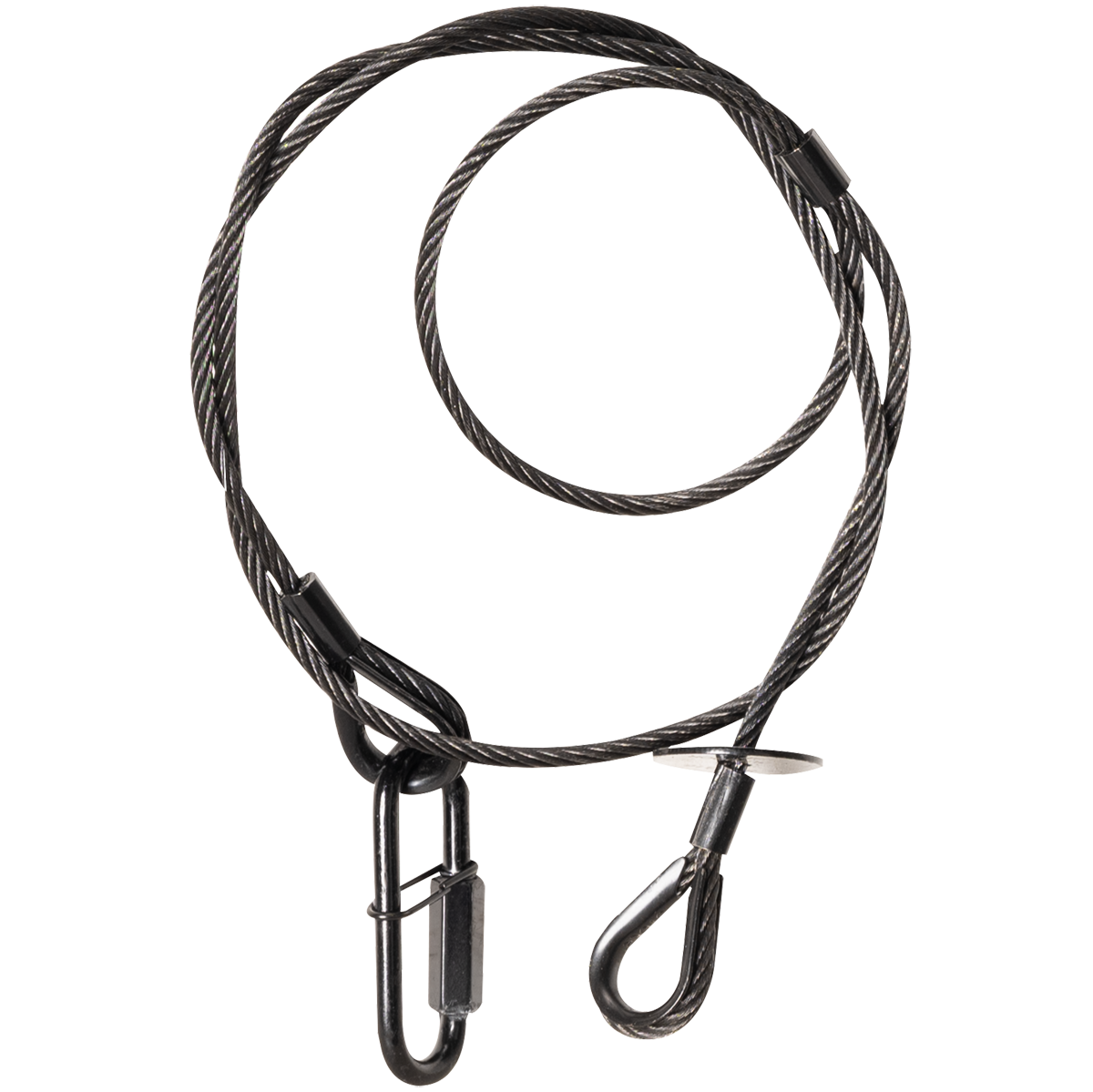

Safety Cable

ORDERING INFORMATION

SIX434: SIX+ PAR S OPS, White Housing, 2-Wire Backplate
SIX456: SIX+ PAR S OPS, White Housing, 4-Wire Backplate

SIX512: SIX+ PAR S OPS, Black Housing, 2-Wire Backplate
SIX534: SIX+ PAR S OPS, Black Housing, 4-Wire Backplate

OPTIONAL ITEMS

Gel Frame Holder Kit

60° Lens (SIX+S WFL)

100° Lens (SIX+S XFL)

1°x 40° Lens (SIX+S L140)

10°x 60° Lens (SIX+S L1060)

4 Wire OPS Hardwire Installation Plate (HWP414)

2 Wire OPS Hardwire Installation Plate (HWP212)

APPROVALS / RATINGS

FIRMWARE UPDATE

Current Update: V1.01

Click HERE for software update

Specifications and documentation subject to change without notice.

Downloads

Cad drawing

Six+ PAR S OPS 3D Cad Drawing

Generic

Six+ Par S OPS DMX Filtering and Protection
