SIXBAR 1000

SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)
3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)
2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)
1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)
878 LUX 82 FC @16.4’ (5m) (30° Full ON)

EFFECTS
Strobe and Chase Effects
Individual LED Control
Variable and Selectable Dimming Curves

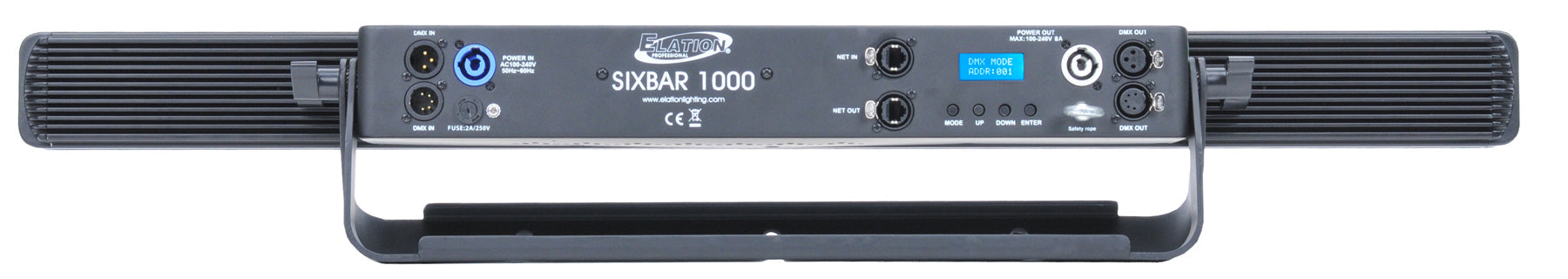

CONTROL / CONNECTIONS
8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Control Panel and LCD Menu Display
ArtNet + KlingNET Protocol Support
RDM (Remote Device Management)
(2) ethernet Ports
3pin and 5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 35.4” (900mm)
Width: 8.1” (206.4mm) *with included glare shield
Vertical Height: 6.1” (155mm)
Weight: 16.0 lbs. (7.3 kg)

ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
145W Max Power Consumption
Power Linking: 6pcs @110V / 15pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

APPROVALS / RATINGS
CE | cETLus | IP20

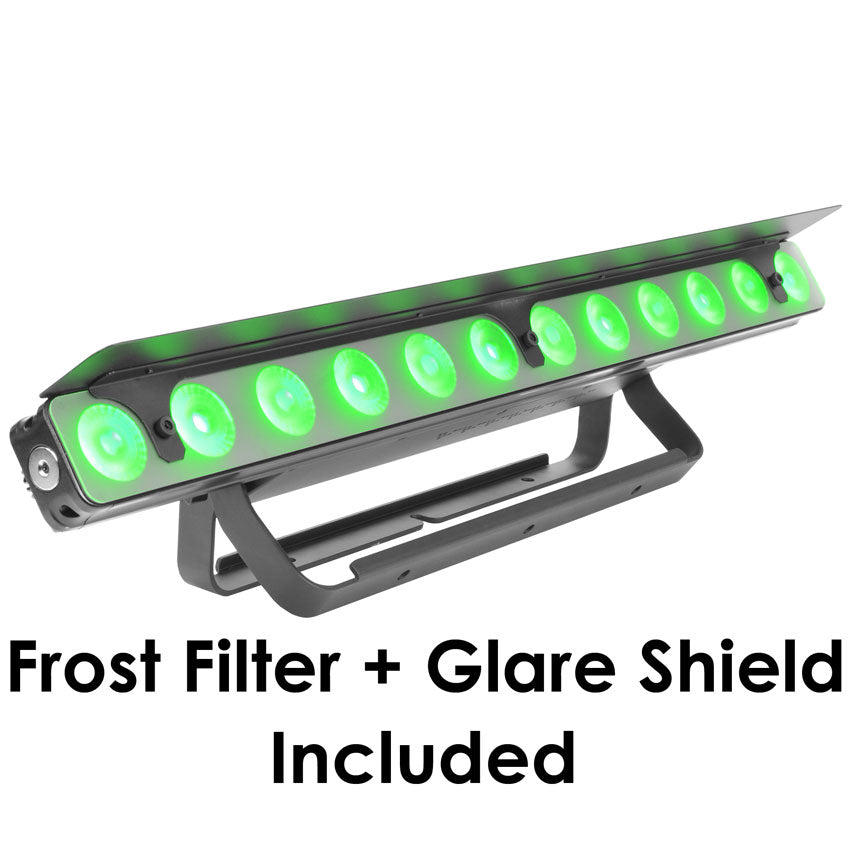

INCLUDED ITEMS
Locking Power Cable
Frost Filter
Glare Shield
