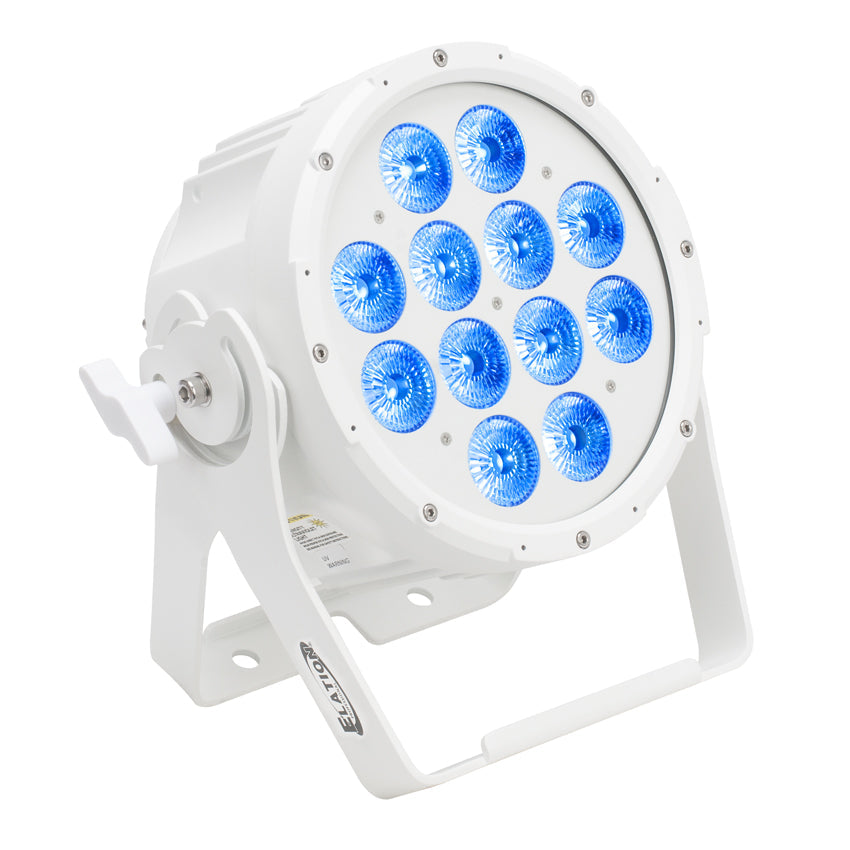

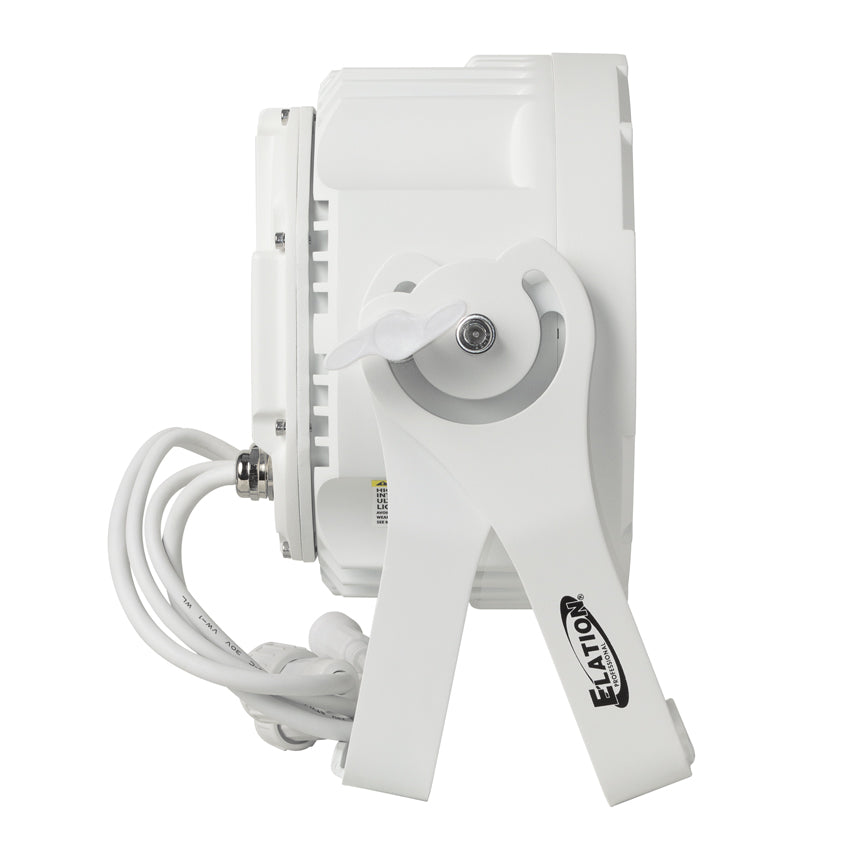

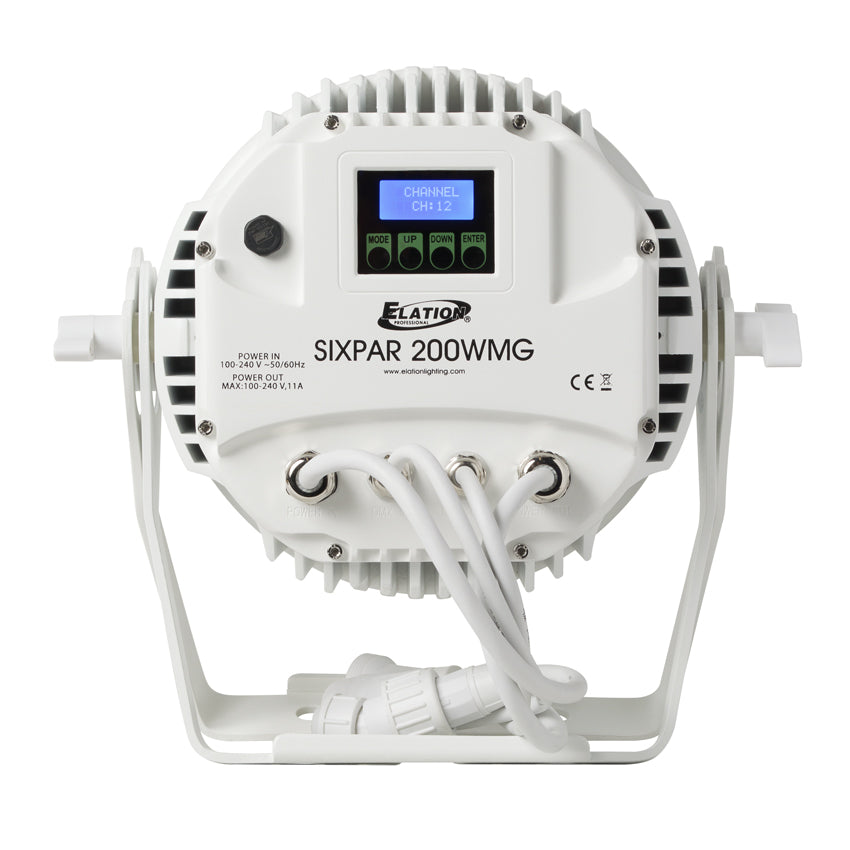

SIXPAR 200WMG
12x 12W RGBAW+UV LED IP65 Par, White Marine Grade Housing
SIXPAR 200WMG is a professional-grade lighting solution. The IP65 outdoor rated SIXPAR 200WMG includes the same features as the standard SIXPAR 200IP model but with a special added White Marine Grade exterior coating designed for the marine/coastal environment installations.
SIXPAR 200WMG
Specifications
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
coming soon
EFFECTS
Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros
CONTROL / CONNECTIONS
Manual and DMX-512 Control
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch LCD Menu Display

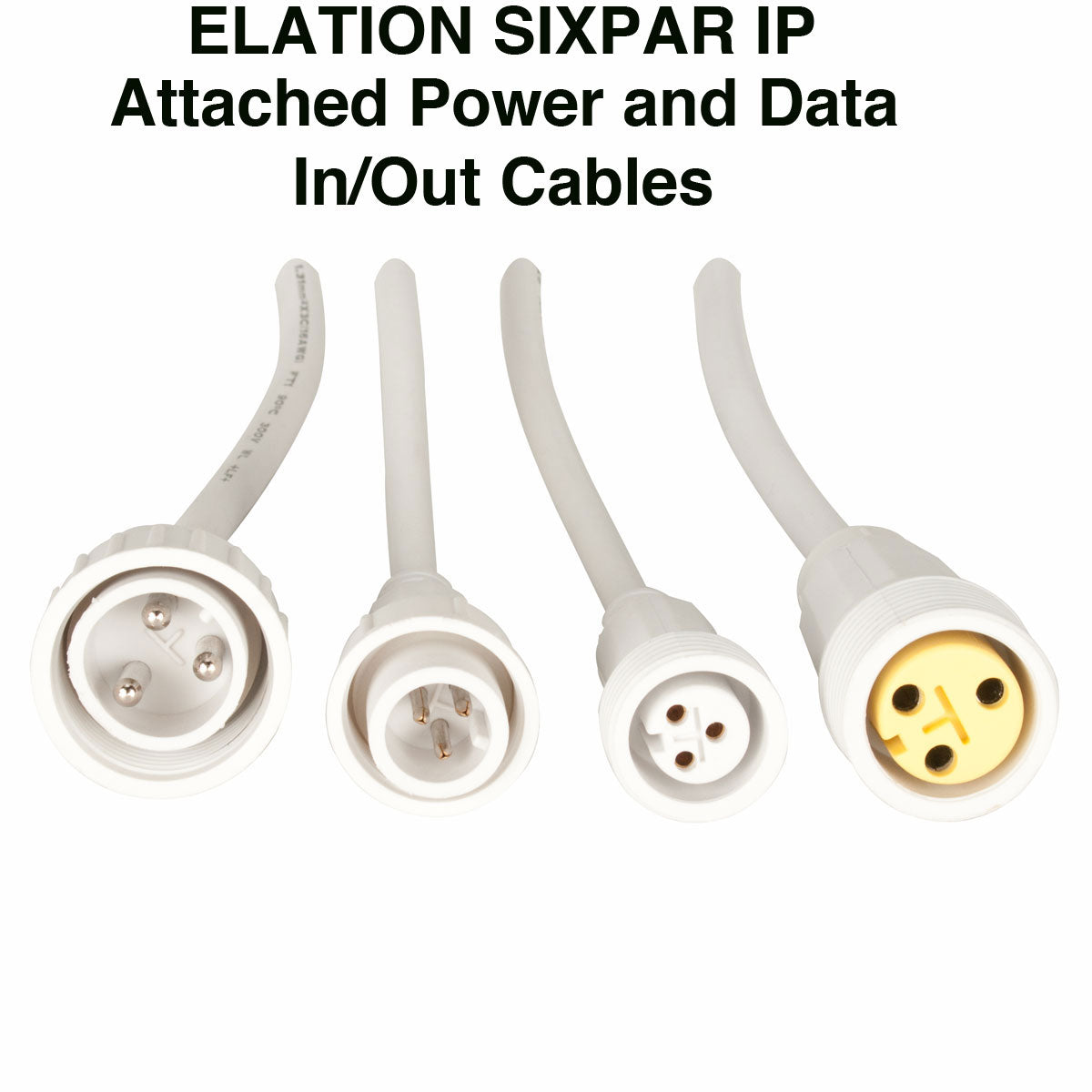

Proprietary IP Rated 3pin DMX In/Out Cables Attached
Proprietary IP Rated 3pin Power In/Out Cable Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 6.2” (157mm)
Vertical Height: 11.8” (300mm)
Weight: 12.6 lbs. (5.7 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
150W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS

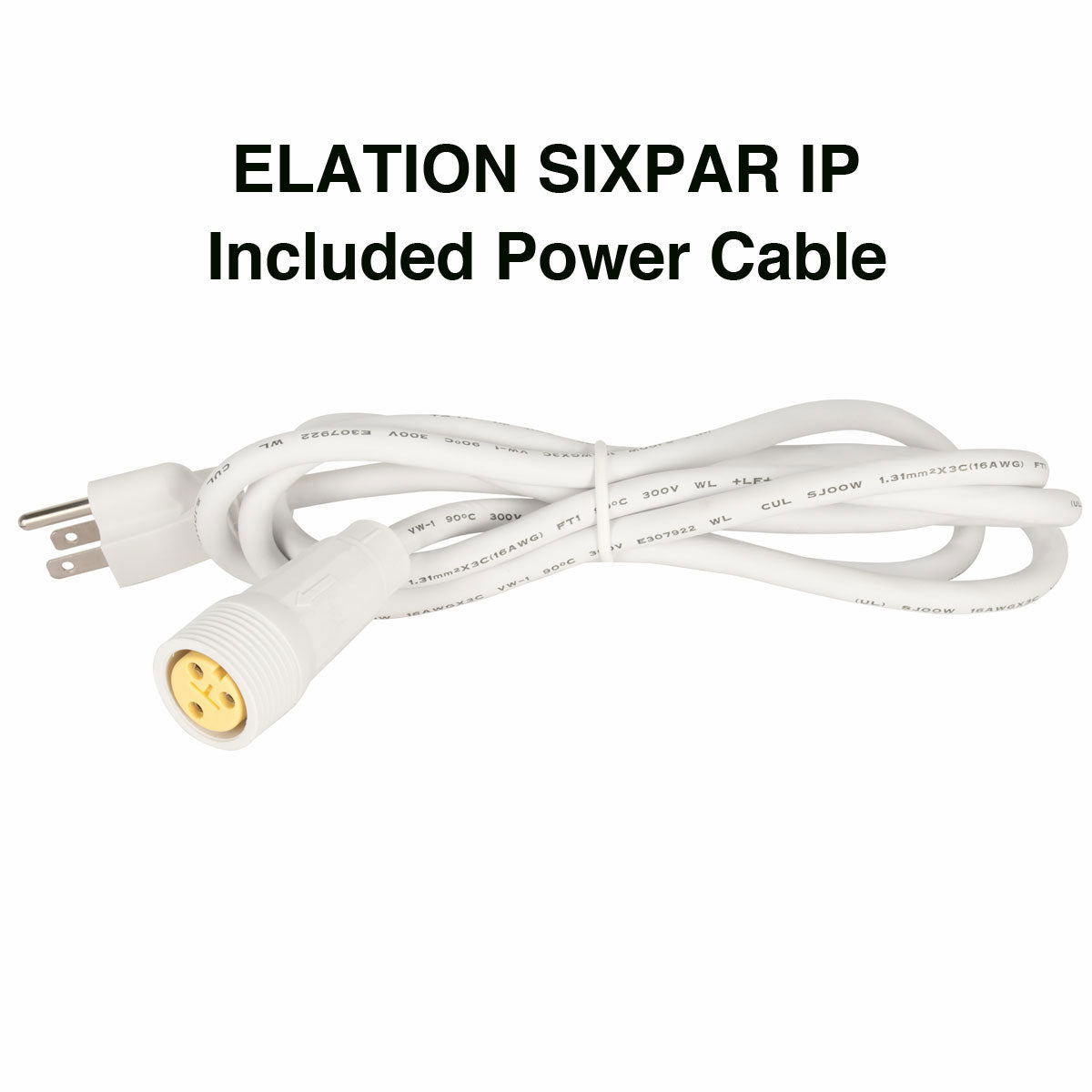

Male Edison to IP Female Power White Cable 6.6 ft. (2m)

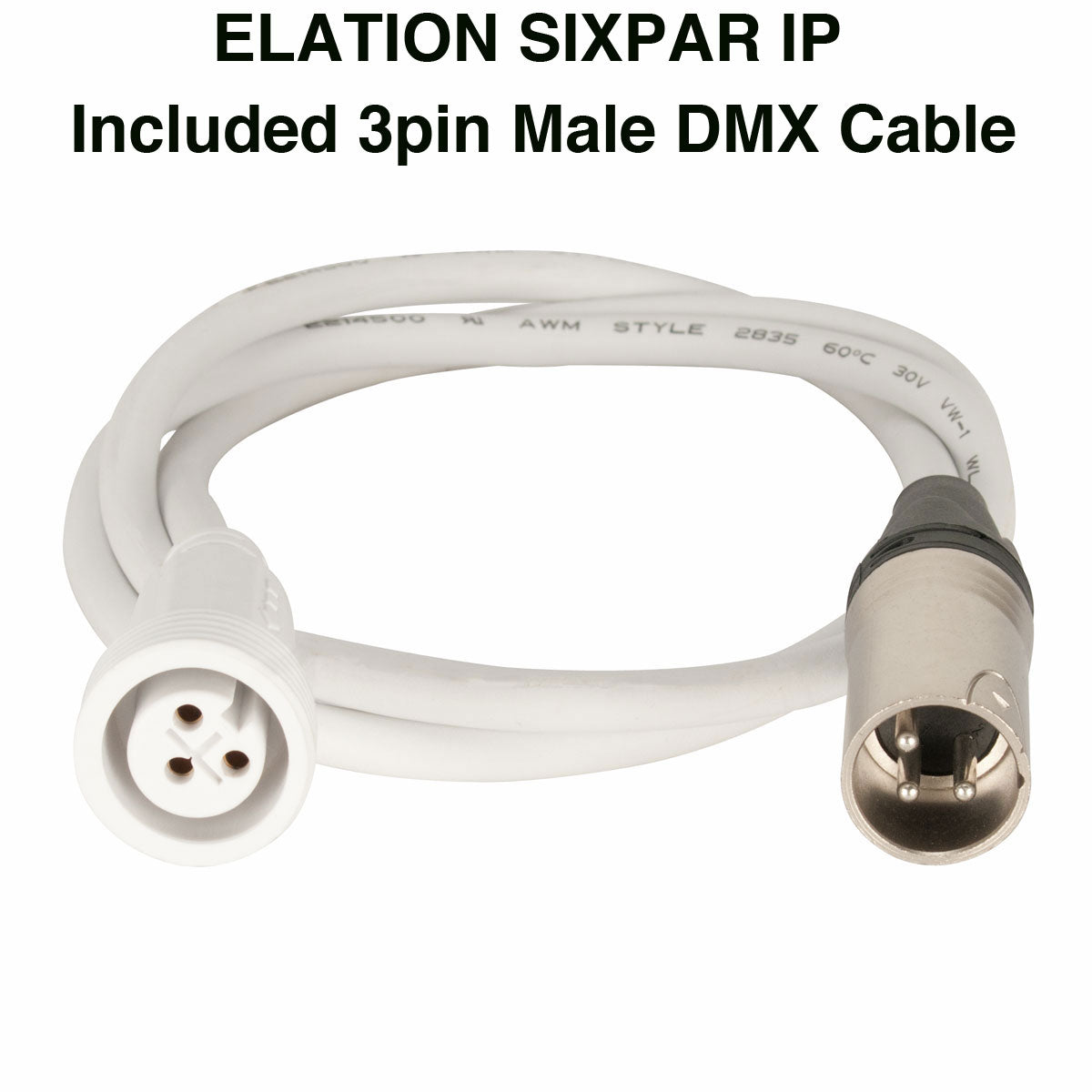

Male 3pin XLR to IP Female DMX Input White Cable 3.3 ft (1m)

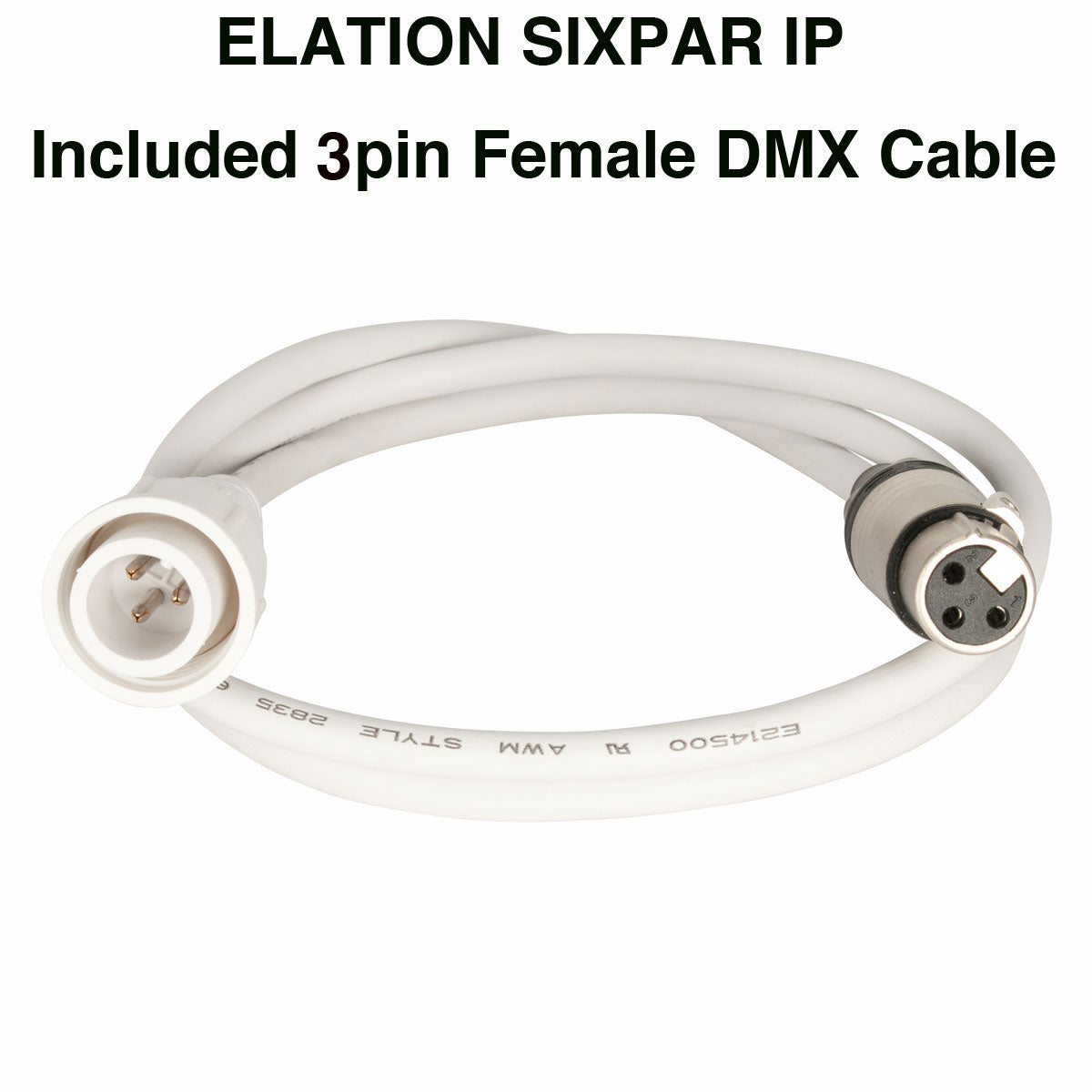

Female 3pin XLR to IP Male DMX Output White Cable 3.3 ft (1m)
OPTIONAL ACCESSORIES:
SIXPAR/2MDLC/WH - 3.3 ft. (1m) White IP Data Link Cable
SIXPAR/2MPLC/WH - 3.3 ft. (1m) White IP Power Link Cable
SIXPAR/2MDLC/WH - 6.6 ft. (2m) White IP Data Link Cable
SIXPAR/2MDLC/WH - 6.6 ft. (2m) White IP Power Link Cable
SIXPAR/5MDLC/WH - 16.4 ft. (5m) White IP Data Link Cable
SIXPAR/5MPLC/WH - 16.4 ft. (5m) White IP Power Link Cable
SIXPAR/10MDLC/WH - 32.8 ft. (10m) White IP Data Link Cable
SIXPAR/10MPLC/WH - 32.8 ft. (10m) White IP Power Link Cable
SIXPAR/20MDLC/WH - 65.6 ft. (20m) White IP Data Link Cable
SIXPAR/20MPLC/WH - 65.6 ft. (20m) White IP Power Link Cable
SIXPAR/DIAC/WH - White Data IN IP Adapter Cable
SIXPAR/DOAC/WH - White Data OUT IP Adapter Cable
SIXPAR/PIAC/WH - White Power IN IP Adapter Cable
SIXPAR/POAC/WH - White Power OUT IP Adapter Cable
SIXPAR/TERMINATOR/WH - White DMX Terminator End Cap
Specifications and documentation subject to change without notice.
Downloads
Dimensional drawings
Dmx traits
Specification sheet
User manual
SIXPAR 200WMG Parts & Service
Our SIXPAR 200WMG Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your SIXPAR 200WMG. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
SIXPAR 200WMG Parts & Service
