SIXPAR 300IP
18x 12W RGBAW+UV LED IP65 Par
SIXPAR 300IP is a professional-grade lighting solution. The IP65 rated SIXPAR 300IP™ features (18) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Related Products
SIXPAR 300IP
The IP65 rated SIXPAR 300IP™ features (18) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
- IP65 Rated
- 15° Beam 25° Field Angles
- 5 Variable Dimming Curve Modes
- Dual Yoke / Floor Stand
- Multiple Unit Power Linking
- RDM - Remote Device Management
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Specifications
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
24,500 LUX 2,276 FC @3.3’ (1m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display

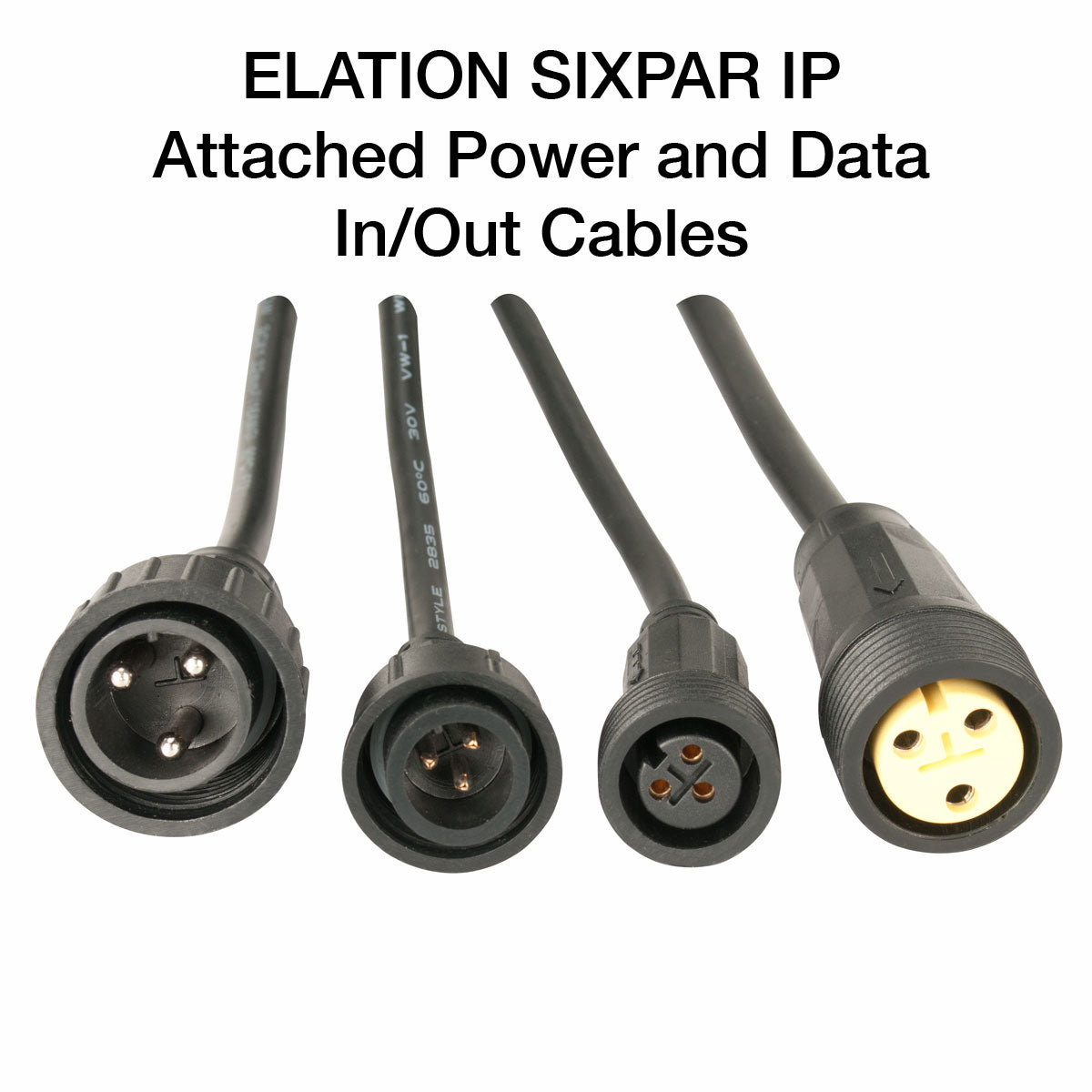

IP DMX In/Out
IP Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.4” (365mm)
Width: 4.9” (125mm)
Vertical Height: 14.4” (365mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
220W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS

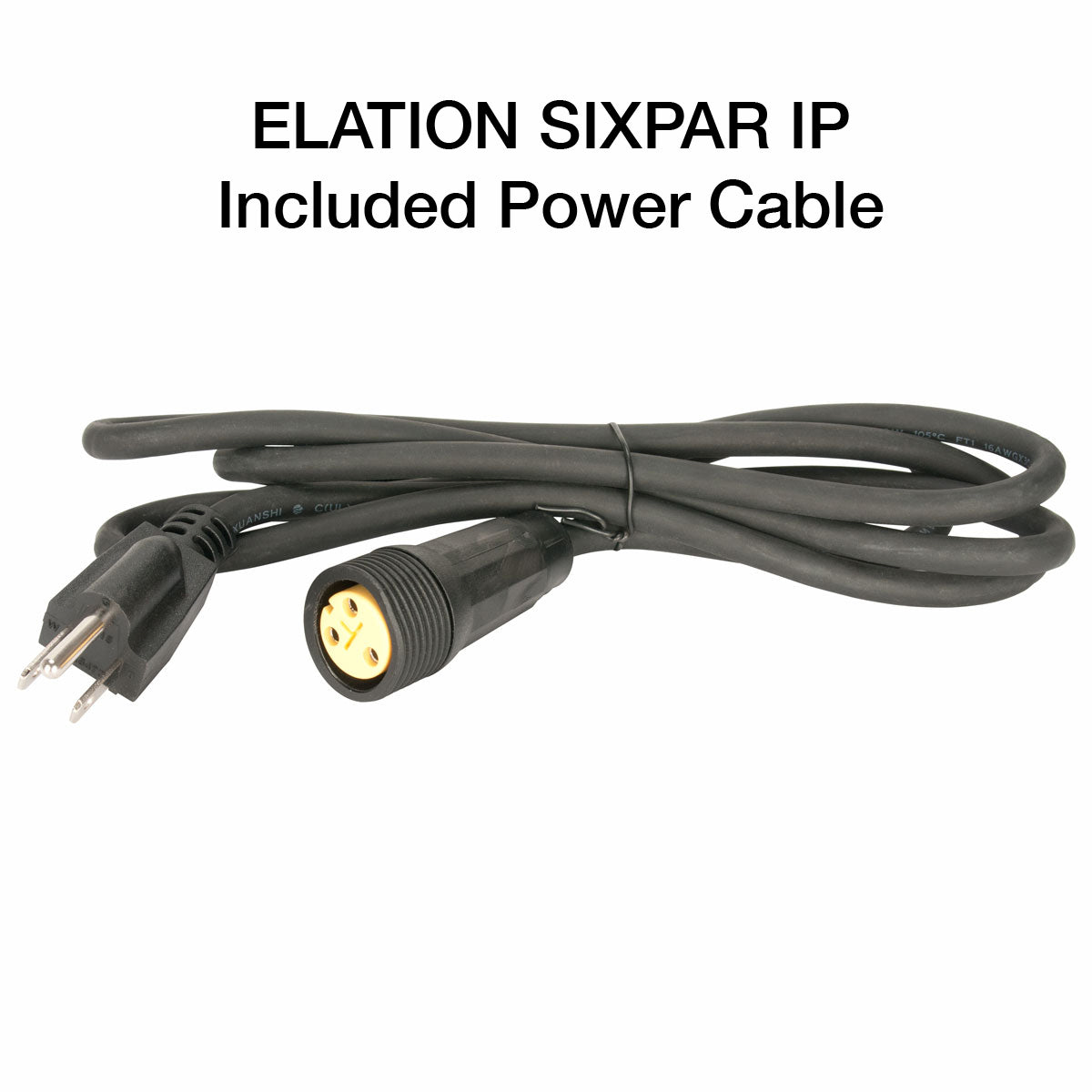

Male Edison to IP Female Power Cable 6,6 ft. (2m)

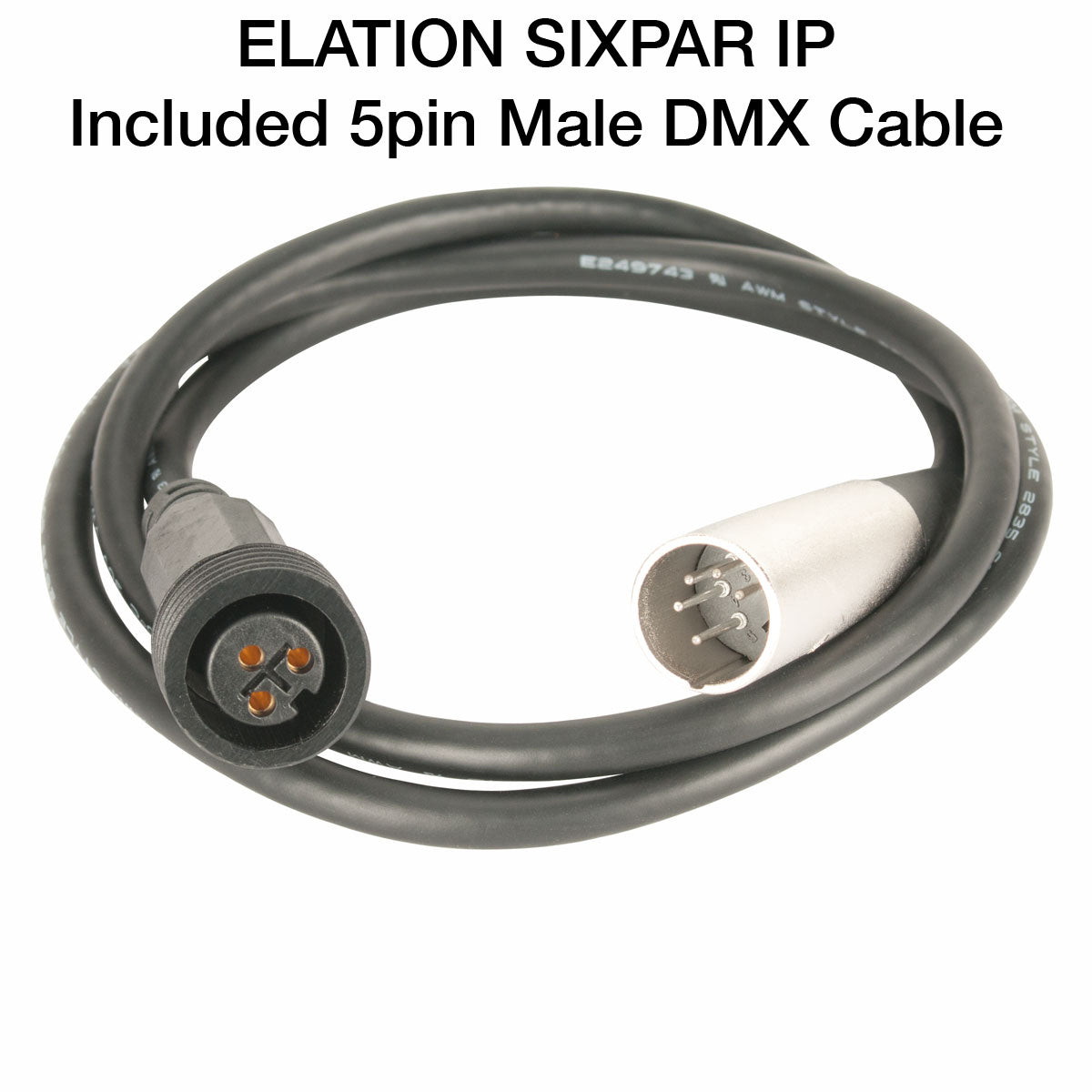

Male 5pin XLR to IP Female DMX Input Cable 3.3 ft (1m)

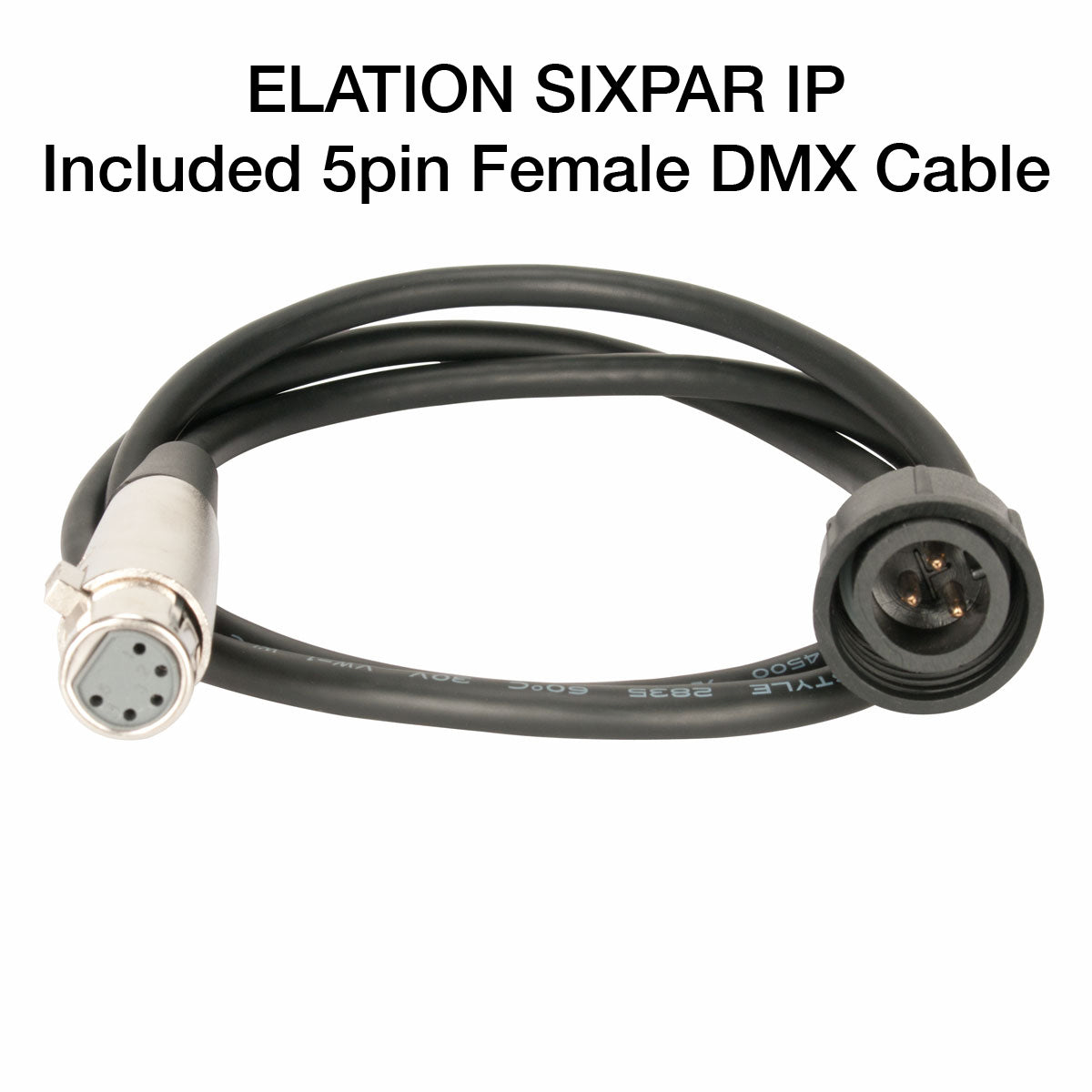

Female 5pin XLR to IP Male DMX Output Cable 3.3 ft (1m)
OPTIONAL ACCESSORIES:

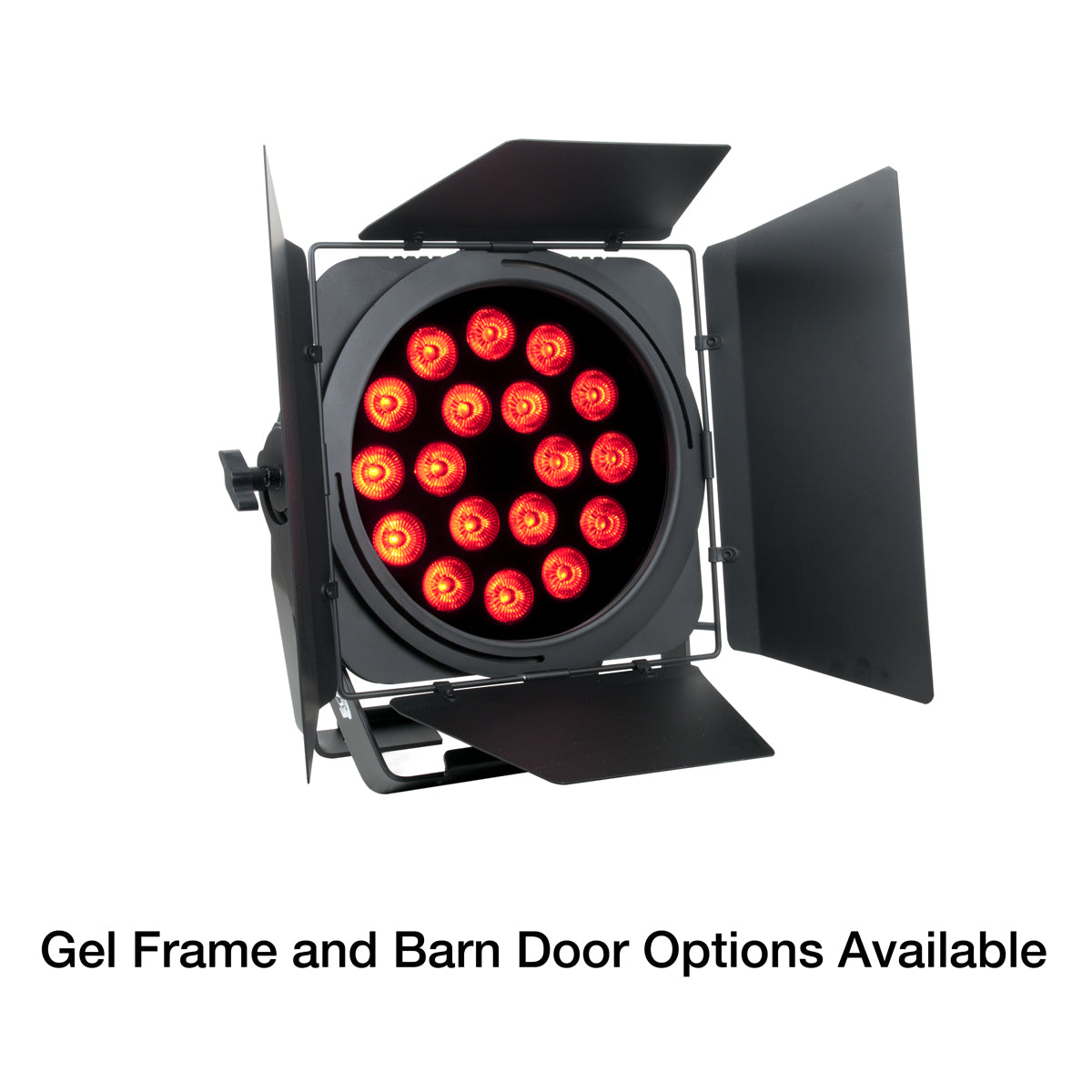

SIXPAR300/GFH- Gel Frame Holder Kit
SIXPAR/BD300- Barn Door
NOTE: Gel Frame Holder Kit required to attach Barn Door.
(Sold separately)
SIXPAR/2MDLC- 6.6 ft. (2m) IP Data Link Cable
SIXPAR/2MPLC- 6.6 ft. (2m) IP Power Link Cable
SIXPAR/3MDLC- 9.8 ft. (3m) IP Data Link Cable
SIXPAR/3MDLC- 9.8 ft. (3m) IP Power Link Cable
SIXPAR/5MDLC-*SPECIAL ORDER*16.4 ft. (5m) IP Data Link Cable
SIXPAR/5MPLC-*SPECIAL ORDER*16.4 ft. (5m) IP Power Link Cable
SIXPAR/10MDLC-*SPECIAL ORDER*32.8 ft. (10m) IP Data Link Cable
SIXPAR/10MPLC-*SPECIAL ORDER*32.8 ft. (10m) IP Power Link Cable
SIXPAR/20MDLC-*SPECIAL ORDER*65.6 ft. (20m) IP Data Link Cable
SIXPAR/20MPLC-*SPECIAL ORDER*65.6 ft. (20m) IP Power Link Cable
SIXPAR/DIAC- Data IN IP Adapter Cable
SIXPAR/DOAC- Data OUT IP Adapter Cable
SIXPAR/PIAC- Power IN IP Adapter Cable
SIXPAR/POAC- Power OUT IP Adapter Cable
SIXPAR/TERMINATOR- DMX Terminator End Cap
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
SIXPAR 300IP Parts & Service
Our SIXPAR 300IP Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your SIXPAR 300IP. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
SIXPAR 300IP Parts & Service
