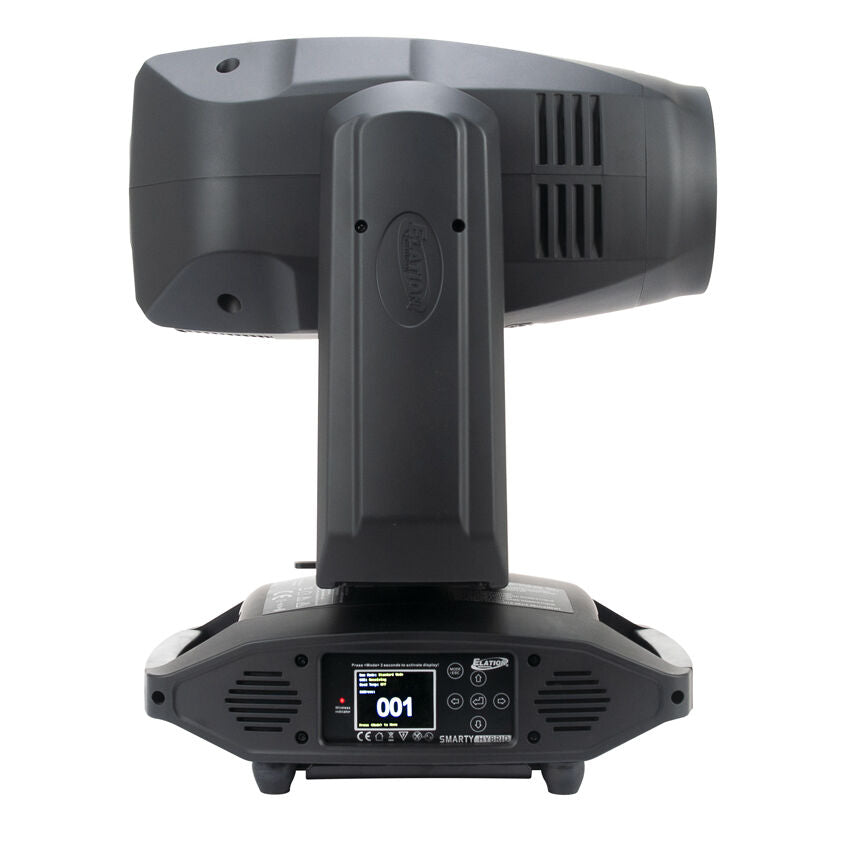

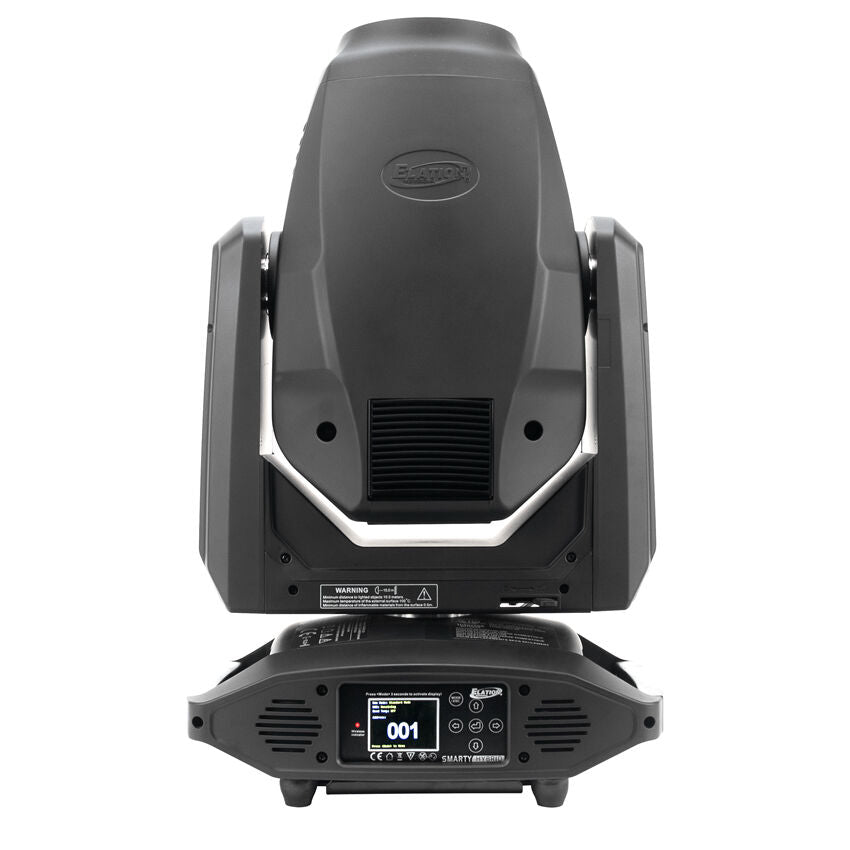

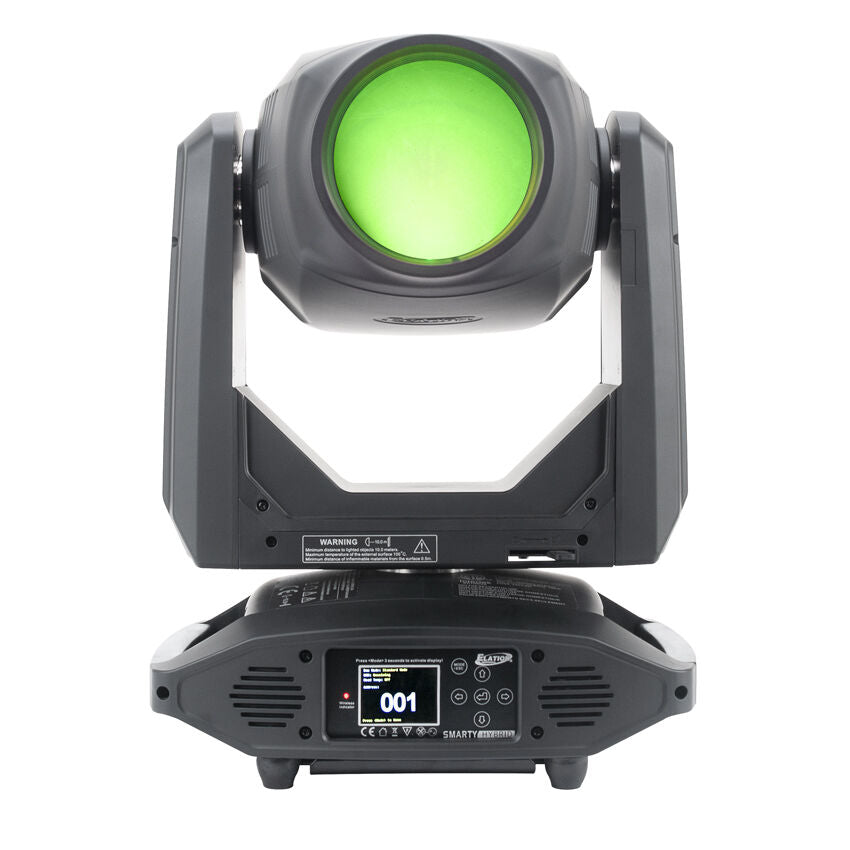

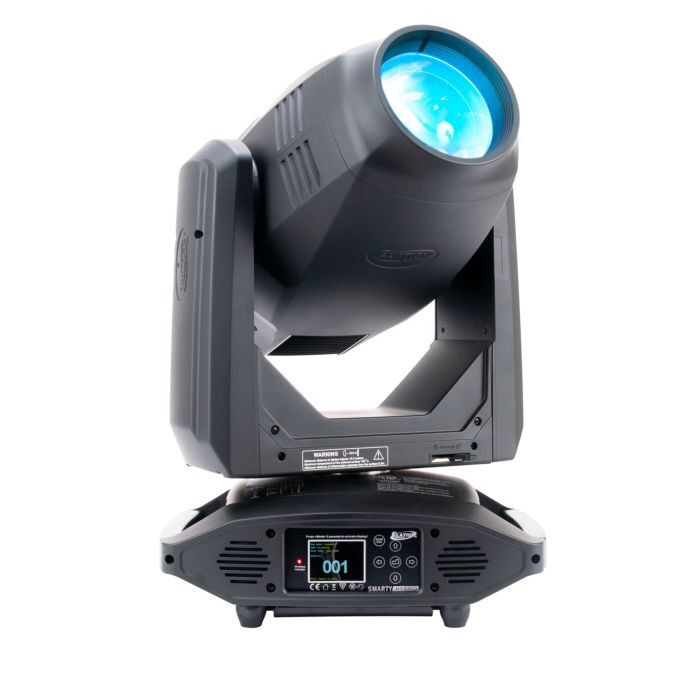

SMARTY HYBRID
280W Long Life Discharge Beam/Spot/Wash Hybrid Fixture
SMARTY HYBRID is a professional-grade lighting solution. The Smarty Hybrid™ is a compact full featured CMY color mixing spot, beam, and wash hybrid luminaire featuring the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours.

SMARTY HYBRID
The Smarty Hybrid™ is a compact full featured CMY color mixing spot, beam, and wash hybrid luminaire featuring the all new Philips™ MSD Platinum 200 Flex lamp with "œFLEX"technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours. Features include 11,000 total lumen output, motorized zoom ranges of 1° to 18° in beam mode, 3° to 27° in spot mode, and 5° to 33° in wash mode, a full CMY color mixing system, a full frost filter for wash effects, 13 dichroic colors including a quad-color filter, CTB, CTO, and UV, 8 rotating"”interchangeable glass and 12 static-stamped metal gobos, a 16-facet and 5-facet linear independent rotating prisms, multiple CMY color, gobo, and prism macros, motorized focus with an auto-focus feature, high speed shutter and strobe, lamp hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation's E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 etherCON, and Neutrik TRUE1 power in/out connections, full color 180° reversible LCD menu display with battery backup, a multi-voltage universal auto switching power supply (100-240V), and a comprehensive 2-year / 6,000 hour ultimate warranty**

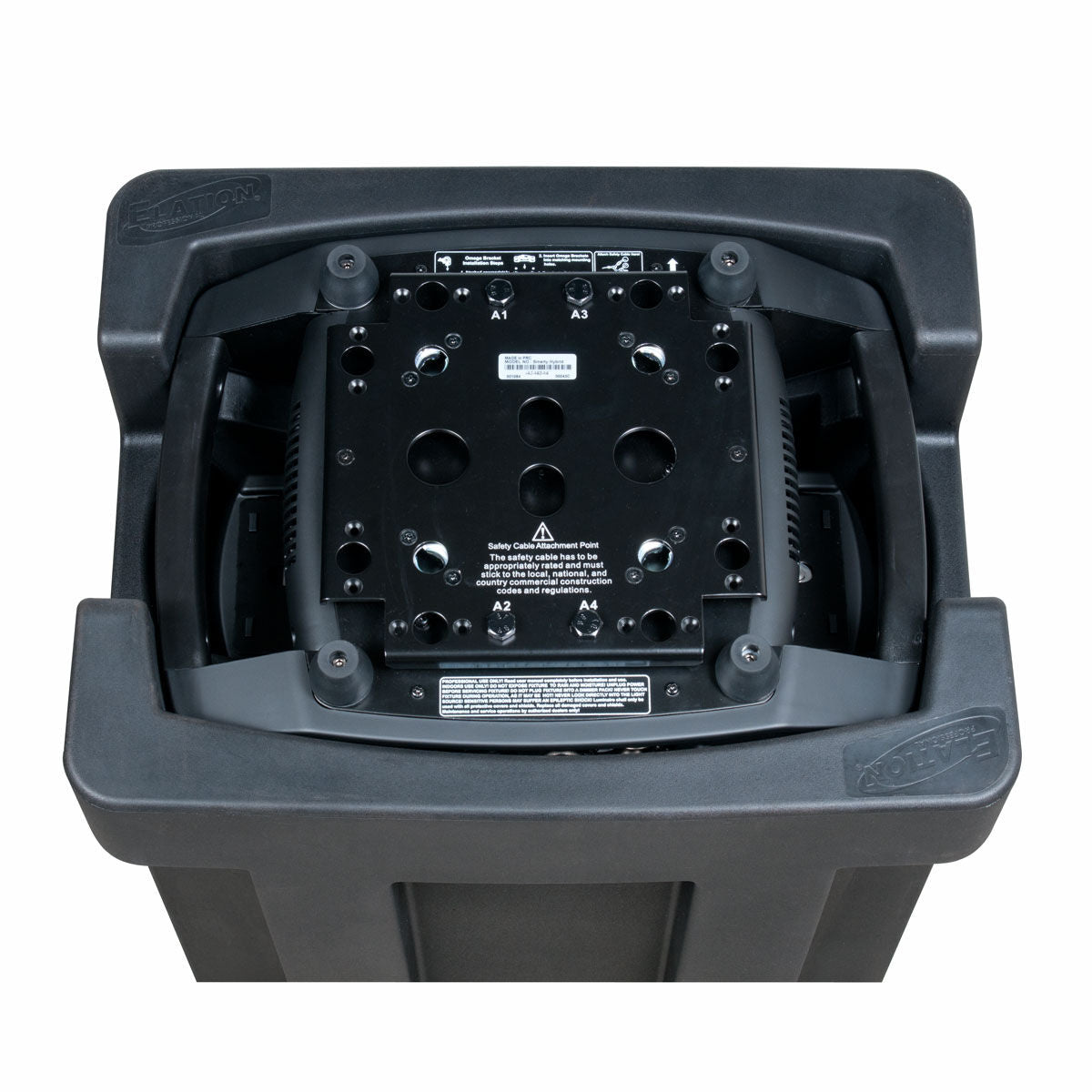

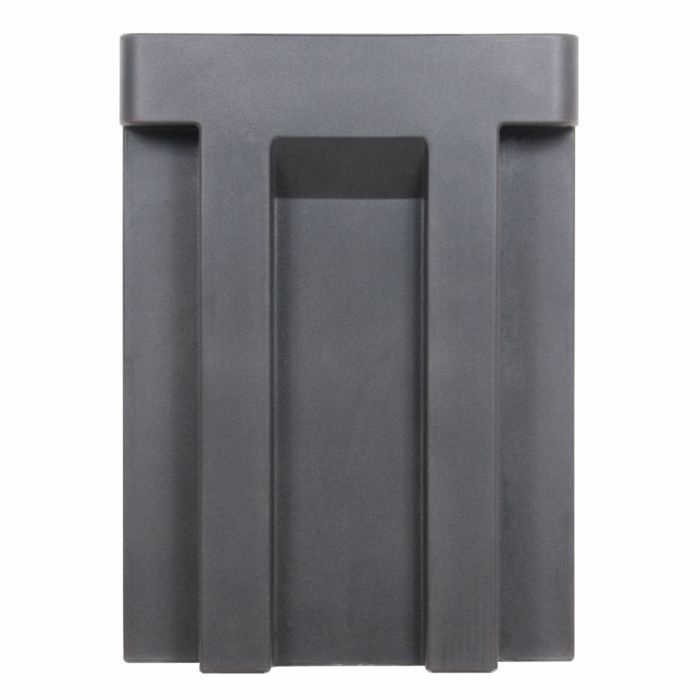

The Smarty Hybrid FIL fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into any custom sized flight case (not included), and provides enhanced impact protection during transport.
**First 2 Years of operation or 6,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance.

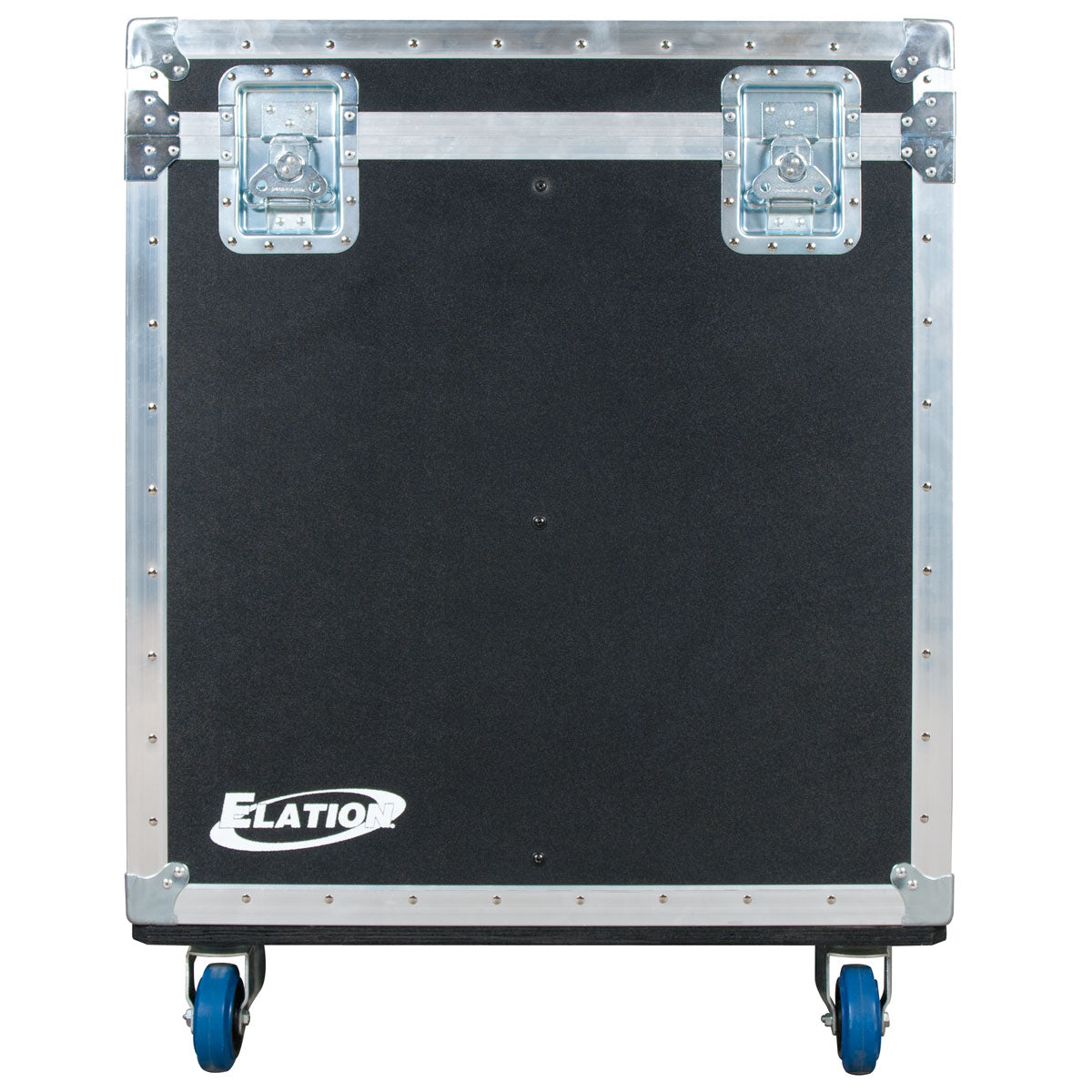

Custom fitted polyurethane foam insert. Fits easily fits into any custom sized flight case (not included), and provides enhanced impact protection during transport.
- 3-in-1 Smart Hybrid Beam, Spot, Wash Luminaire
- New Philips™ MSD Platinum 200 Flex Lamp
- Up To 6,000 Lamp Hours*
- FLEX Lamp Technology from 190 to 280W + Hibernation Mode
- Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
- Full Frost Filter for Wash Effects
- Full CMY Color Mixing System
- 13 Colors including Quad Color, CTB, CTO, and UV
- 8 Rotating Interchangeable Glass Gobos
- 12 Static-Stamped Metal Gobos
- 16-Facet and 4-Facet Linear Rotating Prisms
- Multiple CMY Color, Gobo, and Prism Macros
- Motorized Focus with Auto-Focus Feature
- DMX, RDM, Art-NET, and sACN Support
- Elation's E-FLY™Internal Wireless DMX Transceiver
- Ultimate Warranty** - Comprehensive 2 Years / 6,000 Hours
- FIL (Foam In Lay)
Specifications
SOURCE
Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, Dimming, and Lamp Mode.
PHOTOMETRIC DATA
11,000 Total Lumen Output
128,426 LUX 11,931 FC @49.2’ (15m) (Min Zoom Beam)
135,108 LUX 12,552 FC @16.4’ (5m) (Min Zoom Spot)
EFFECTS

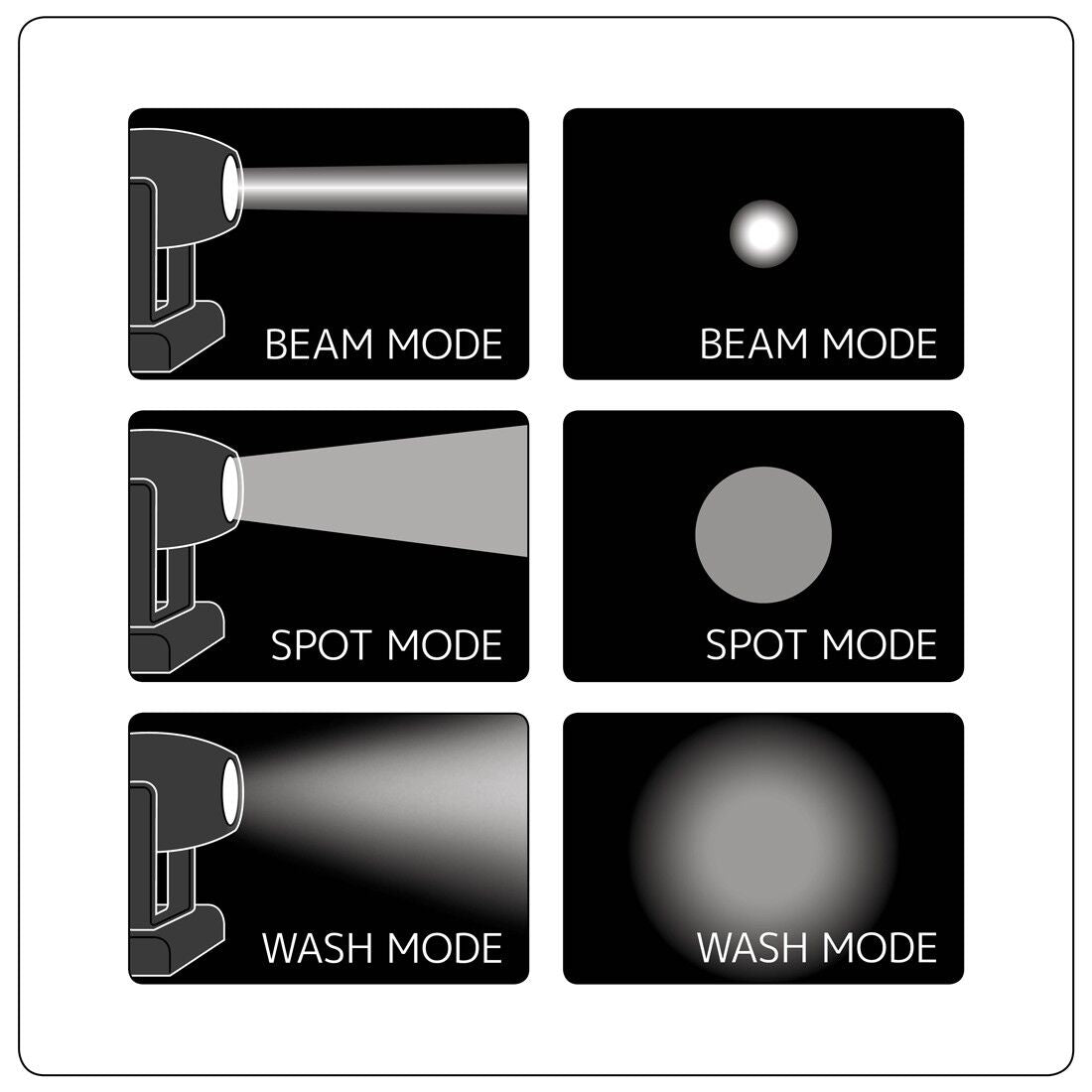

Beam, Spot, and Wash Modes
Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Rotating Prisms
CMY Color, Gobo, and Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 270°
COLOR
Full CMY Color Mixing System
13 Colors including Quad Color, CTB, CTO, and UV
GOBOS
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
12 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (20/34 channels)
Full Color 180° Reversible LCD Menu Display
6 Button Menu Control Panel
16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-FLY Internal Wireless DMX Transceiver
Hibernation Mode (Power Save)

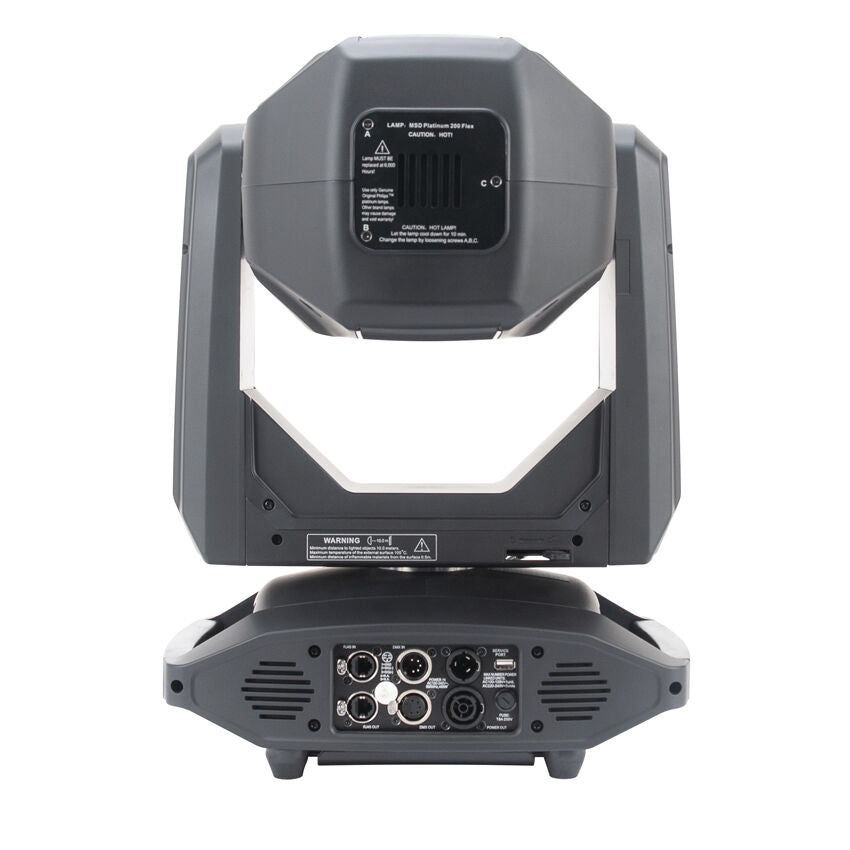

5pin DMX In/Out
RJ45 etherCON In/Out
Neutrik TRUE1 Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.2” (385mm)
Width: 15.9” (405mm)
Vertical Height: 24.0” (610mm)
Center-to-Center Spacing 19.3in (490.8mm)
Weight: 49.0 lbs. (22.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
480W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: V1.4.1
Click HERE for software update
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Generic

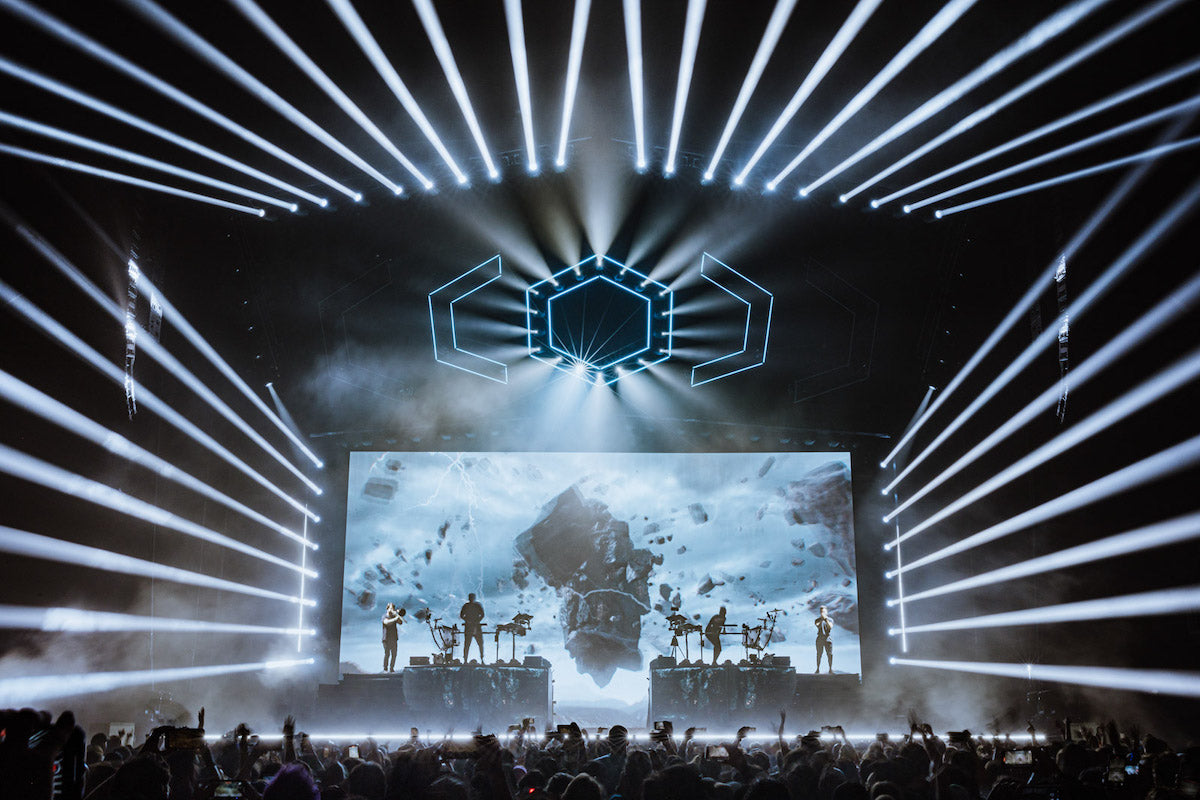

LD Kyle Kegan uses Elation on ODESZA’s triumphant “The Last Goodbye Tour”

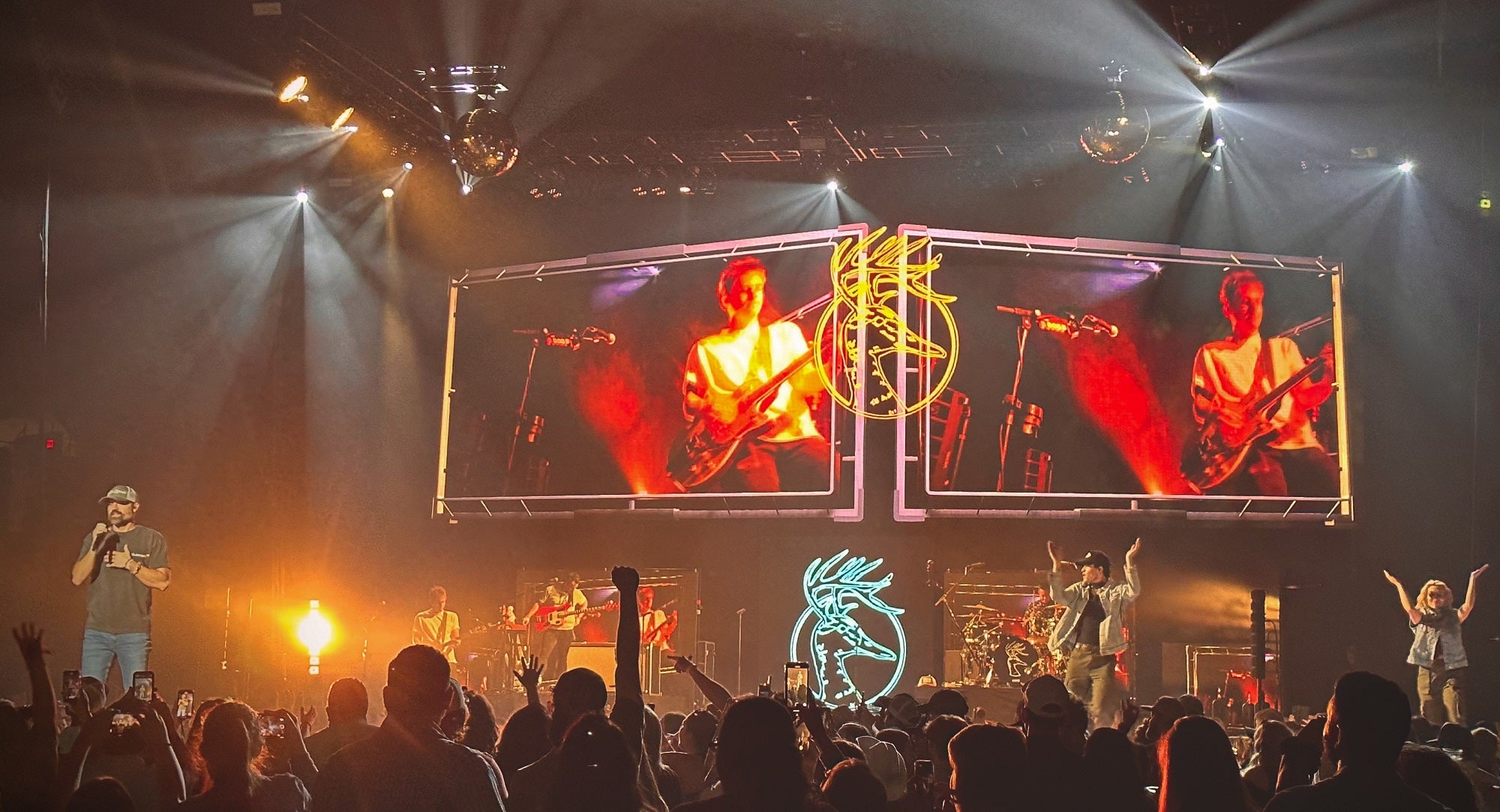

Elation Smarty Hybrid™ workhorse lights on Walker Hayes “Duck Buck Tour”

Jeff Ravitz selects Elation lighting for Bruce Springsteen & the E Street Band 2023 World Tour

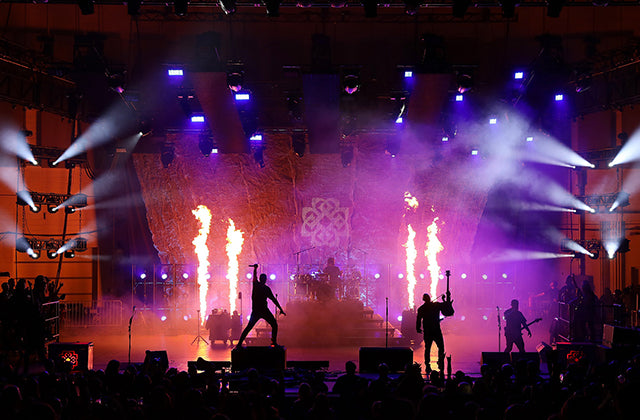

Smarty Hybrids™ add tailored touch to Breaking Benjamin on co-headlining tour
