STR300
STR300

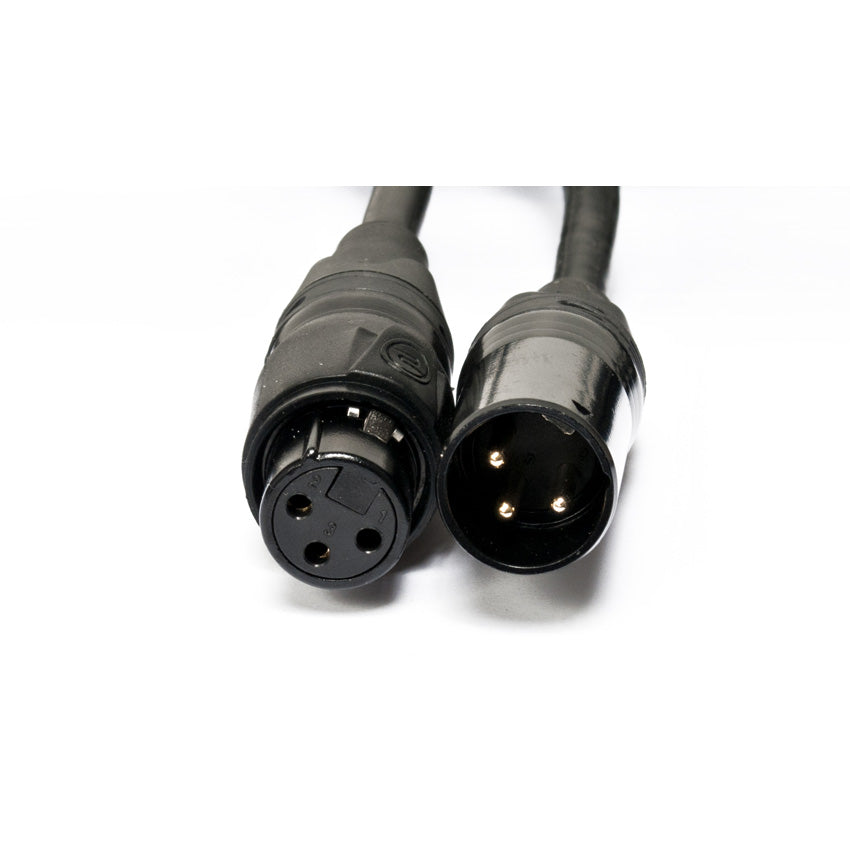

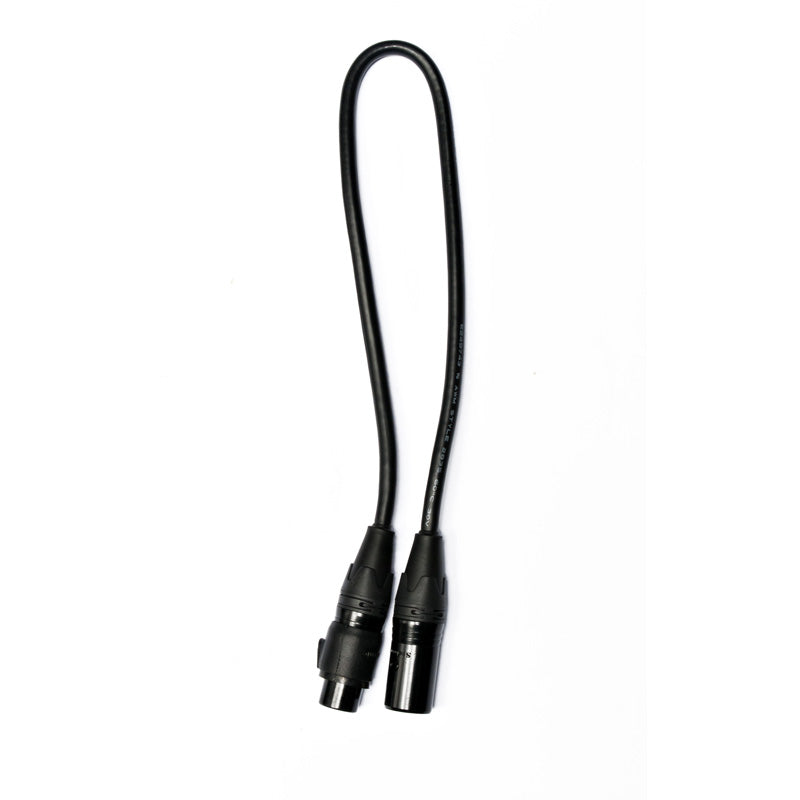

1.64ft. (.5m) IP65 Rated 3 Pin DMX XLR Cable
- 1.64ft. (.5m) IP65 Rated 3 Pin DMX XLR Cable
Specifications
SOURCE
Philips MSD Platinum 500L Flex 550W Lamp
Variable Lamp Power
Automated Lamp Hibernation with Instant Recovery
Up to 4,000 Hour Lamp Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
0.8° Beam Angle
1.6° Field Angle
3.5° Beam Expander Lens
20,000 Total Lumen Output
7000K. CRI 77+
335000 LUX @15m (31100 fc @ 49ft)
7500 LUX @100m (700 fc @ 330ft)
EFFECTS
Beam Expander
Focus
Dual Rotating Prisms and Prism Macros
Dual Frost Filter Hybrid Wash Effect
High Speed Mechanical Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
14 Dichroic Colors Including CTO and UV
Full CMY Color Mixing
GOBOS
8 Interchangeable Rotating / Indexing Glass Gobos
17 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
Single DMX Mode (26ch.)
Sky Motion Standalone mode for searchlight and skytracker animations
16-bit Pan, Tilt, and Dimming Control
Motorized Focus
DMX, RDM Protocol Support
NFC Support
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
10' (3m) DMX In/Out combo cable
10' (3m) Power cable
SIZE / WEIGHT
Length: 19.4" (493mm)
Width: 15.1" (383mm)
Vertical Height: 27.4" (697mm)
Center Spacing: 23.3" (592.8mm)
Weight: 108lbs (49kg)
EXTERIOR FINISH
RAL9016 (custom colors available on request)
CX Extreme Marine Grade Coating
Stainless Steel 316 Fasteners
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
800W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
