TRACKPOD 84
Trackpod 84 is a professional-grade lighting solution. (rated at 100,000 Hours) #160; • Low power consumption #160; • Low heat emissions #160; • Built-in Power Supply and DMX 512 Control#160; #160; • Flicker free operation for television and film (520Hz)#160; #160; • Electronic Switching Power Supply (90-260V, 50/60Hz) #160; • Full video pixel mapping control. This provides a total of 40 pixels capable of running graphics or matrix when multiple units are used together.
TRACKPOD 84
DMX LED Pro Bar

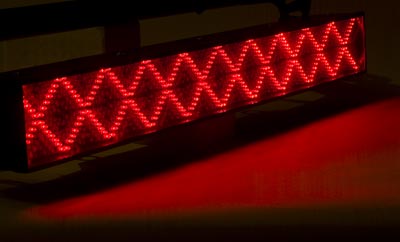

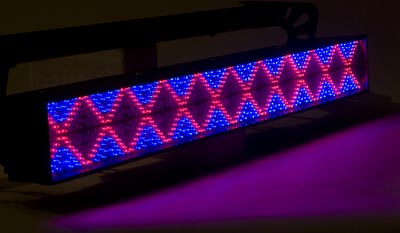

Full video pixel mapping control. LEDs are arranged in ten modules of 84, each of which can be divided into four individual sections. This provides a total of 40 pixels capable of running graphics or matrix when multiple units are used together.
- FEATURES:
- 840 LEDs - (280 Red, 280 Green, 280 Blue)
- Seamless RGB color mixing
- Infinite Color possibilities
- 15-degree beam angle
- 2300 LUX @ 1M / 1000 LUX @ 2M
- Long Life L.E.D. (rated at 100,000 Hours)
- Low power consumption
- Low heat emissions
- Built-in Power Supply and DMX 512 Control
- Flicker free operation for television and film (520Hz)
- Electronic Switching Power Supply (90-260V, 50/60Hz)
Specifications
• USITT-DMX 512
• 4, 7, 8, 20, 40, 160 control channel modes

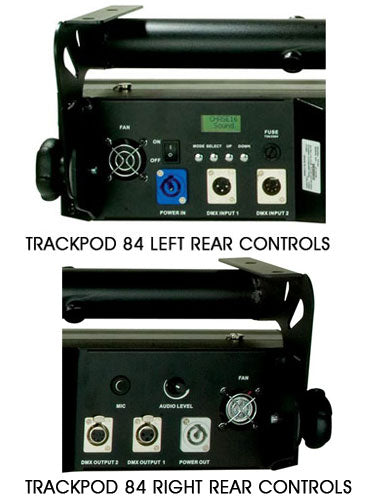

• LCD display with 4-button DMX control
• 3-pin and 5-pin XLR in/out
CONTROL FEATURES:
• 4 control modes: DMX; Primary/Secondary Mode; Manual Color Mix; Auto Chase
• 19 pre-programmed chases
• Strobe effect
• 7 static colors with intensity control
• 0-100% Dimming
POWER SUPPLY:
• 100-240V AC, 50/60Hz (Multi-voltage)
• Neutrik Powercon for power connection
• Power Consumption: 120 watts
RIGGING:
• Heavy duty mounting bracket
DIMENSIONS amp; WEIGHT:
• (LxWxH): 40” x 10.25” x 9.75” / 1010x258x245mm
• 25 lbs. / 11.3 kgs.
