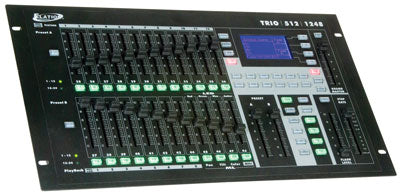

TRIO 1248

• 24 configurable faders

• 2 DMX universes

• Additional artNET output

• DMX input

• VGA monitor output option

• Built-in FX generator

• LCD step-by-step instruction

• DMX512 console allows for control of conventional lights, moving lights and LEDrsquo;s.

• Six operation modes; Single Scene, Two Scene, Sub Master Moving Light, LED and Memory playback modes.

• 1152 recordable scenes (24 pages x 48 scenes) in sub master mode for conventional lights.

• 12 built in FX include movement for MLrsquo;s and color chases for LEDrsquo;s.

• LCD display offers detailed information.

• 24 faders to control conventional, moving light and LED fixture channels

• Control 12 ML fixtures up to 40 channels each. 20 playbacks x 99 steps in Moving Light mode

• Control 12 LED (RGBA) fixtures. 20 playbacks x 99 steps in LED mode Memory playback mode allows for a combination of Sub Master, LED playback and Moving Light -playback

• Back lit buttons (by RGB LEDrsquo;s) change color depending on their state

• Grand Master fader for total output control

• A amp; B faderrsquo;s for two scene operation

• USB Input for uploading and downloading data

• ArtNET for faster communication with compatible devices

• 3 pin XLR DMX Input to connect external console

• Two sets of 3 amp; 5 pin DMX Outputs

• On/Off Power Switch

• 9-12VDC 2A power supply (Included)

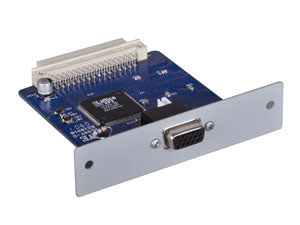

• 800x600 VGA monitor output (optional)

• Dimensions (HxWxL): 2.75ldquo; x 19ldquo; x 10.4ldquo; / 70 x 482 x 264 mm

• Weight: 9 lbs. 4.5 kg.
