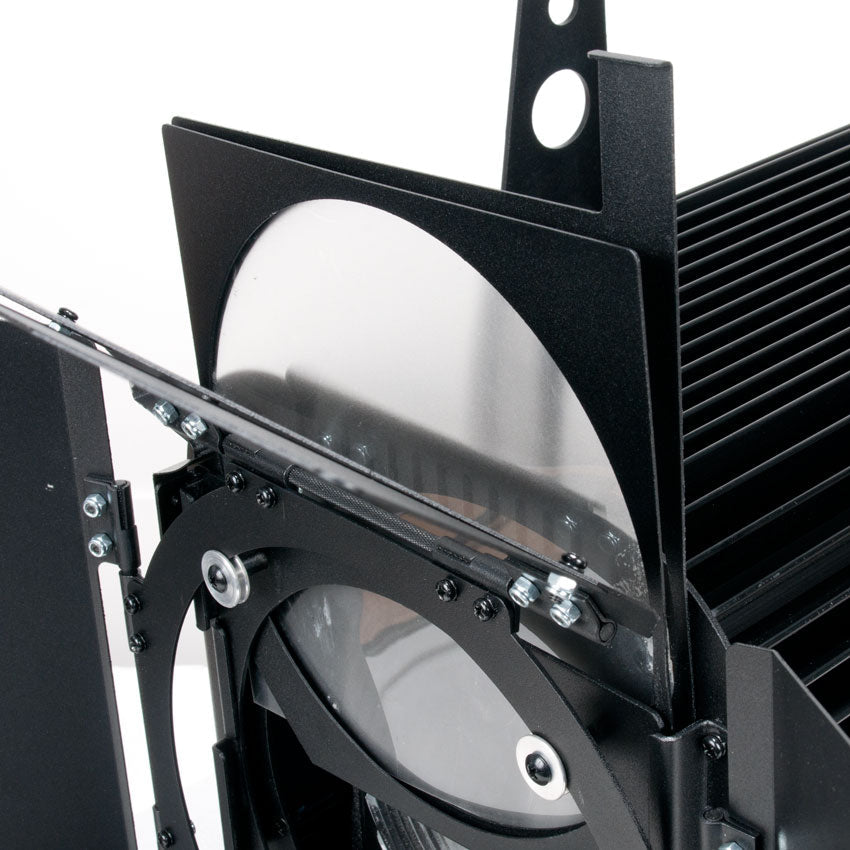

TVL F1CW
TVL F1CW is a professional-grade lighting solution. The TVL F1CW™ features a 100W Cool White 5,600K LED engine, motorized 12°-40° zoom, no noise thermo-optical cooling, DMX controlled dimmer and zoom, flicker free operation for TV and FILM, 5pin DMX in/out, powerCON, and (2) Ethernet (RJ45) connections, integrated yoke / handle, rotating barn door and gel frame included, 141W max consumption, and a multi-voltage universal auto switching power supply (100-240v).
TVL F1CW
The TVL F1CW™ features a 100W Cool White 5,600K LED engine, motorized 12°-40° zoom, no noise thermo-optical cooling, DMX controlled dimmer and zoom, flicker free operation for TV and FILM, 5pin DMX in/out, powerCON, and (2) Ethernet (RJ45) connections, integrated yoke / handle, rotating barn door and gel frame included, 141W max consumption, and a multi-voltage universal auto switching power supply (100-240v). FEATURES 12° - 40° Motorized Zoom DMX Controlled Dimmer/Zoom Flicker FREE Operation for TV and FILM No Noise Thermo-Optical Cooling Technology Rotating Barn Door and Gel Frame Included
Specifications
(1) 100W Cool White LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
High CRI = 95 / 34.64 Lm/W 5,600K (plusmn; 200K)
3,350 Max LUX @5M (12deg; Full On 5,600K)
EFFECTS
Zoom: 12deg; - 40deg;
Dimming: 0% - 100%
CONTROL / CONNECTIONS
4 Button Control LED Menu Display Panel
2 DMX Channels
5pin DMX In/Out
2 Ethernet (RJ45) Ports
powerCON Power In
SIZE / WEIGHT
Length: 20.4" (519 mm)
Width: 16" (407 mm)
Vertical Height: 17.4" (442 mm)
Weight: 35 lbs. (15.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
141W Max Power Consumption
40deg;C / 104deg;F Max Ambient Temperature
APPROVALS / RATINGS
CE | RoHs | IP20
INCLUDED ITEMS
Integrated Yoke/Handle
powerCON Cable
Rotating Barn Door
Gel Frame
OPTIONAL ACCESSORIES:
LSF FILTERS(click for more info)
CLAMPS(click for more info)
PRO CABLES(click for more info)
DMX SOLUTIONS(click for more info)
Specifications and documentation subject to change without notice.
