TVL1000 II
TVL1000 II is a professional-grade lighting solution.
TVL1000 II

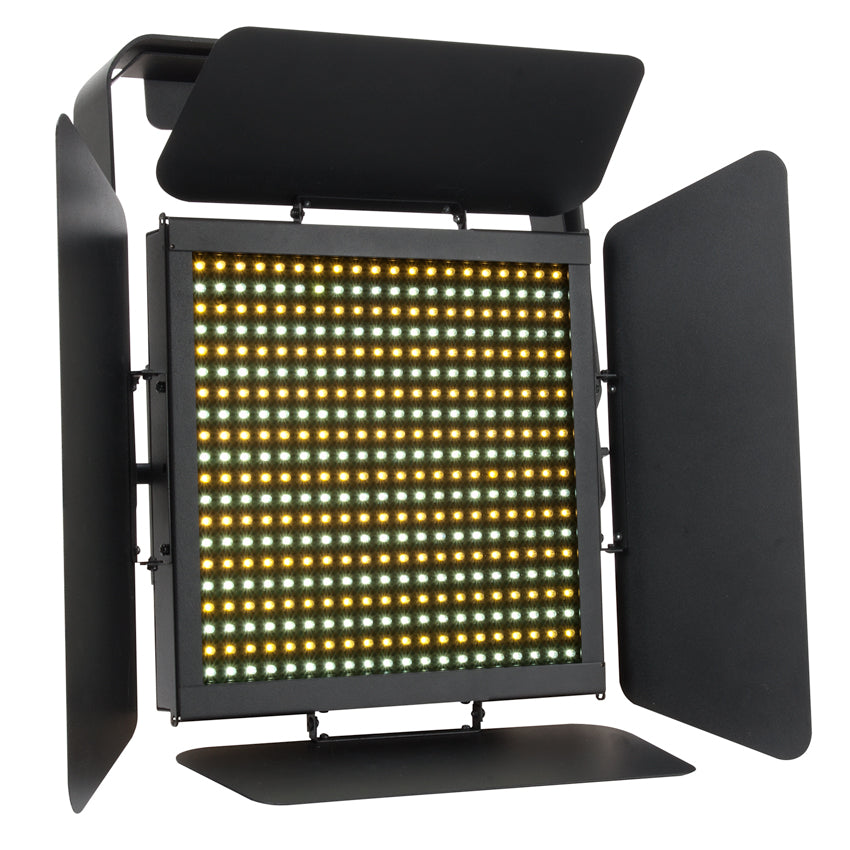

The new improved TVL1000 II™ features a low heat, >90CRI, dynamic LED array panel consisting of 200 warm white and 200 cool white LEDs, 30° beam angle, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, magnetic gel/diffuser holder, flicker free operation for broadcast TV and FILM, 3 and 5 pin DMX in/out and linkable power in/out connections, (4) button (2) dial LCD display control panel, 68W max power consumption, a multi-voltage universal auto switching power supply (100-240v), and an optional battery is available.
- Low Heat, >90CRI Dynamic LED Array Panel
- 30° Beam Angle
- Variable Color Temperature Settings (3,200K - 6,500K)
- Adjustable Barn Doors

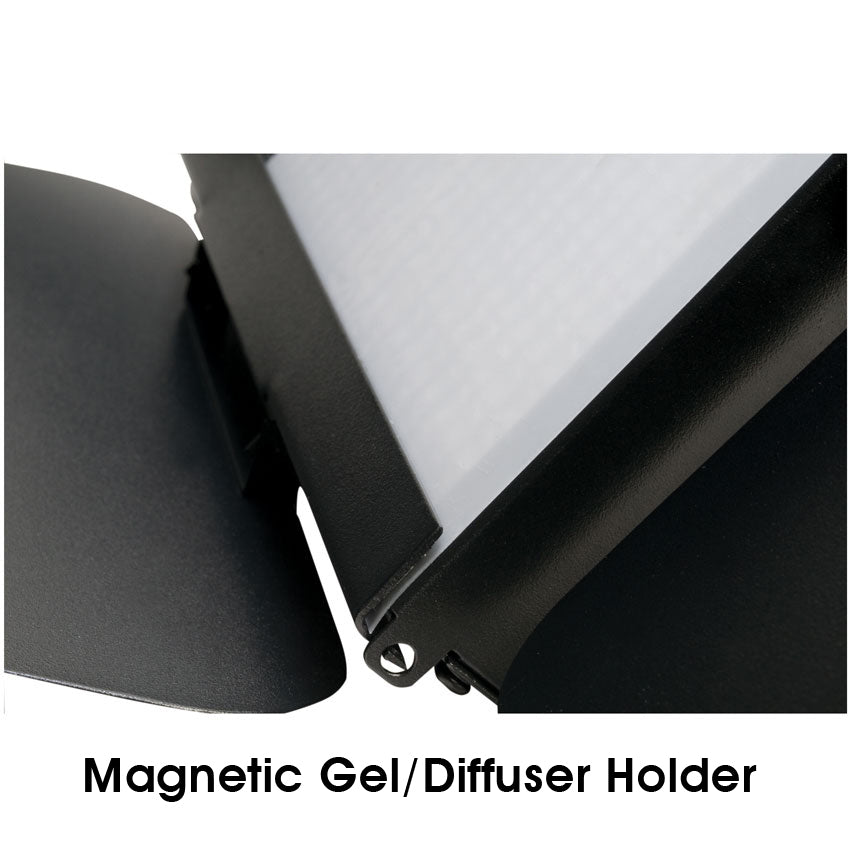

- Magnetic Gel/Diffuser Holder
- Manual and DMX Controlled Color Temp and Dimming
- Flicker Free Operation for Broadcast TV and FILM
- Multiple Unit Power Linking
Specifications
(200) Warm White + (200) Cool White LEDs
50,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
340 LUX 32 FC @6.6’ (2M) (30° Warm White 3,200K)
420 LUX 39 FC @6.6’ (2M) (30° Cool White 6,500K)
600 LUX 56 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (2/2/3)
Manual and DMX Color Temperature and Dimming

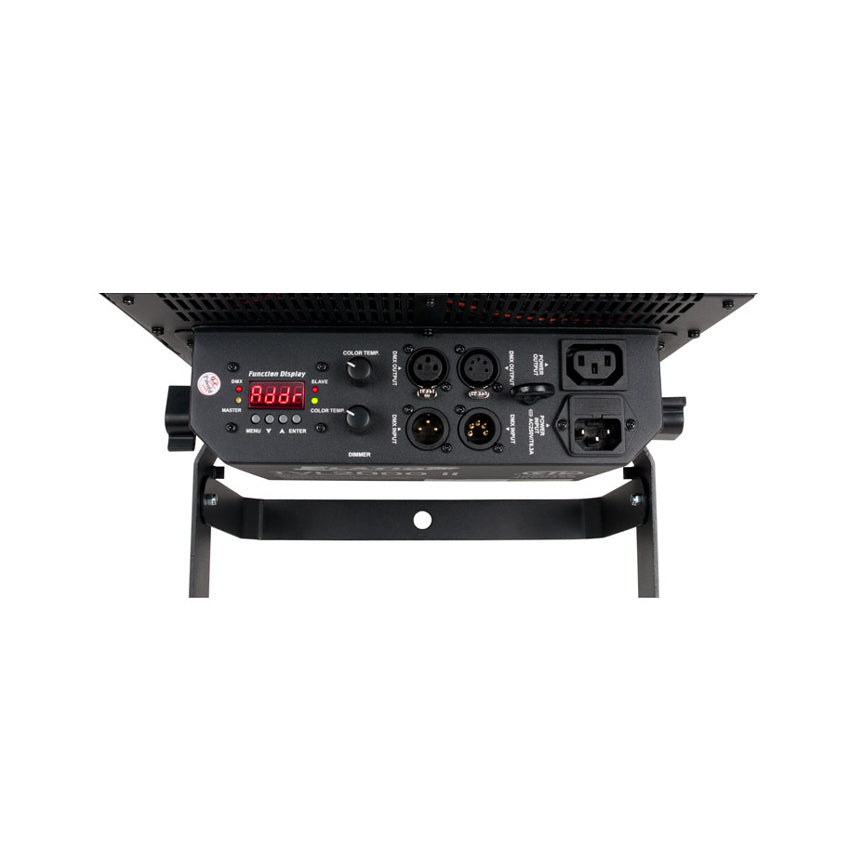

(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Power Link Up To (5) Units
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.9” (406mm)
Width: 13.7” (350mm)
Vertical Height: 4.4” (113mm)
Weight: 13.6 lbs. (6.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
68W Max Power Consumption
TA: 40°C Max Ambient Temperature
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES:

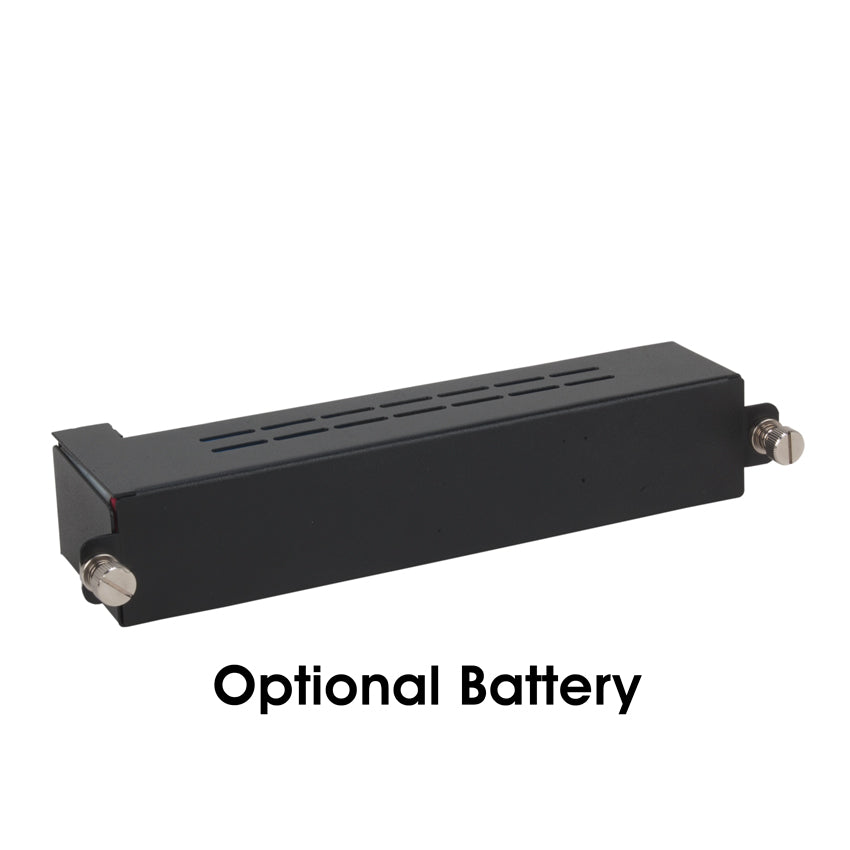

TVL975 - Battery
Specifications and documentation subject to change without notice.
