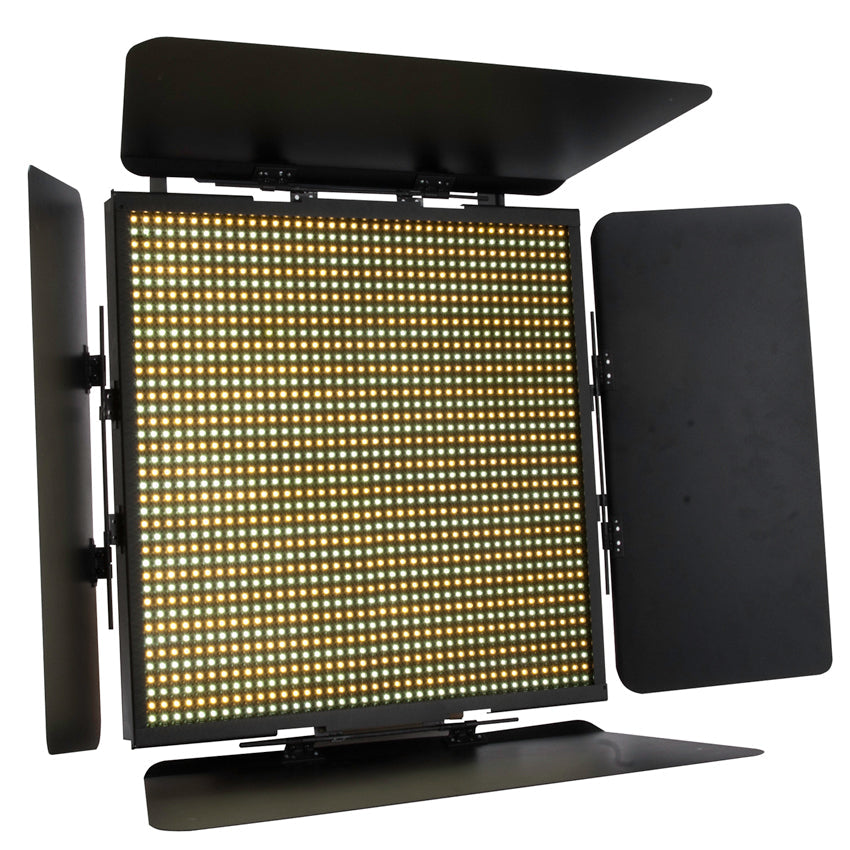

TVL4000

Technical Specifications

• 1600 total LEDs (CW 800pcs and WW 800pcs LEDrsquo;s)

• Smooth flicker free dimming

• Extreme output - 960lux @ 5M

• Adjustable Barn Doors included

• 5pin and 3pin DMX in/out

• IEC Power input

• LED Menu Display on rear of unit

• 160 Watts Total Power Consumption at full output

• Internal Switch Mode Power: 160W MAX / 120v-240V 50/60hz

• 3 Operation Modes 2 DMX WW/CW, 2 DMX DW/ DIMMER / 3 DMX CW, WW, DIM channels

• Unit Weight 12 kg / 27 lbs

• Dimensions (LxWxH): 26" x 23.75" x 5" / 658 x 576 x 127mm
