Vision Scan 250
Discontinued
Vision Scan 250 is a professional-grade lighting solution. 250W PROFESSIONAL MOVING MIRROR FIXTURE CONTROL FEATURES • RDMX - Remote DMX Addressing • USITT DMX-512 (16-bit resoultion) • 14 DMX channels • 4 Digit L.E.D.
Vision Scan 250
Sale price$0.00
Vision Scan 250

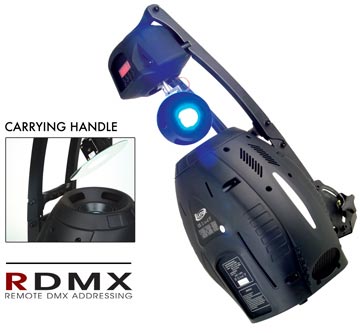

250W PROFESSIONAL MOVING MIRROR FIXTURE
CONTROL FEATURES
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 14 DMX channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode
CONTROL FEATURES
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 14 DMX channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode
Specifications
OPTICAL SYSTEM
&•High output luminous-parabolic dichroic reflector

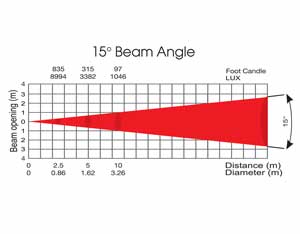

&•15° Beam Angle
&•All lenses are anti-reflection coated
COLORS
&•8 dichroic filters, 7 Colors, UV + White
&• Continuous, variable speed, color scrolling in both directions (rainbow effect)
&• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
&•2 gobo wheels, 13 total gobos, 10 metal, 3 glass with Slot-Lock gobo replacement system
&•6 interchangeable, indexable, rotating gobos plus open
&•7 interchangeable, static gobos plus open
&• 26.9mm outside diameter, 23mm image diameter
&•Gobo Overlay (Gobo Morphing)
SHUTTER/DIMMER
&•Variable speed strobe effect (1-10) flashes per second
&•Pre-set variable/random strobe and dimming pulse effect
&• Dual Flag mechanical dimming system
PRISM
&• 3 facet prism rotating in both directions at variable speeds
&•Macro-function for rotating gobos/rotating prisim combinations
FOCUS
&•Motor driven focus from near to far
LAMP
&• Phillips MSD 250/2 (250W, 8500°K, 3000 HRS)
PAN/TILT
&• Maximum PAN-movement 170°
&•Maximum TILT-movement 85°
&•Vector Mode with blackout
RIGGING
&•1 x Heavy Duty yoke
&• 1 x Safety cable hole
POWER SUPPLY
&•8A or 4A Fuse
&•Magnetic Ballast
&•Voltage: AC 98, 120, 208, 220, 230, 240V 50/60Hz
&•Power Consumption 400W
DIMENSIONS & WEIGHT
&•15&"L x 14&"W x 29.25&"H
48.5 lbs.
&•High output luminous-parabolic dichroic reflector
&•15° Beam Angle
&•All lenses are anti-reflection coated
COLORS
&•8 dichroic filters, 7 Colors, UV + White
&• Continuous, variable speed, color scrolling in both directions (rainbow effect)
&• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
&•2 gobo wheels, 13 total gobos, 10 metal, 3 glass with Slot-Lock gobo replacement system
&•6 interchangeable, indexable, rotating gobos plus open
&•7 interchangeable, static gobos plus open
&• 26.9mm outside diameter, 23mm image diameter
&•Gobo Overlay (Gobo Morphing)
SHUTTER/DIMMER
&•Variable speed strobe effect (1-10) flashes per second
&•Pre-set variable/random strobe and dimming pulse effect
&• Dual Flag mechanical dimming system
PRISM
&• 3 facet prism rotating in both directions at variable speeds
&•Macro-function for rotating gobos/rotating prisim combinations
FOCUS
&•Motor driven focus from near to far
LAMP
&• Phillips MSD 250/2 (250W, 8500°K, 3000 HRS)
PAN/TILT
&• Maximum PAN-movement 170°
&•Maximum TILT-movement 85°
&•Vector Mode with blackout
RIGGING
&•1 x Heavy Duty yoke
&• 1 x Safety cable hole
POWER SUPPLY
&•8A or 4A Fuse
&•Magnetic Ballast
&•Voltage: AC 98, 120, 208, 220, 230, 240V 50/60Hz
&•Power Consumption 400W
DIMENSIONS & WEIGHT
&•15&"L x 14&"W x 29.25&"H
48.5 lbs.
