VOLT Q5
VOLT Q5 is a professional-grade lighting solution. The IP65 rated Volt Q5™ features (5) 15W QUAD color RGBW LEDs, 7° beam 13° field angles, 180°+ manual LED head positioning, variable color correction (2,700K - 7,200K), magnetic frost filter gel frame, electronic strobe and dimming, flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base, retractable carrying handle, an internal wireless EWDMX receiver, and powered by a rechargeable Lithium-Ion battery.
VOLT Q5
The IP65 rated Volt Q5™ features (5) 15W QUAD color RGBW LEDs, 7° beam 13° field angles, 180°+ manual LED head positioning, variable color correction (2,700K - 7,200K), magnetic frost filter gel frame, electronic strobe and dimming, flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base, retractable carrying handle, an internal wireless EWDMX receiver, and powered by a rechargeable Lithium-Ion battery. The Volt Q5™also has a built-in Wireless DMX receiver that's compatible with Elation Professional's EWDMX products.
The IP65 rated Volt Q5™ features (5) 15W QUAD color RGBW LEDs, 7° beam 13° field angles, 180°+ manual LED head positioning, variable color correction (2,700K - 7,200K), magnetic frost filter gel frame, electronic strobe and dimming, flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base, retractable carrying handle, an internal wireless EWDMX receiver, and powered by a rechargeable Lithium-Ion battery. The Volt Q5™also has a built-in Wireless DMX receiver that's compatible with Elation Professional's EWDMX products.
- FEATURES
- IP65 Rated
- 7° Beam and 13° Field Angles
- 180°+ Manual LED Head Positioning
- Variable Color Correction (2,700K - 7,200K)
- Internal Wireless EWDMX Receiver
- Rechargeable Lithium-Ion Battery
- Flicker Free Operation for TV and FILM
- Rugged Die-Cast Aluminum Exterior
- Rubber Padded Base and Retractable Carrying Handle
Specifications
(5) 15W QUAD Color RGBW LEDs
100,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRICS
16,130 LUX 1,498 FC @6.6 ft (2m) (7° Full ON)
EFFECTS
Variable Color Correction (2,700K - 7,200K)
Magnetic Frost Filter Gel Frame
Electronic Strobe and Dimming
Multiple Color and Chase Macros
CONTROL / CONNECTIONS
(4) DMX Channel Modes (4 / 5 / 7 / 9)
Internal Wireless EWDMX Receiver (Not compatible with E-FLY)

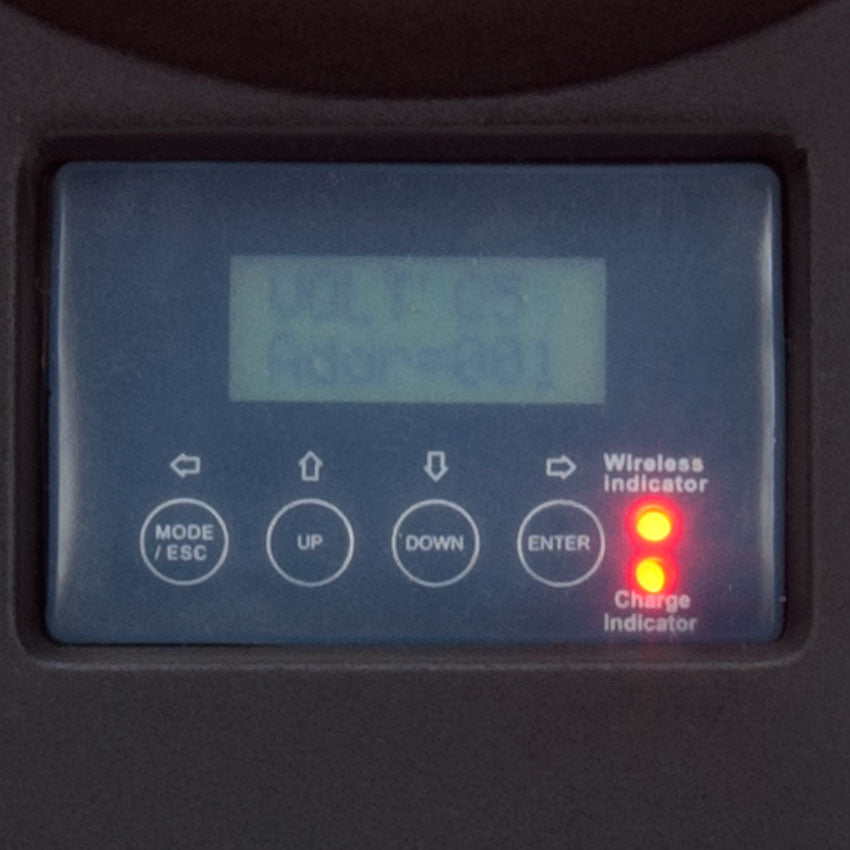

(4) Button Control Panel
LCD Menu Display

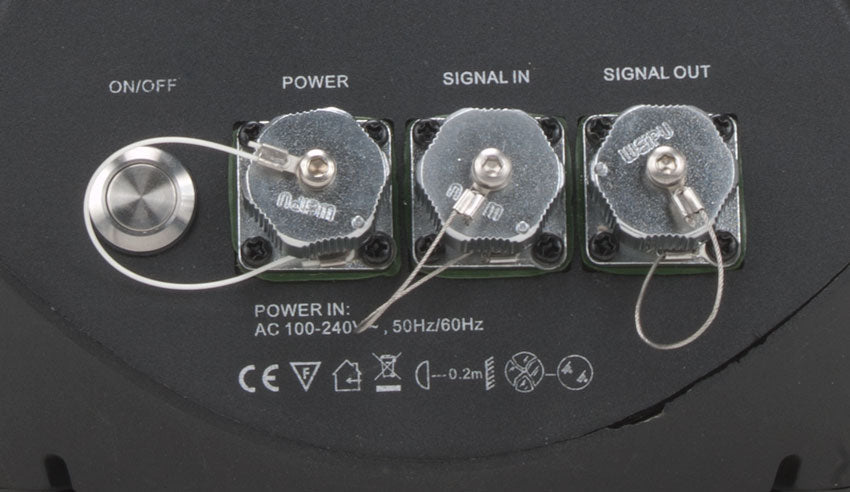

3pin IP DMX In/Out
2pin IP Power Charger In
SIZE / WEIGHT
Length: 11.4” (290mm)
Width: 9.9” (252mm)
Vertical Height: 11.4” (289mm)
Weight: 17.0 lbs. (7.7 kg)
ELECTRICAL / THERMAL
DC 22-26.2V
65W Max Power Consumption (each unit)
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS
(1) Volt Q5 26.2 VDC Charger + IEC Power Cable
(1) Volt Series 3pin IP Data Link Cable
(1) Volt Series 3pin IP to 3pin DMX Data Input Cable
(1) Magnetic Frost Filter
(1) Omega Bracket
OPTIONAL ACCESSORIES:
VOLT5CHARGER -VOLT Q5 26.2 VDC Charger + IEC Power Cable
VOLT/3MDLC -VOLT Series 9.8 ft (3m) IP DATA LINK Cable
VOLT/DIAC -VOLT Series 9.8 ft (3m) IP to 3pin DMX INPUT Cable
VOLT/DOAC -VOLT Series 9.8 ft (3m) IP TO 3pin DMX OUTPUT Cable
Specifications and documentation subject to change without notice.
