WW PROFILE
Discontinued
WW Profile is a professional-grade lighting solution.
WW PROFILE
Sale price$0.00
Related Products
WW PROFILE
The WW Profile™ Ellipsoidal features a 130W Warm White 3,000K LED engine, >94CRI, high efficiency offering 6,700 total lumens (with 26° lens) with only 160W max power consumption (42 lumens per watt), 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, and dimming curves, flicker free operation for TV and FILM, 3/5pin DMX and powerCON in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).
- High CRI >94, 6,700 Total Lumens*
- 160W Max Power Consumption / 42 Lumens Per Watt

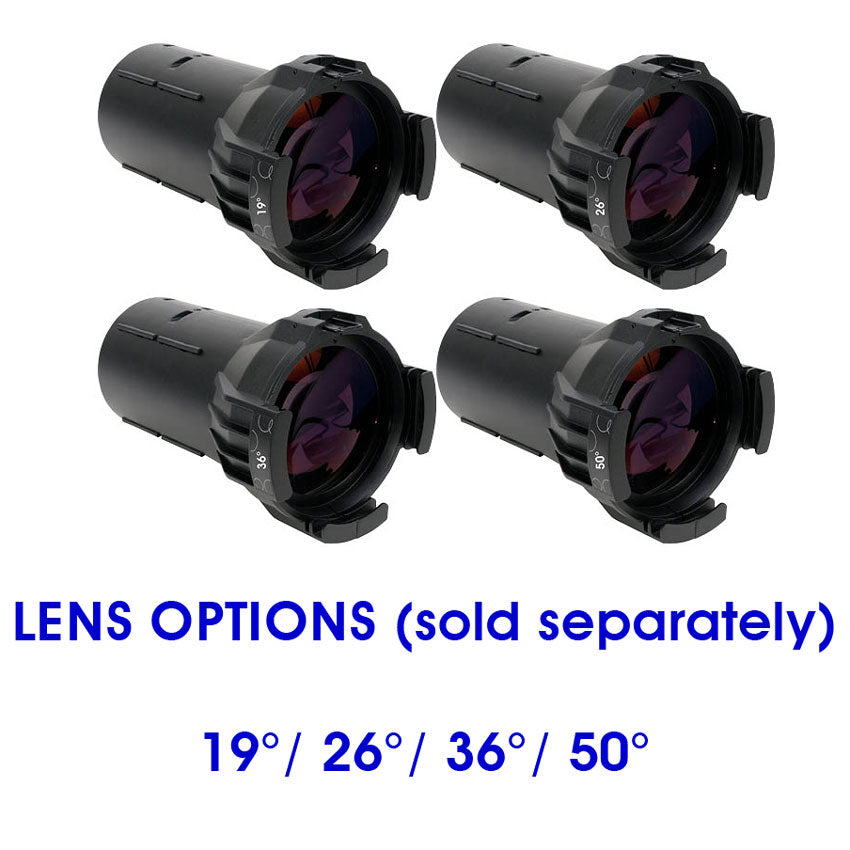

- Interchangeable Lens Options** (19°, 26°, 36°, 50°)
- (4) Blade Manual Framing Shutters
- Variable Dimming Curve Modes
- Flicker Free Operation for TV and FILM
- Quiet Fan Cooling
- (*with 26° lens) (**sold separately)
Specifications
SOURCE
130W Warm White 3,000K LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
gt;94CRI, 6,700 Total Lumens*
(with 26° Lens)
EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curve Modes
GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.
CONTROL / CONNECTIONS
2 DMX Channel Modes (1 / 4)
4 Button Control Panel
LED Menu Display
3/5pin DMX In/Out
Locking Power In/Out
SIZE / WEIGHT
Length: 24.3” (618mm) / 26.5” (674mm) Fully Extended
Width: 12.2” (310mm)
Vertical Height: 15.7” (398mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50/60Hz
160W Max Power Consumption
Power Linking: 4pcs Max @120V / 9pcs Max @240V
14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ITEMS
Locking Power Cable
3pin DMX Cable
OPTIONAL ACCESSORIES:
PHD019- Profile High Definition Lens 19°
PHD126- Profile High Definition Lens 26°
PHD236- Profile High Definition Lens 36°
PHD350- Profile High Definition Lens 50°
Specifications and documentation subject to change without notice.
130W Warm White 3,000K LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
gt;94CRI, 6,700 Total Lumens*
(with 26° Lens)
EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curve Modes
GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.
CONTROL / CONNECTIONS
2 DMX Channel Modes (1 / 4)
4 Button Control Panel
LED Menu Display
3/5pin DMX In/Out
Locking Power In/Out
SIZE / WEIGHT
Length: 24.3” (618mm) / 26.5” (674mm) Fully Extended
Width: 12.2” (310mm)
Vertical Height: 15.7” (398mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50/60Hz
160W Max Power Consumption
Power Linking: 4pcs Max @120V / 9pcs Max @240V
14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ITEMS
Locking Power Cable
3pin DMX Cable
OPTIONAL ACCESSORIES:
PHD019- Profile High Definition Lens 19°
PHD126- Profile High Definition Lens 26°
PHD236- Profile High Definition Lens 36°
PHD350- Profile High Definition Lens 50°
Specifications and documentation subject to change without notice.
