Discontinued

130W Warm White LED Ellipsoidal

WW Profile HP is a professional-grade lighting solution.

UPC: 837874002126SKU: WWP628

WW PROFILE HP

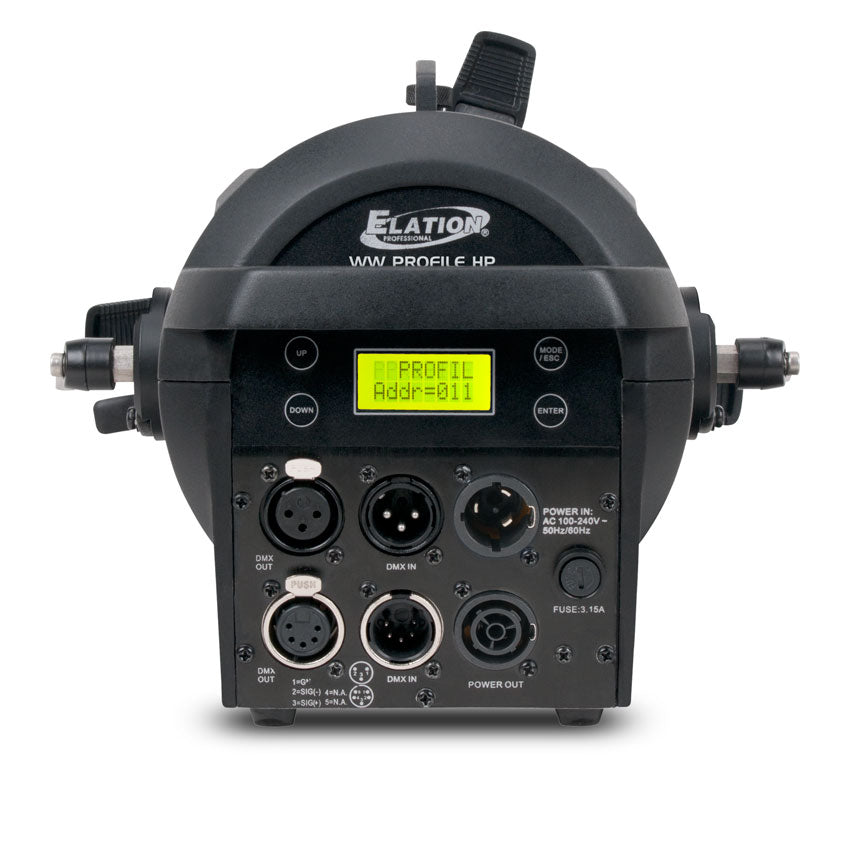

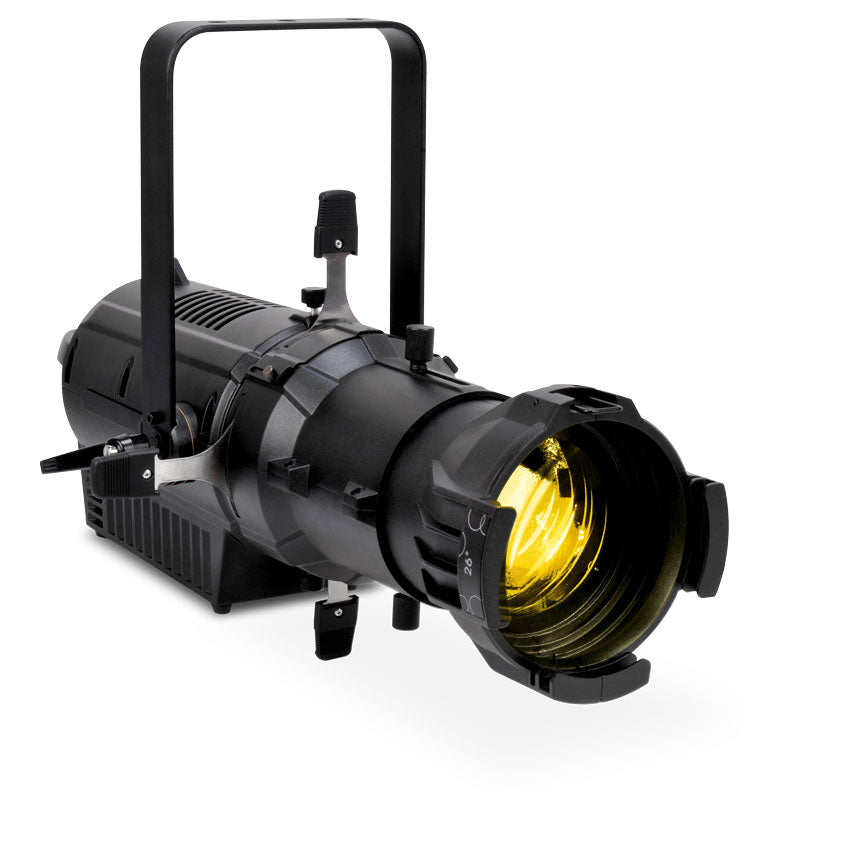

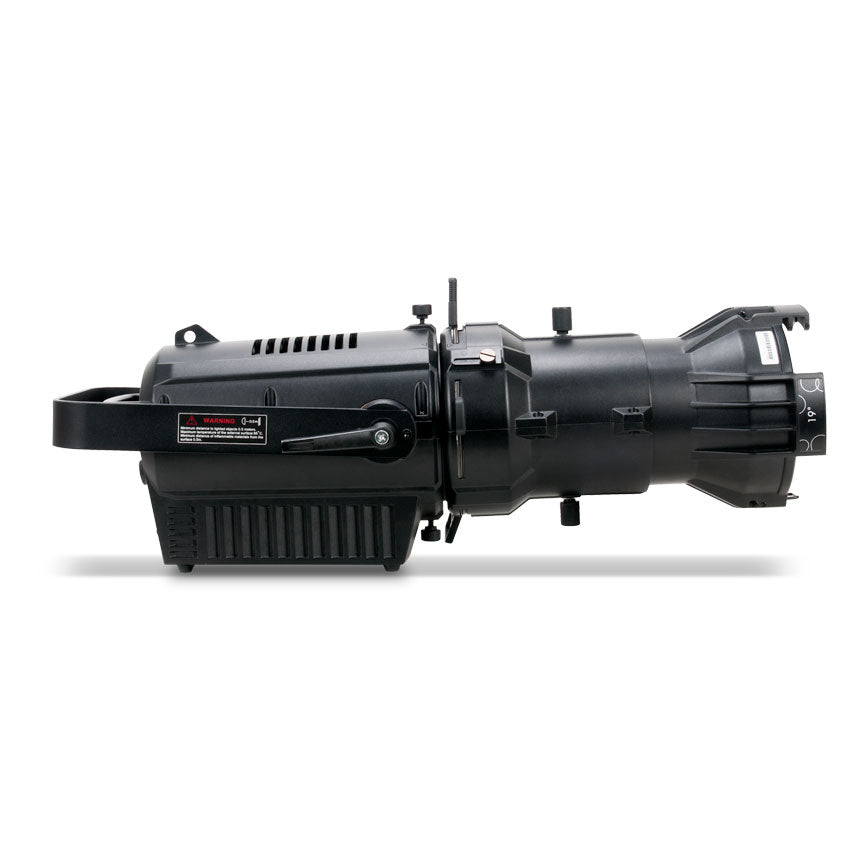

The WW Profile HP™ ellipsoidal features a High Powered 130W Warm White >91CRI 3,000K LED engine producing 10,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and FILM, 3/5pin DMX and IP65 Locking Power Cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v). High Power 130W Warm White 3,000K LED Engine gt;91CRI | 10,000+ Total Lumens Interchangeable Lens Options (19°, 26°, 36°, 50°) (not included) (4) Blade Manual Framing Shutters Supports B Size Metal or HT Transparency Gobos (not included) DMX Controlled Electronic Strobe and 16bit Dimming Selectable; Dimming Curve Modes Flicker Free Operation for TV and FILM Adjustable LED Refresh Rate and Gamma Brightness Quiet Fan Cooling.

Specifications

SOURCE

High Power 130W Warm White 3,000K LED Engine

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

>91CRI | 10,000+ Total Lumens


EFFECTS

Electronic Strobe

Variable Dimming Curve Modes


GOBOS

Supports "B" Size Metal, HT Transparency Gobos**

**Gobo Holder Not Included


CONTROL / CONNECTIONS

2 DMX Channel Modes (4 total channels)

4 Button Control Panel

LED Menu Display

3/5pin DMX In/Out

IP65 Locking Power Cable In/Out

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 24.3" (618mm)

Width 12.2" (310mm)

Vertical Height: 15.7" (398mm)

Weight: 21.0 lbs. (9.5kg)


ELECTRICAL / THERMAL

Quiet Fan Cooling

AC 100-240V - 50-60Hz

160W Max Power Consumption

14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP20


FIRMWARE UPDATES

Current Version: V1.1.5

Click HERE for updates


Specifications and documentation subject to change without notice.

Downloads

Cad drawing

Dimensional drawings

Dmx traits

Ies files

Photometrics

Specification sheet

User manual

Vectorworks symbol
