ZCL BAR Z300 IP

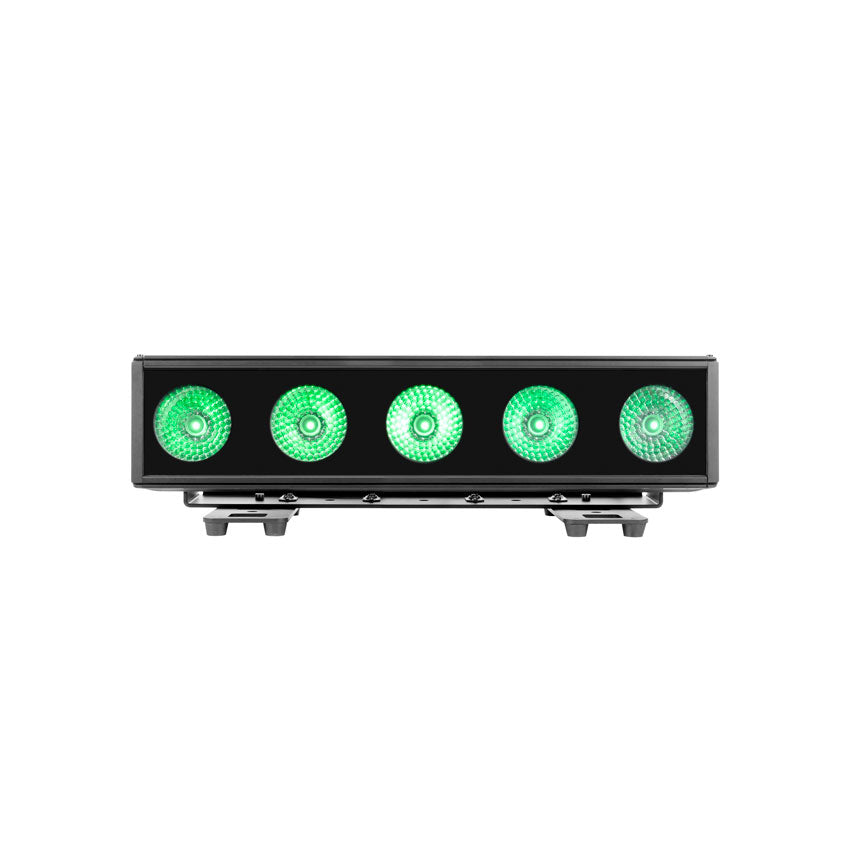

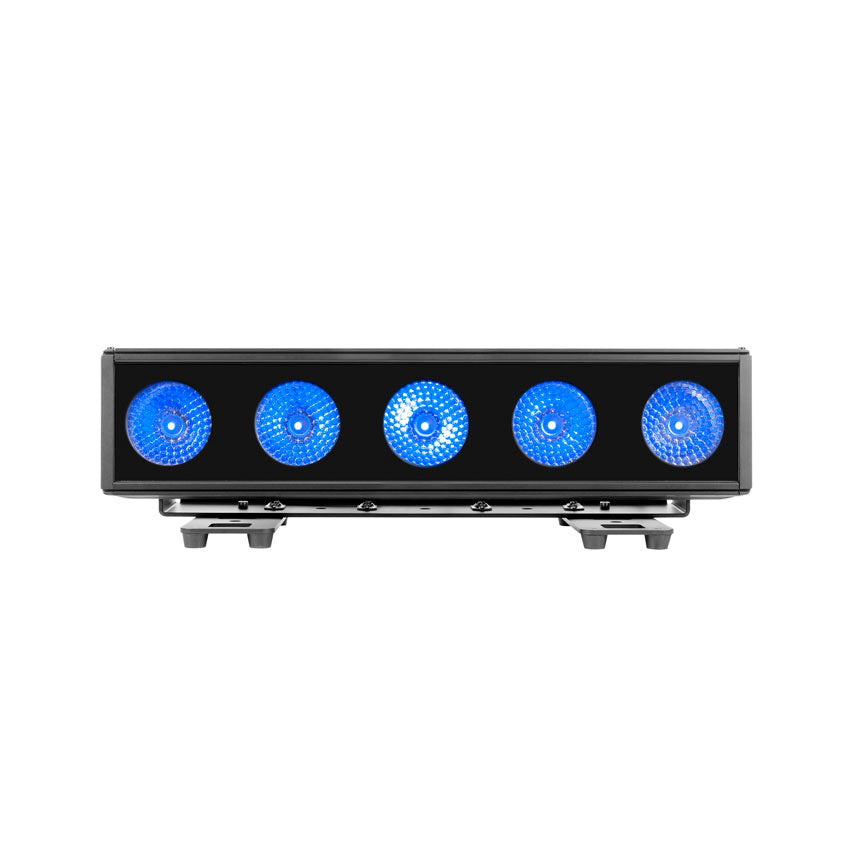

ZCL BAR Z300 IP is a professional-grade lighting solution. The ZCL BAR Z300 IP™ is a versatile IP65 rated bar effect luminaire with zoom, (5) individual 60W RGBW 4-in-1 LEDs, and the new advanced collimator optic lens which produces a sharp 4° color-changing beam from each lens.

Related Products
ZCL BAR Z300 IP
Versatile IP65 Rated Bar Effect Luminaire with Zoom
(5) 60W 4-in-1 RGBW LEDs
Sharp 4° Color Changing Beams
New Advanced Collimator Optic Lens
4° to 44° Motorized Zoom and Ful Pixel Control
Electronic Strobe and Selectable Dimming Curve Effects
DMX, RDM (Remote Device Management)
Flicker Free Operation for Broadcast TV and FILM
Rugged Die-Cast Aluminum Exterior

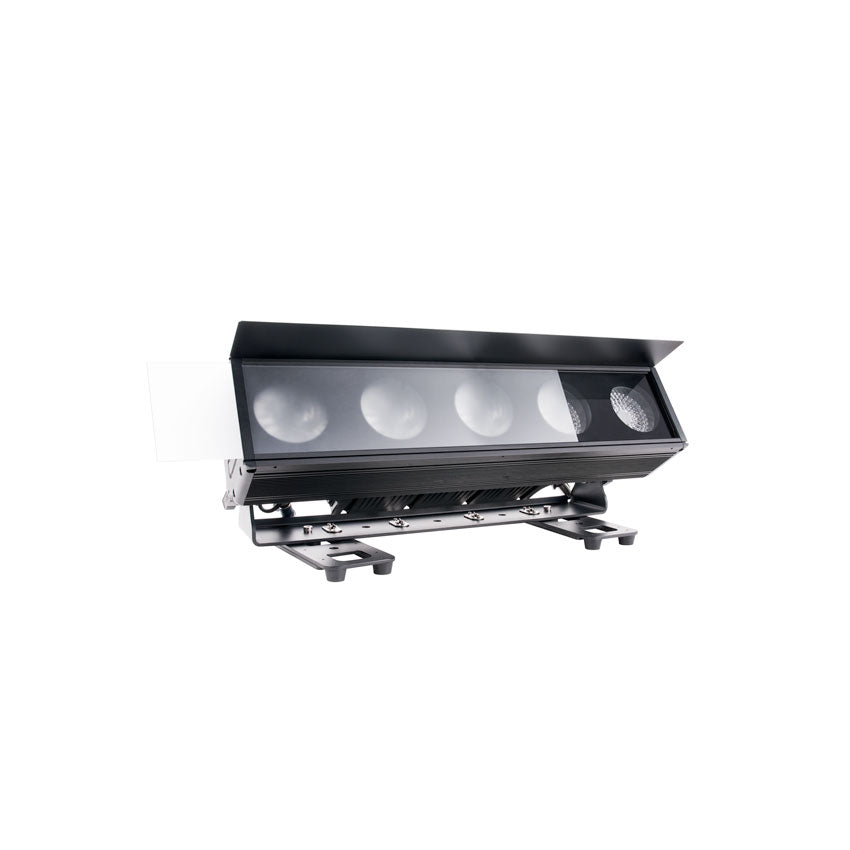

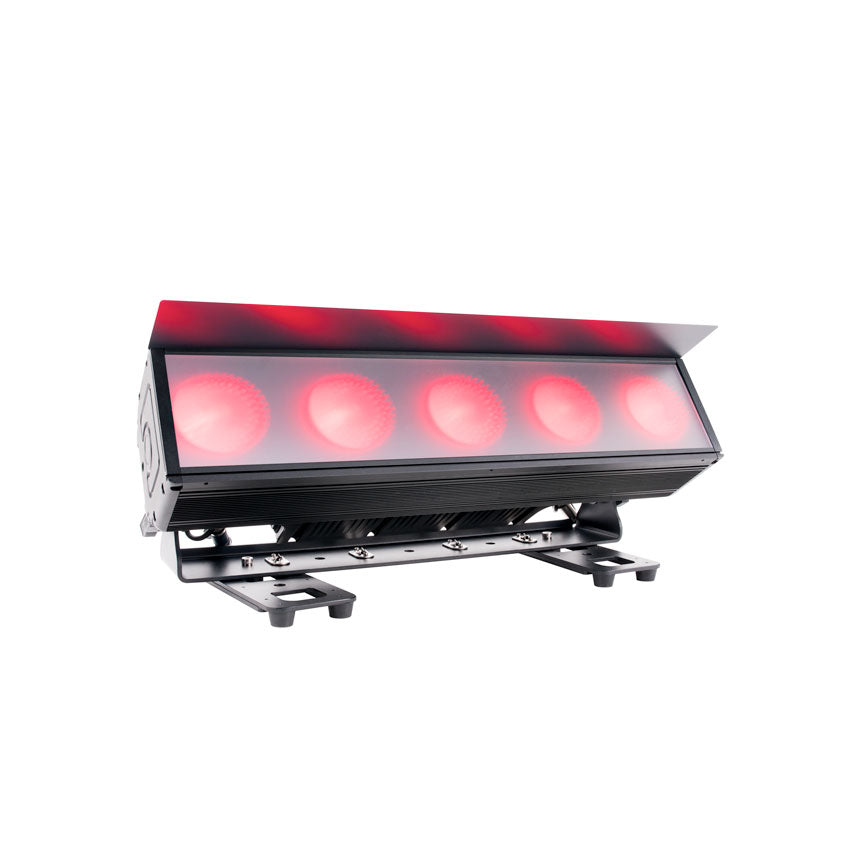

Glare Shield and Frost Filter Accessories Included
Specifications
(5) 60W RGBW 4-in-1 LED
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
36,436 LUX 3,385 FC @6.6' (2m) (4° Min Zoom)
3,100 LUX 288 FC @6.6' (2m) (44° Max Zoom)
COLOR
RGBW
EFFECTS

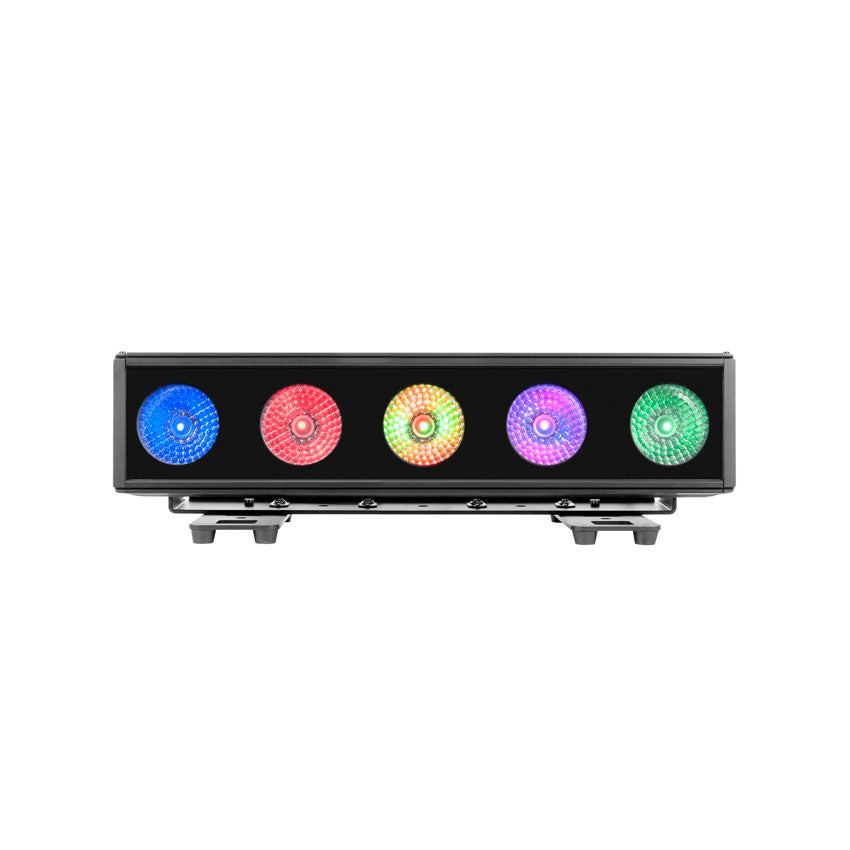

RGBW Color Mixing
Full Pixel Control and Pixel Flip
4° to 44° Motorized Zoom
64 Color Presets and 12 Unique Program Macros
Electronic Strobe and Selectable Dimming Curves
CONTROL / CONNECTIONS
(7) DMX Channel Modes (28 Total Channels)
RDM (Remote Device Management)

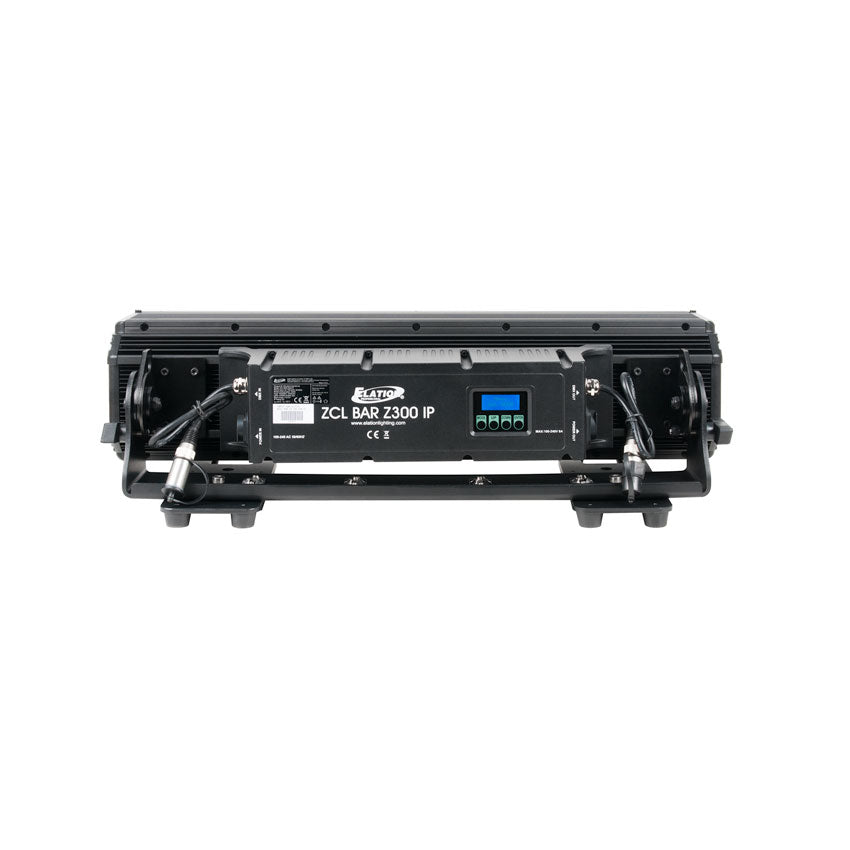

(4) Button Touch Control Panel
IP Rated 5pin DMX Whip Cables
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 26.4” (670mm)
Width: 6.2” (157.8mm)
Horizontal Height: 11.7” (297.6mm)
Weight: 43.0 lbs. (19.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
390W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | RoHs | IP65
OPTIONAL ACCESSORIES:

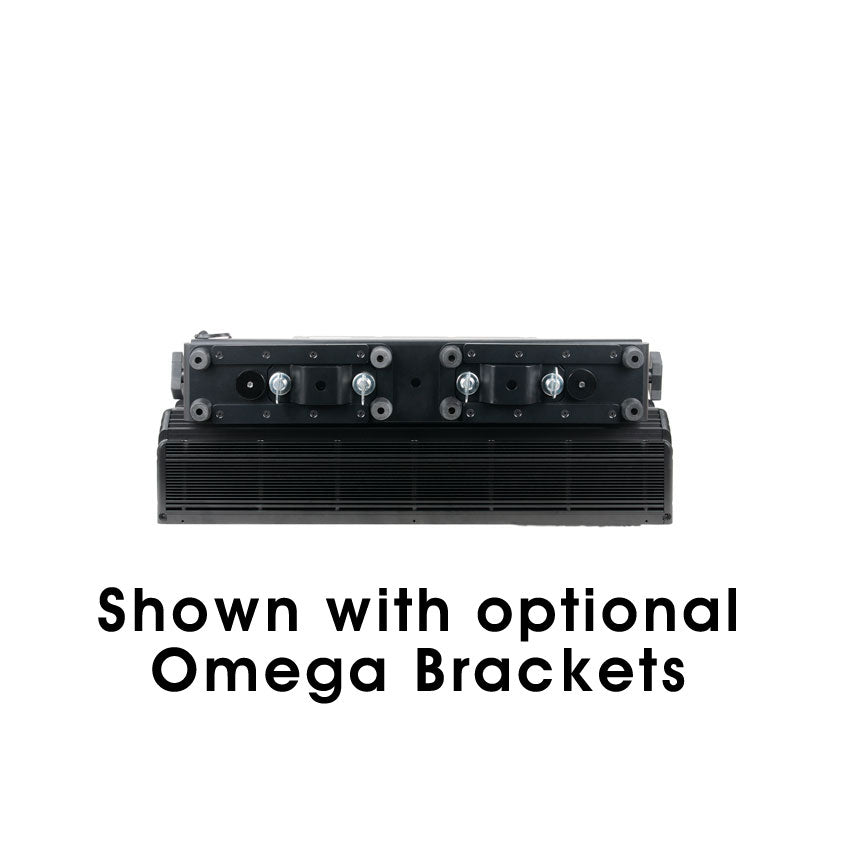

8050000053 - Omega Bracket
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
