PROTEUS BEAM FC

PROTEUS BEAM FC

Discontinued
SKU# PRB046
DMX Traits

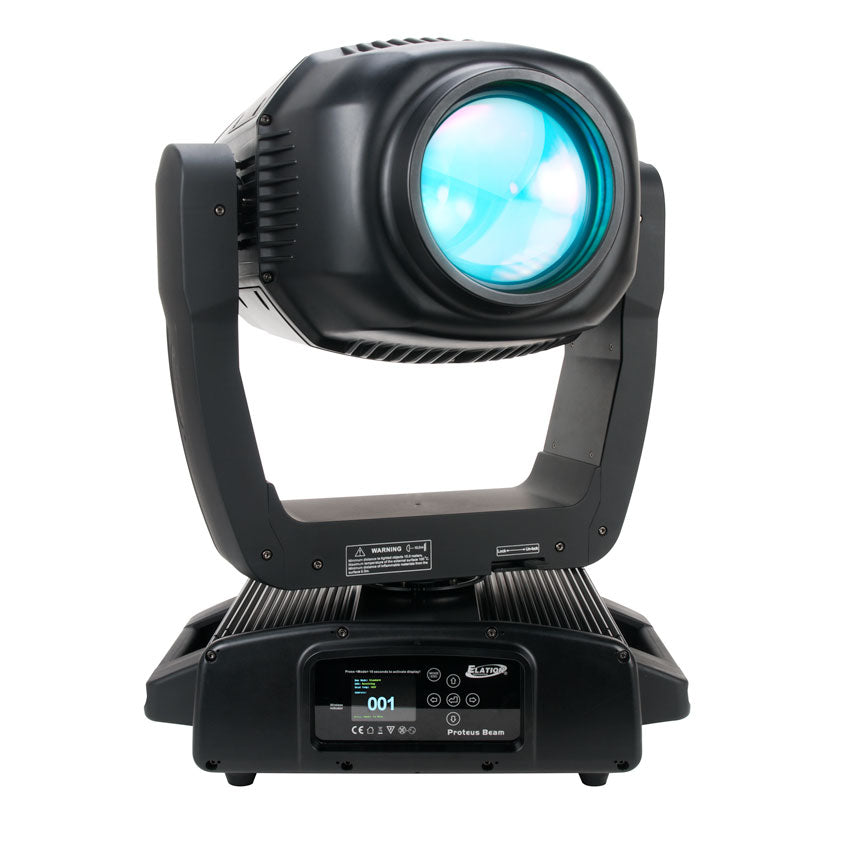

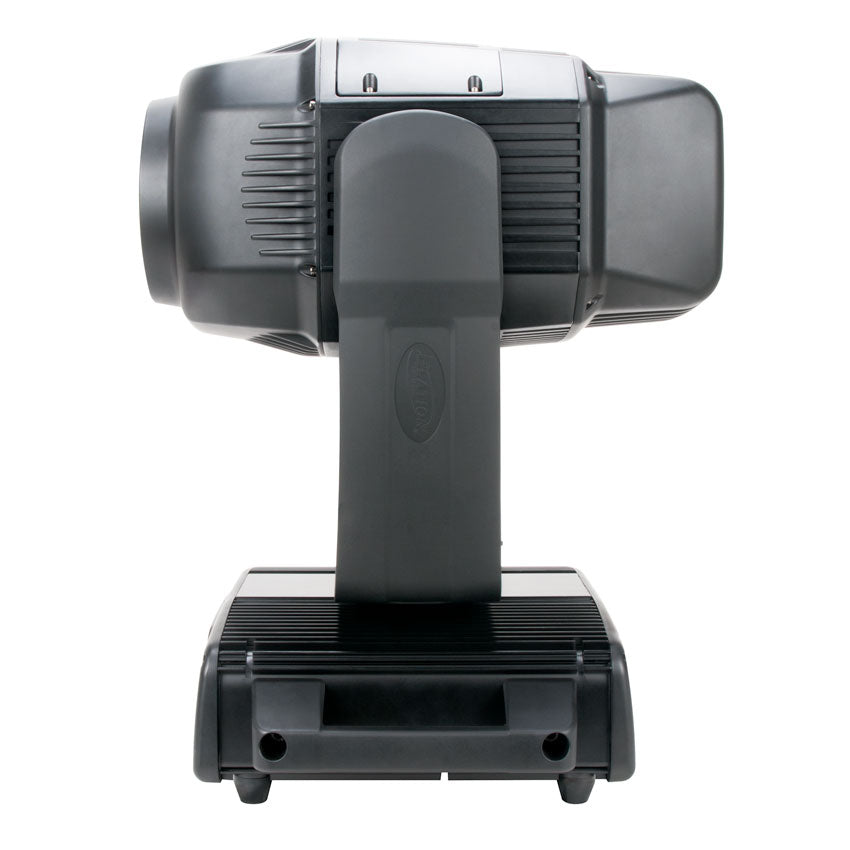

PROTEUS BEAM™ is an IP65 outdoor rated moving head beam luminaire that ships in its own custom flight case, with the Philips™ MSD Platinum 14R 80CRI 7,800K lamp producing over 12,000 total lumens. Features include an advanced optical system producing a precise 2.5° beam aperture, a revolutionary internal thermal cooling system, full CMY color mixing, 13 dichroic colors including CTB, CTO, and UV, 8 rotating interchangeable metal and 13 static-stamped metal gobos, 5 and 32 facet rotating prisms, frost filter, motorized focus and auto-focus, high speed mechanical shutter and strobe, DMX, RDM, Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, IP rated 5pin XLR and RJ45 etherCON in/out connections, IP65 Locking power Cable in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
PROTEUS BEAM FC Product Image
Gallery Features Specifications Resources Videos Related Categories

Features

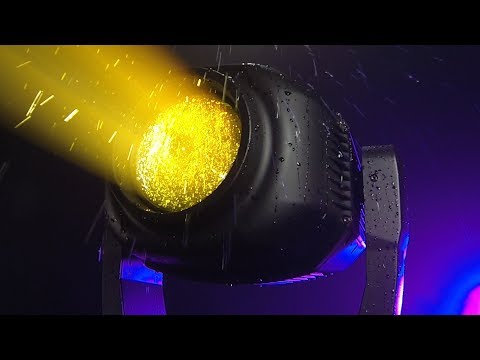

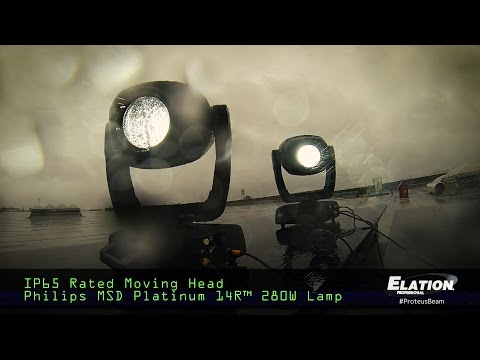

IP65 Rated Moving Head Beam Luminaire
Philips™ MSD Platinum 14R 280W 80CRI 7,800K Lamp
Precise 2.5° Beam Aperture and Advanced Optics
Revolutionary Internal Cooling System
Full CMY Color Mixing
13 Dichroic Colors including CTB, CTO, and UV
8 Rotating Interchangeable Metal and 13 Static-Stamped Metal Gobos
5 and 32 Facet Rotating Prisms and Frost Filter
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver

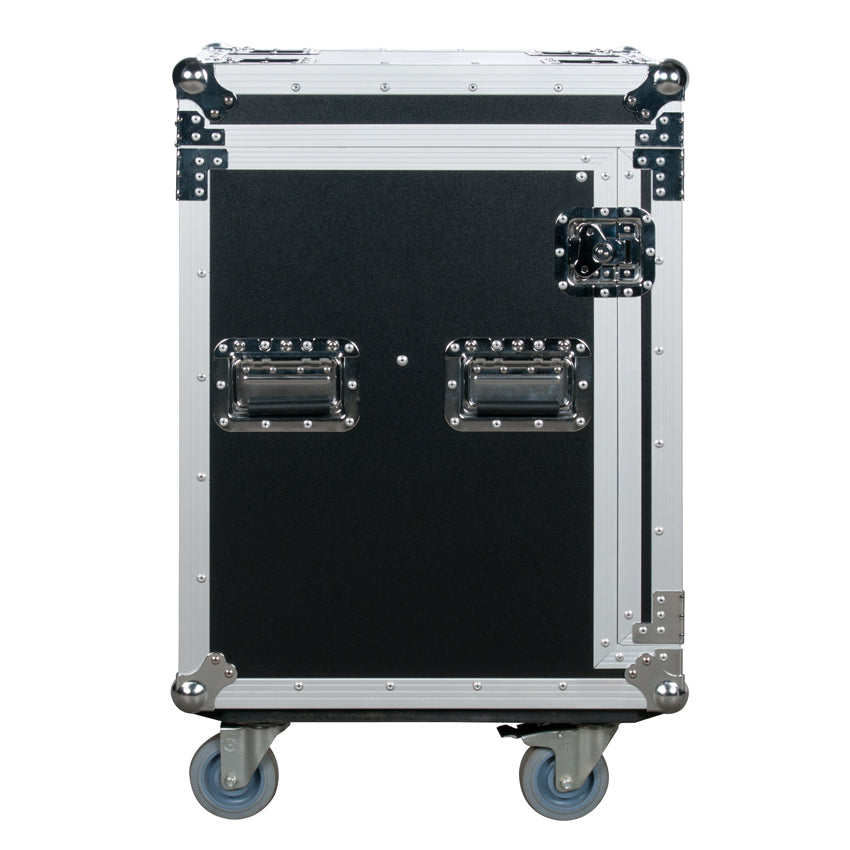

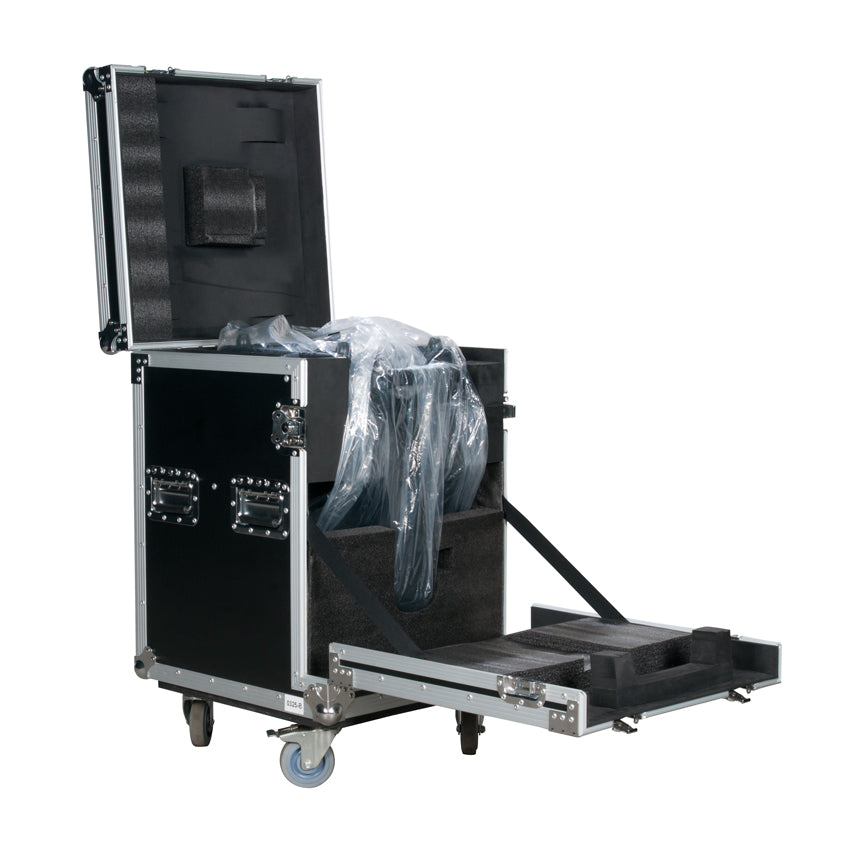

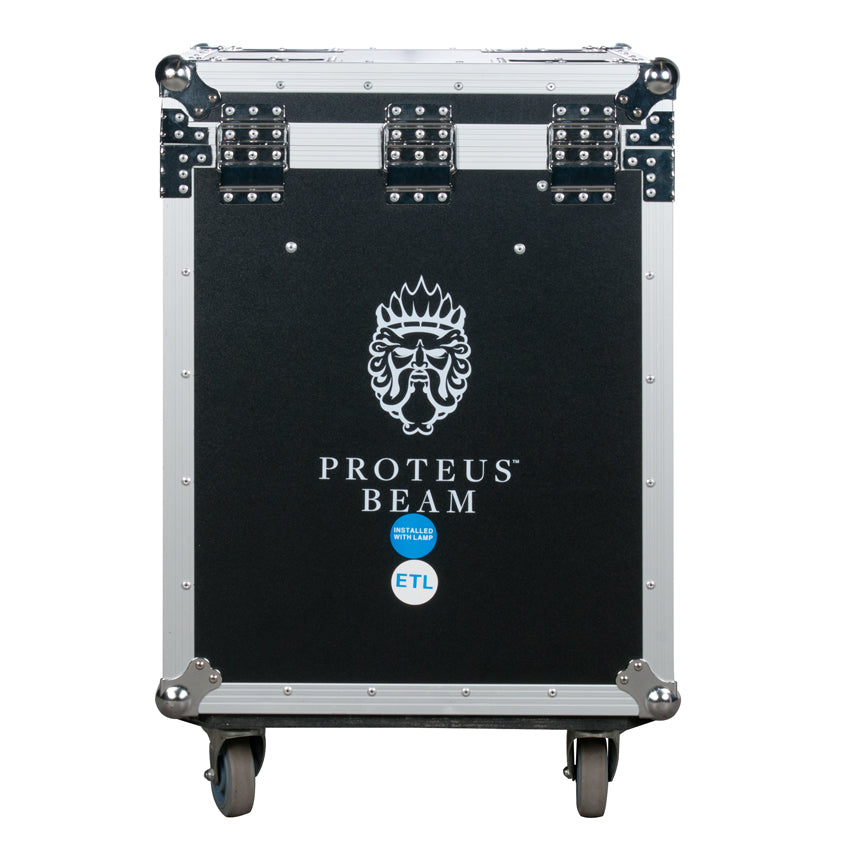

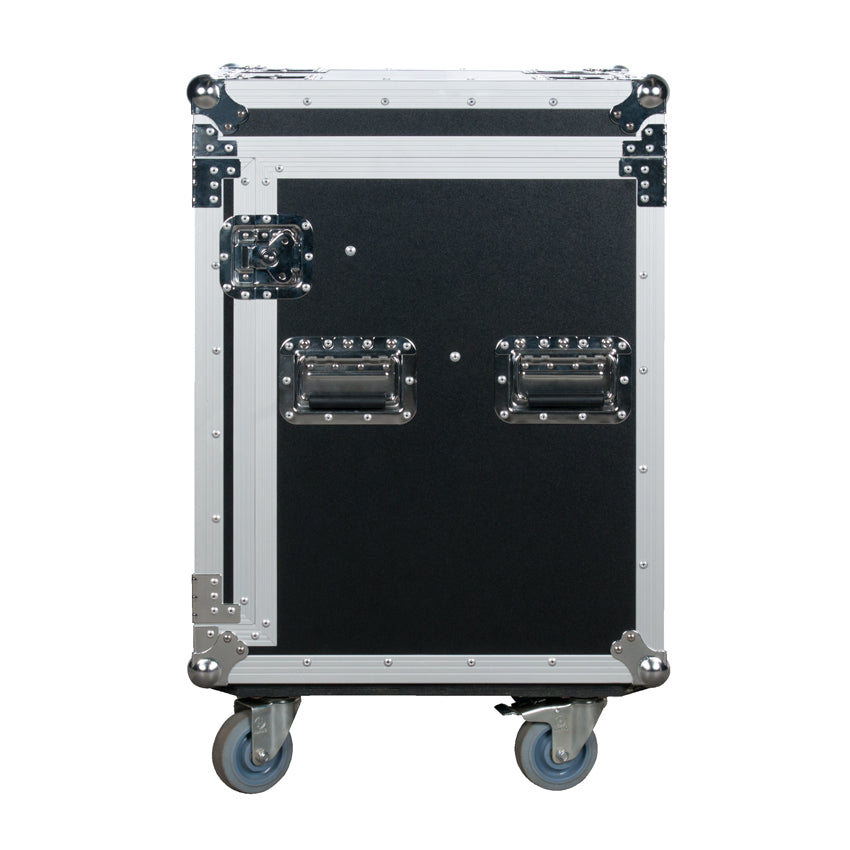

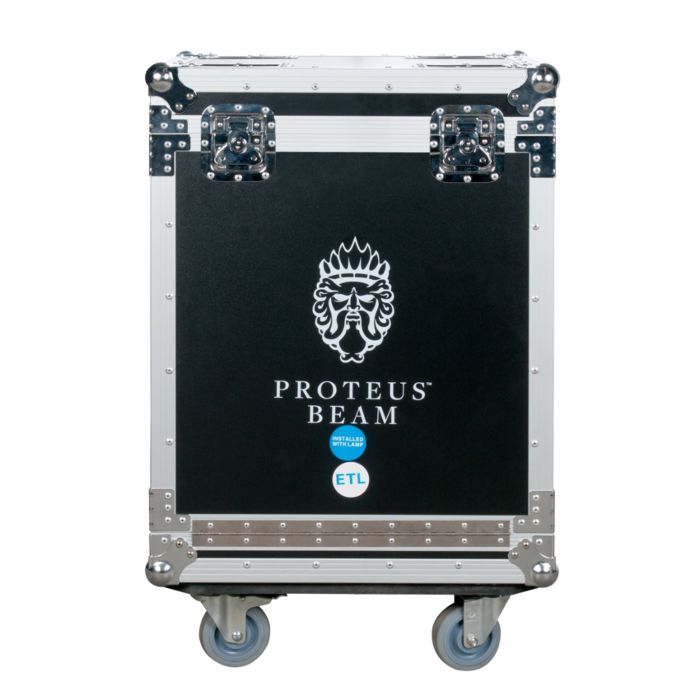

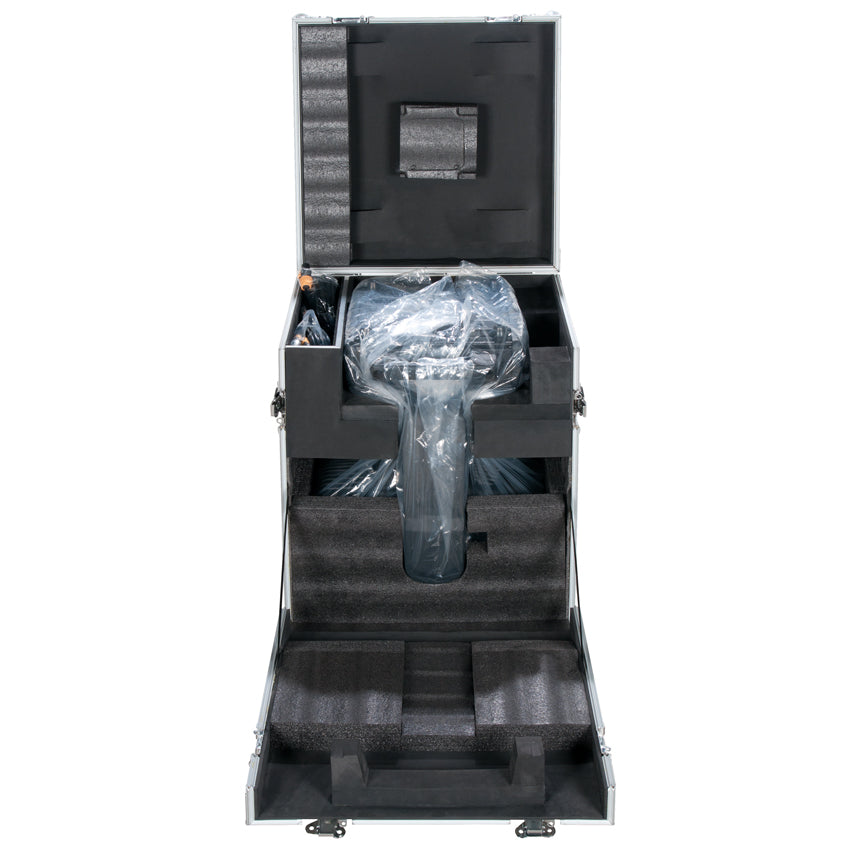

Custom Flight Case Included

Resources

Guides/ Manuals

PHOTOMETRIC DATA

PHOTOMETRIC DATA

Gobo & Color Info

DMX/ RDM Traits

Drawings

CAD File

CAD File

Related Categories

Specifications

SOURCE

Philips™ MSD Platinum 14R 280W 80CRI, 7,800K

1,500 Hour Average LAMP Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

136,800 LUX 12,709 FC @49.2 ft (15m) 2.5°


EFFECTS

5 and 32 Facet Rotating Prism and Prism Macros

Frost Filter Hybrid Wash Effect

Motorized Focus and Auto Focus

High Speed Mechanical Shutter and Strobe


COLOR

13 Dichroic Colors including CTB, CTO, and UV

Full CMY Color Mixing


GOBOS

(8) Interchangeable Rotating / Indexing Metal Gobos

(13) Static-Stamped Metal Gobos


CONTROL / CONNECTIONS

(3) DMX Channel Modes (28 total channels)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

DMX, RDM, Art-NET, and sACN Protocol Support

Elation E-Fly™ Internal Wireless DMX Transceiver

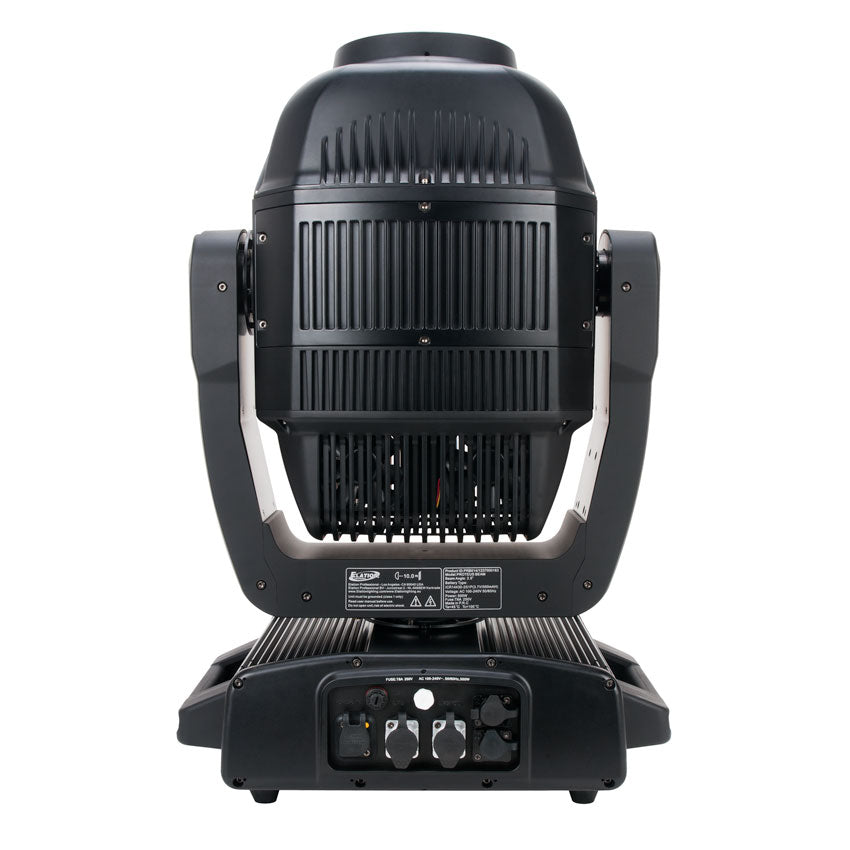

IP65 5pin DMX In/Out

IP65 RJ45 Ethernet In/Out

IP65 Locking Power Cable In

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 17.1” (445mm)

Width: 17.87” (454mm)

Vertical Height: 26.77” (680mm)

Weight: 77.0 lbs. (35.0kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

500W Max Power Consumption

14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP65


FIRMWARE UPDATES

Current Version: V1.6.0

Click link below for software updates and technical support.

firmware@elationlighting.com




Specifications and documentation subject to change without notice.
