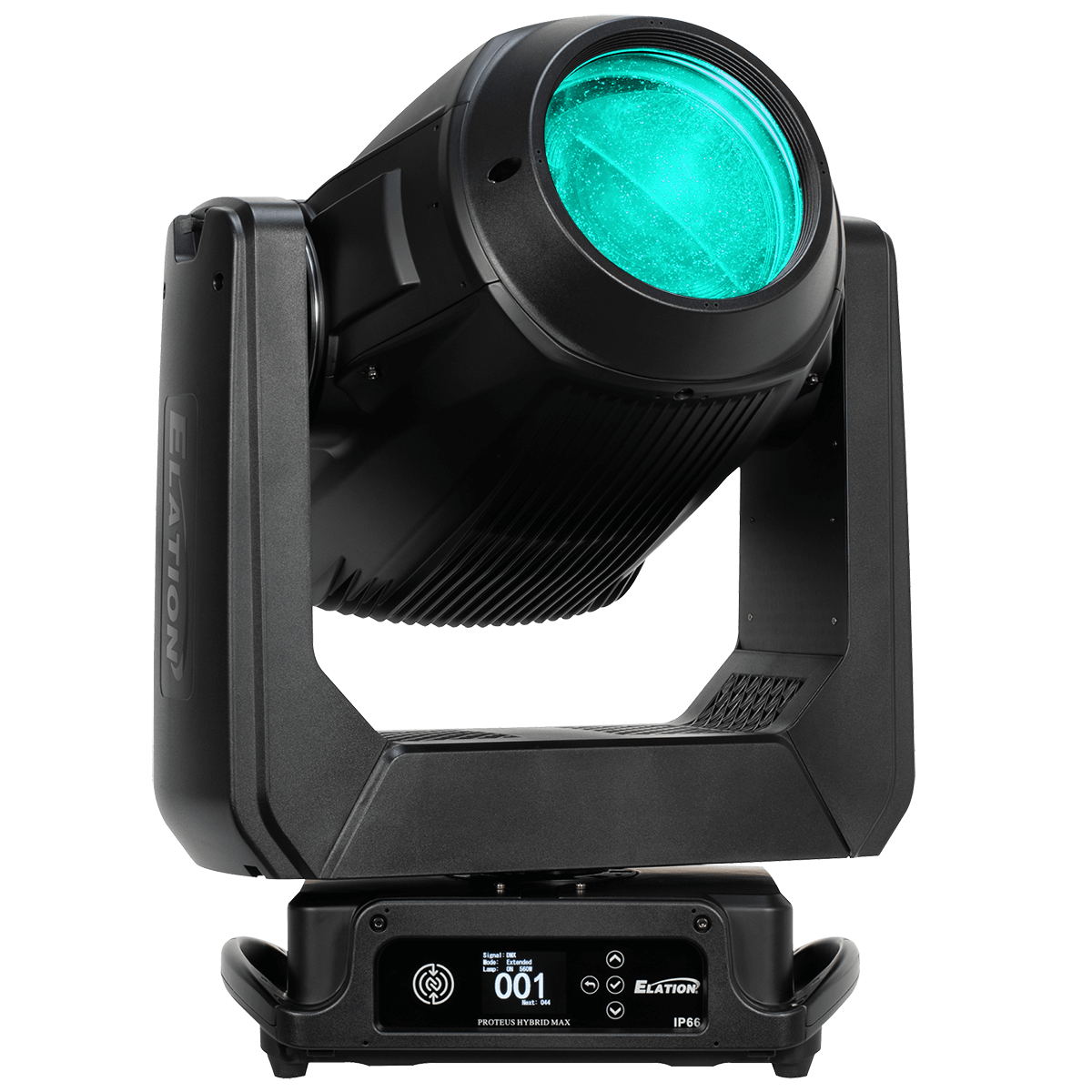

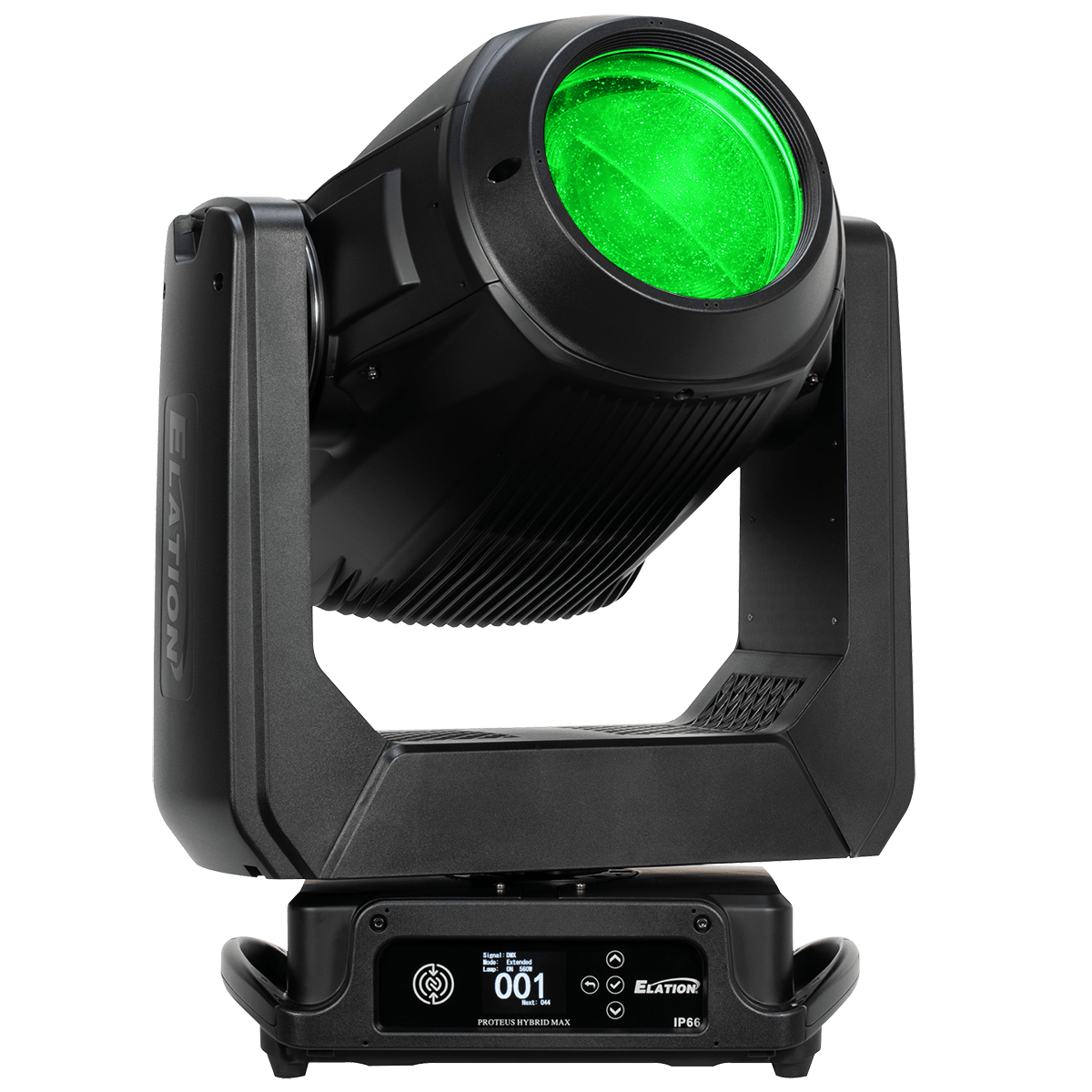

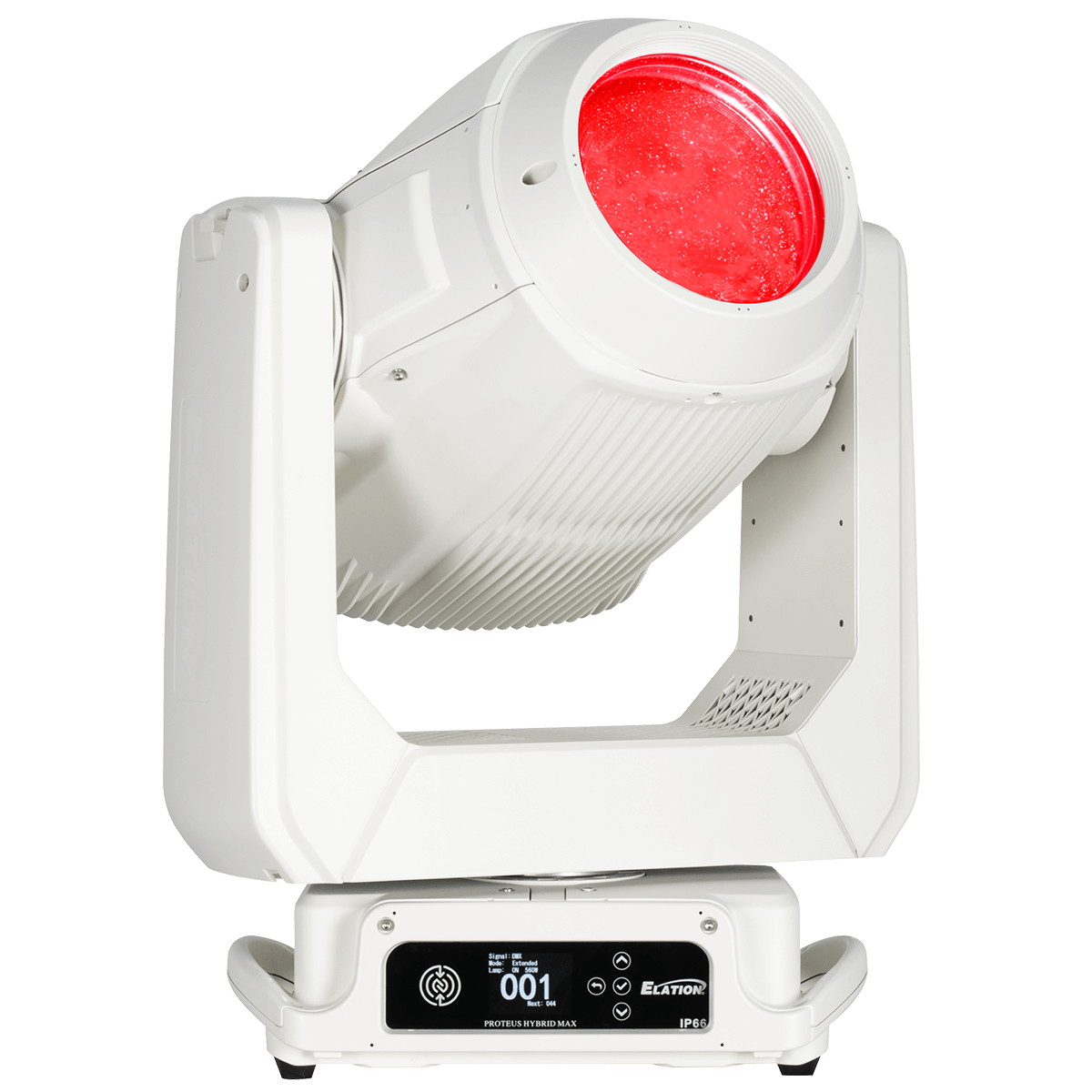

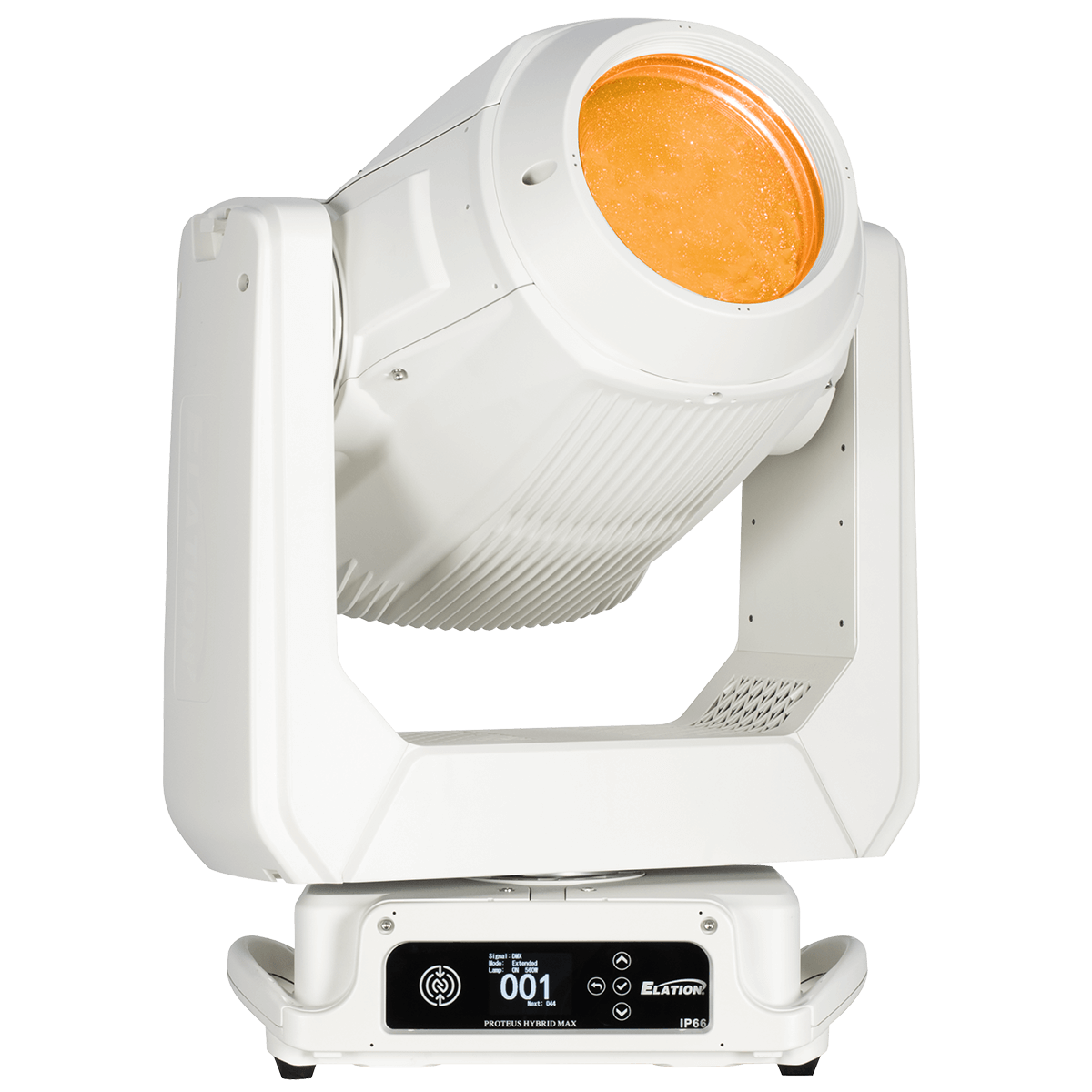

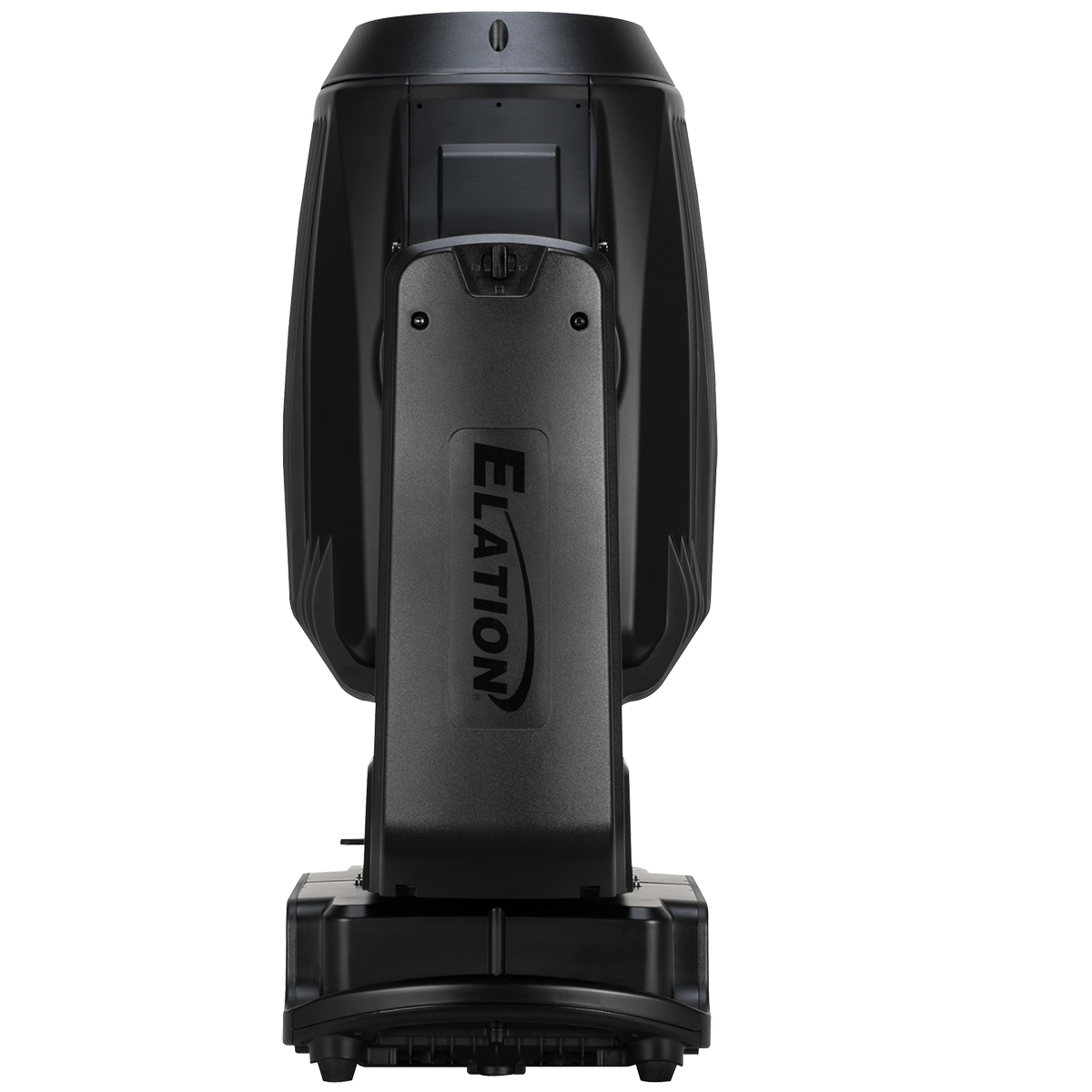

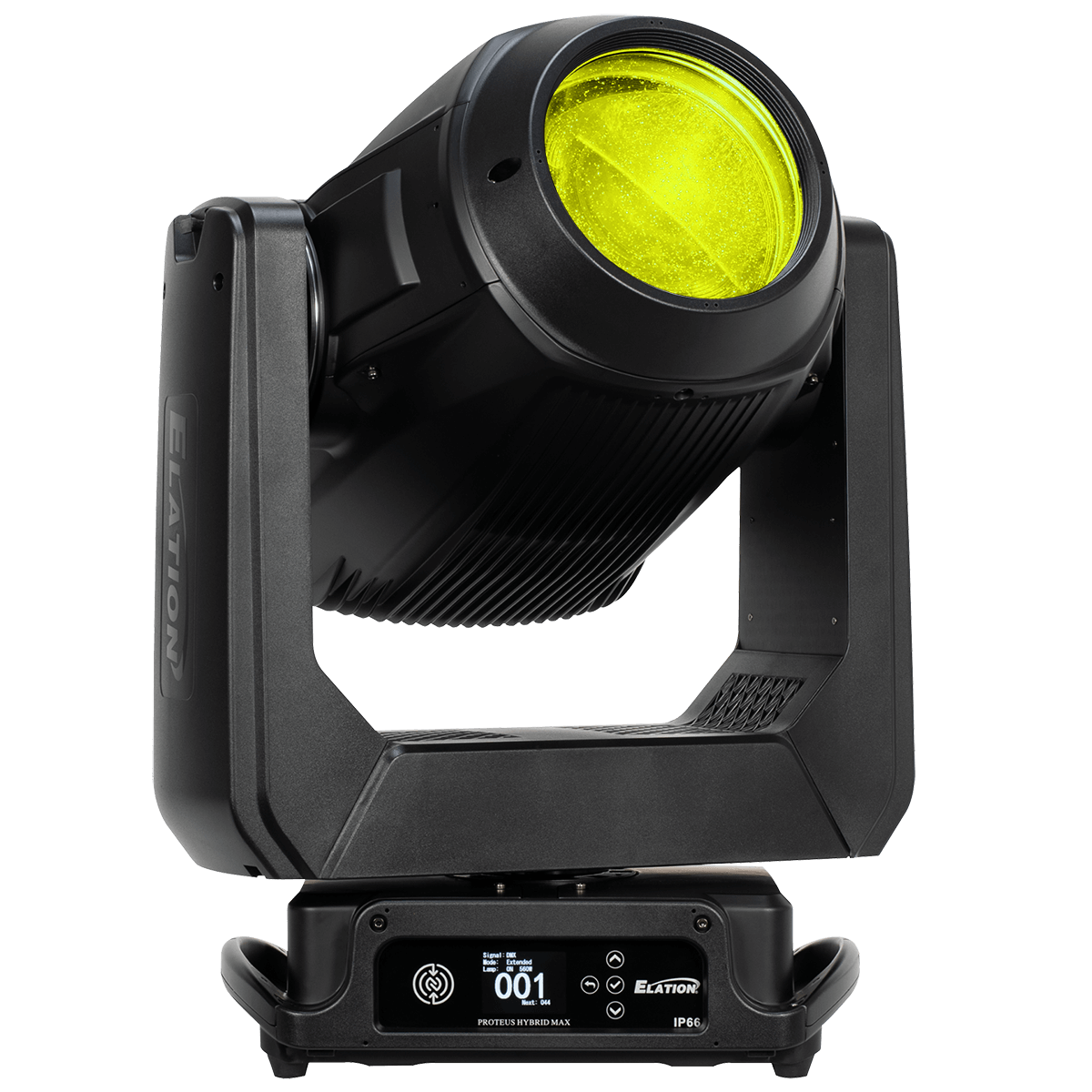

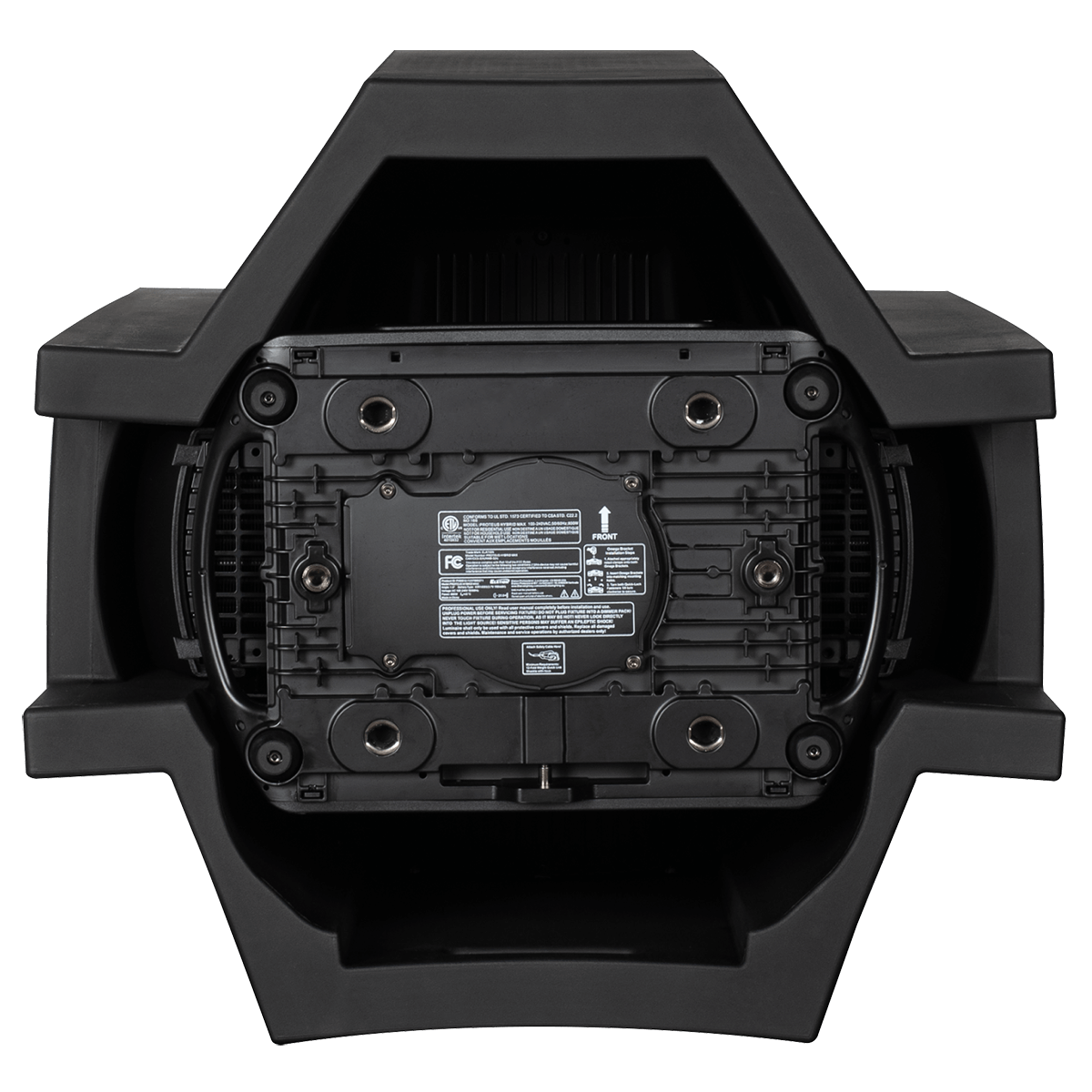

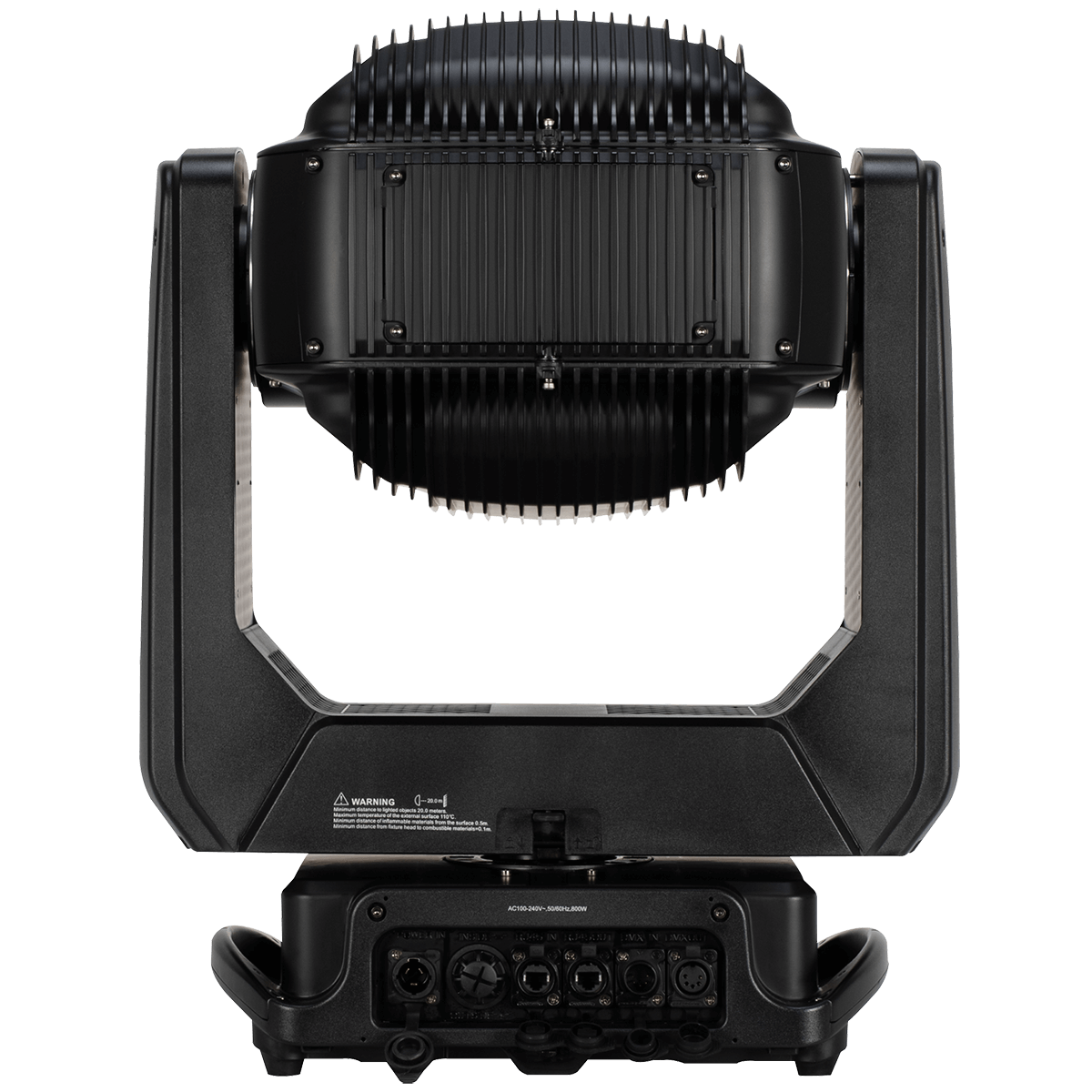

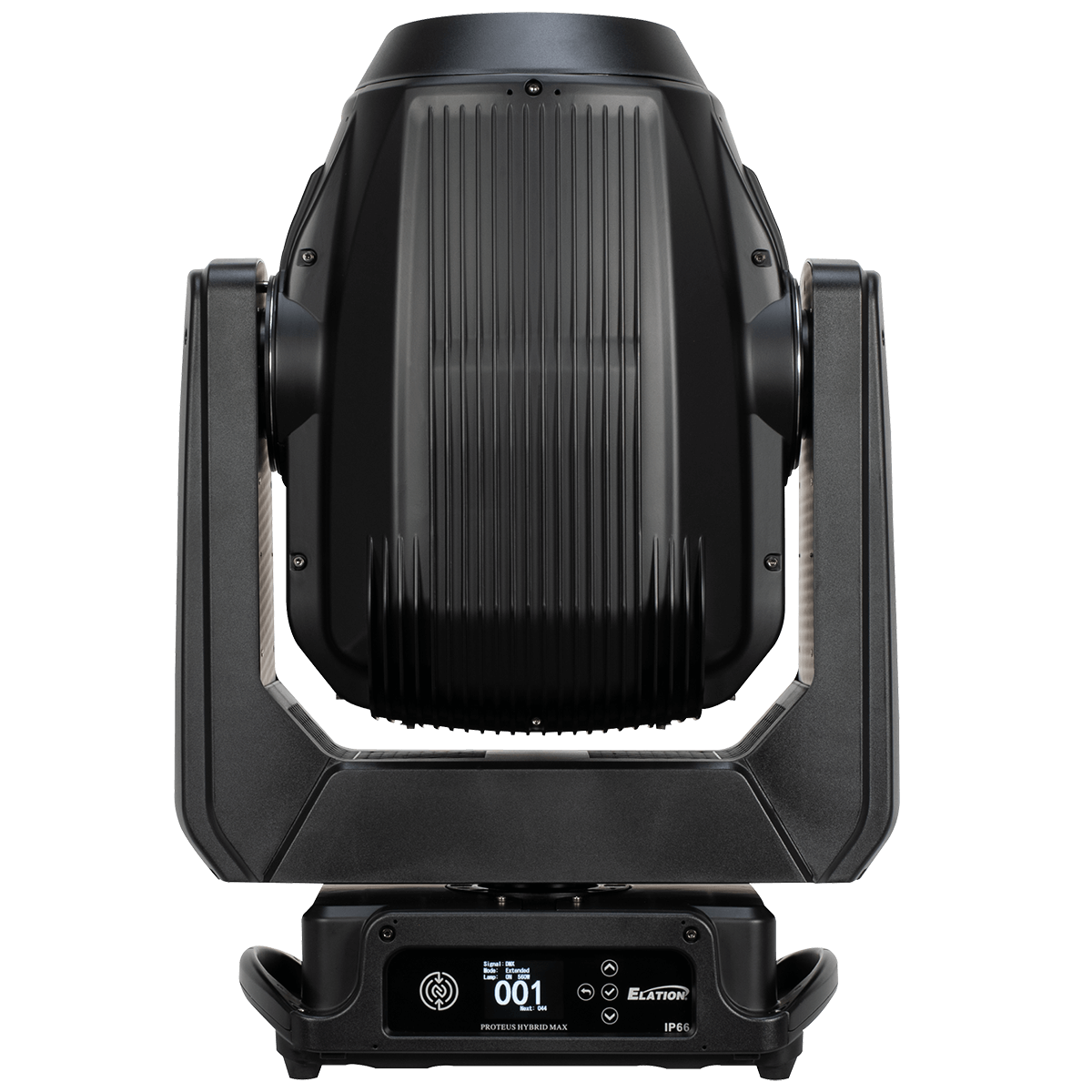

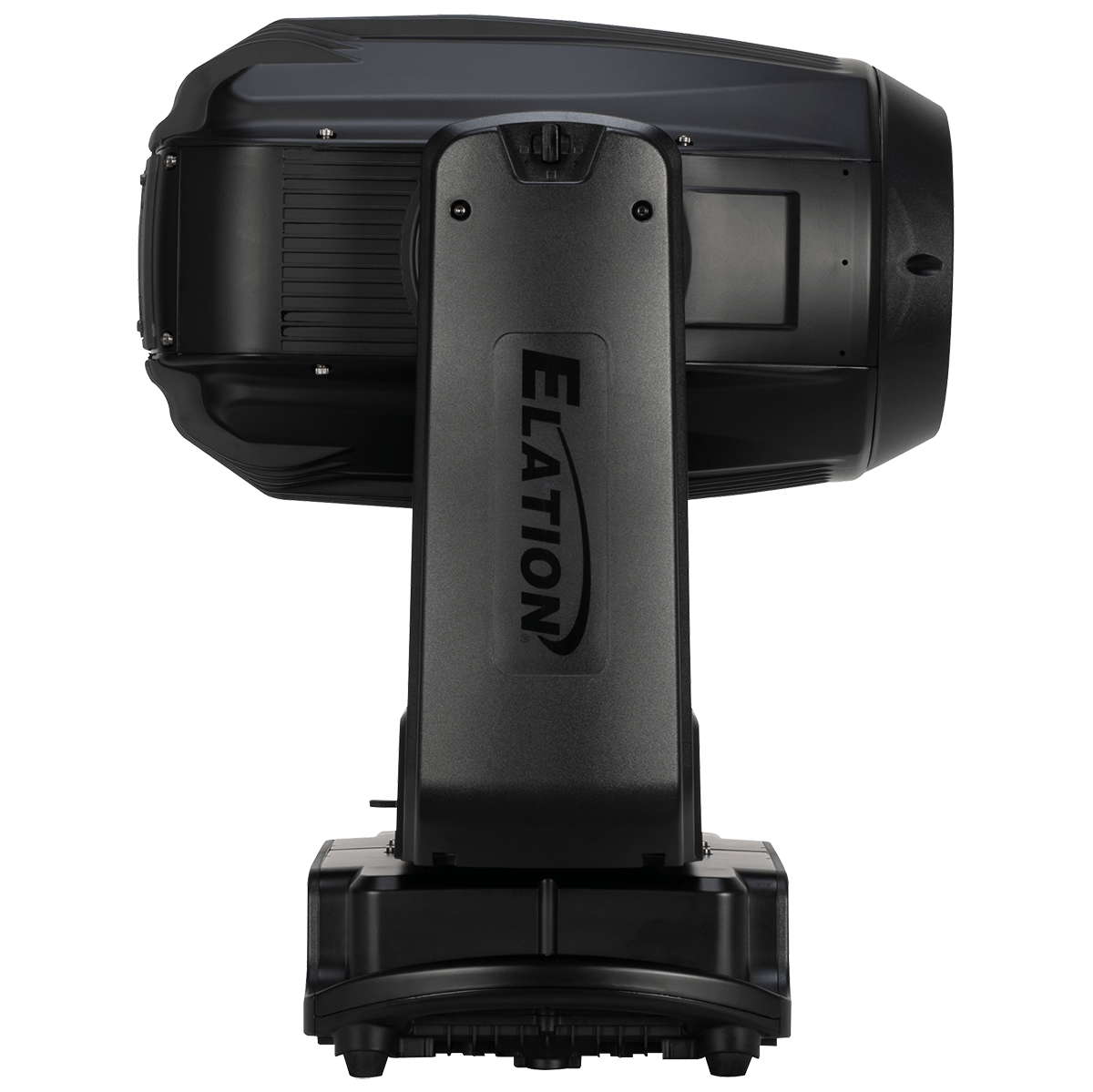

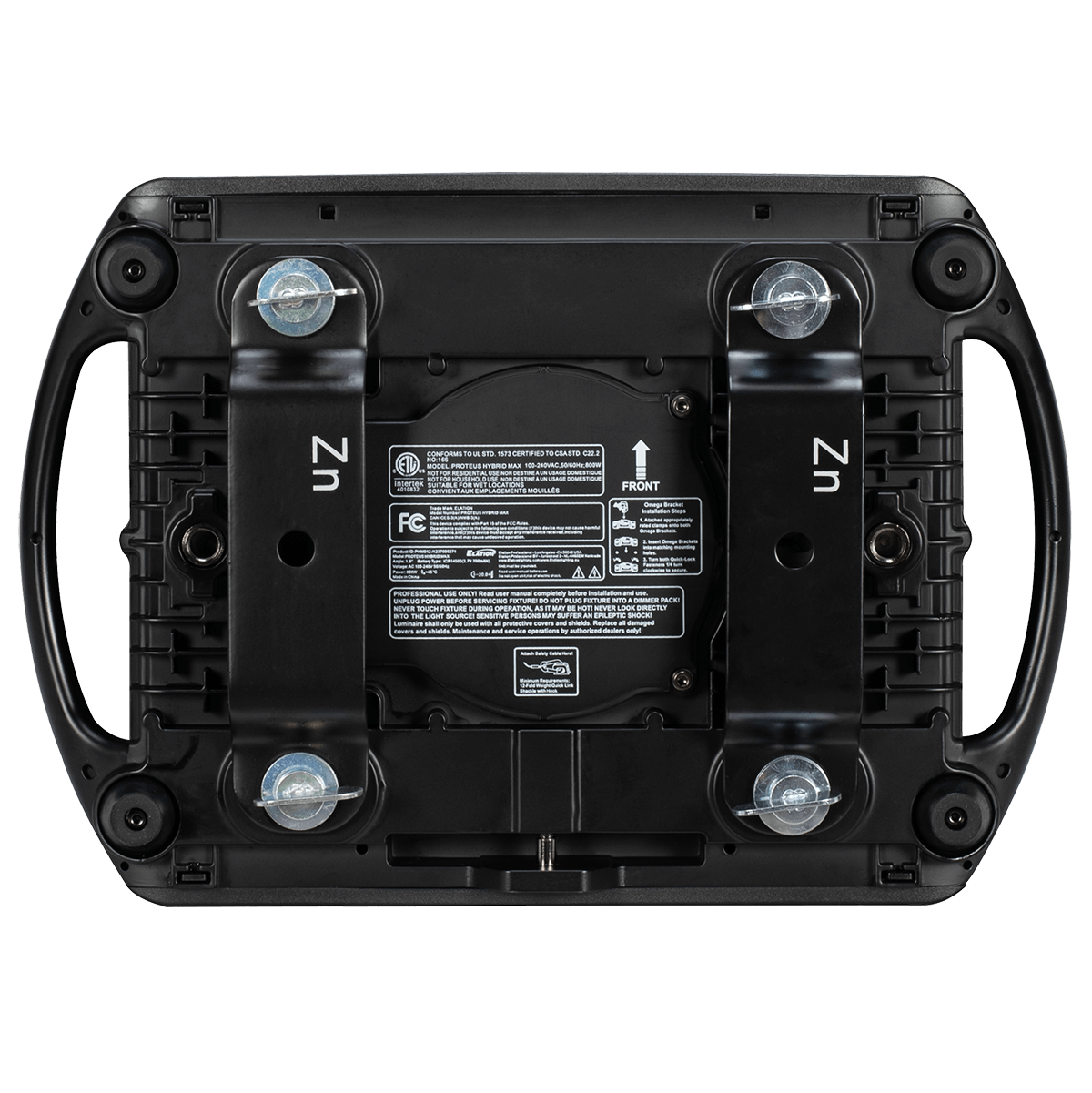

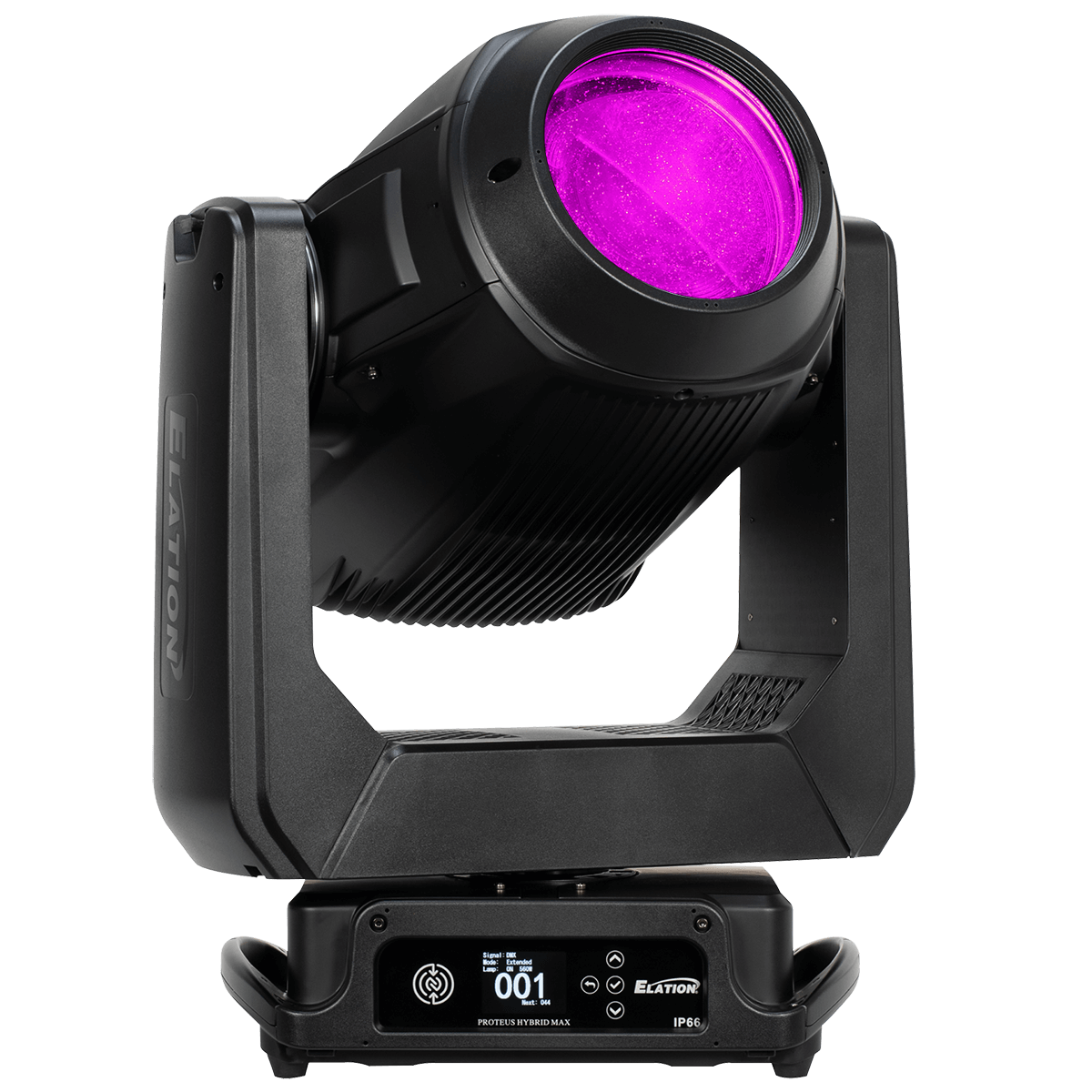

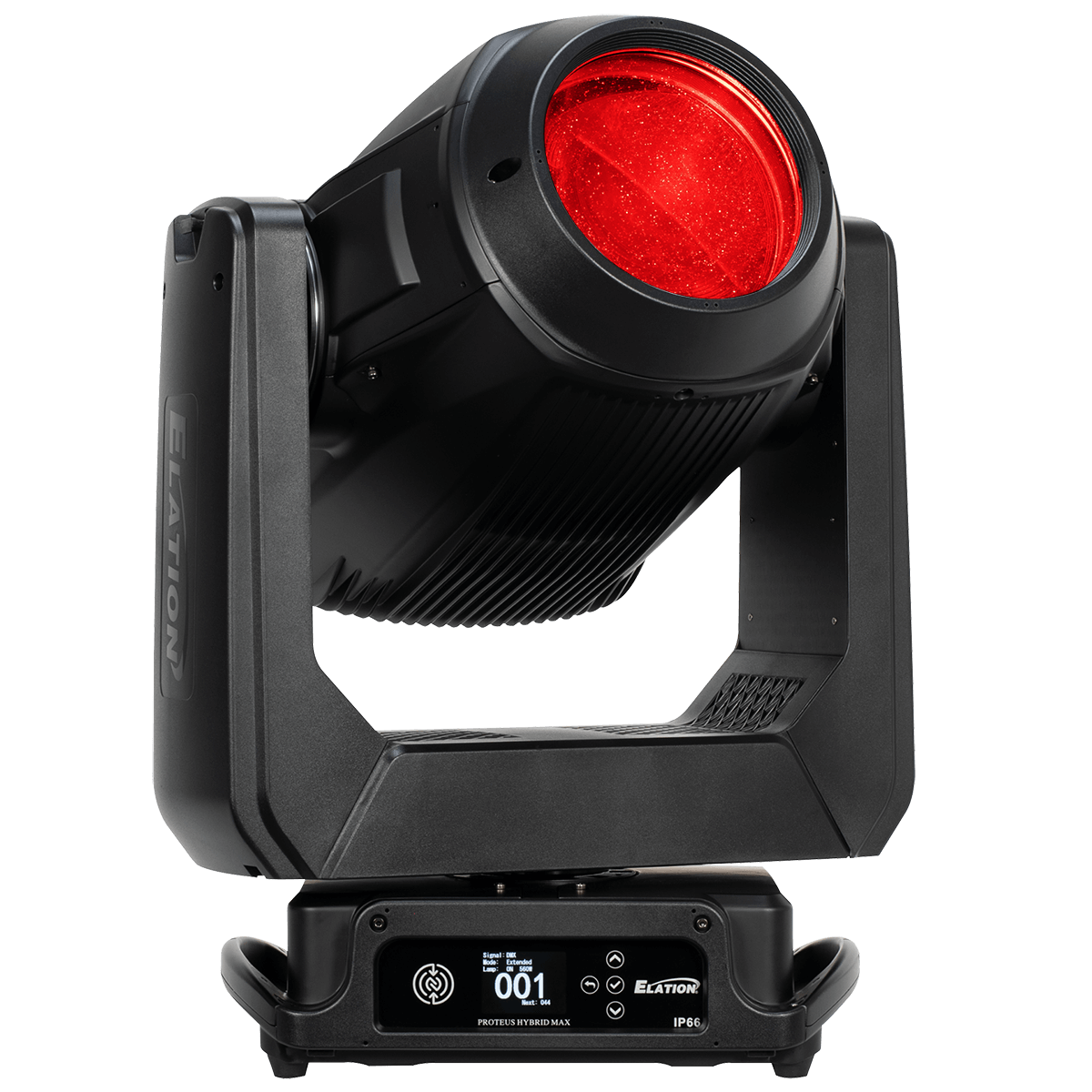

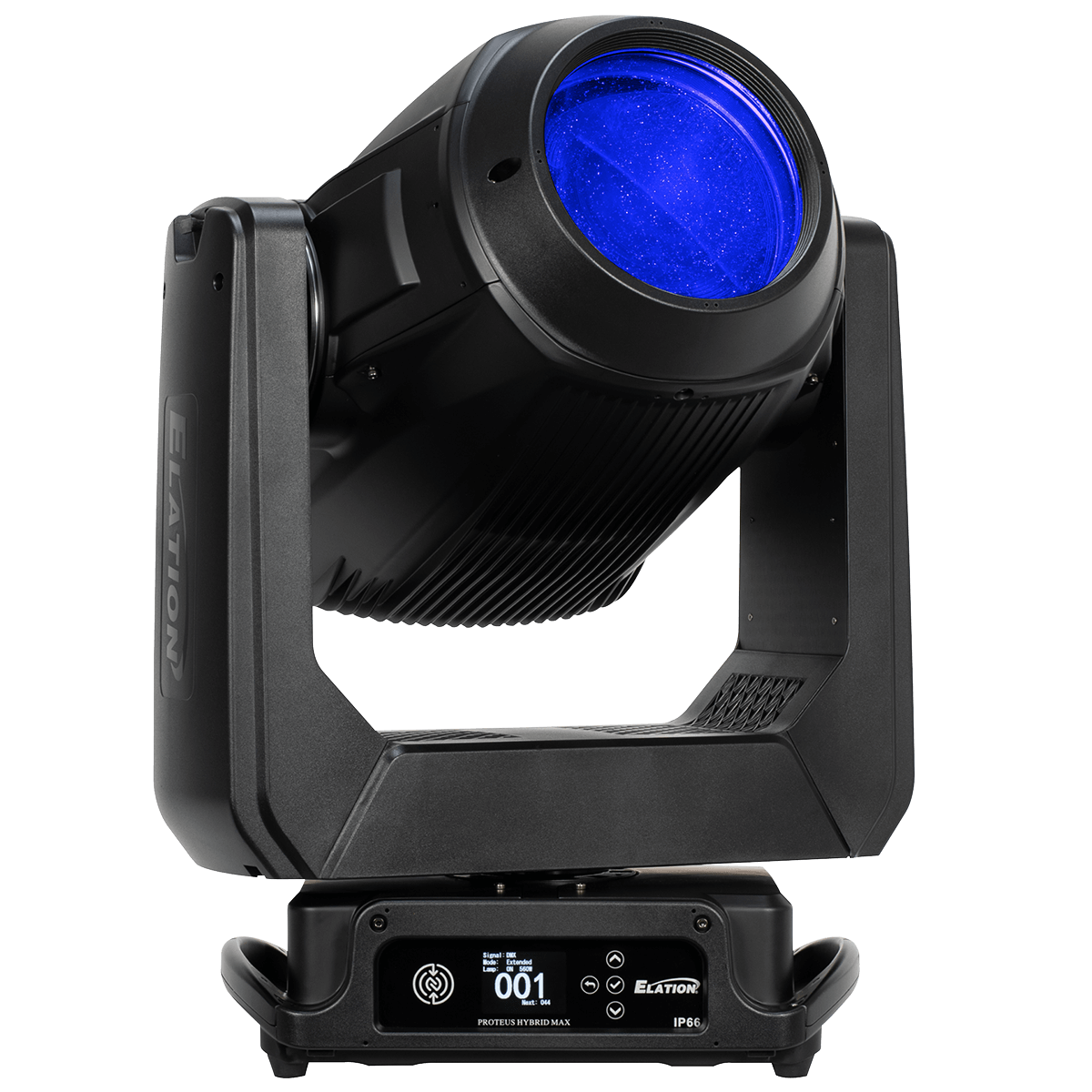

PROTEUS HYBRID MAX
550W Discharge IP66 Beam/Spot/Wash Hybrid Fixture
PROTEUS HYBRID MAX is a professional-grade lighting solution. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large format Xenon fixtures the PROTEUS HYBRID MAX™ operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP66 rated.
Related Products
PROTEUS HYBRID MAX
The PROTEUS HYBRID MAX™ includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large format Xenon fixtures the PROTEUS HYBRID MAX™ operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP66 rated. The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.
Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
Specifications
SOURCE
Philips MSD Platinum 500 Flex 550W Lamp
Variable Lamp Power
Automated Lamp Hibernation with Instant Recovery
Up to 4,000 Hour Lamp Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
22,000+ Lumen Total Fixture Output
Zoom Range 1.8˚ - 45˚
EFFECTS
Beam, Spot and Wash Modes
Motorized Zoom
Dual Frost Filter for Light Frost/ Full Wash
4 Prisms on Dual Planes
Iris
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
Full CMY Color Mixing System
Variable CTO
16 Position Color Wheel
GOBOS
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
16 Static-Stamped Metal Gobos plus Animation Track
Dual Track Animation Wheel
CONTROL / CONNECTIONS
2 DMX Channel Modes (32, 43)
(4) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
IP66 5pin DMX In/Out
IP66 RJ45 Ethernet In/Out
IP66 Locking Power In
SIZE / WEIGHT
Length: 11.3” (287.5mm)
Width: 18.8” (476.8mm)
Height: 26.7” (677mm)
Weight: 78.3 lbs. (35.5 kg)
Center to Center Spacing: 21.3" (540.8)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
800 W Max Power Consumption
-4° to 113°F (-20°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP66
FIRMWARE UPDATES
Current Version: V1.3.7
Click HERE for software update
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
- Proteus Hybrid Max FIL - 2D Cad Drawing
- Elation Proteus Hybrid Max - 3D Cad FIL
- Proteus Hybrid Max - 2D Cad Drawing
Dimensional drawings
Dmx traits
Specification sheet
User manual
Vectorworks symbols
PROTEUS HYBRID MAX Parts & Service
Our PROTEUS HYBRID MAX Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your PROTEUS HYBRID MAX. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
PROTEUS HYBRID MAX Parts & ServiceHow do they compare?
Find the option that is right for you and your production.
18000
20000
550
550
2° - 45°
0° - 0.9°
0° - 0.8°
65
65
78.3 lbs
108.0 lbs
800
800
11.3 x 18.8 x 26.7
19.4 x 15.1 x 27.4
