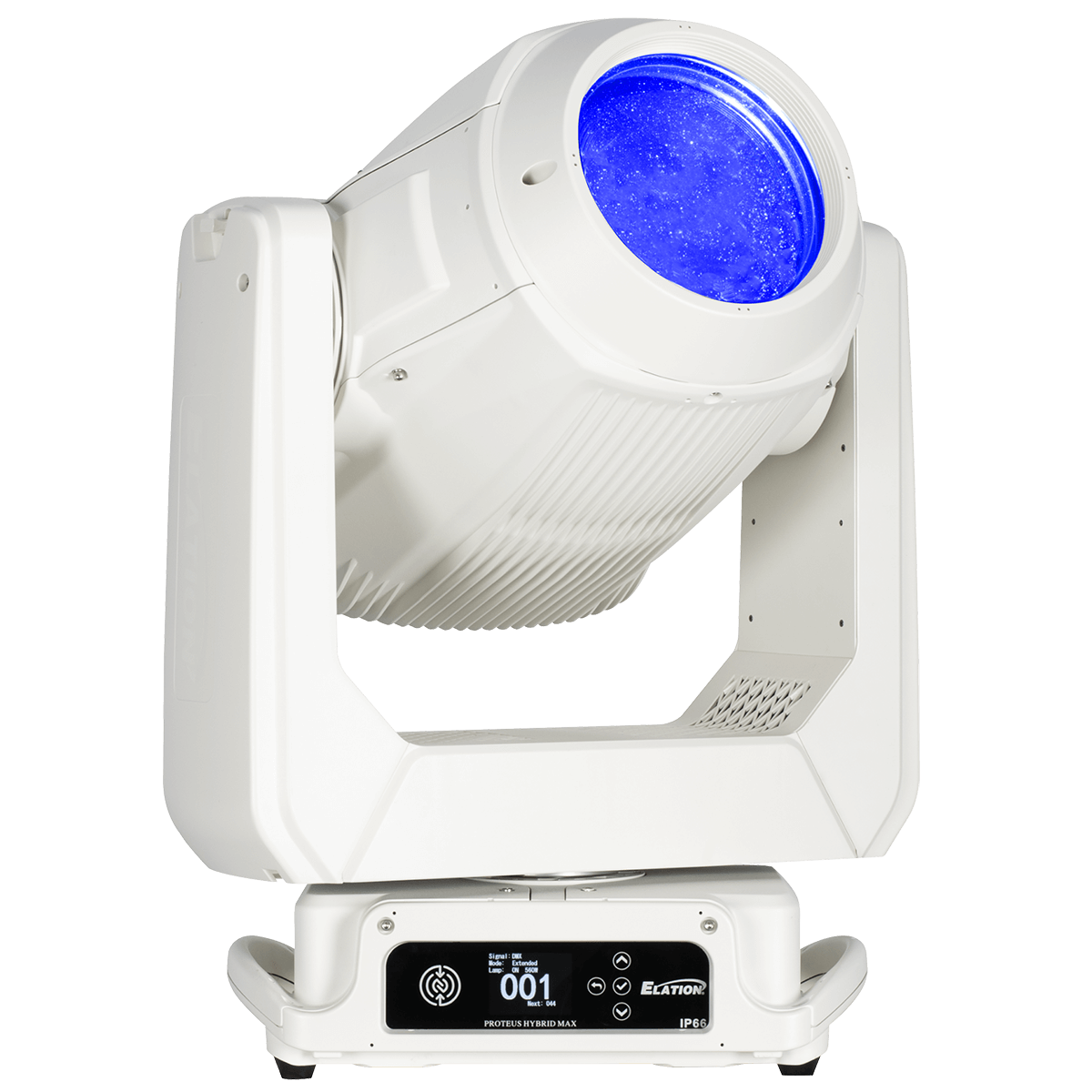

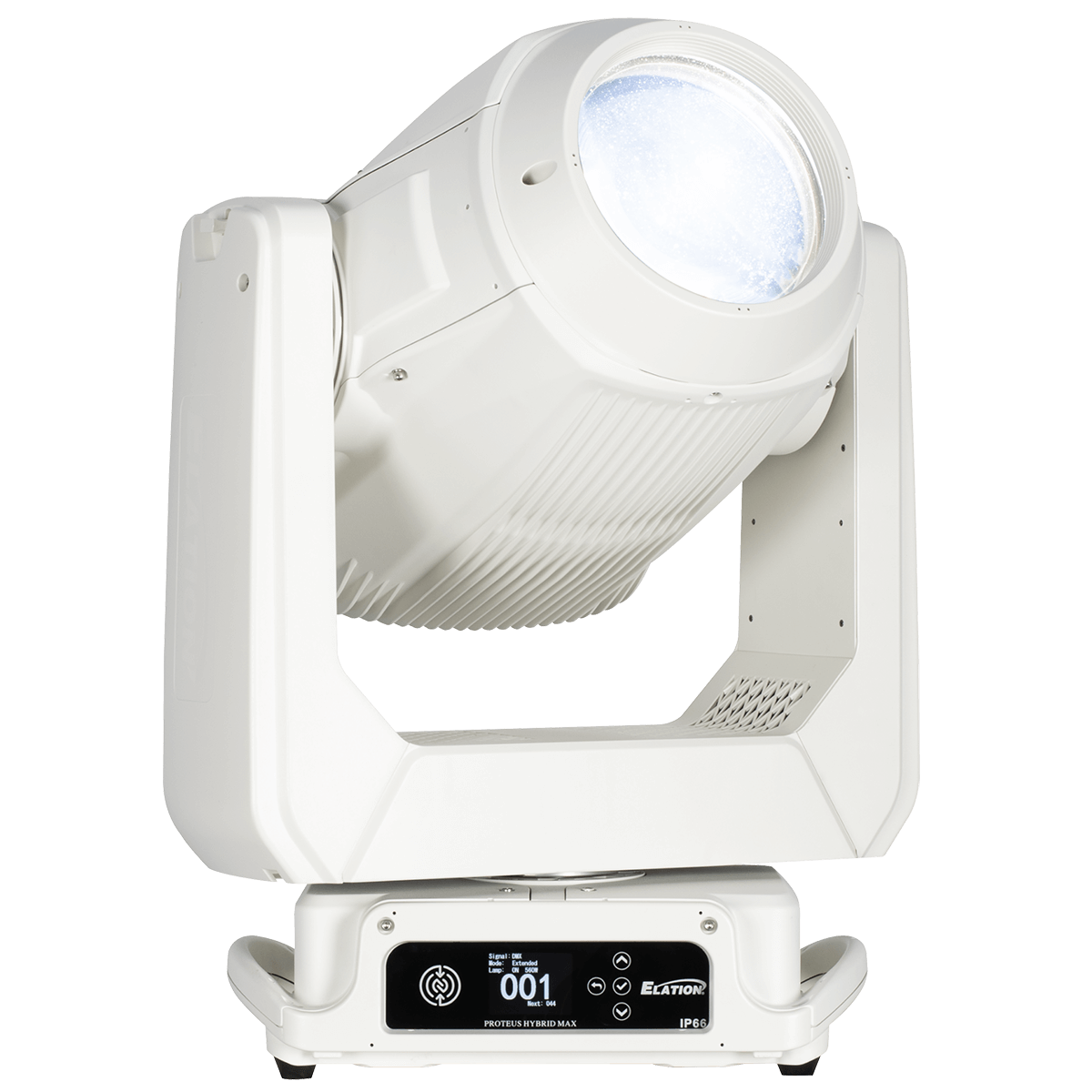

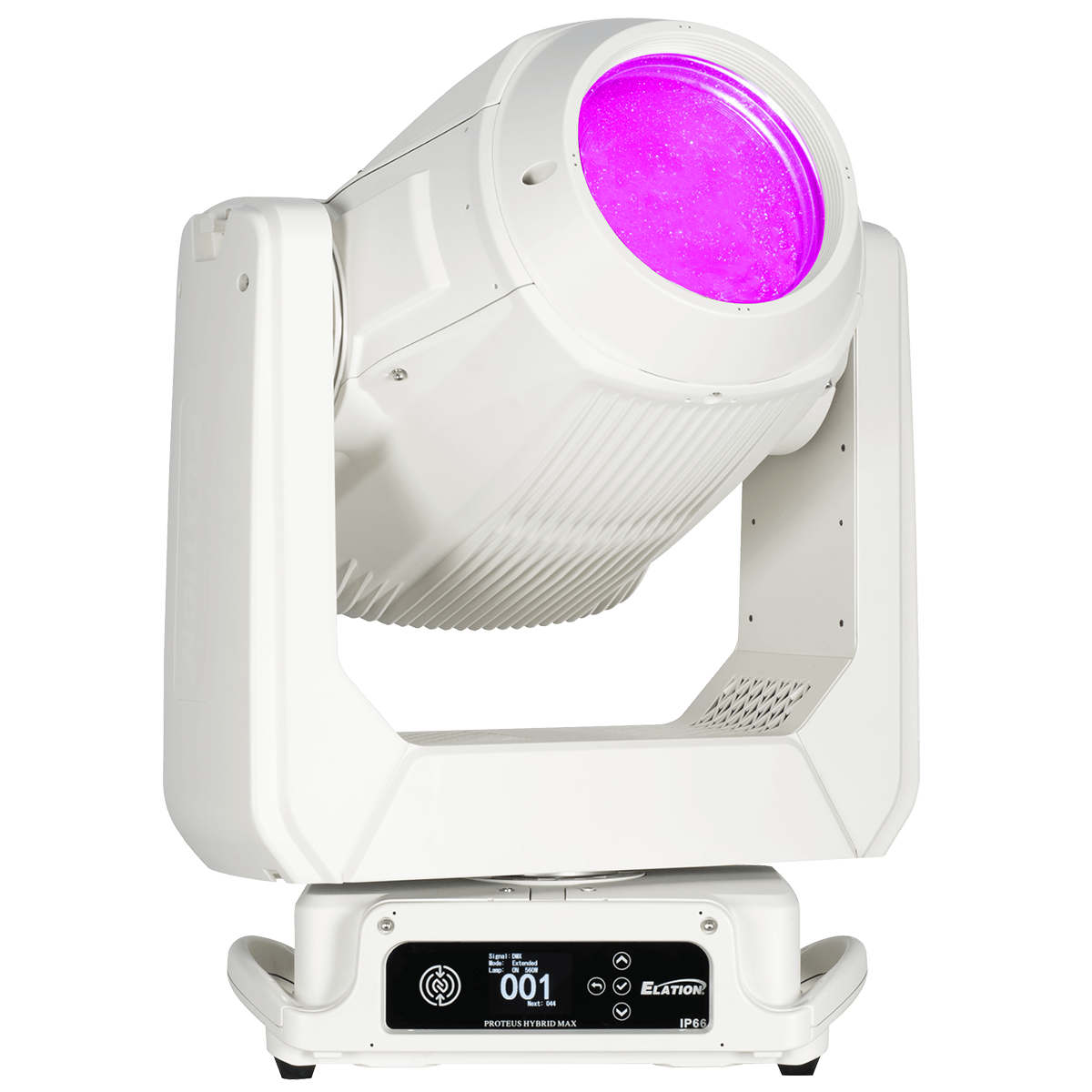

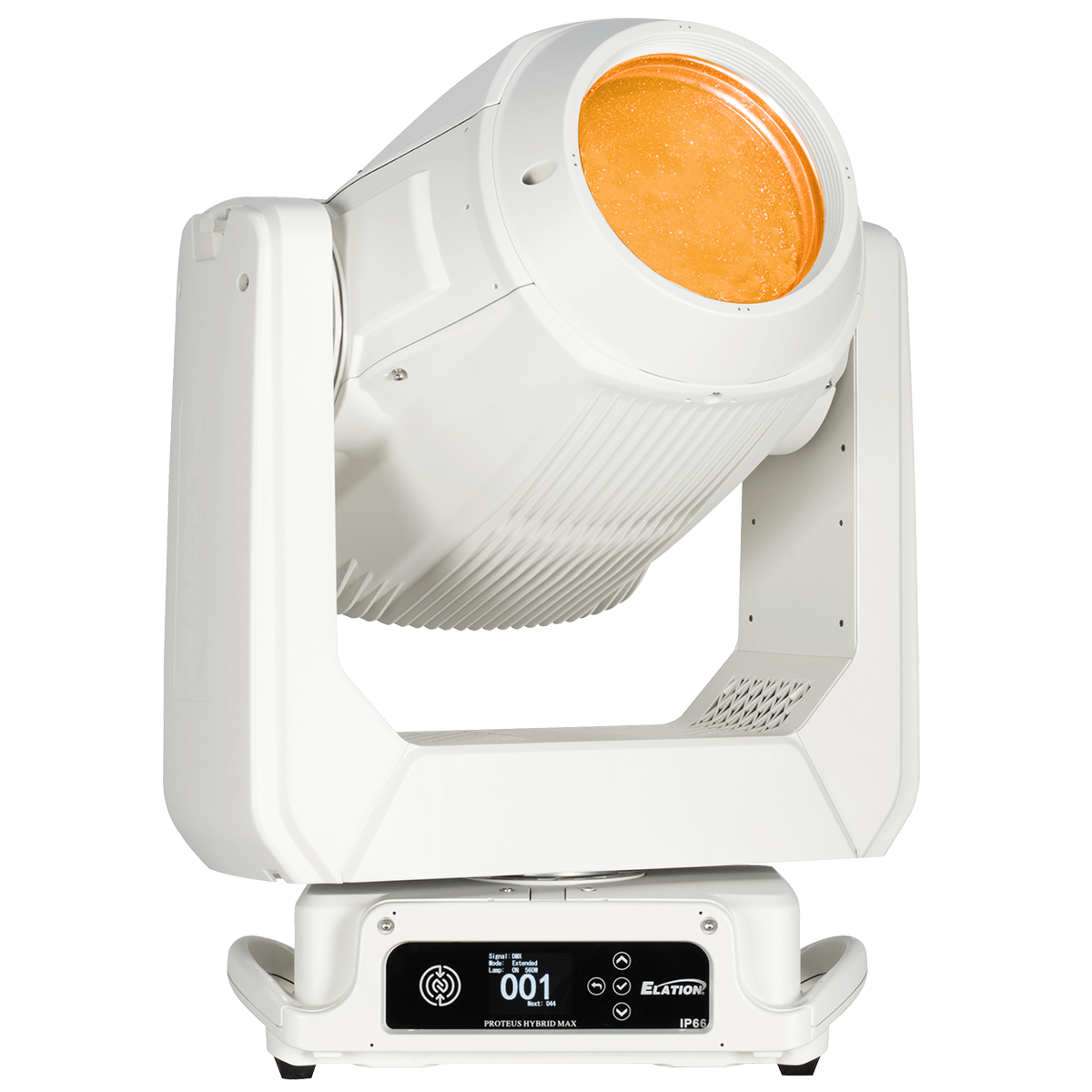

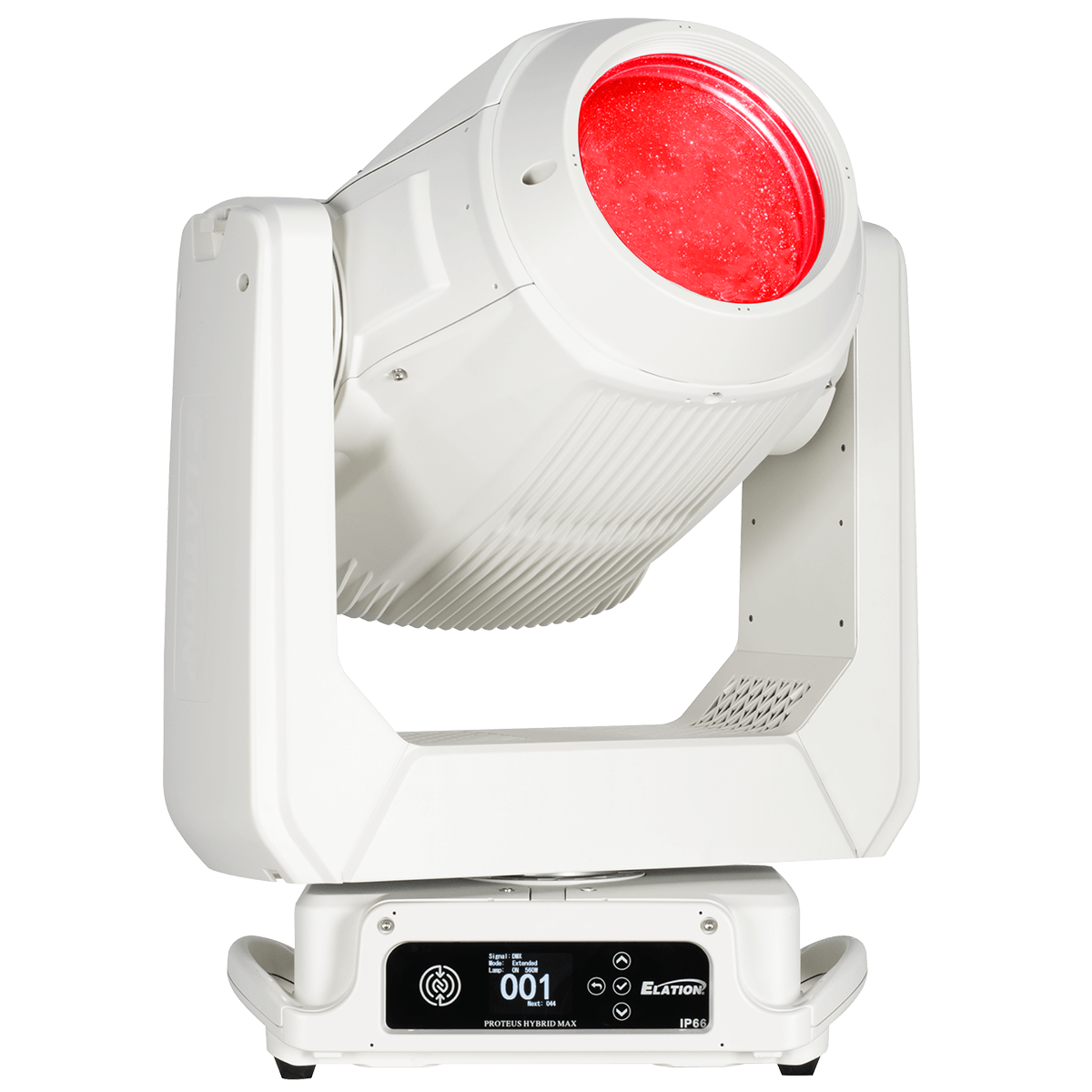

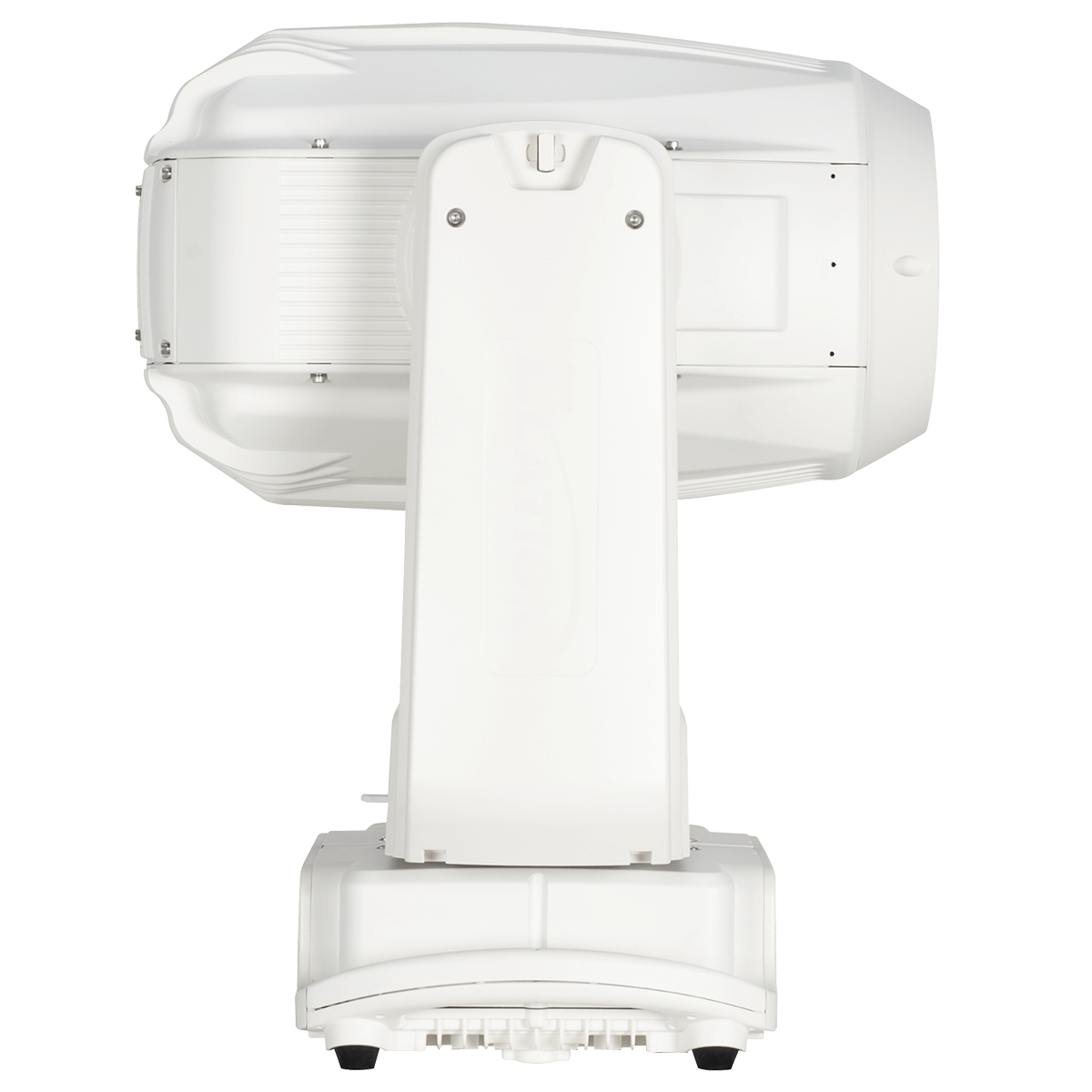

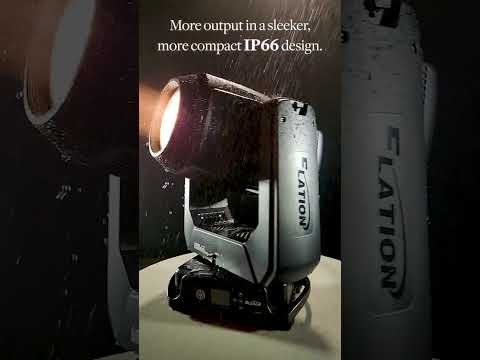

The PROTEUS HYBRID MAX WMG™ combines high output and long lamp life in a feature packed compact IP66 Hybrid fixture. PROTEUS HYBRID MAX WMG™ is the Extreme Output Hybrid featuring the innovative Philips MSD Platinum FLEX 500 lamp.
The PROTEUS HYBRID MAX WMG™ includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large format Xenon fixtures the PROTEUS HYBRID MAX WMG™ operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight and is fully IP66 rated. The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.
Features
Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
Resources
Specification information
Guides/ Manuals
DMX/ RDM Traits
CAD File
Related Categories
Specifications
SOURCE
Philips MSD Platinum 500 Flex 550W Lamp
Variable Lamp Power
Automated Lamp Hibernation with Instant Recovery
Up to 4,000 Hour Lamp Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
22,000+ Lumen Total Fixture Output
Zoom Range 1.8˚ - 45˚
EFFECTS
Beam, Spot and Wash Modes
Motorized Zoom
Dual Frost Filter for Light Frost/ Full Wash
4 Prisms on Dual Planes
Iris
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
Full CMY Color Mixing System
Variable CTO
16 Position Color Wheel
GOBOS
2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
16 Static-Stamped Metal Gobos plus Animation Track
Dual Track Animation Wheel
CONTROL / CONNECTIONS
2 DMX Channel Modes (32, 43)

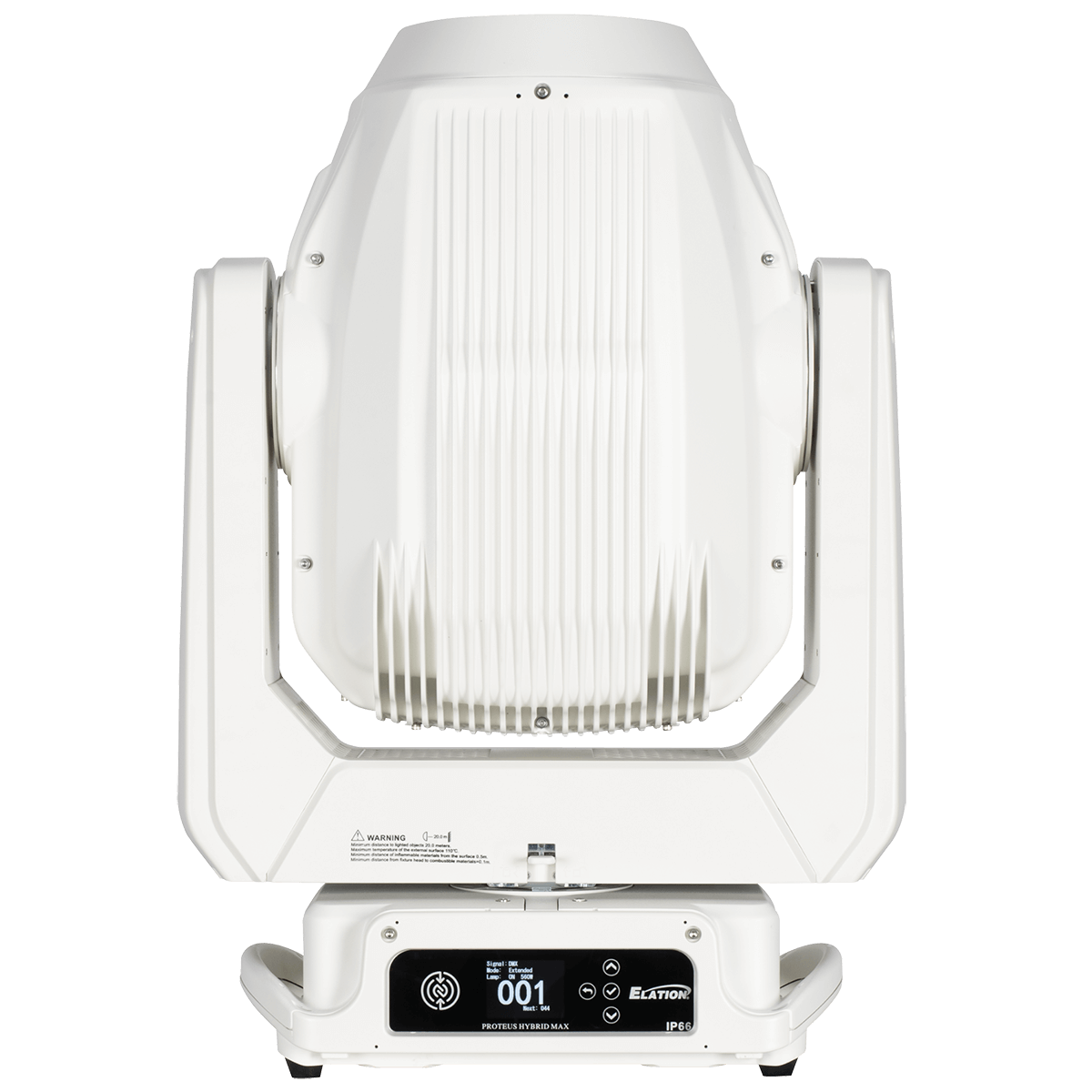

(4) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
IP65 5pin DMX In/Out
IP65 RJ45 Ethernet In/Out
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 18.2” (462mm)
Width: 18.8” (477mm)
Height: 26.65” (677mm)
Weight: 76 lbs. (34.5 kg)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
800 W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP66
Specifications and documentation subject to change without notice.
