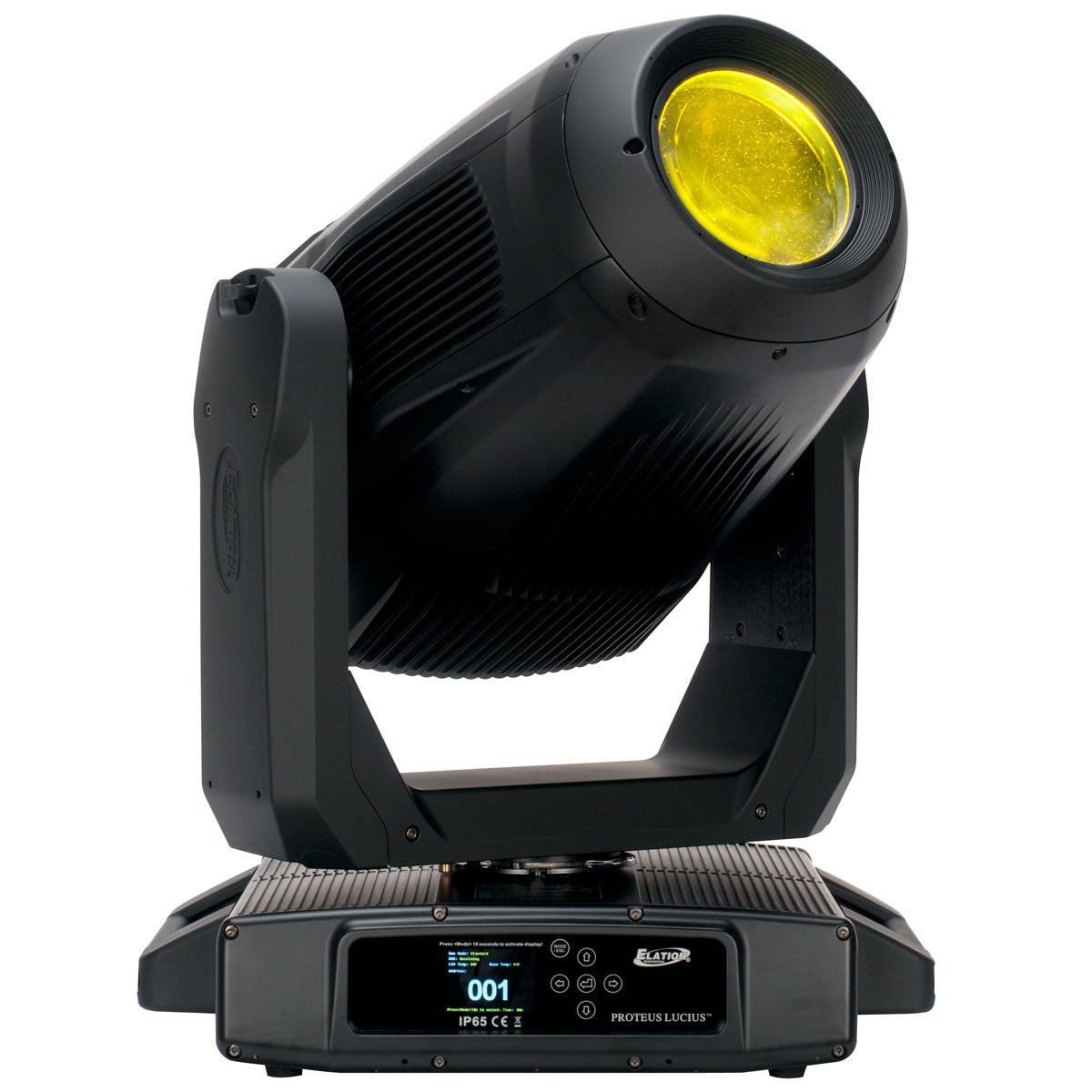

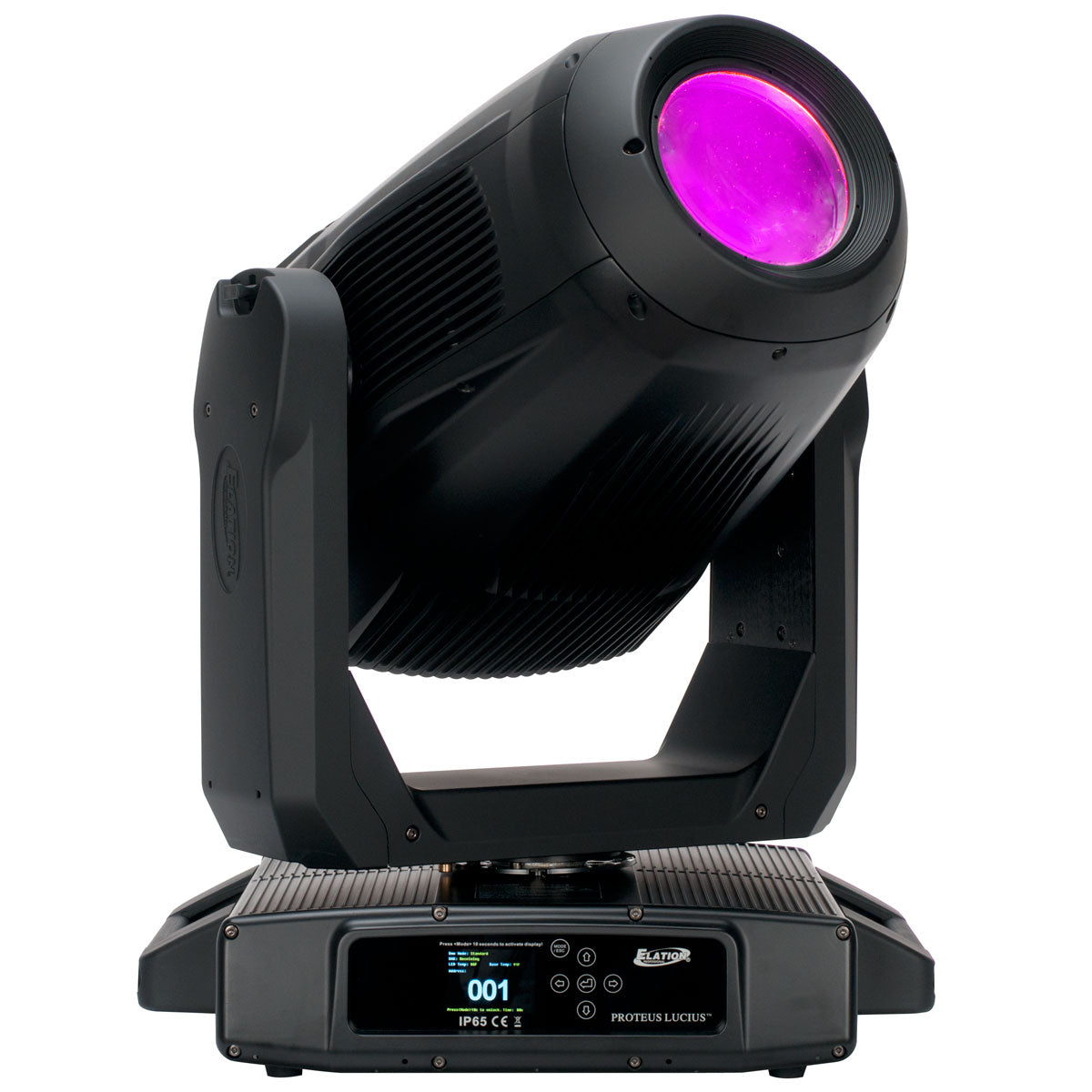

PROTEUS LUCIUS

Features

*  *  *  P R E L I M I N A R Y *  *  *

IP65 Outdoor Rated

High Efficiency 580W 6,500K White LED Engine

Up to 31,000 Total Lumen Fixture Output

Hotspot engine for powerful projection at long distances

CMY Color Mixing and Variable CTO

5-Position Color Wheel with High CRI Filter

Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost

Indexable Full Blackout Framing System

Wide Zoom Range from 5.5° to 55°

Resources

Specifications Sheet

Related Categories

Specifications

*   *   *   P R E L I M I N A R Y  *   *   *

SOURCE

580W 6,500K Bright White Hotspot LED Engine

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

31,000 Total Lumen Fixture Output

CRI 71+ (85+ with HCRI Filter)

2.5:1 Hotspot Ratio


EFFECTS

5.5 - 55° Motorized Zoom

4 Rotating Full Blackout Framing Blades

+/-50° Continuous Framing Indexing

Full 360° Bi-Directional Animation Wheel

4-Facet and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Internal Color, Framing, Prism, and Frost Macros

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate


COLOR

CMY Color Mixing

Linear CTO Color Correction

5 Dichroic Colors including High CRI Filter


GOBOS

3 Gobo Wheels

6 Rotating Gobo (Wheel #1)

7 Rotating Gobos (Wheel #2)

7 Static Gobos (Wheel #3)


CONTROL / CONNECTIONS

2 DMX Channel Modes

16-bit Pan, Tilt and Dimming Control

Motorized Focus and Auto-Focus Presets

DMX, RDM, Art-NET, sACN Protocol Support

(6) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

IP65 Locking 5pin XLR Connector In/Out

IP65 Locking RJ45 Ethernet Connector In/Out

IP65 Locking Power Connector In

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 17.5 in (445mm)

Width: 19.6 in (499mm)

Height: 28.1 in (715mm)

Weight: 91.4 lbs. (41.5kg)


ELECTRICAL

AC 100-240V 50/60Hz

Max Power Consumption 880W

14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS

CE | cETLus (pending) | IP65




Specifications and documentation subject to change without notice.
