PROTEUS ODEON
PROTEUS ODEON

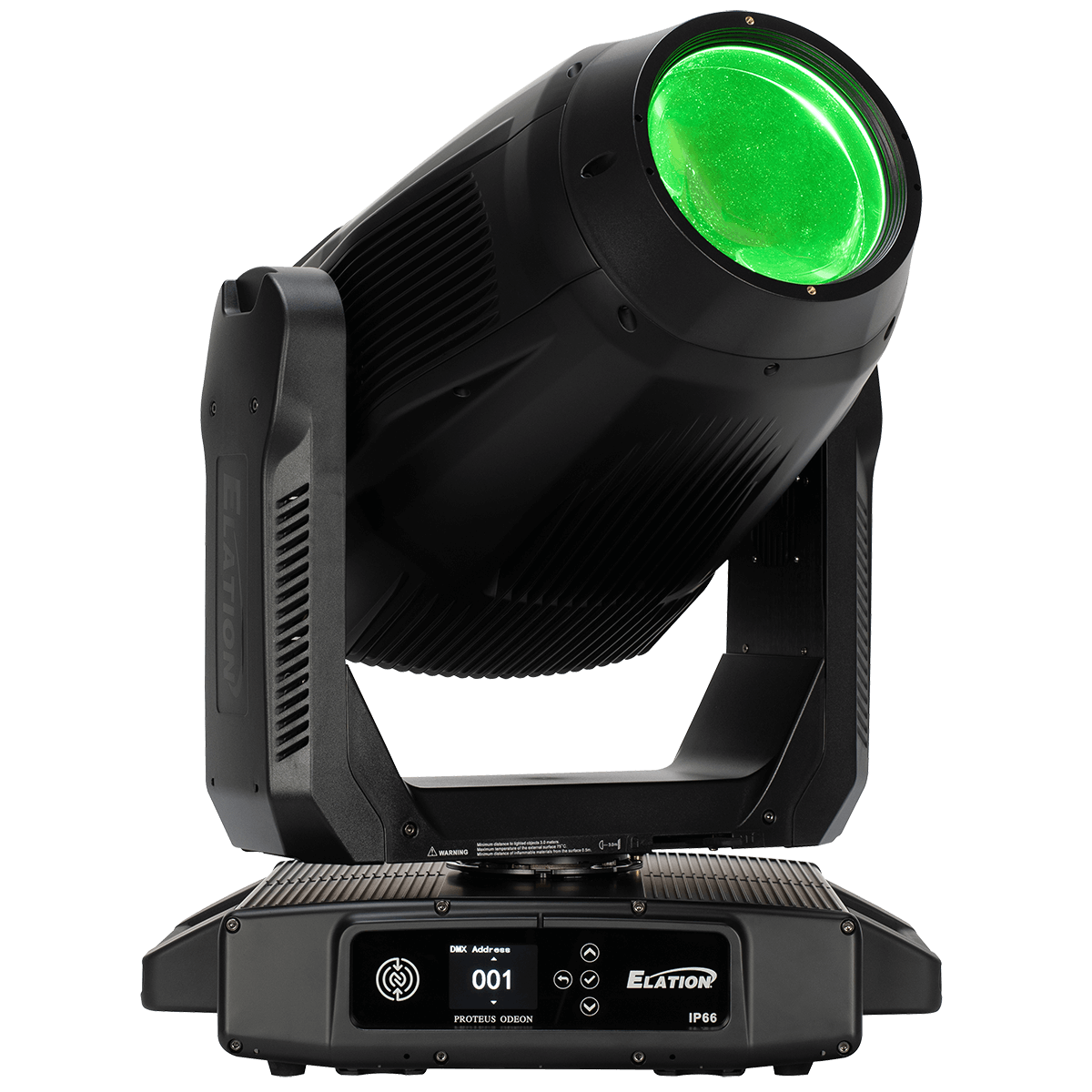

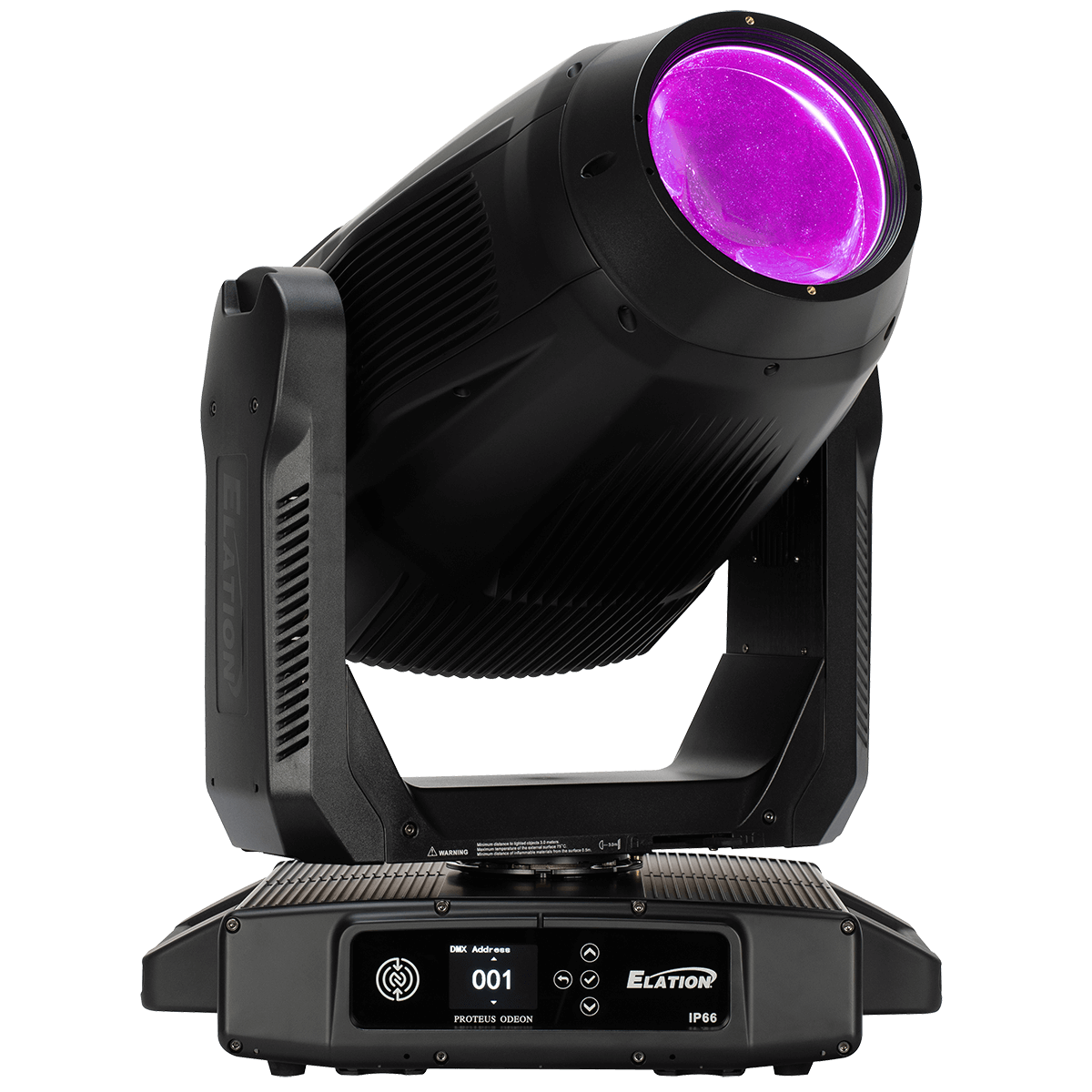

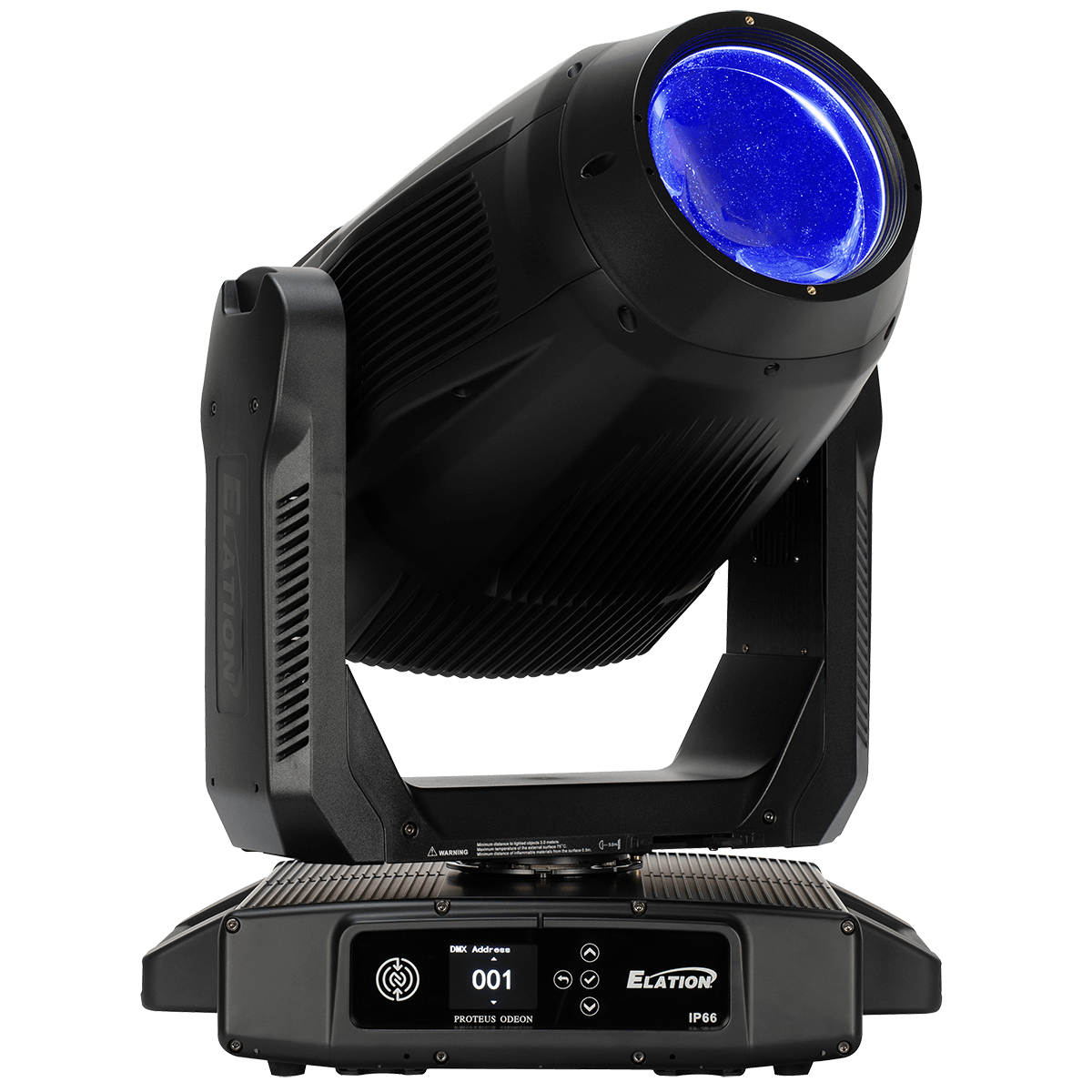

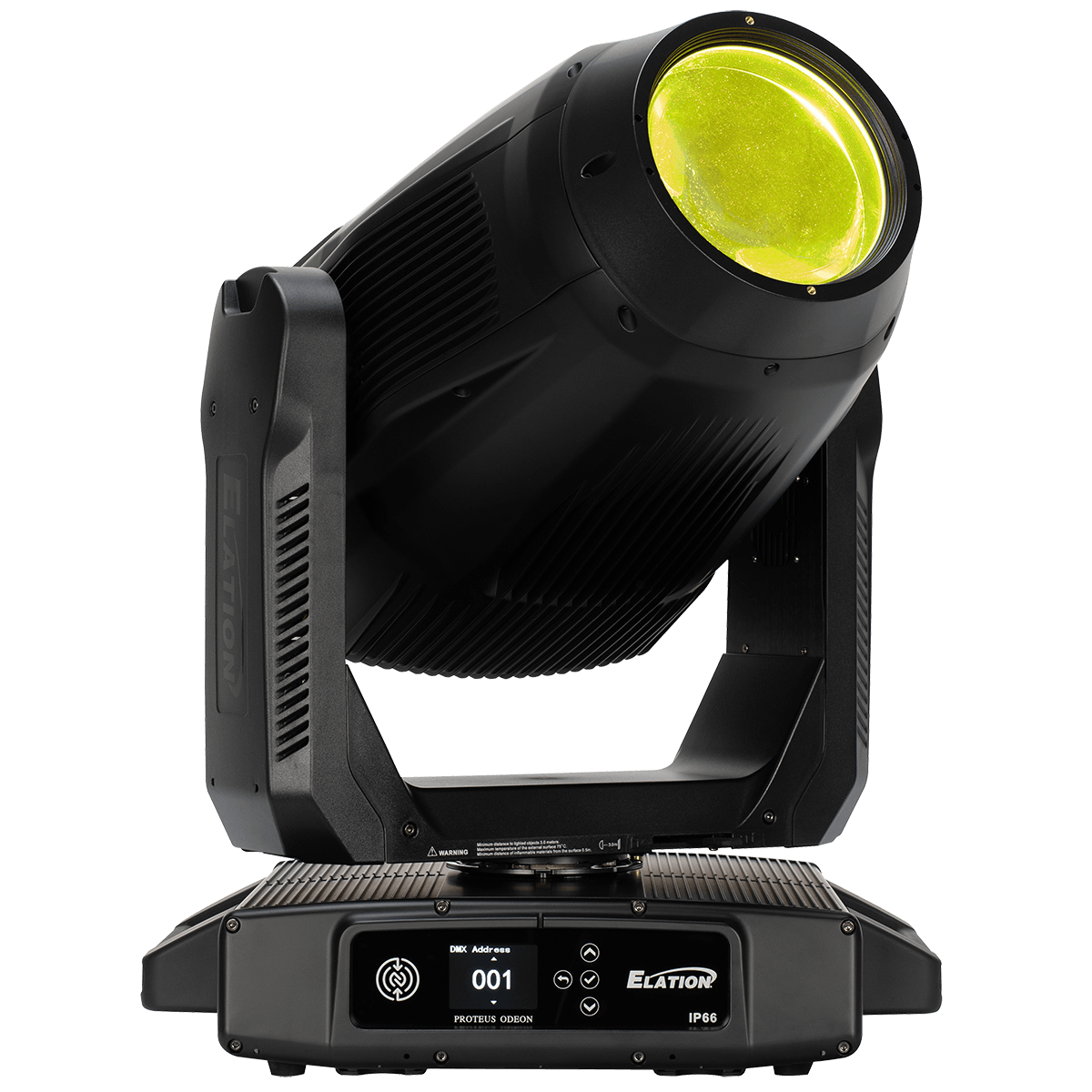

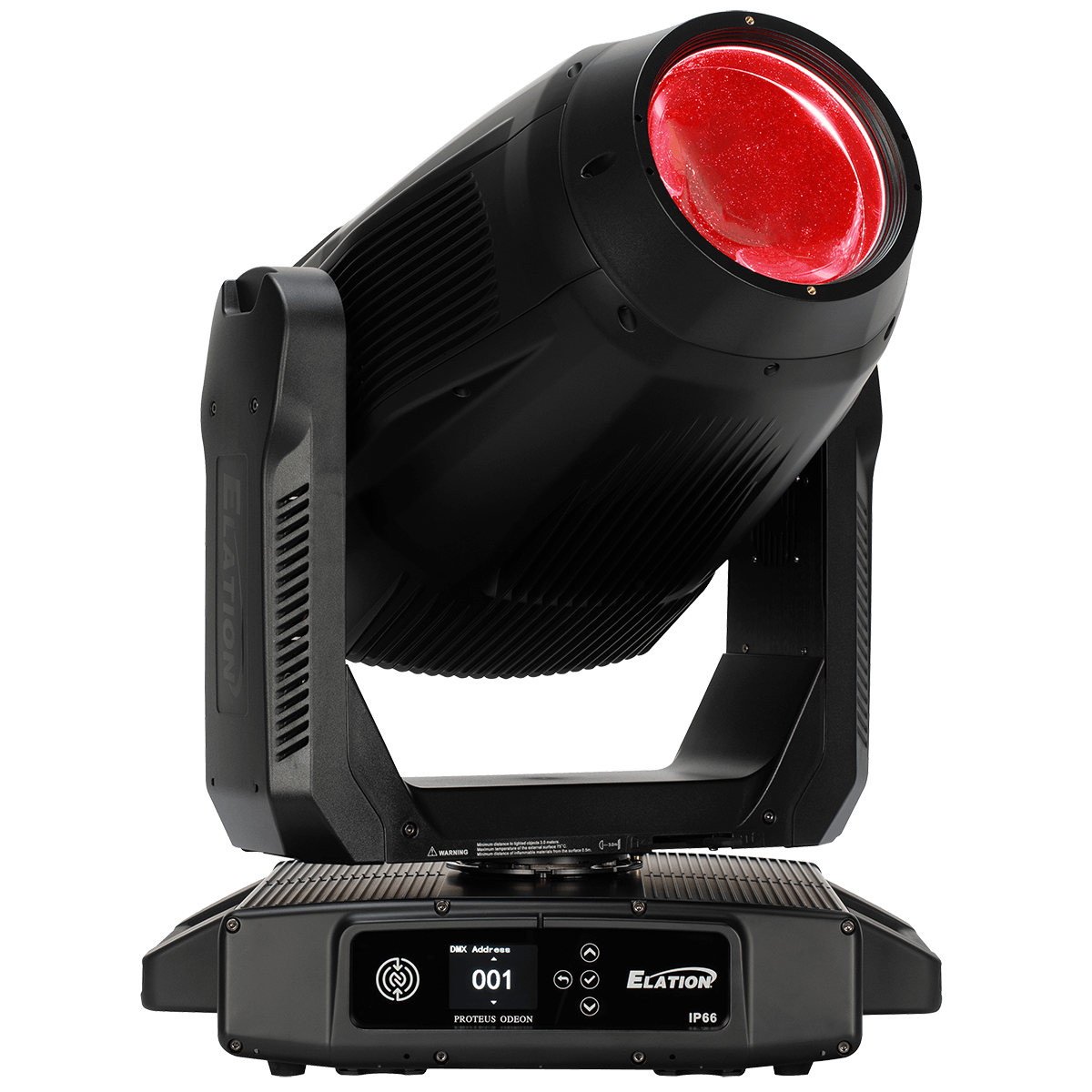

The PROTEUS ODEON™ is a powerful yet compact IP66-rated LED profile fixture offering outstanding projection and beam qualities in any environment.
Providing up to 30800 lumens output from its custom-designed Variable CRI LED engine, the PROTEUS ODEON is the ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors.
The TruTone variable CRI allows selecting the best blend of light output and color accuracy, depending on the requirement of the show or scene. It is seamlessly adjustable from CRI 70 to CRI 93.
PROTEUS ODEON provides the designer a comprehensive FX package with 13 rotating and 7 fixed glass gobos, full animation wheel, overlapping dual prisms, dual frost and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.
With a fast zoom range from 5.5° to 50° out of an impressively compact fixture design, the PROTEUS ODEON has the power to cut through and make a statement on any stage. Fully sealed from dust and water, it is a rugged fixture for a wide variety of applications.

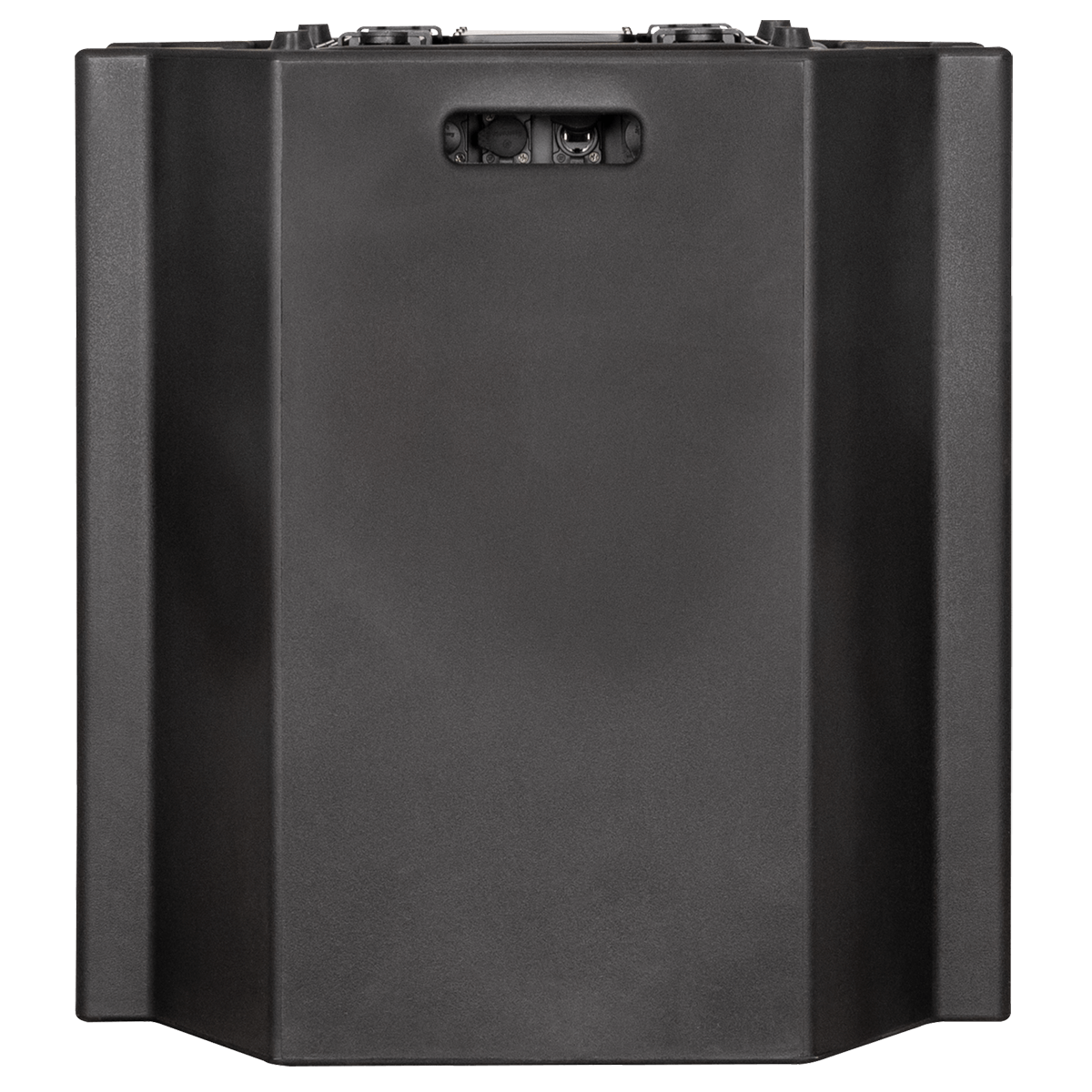

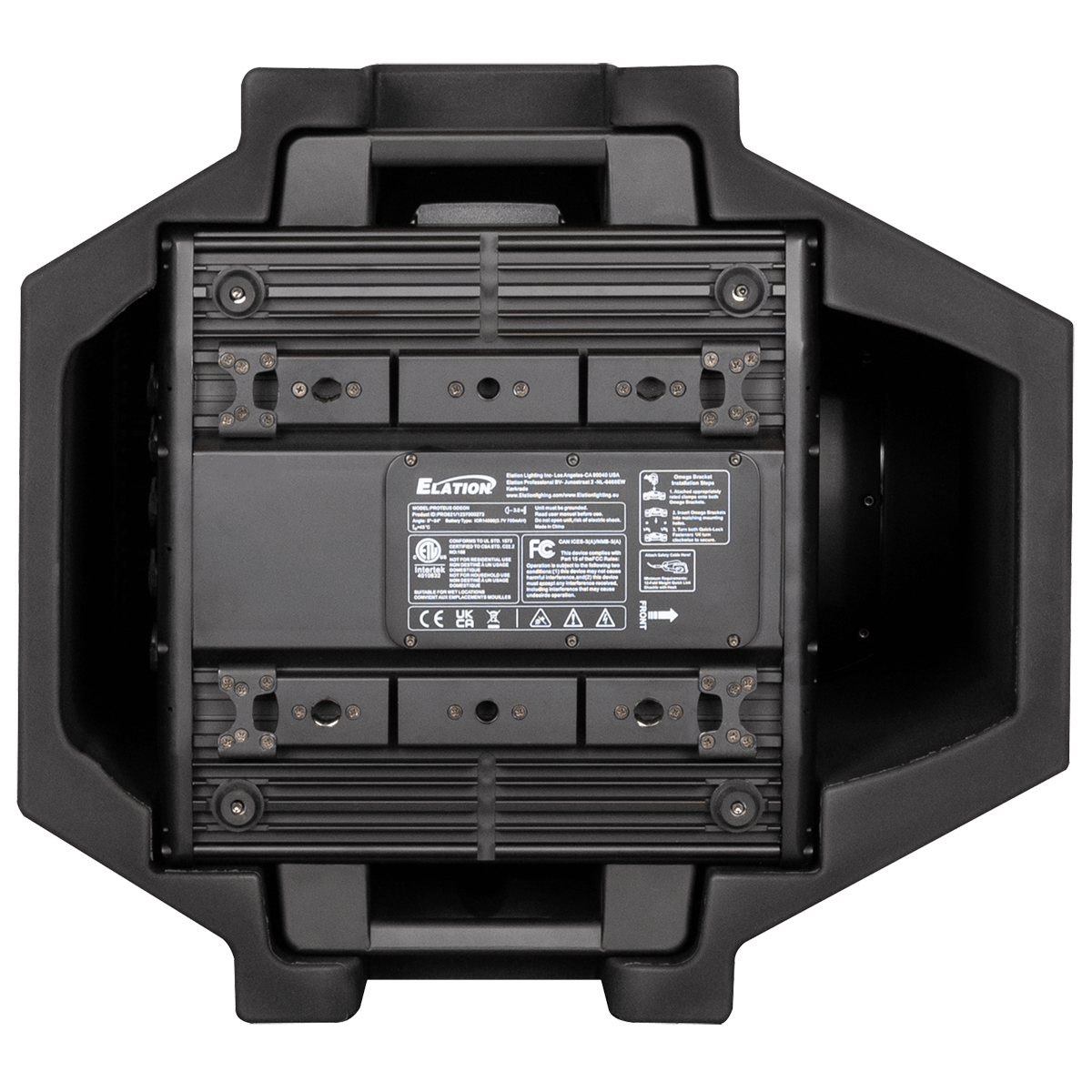

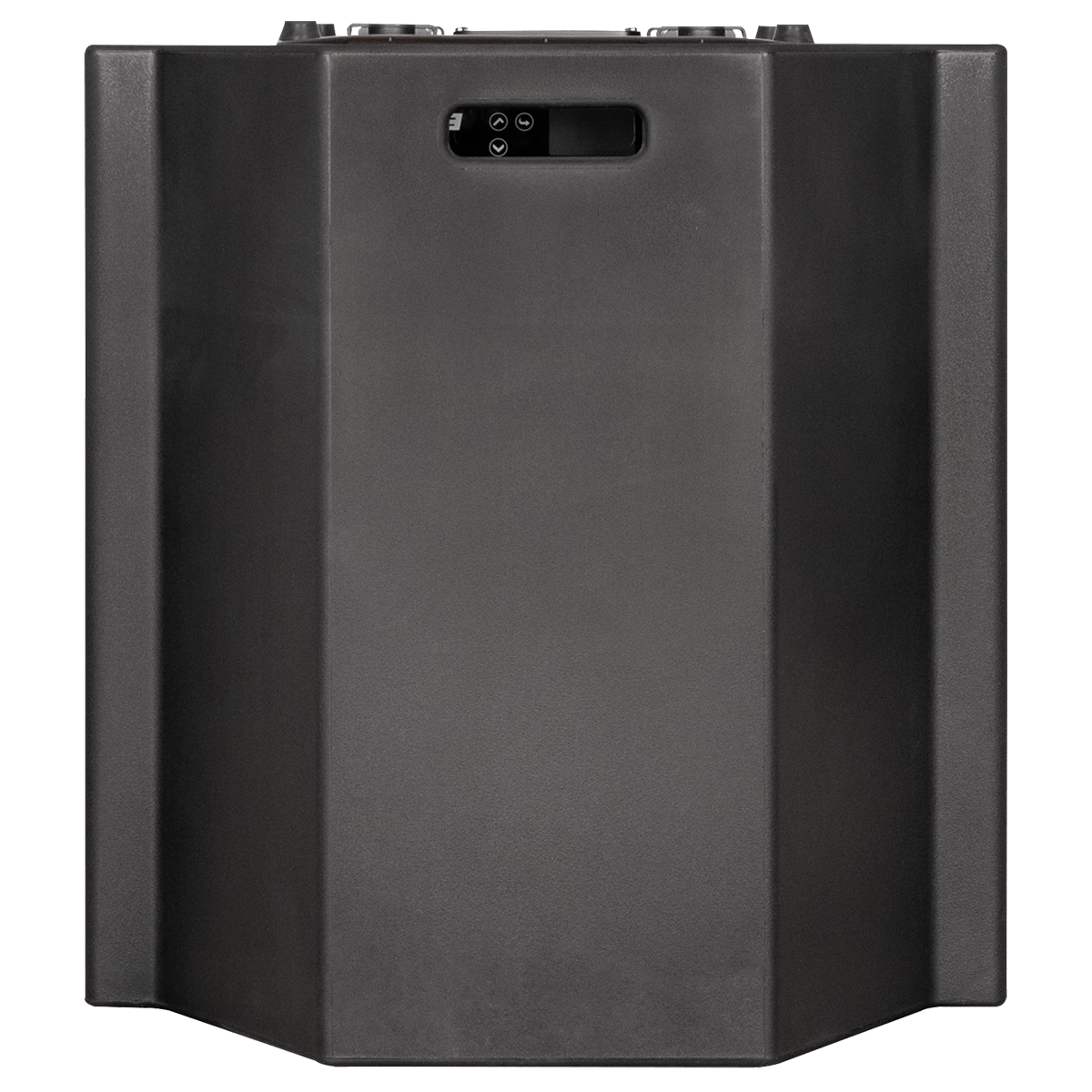

The PROTEUS ODEON ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.
Features
IP66 Outdoor Rated
High Efficiency 850W 6,500K Variable CRI White LED Engine
TruTone remote CRI Adjustment up to CRI 93
Up to 30800 Total Lumen Fixture Output
Flat Field Engine for precise projection at long distances
CMY Color Mixing and Variable CTO
5-Position Color Wheel with UV Filter
Complete FX System featuring Dual Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 50°
FIL (Foam In Lay) Polyurethane Foam Packaging Included
Resources
Specification information
Guides/ Manuals
DMX/ RDM Traits
Drawings
CAD File
CAD File
Related Categories
Specifications
SOURCE
High Efficiency 850W 6,500K Variable CRI White LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
30800 Total Lumen Fixture Output @ CRI 80
TruTone variable CRI up to CRI 93
Zoom Range 5.5° - 50°
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
CMY Color Mixing
Linear CTO Color Correction
5 Dichroic Colors including UV Filter
GOBOS
3 Gobo Wheels
6 Rotating Gobos (Wheel #1)
7 Rotating Gobos (Wheel #2)
7 Static Gobos (Wheel #3)
CONTROL / CONNECTIONS
4 DMX Channel Modes
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel

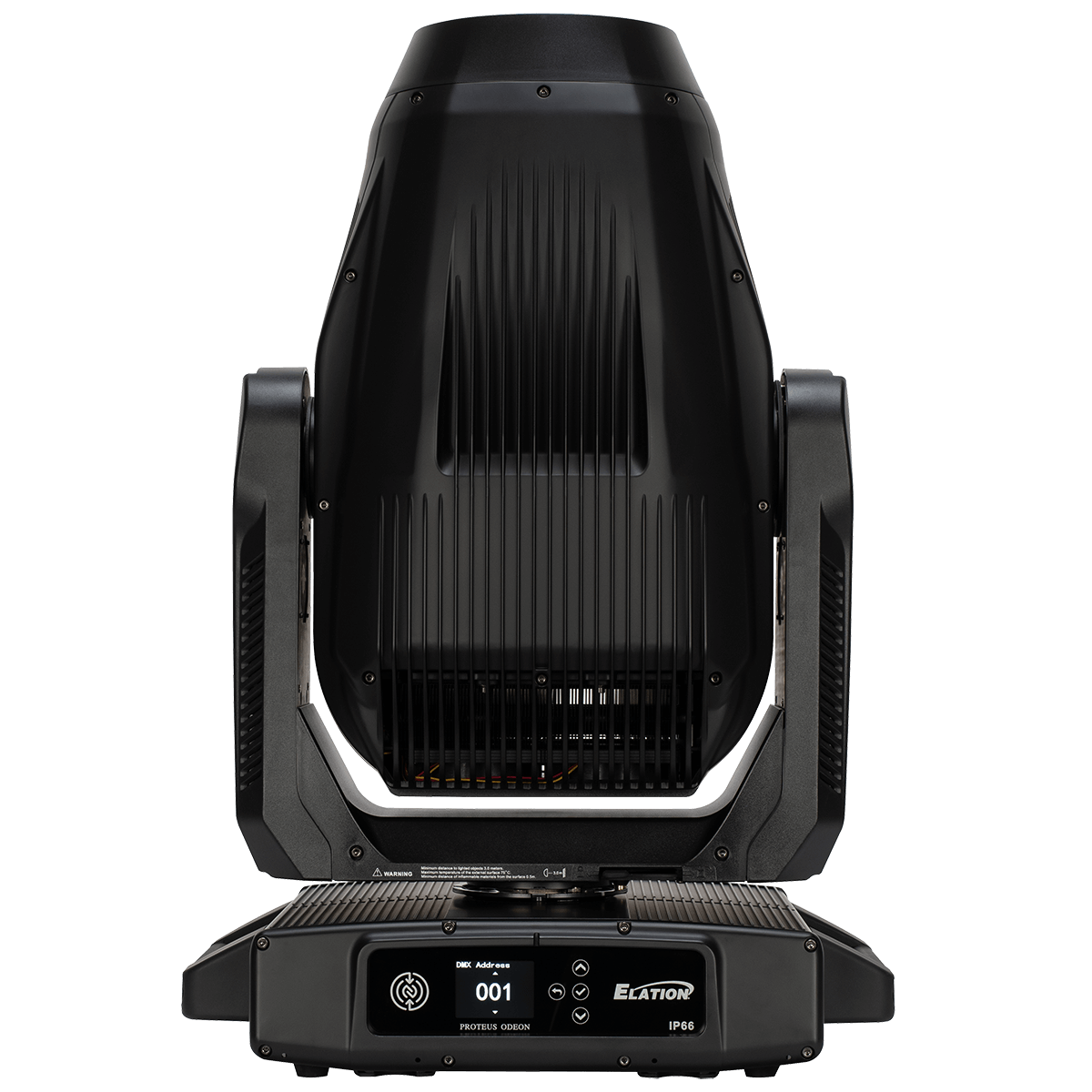

Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)

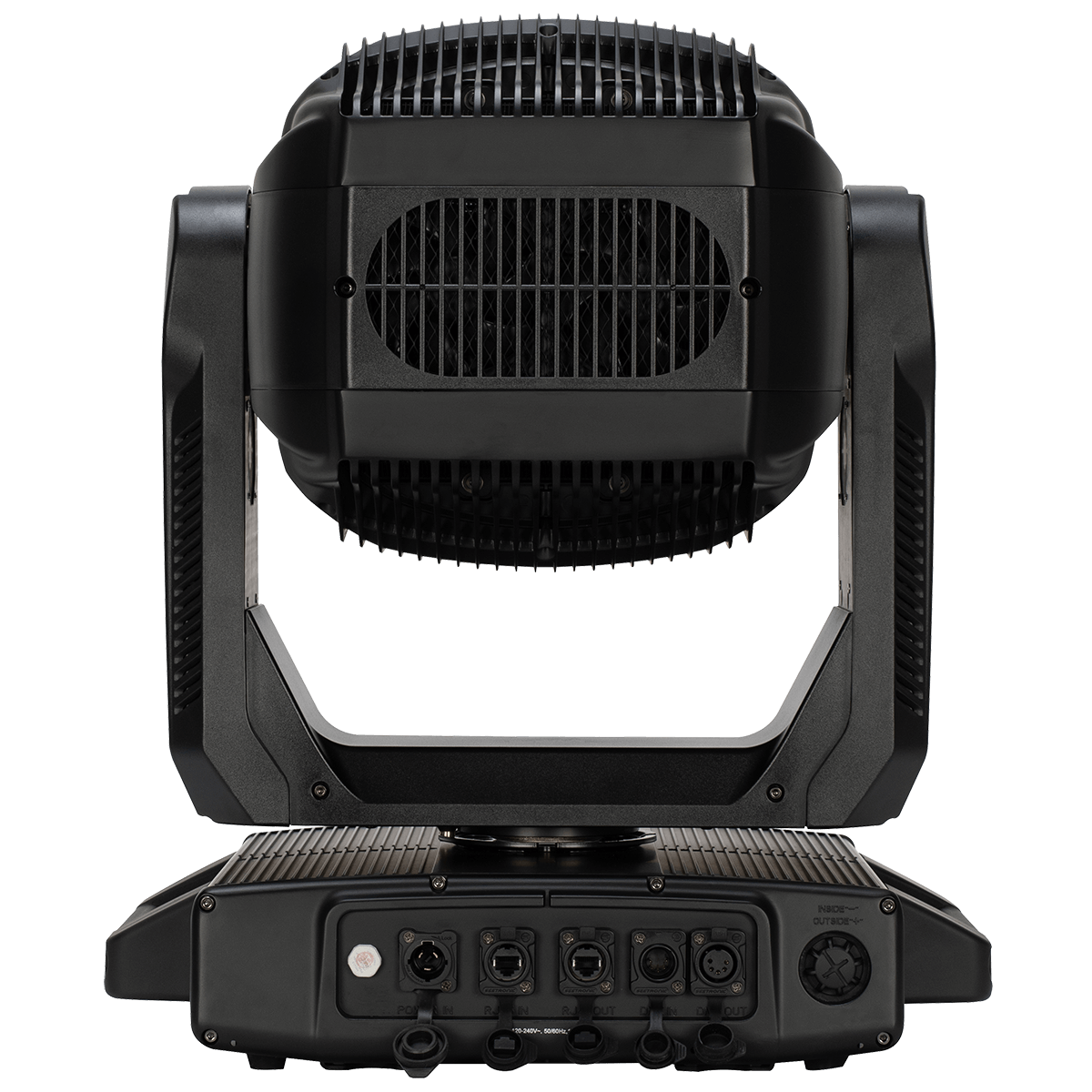

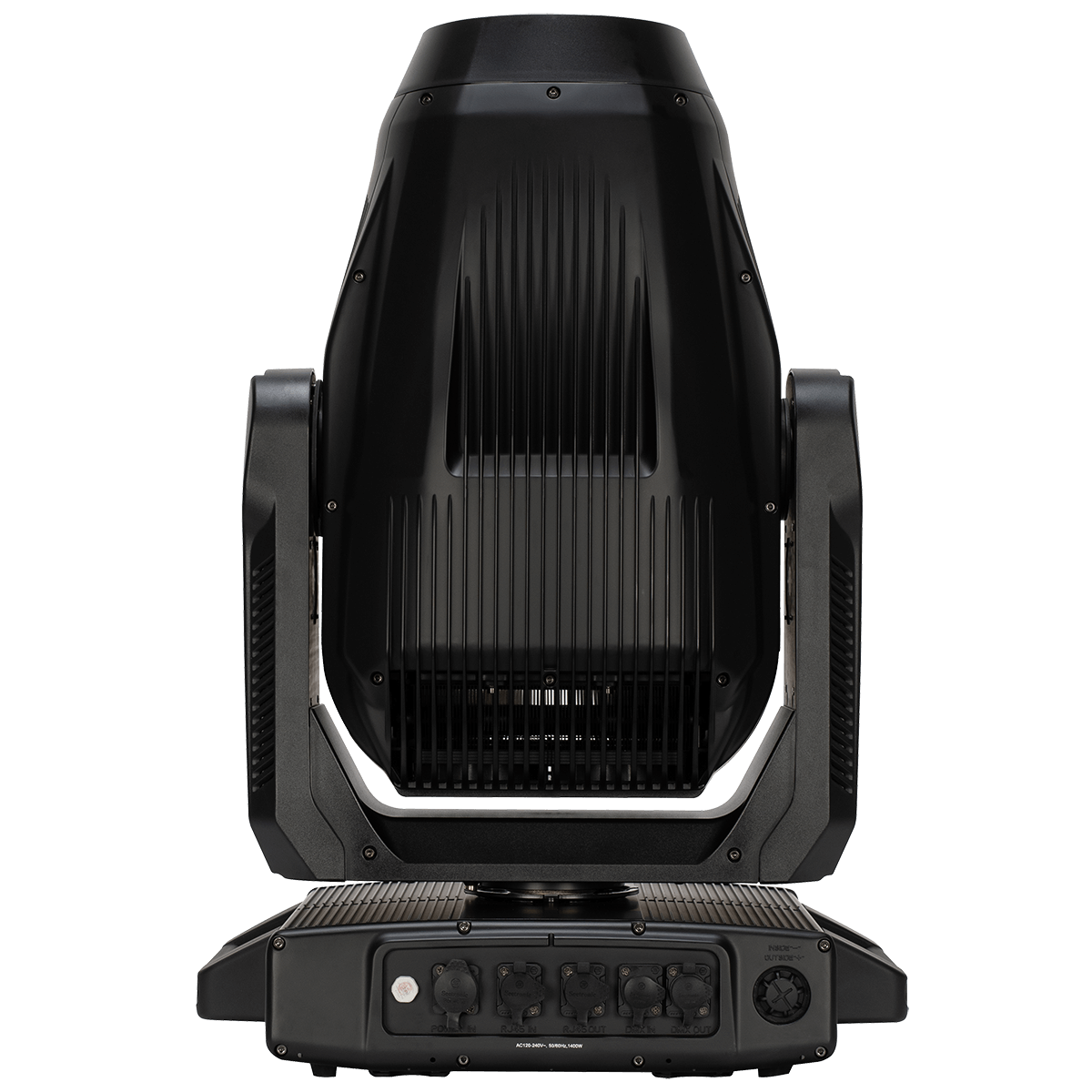

IP65 Locking 5pin XLR In/Out
IP65 Locking RJ45 Ethernet In/Out
IP65 Locking Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.41 in (467.66mm)
Width: 14.57 in (370mm)
Height: 27.2 in (692mm)
Weight: 97.7 lbs. (43.4 kg)
ELECTRICAL
AC 120-240V 50/60Hz
Max Power Consumption 1500W
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 3239.5
INCLUDED ITEMS

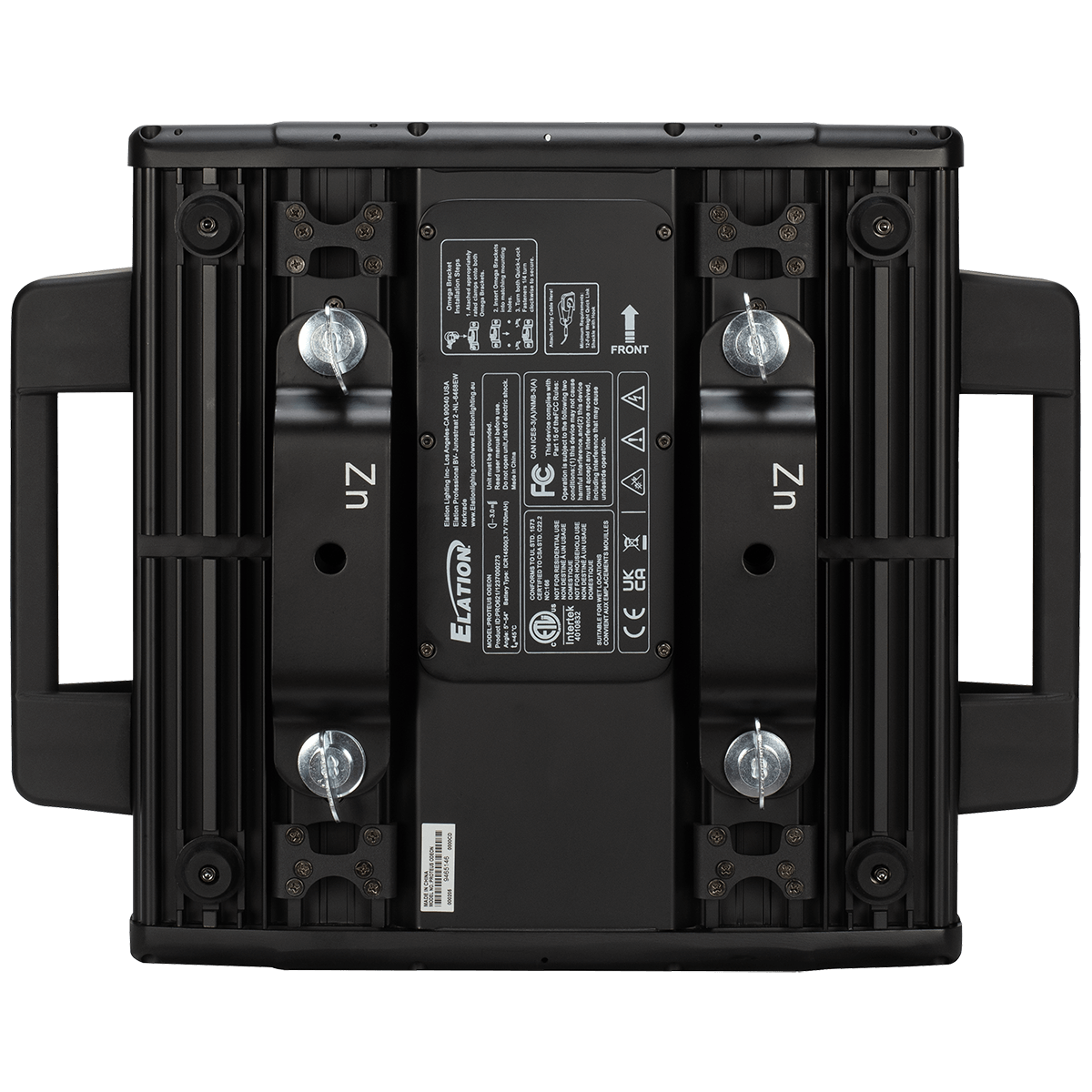

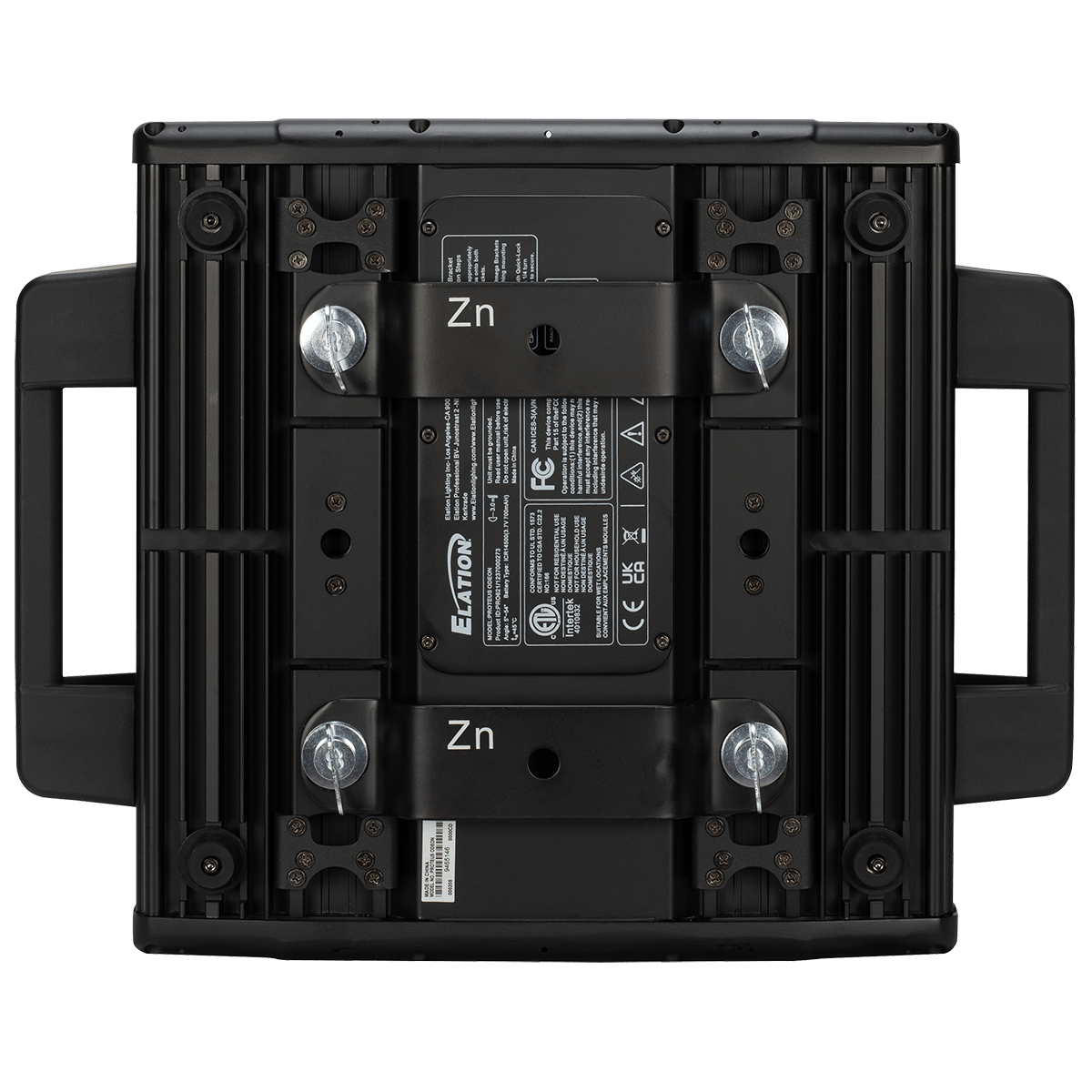

Omega Brackets (x2)
IP65 Rated RJ45 DATA Cable (Fixture to Fixture Interconnect Use Only!)
IP65 Rated Locking Power Cable
FIRMWARE UPDATES
Current Version: V1.4.1
Click HERE for software update
APPROVALS / RATINGS
CE | cETLus | IP66
