PROTEUS RAYZOR BLADE S
PROTEUS RAYZOR BLADE S

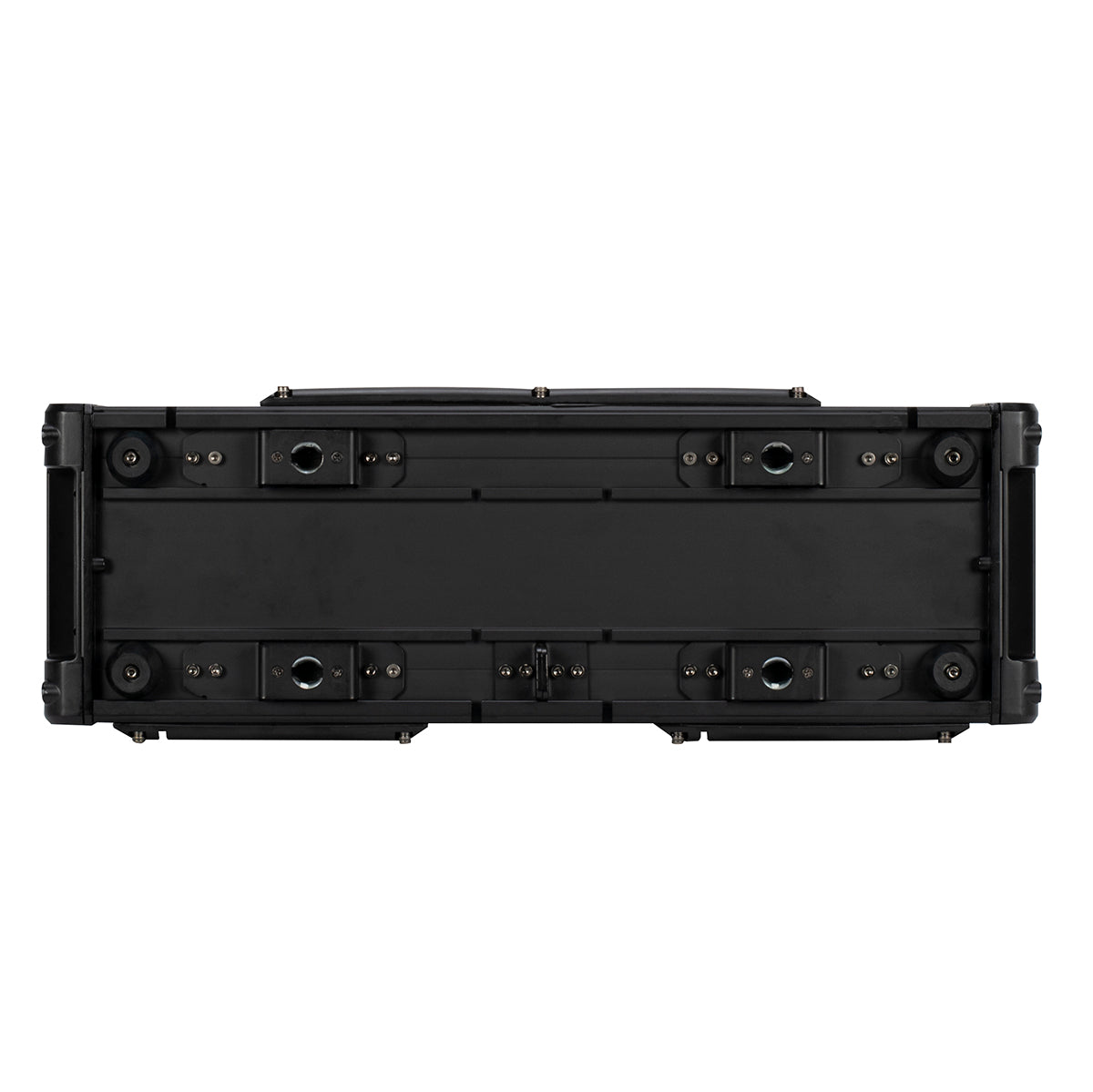

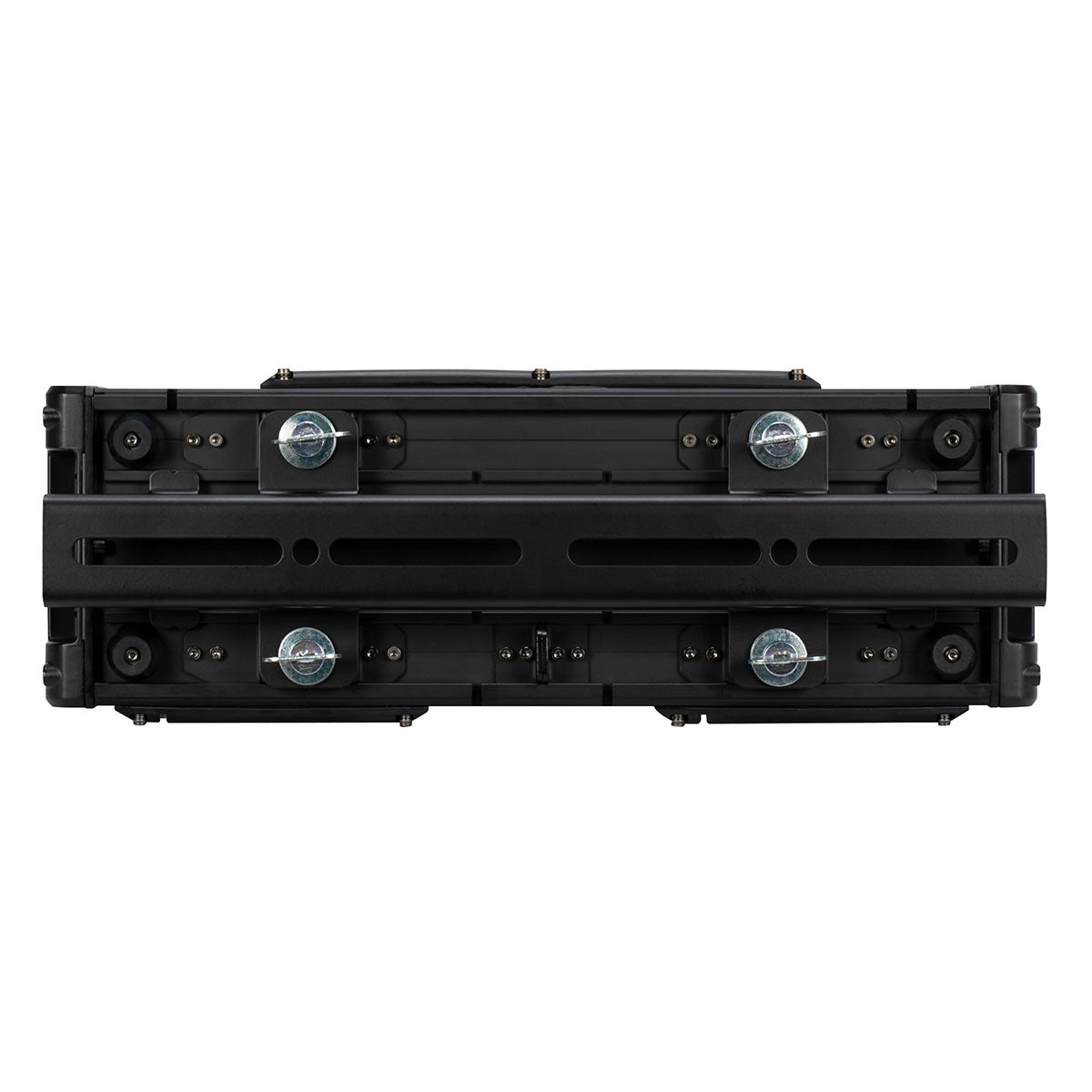

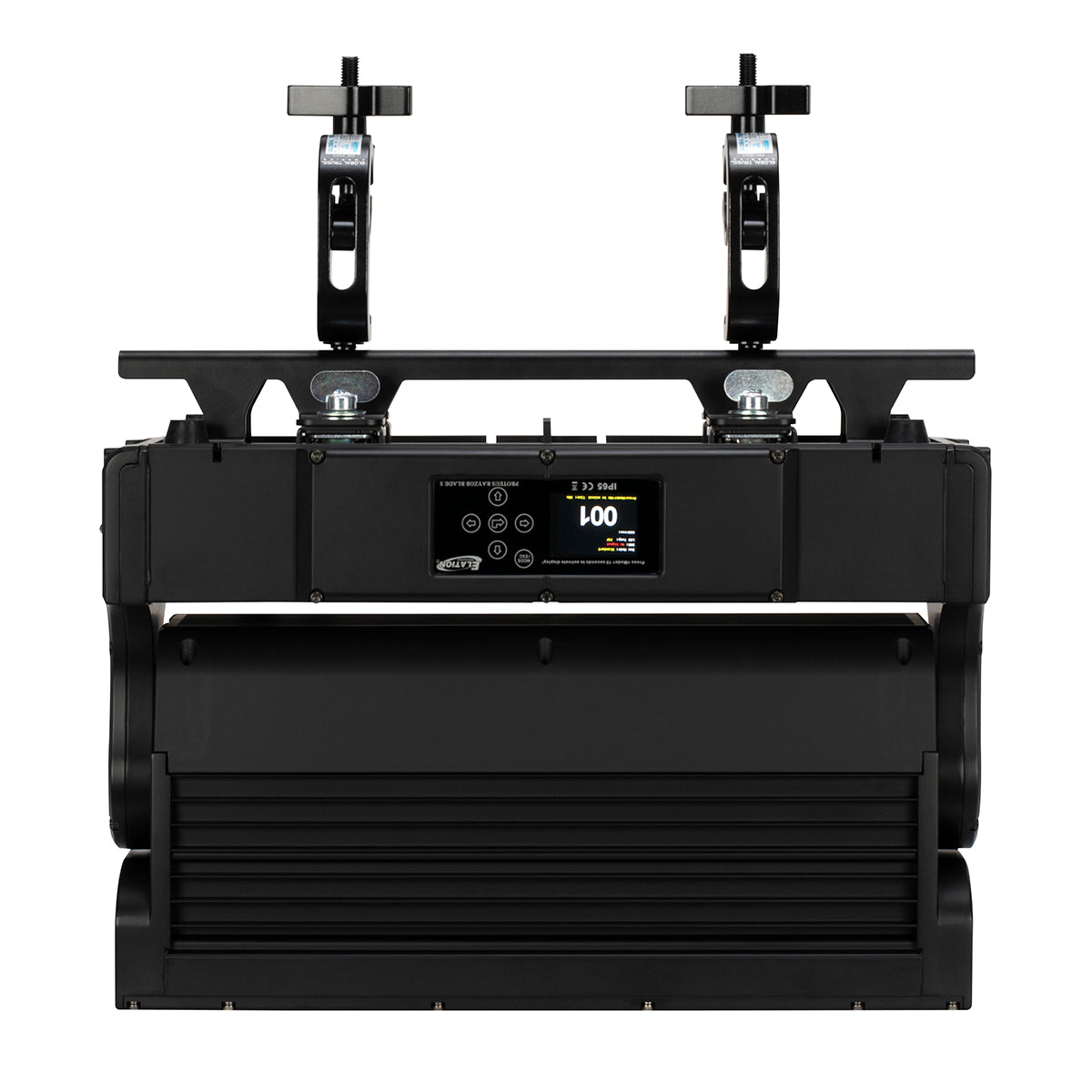

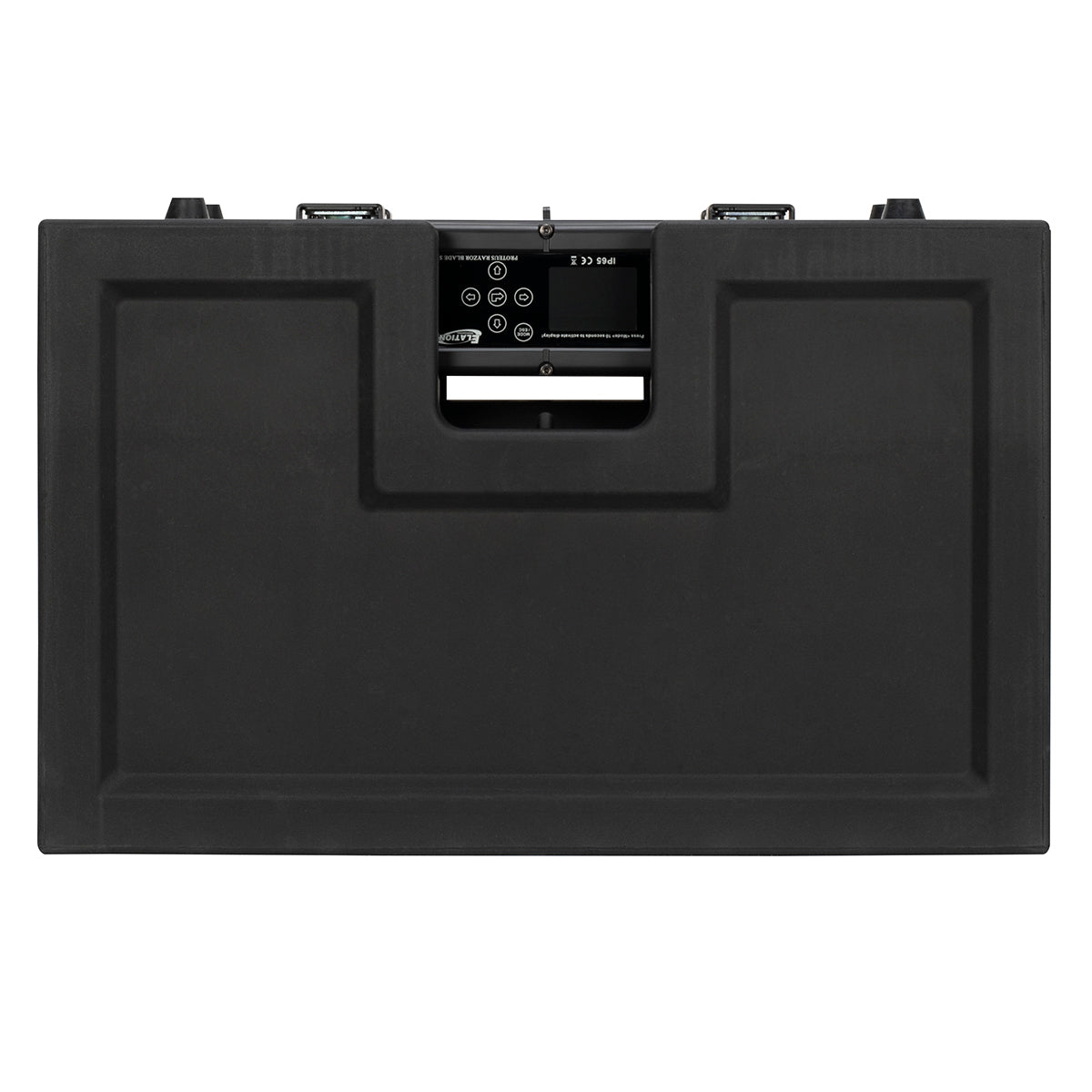

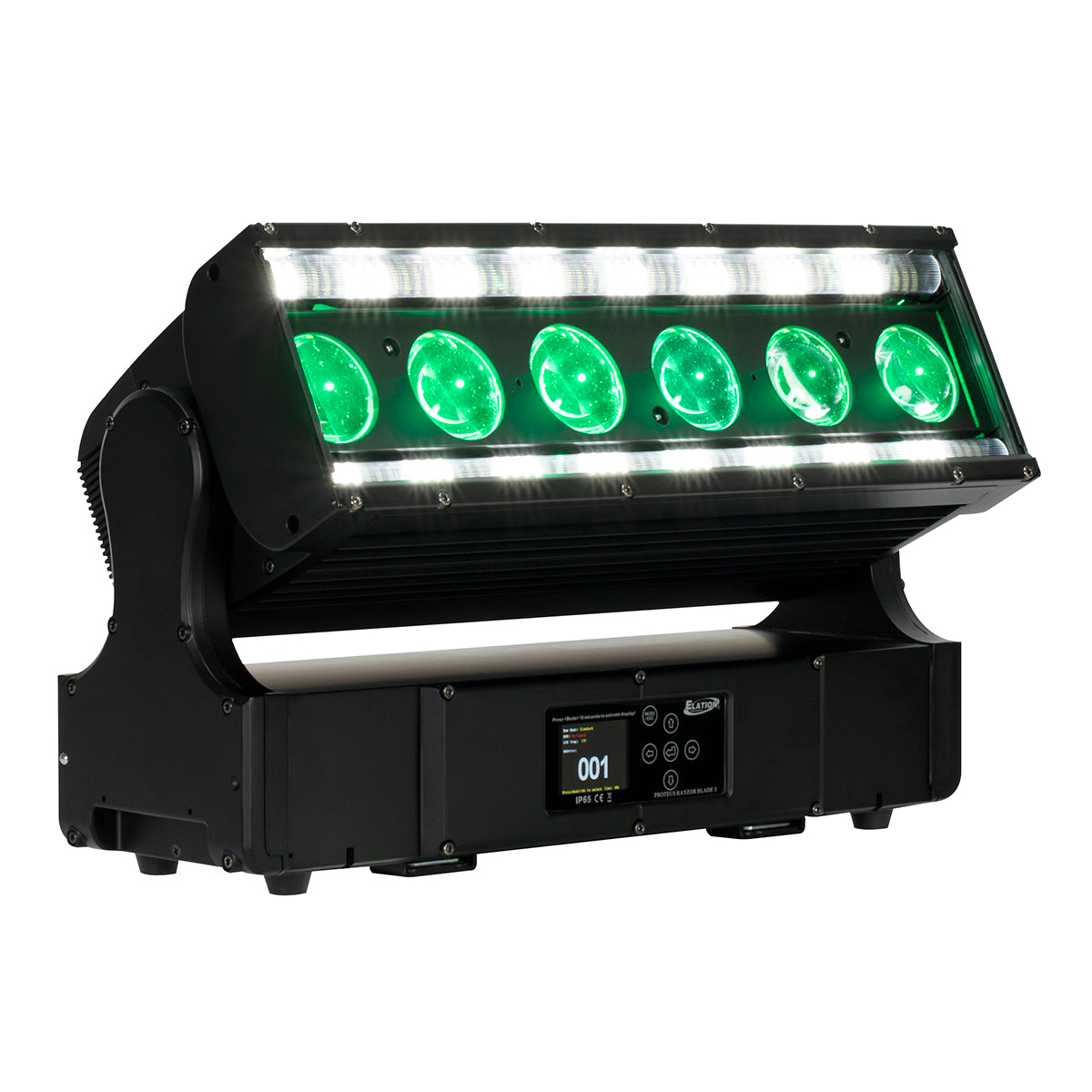

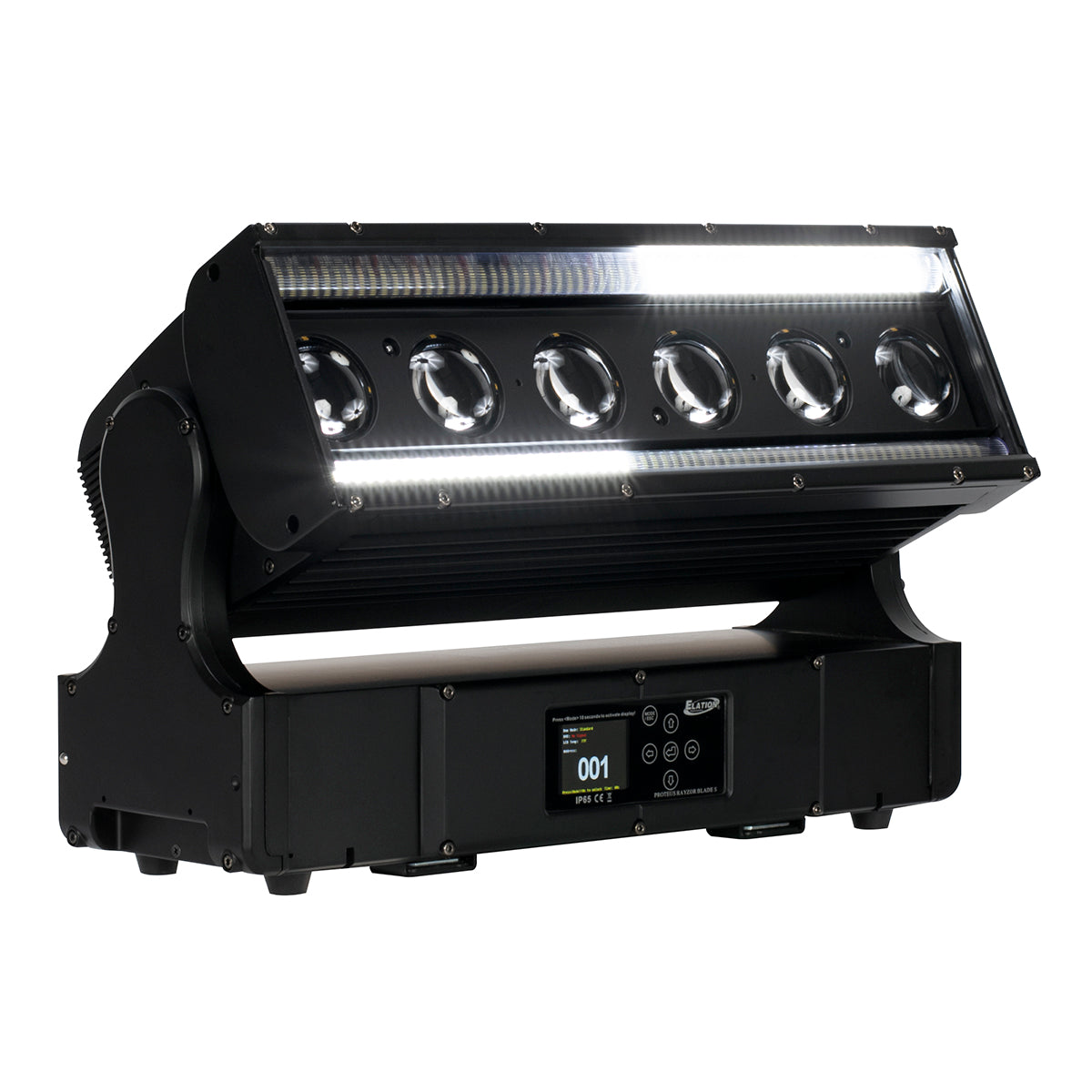

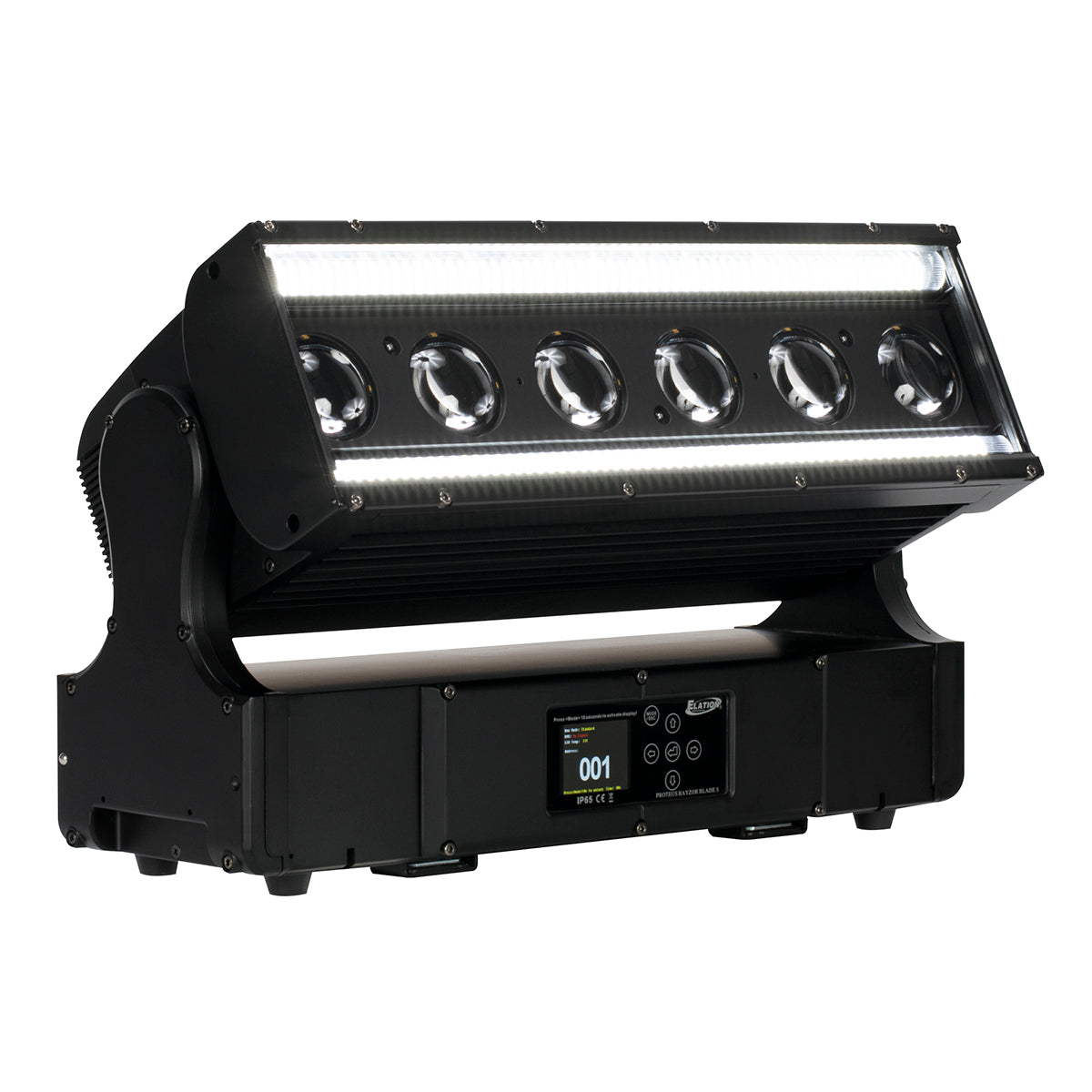

The PROTEUS RAYZOR BLADE S™ is a striking visual combination of Linear Wash, high intensity Strobe Lines and SparkLED FX inside a compact IP65 linear fixture design. Envisioned to provide the designer unlimited creative control of powerful colors and high-powered strobe effects from a single unit it allows unlimited placement in any outdoor and indoor environment. Protected from dust and water ingress the Rayzor Blade S is part of Elation’s industry leading Proteus Range of outdoor luminaires.
Features
IP65 Protected LED Tilt FX Fixture
6x 60W OSRAM RGBW LED with Pixel Control
24x 2W SparkLED™ Effect with Pixel Control
Dual 64x1W Strobe Pixel Line
Extreme Zoom – 6° for mid-air beam to 45° for even washes
Fast and precise 192° Tilt Rotation
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
- Proteus Rayzor Blade S - 3D Cad Drawing - FIL
- Proteus Rayzor Blade S - 3D Cad Drawing
- Proteus Rayzor Blade S - 2D Cad Drawing
- Proteus Rayzor Blade S - 2D Cad Drawing - FIL
Related Categories
Specifications
SOURCE
(6) 60W Osram RGBW LEDs
(24) 2W White SparkLED™
(128) 1W Strobe LED
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
6,000 Total Lumen Output (RGBW)
CRI 80
Zoom Range 6° - 45°
Colortemperature SparkLED 4000K
Colortemperature Strobe Line 6500K
EFFECTS
Motorized Zoom
Linear Color Temperature Presets (2700-8000K)
RGBW Color Mixing and Pixel Control
White SparkLED Lens Effect
Dual White Strobe Lines (64 pixels per side)
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming

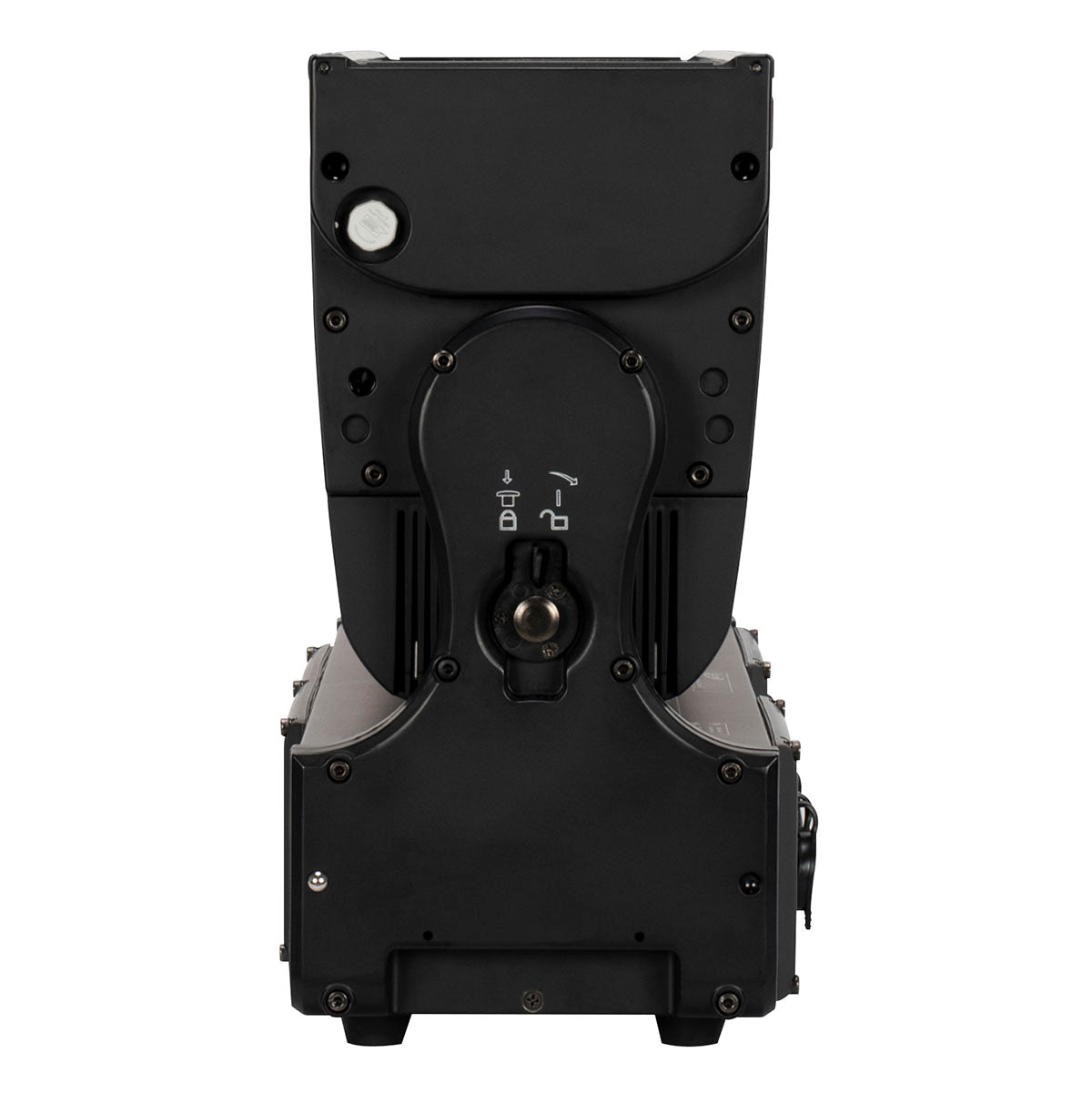

Tilt Angle: 192°
CONTROL / CONNECTIONS
6 DMX Channel Modes (28/50/82/66/72/106 channels)
Pixel controlled Wash, SparkLED and Strobe LED
DMX Adjustable Refresh Rate (900 -25000 Hz)

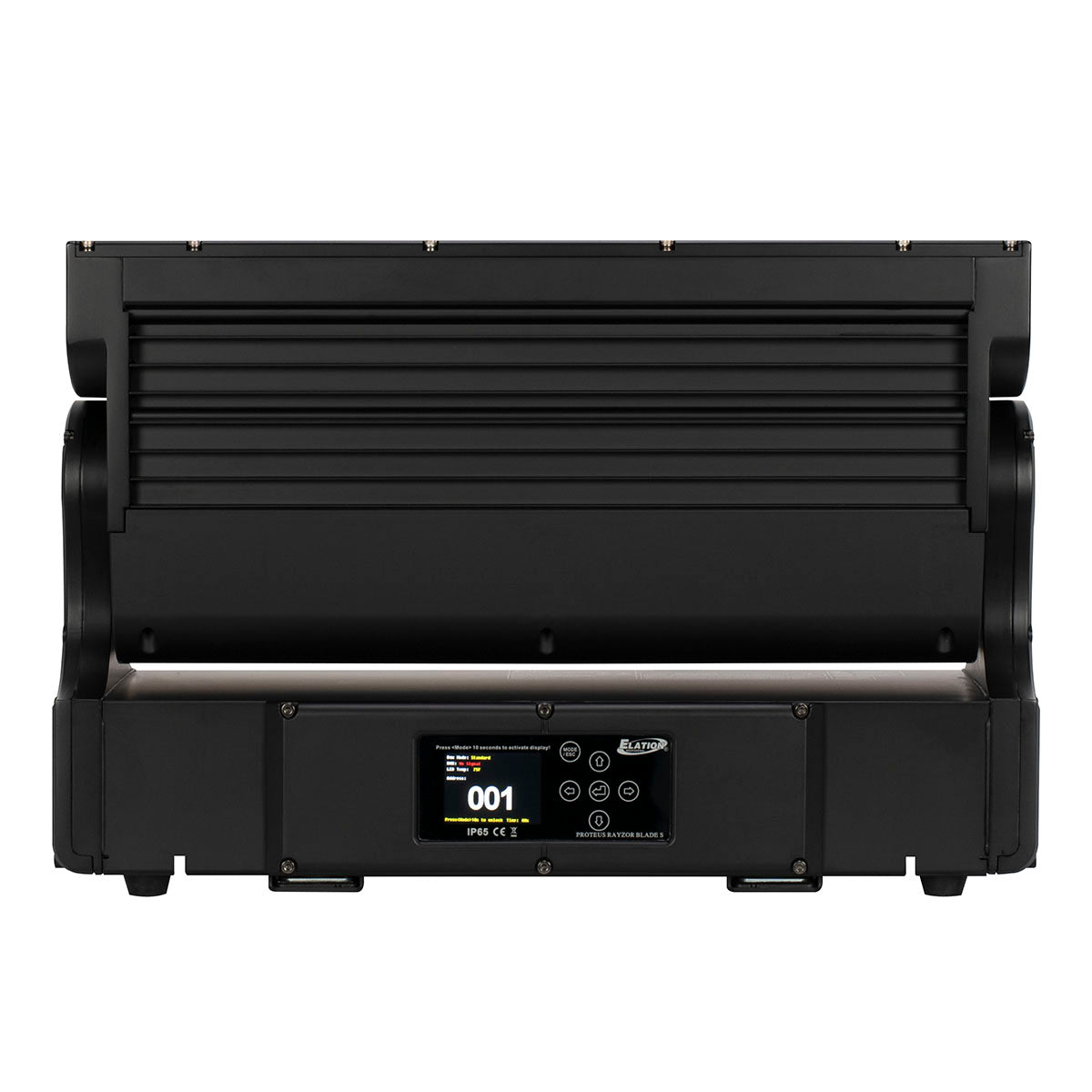

(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
RDM Support

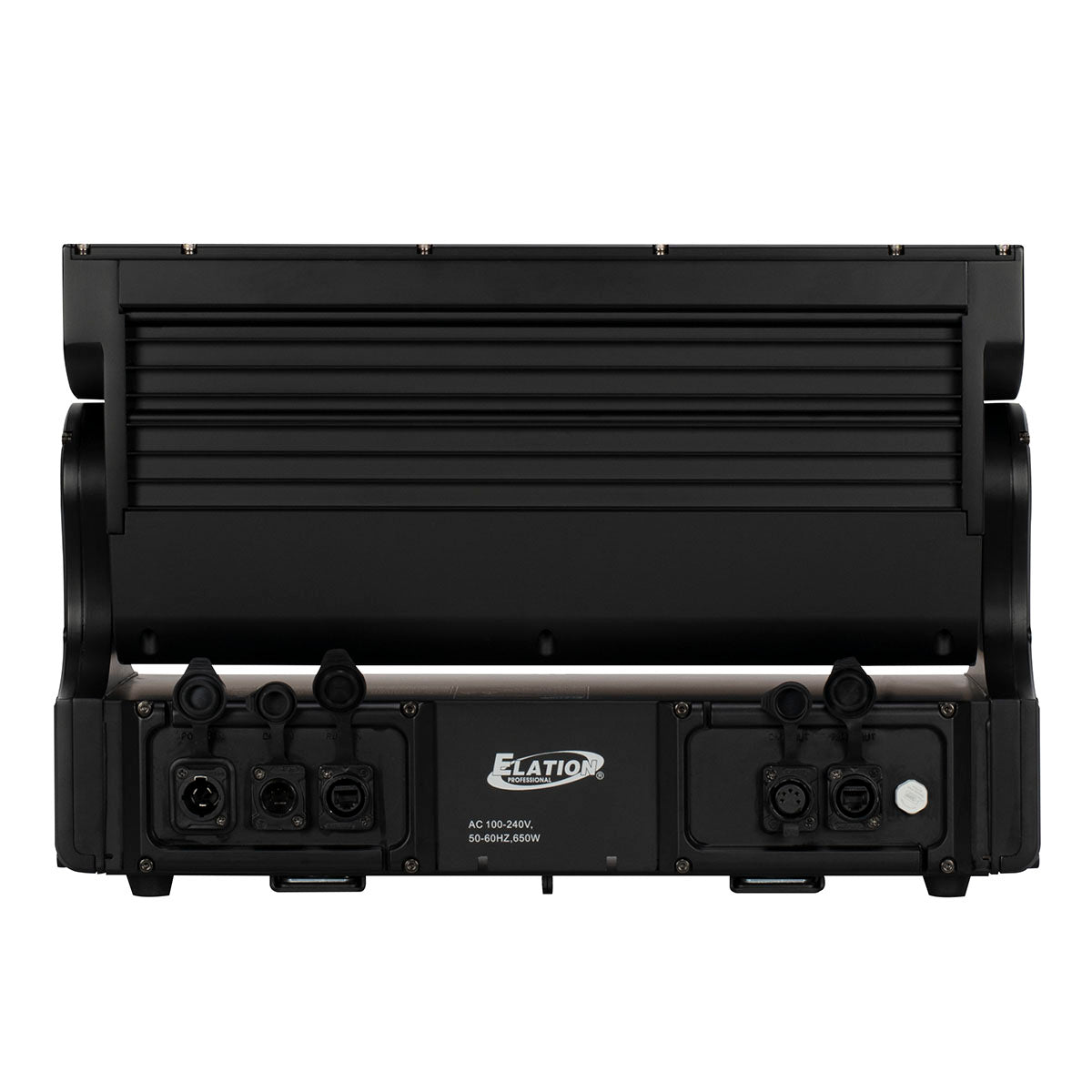

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
IP65 Locking Power Cable In
SIZE / WEIGHT
Length: 19.8 in (504mm)
Width (Base): 7.6 in (194mm)
Width (Head): 6.1 in (155mm)
Height (head up): 13.2 in (336mm)
Height (head 90 degree): 11.3in (288mm)
Weight: 39.4 lbs. (17.9kg)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
700W Max Power Consumption
Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
APPROVALS / RATINGS
CE | cETLus | IP65 | UKCA
FIRMWARE UPDATES
Current Version: V1.2.2
Click HERE for software update
Specifications and documentation subject to change without notice.
