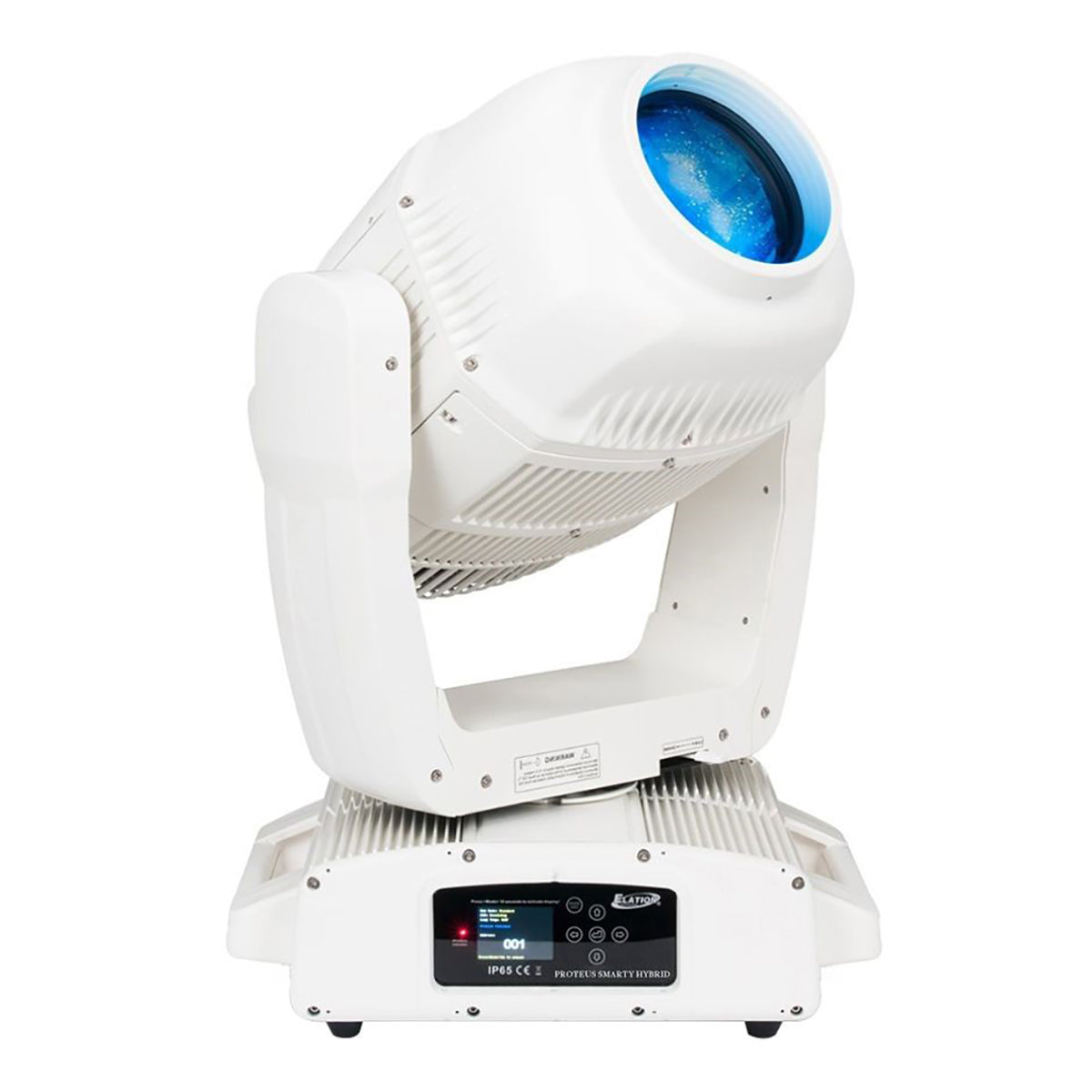

The Proteus Smarty Hybrid™ WMG is full featured IP65 certified Spot, Beam and Wash Hybrid fixture for indoor and outdoor use. Provided in White Marine Grade (WMG) coating it is designed to withstand the harsh exterior conditions of marine environments found in ship and shore based installations. An optional Hardwire option is available on request.
Features
IP65 Certified 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology from 190 to 280W and Lamp Hibernation with up to 6000 Hour Lamp Life
Full CMY Color Mixing System
Rotating and Static Gobos, Dual Prism, Frost
Zoom from 1° Beam to 33° Wash and Auto Focus option
White Marine Grade Housing
Customizable Hardwire Option
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
CAD File
- ELATION PROTEUS SMARTY HYBRID WMG 2D Cad Drawing
- ELATION PROTEUS SMARTY HYBRID WMG 3D Cad Drawing
- ELATION PROTEUS SMARTY HYBRID WMG 2D Cad Drawing
CAD File
Related Categories
Specifications
SOURCE
Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, Dimming, and Lamp Mode.
PHOTOMETRIC DATA
11,000 Total Output Lumen
128,426 LUX 11,931 FC @49.2’ (15m) (Min Zoom Beam) 135,108 LUX 12,552 FC @16.4’ (5m) (Min Zoom Spot)
Beam
Zoom Range 1° - 18°
Beam Angle 1.1° - 7°
Field Angle 2.6° - 17.8°
Spot
Zoom Range 3° - 27°
Beam Angle 1.8° - 18.7°
Field Angle 2.8° - 28.8°
Wash
Zoom Range 5° - 33°
Beam Angle 2.6° - 24.9°
Field Angle 4.6° - 40.7°
EFFECTS

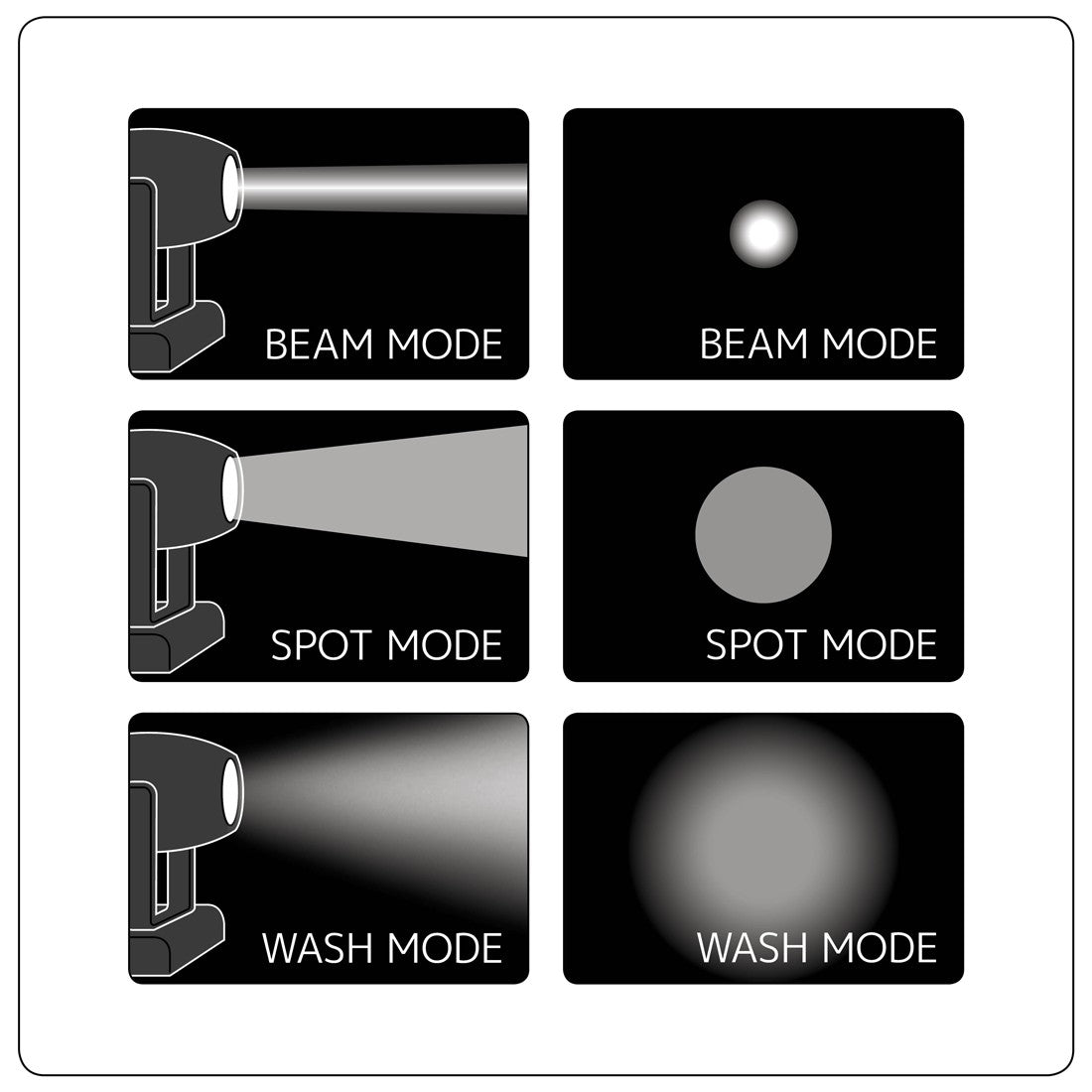

Beam, Spot, Wash Modes
Motorized Zoom 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Prisms
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
COLOR
Full CMY Color Mixing System
13 Colors including Quad Color, CTO, CTB, and UV
GOBOS
2 Gobo Wheels
8 Rotating / Indexing Interchangeable Glass Gobos
12 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (20 / 34)
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

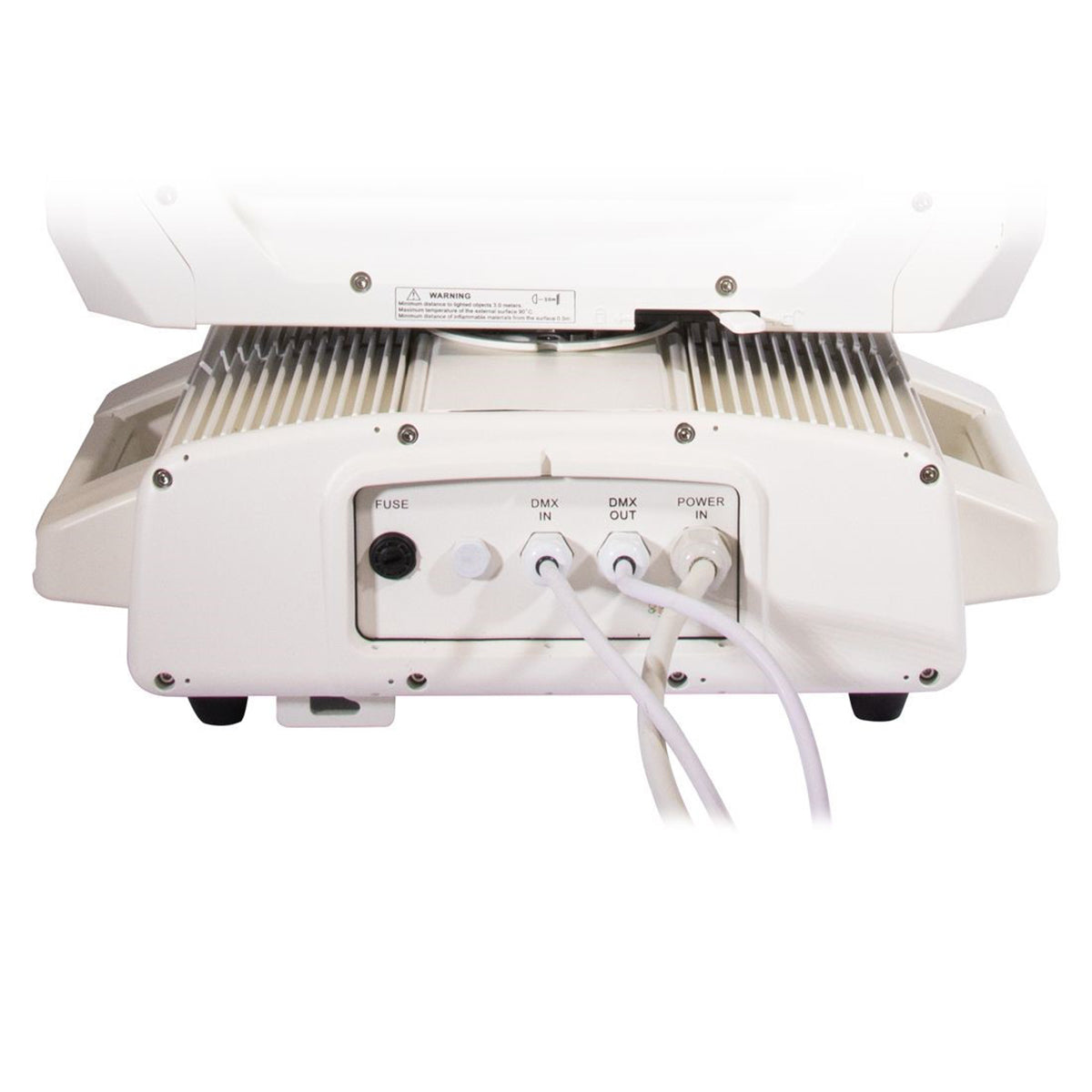

IP65 5pin XLR DMX In/Out*
IP65 RJ45 ethernet In/Out*
IP65 Locking Power Cable In*
*Customizable Hardwire option available on request
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.5 in (444.71mm)
Width: 17.88 in (459mm)
Height: 26.97 in (685mm)
Weight: 78.26 lbs. (35.5kg)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
Max Power Consumption 500W
BTU/hr (+/- 10%) 1705
APPROVALS / RATINGS
CE | cETLus | IP65
FIRMWARE UPDATES
Current Version: V1.1.4
Click HERE for updates
Specifications and documentation subject to change without notice.
