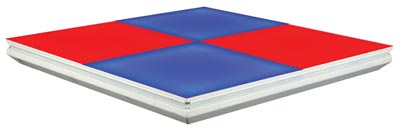

PZ-720A

Features

***NOTE - SPECIAL ORDER ITEM***
 The Alkalite PZ-720A LED lighting system offers endless color possibilities to modify your surrounding.

 This system does not produce infra-red and ultra violet light. Therefore, heat production is minimized, avoiding discoloration of objects being lit. This special feature gives the Alkalite LED lighting systems the flexibility for numerous types of applications such as architectural/ retail spaces, stage, productions, night clubs, art galleries museums and much more.

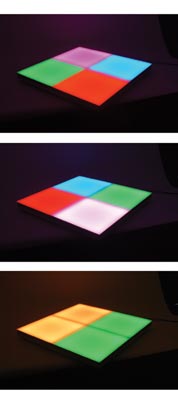

 This solid-state lighting system has been designed for easy installation and safe energy efficient, long life operation. The combination of Red, Green and Blue LEDs offers a tremendous range of colors with smooth transitions from one color to the next.

Resources

Guides/ Manuals

Related Categories

Specifications

 SPECIFICATIONS

• 4x 19” x 19” color cubes in one
 1/2” Plexi-Glass supports up to 1100 lbs./500 kgs.

• Convection Cooling No Fans

• Power On/Off switch

• Power Con Power Cord

 CONTROL FEATURES

• USITT DMX-512

• 2 DMX Channel Modes

• 3 or 12 DMX Channels

• 4 Digit Digital LED Display

• 3 pin XLR serial input/output

 DMX CHANNELS

• Ch1: Red 0-100% Dimming

• Ch2: Green 0-100% Dimming

• Ch3: Blue 0-100% Dimming

 COLORS

• R,G,B Additive Color Mixing

 MOUNTING

• 9 rubber feet

• Extruded edges, Uni Strut style

• 4 Base holes

 DIMENSIONS & WEIGHT

• Dimensions (LxWxH): 39.25” x 39.25” x 4”

• Weight: 113 lbs. (Shipping weight: 120 lbs.)

 POWER SUPPLY

• Fuse: 2A (120V)

• Magnetic Ballast

• Voltage: 110V 60Hz

• Power Consumption 113W
