Riva 80

Features

The Alkalite LED lighting system offers endless color possibilities to modify your surrounding.

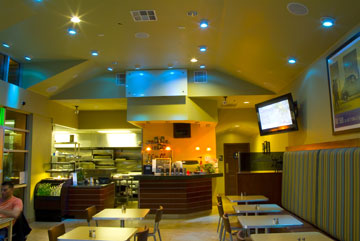

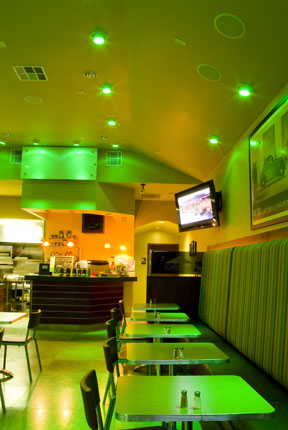

 This system does not produce infra-red and ultra violet light. Therefore, heat production is minimized, avoiding discoloration of objects being lit. This special feature gives the Alkalite LED lighting systems the flexibility for numerous types of applications such as architectural/ retail spaces, stage, video/film productions, night clubs, art galleries museums and much more.

 This solid-state lighting system has been designed for easy installation and safe energy efficient, long life operation. The combination of Red, Green and Blue LEDs offers a tremendous range of colors with smooth transitions from one color to the next.

SYSTEM FEATURES

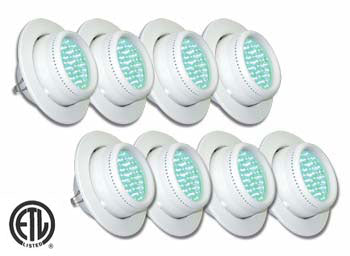

• 8 x Octopod-80 fixture units

• 80 x LEDs per surface ea.

• 27 red, 35 blue, 18 green

• LightWeight Aluminum case design

• 5 pin input connections on rear panel

• Parallel connection system

• Unit addressing switch

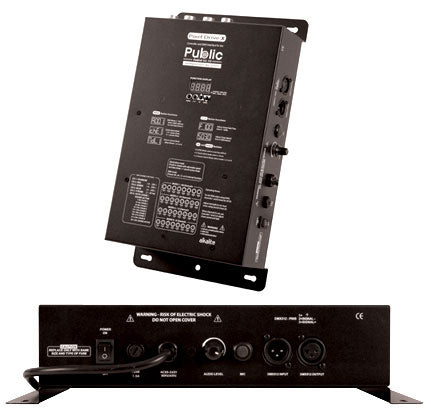

• 1 x Pixel Drive X Controller

• 4 x 5 pin 3 meter cables (Part # CCS-53)

• 4 x 5 pin 6 meter cables (Part # CCS-56)

 CONTROL FEATURES

• Must use Pixel Drive X

• Maximum 8 pods per controller


Resources

Guides/ Manuals

Related Categories

Specifications

 COLORS

• R,G,B Additive Color Mixing

• Color Macros

 SHUTTER/DIMMER

• Electronic Dimming 0-100%

• Electronic Strobing 1-29fps

• Variable speed strobe Pulse effect

 MOUNTING

• Spring loaded Recessed Mounting hardware

 DIMENSIONS & WEIGHT per pod

• Dims: Ø6.5"x 4.5"

• Weight: 1.5 lbs each

 POWER SUPPLY

• Voltage: 0-10V Analog

• Must use Pixel Drive X
 PD-60 & PD-80 ETL Approved!
