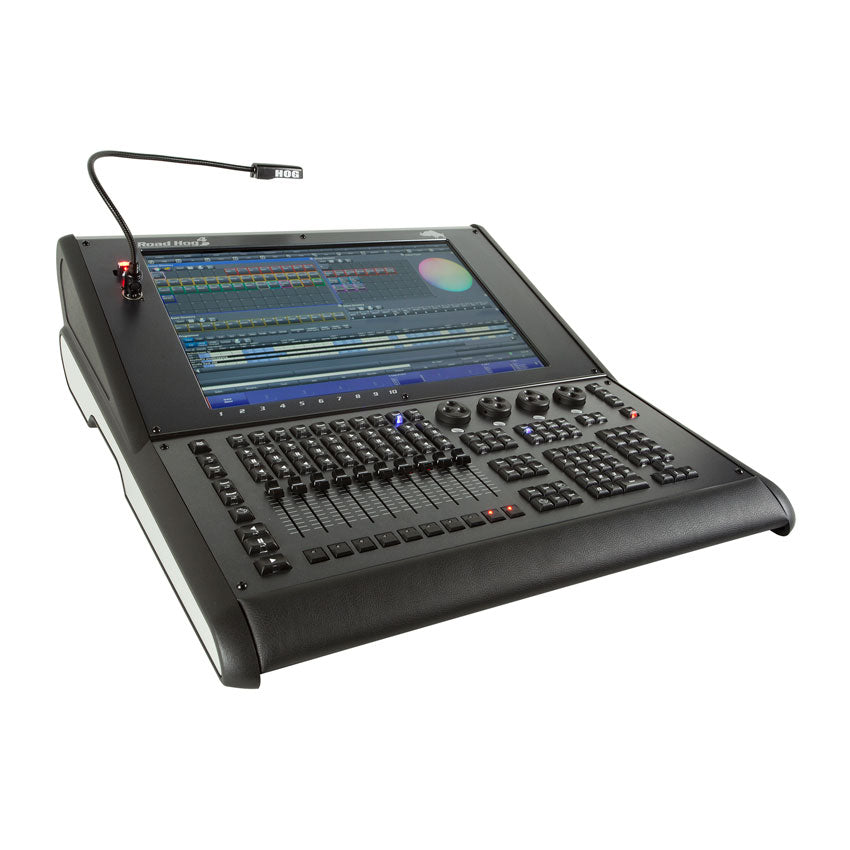

Road Hog 4
Road Hog 4
The most cost effective Hog ever! With a market leading 22” multi touch display, all in a compact package, now with networking and Art-Net outputs.
The Road Hog 4 is unparalleled in the industry. Allowing full expansion in a compact package not only does this Hog pack an enormous punch but it is also the most affordable Hog console in a generation!
The programming interface remains familiar with the minutest of changes to allow for the compact chassis allowing the user to transition across the whole range without sacrificing work flow.
Features
Robust Hog 4 Operating Software
Unlimited Number of Simultaneous Crossfades
(1) Internal 22" Wide Touchscreens with 10 Point Multi Touch
(1) External Monitor or Touchscreen Supported*
(4) Encoders for an Expanded Wheelset
(12) User Keys
(10) Playback Faders
(4) Fixed Universes of DMX 512 and
up to (8) Universes of DMX 512 over ArtNet or sACN
Hog-Net Ethernet Connector
Fixture-Net Ethernet Connector
Internal Solid State Hard Disk Drive
(5) USB Ports for Wholehog Wings and External Touchscreens
Desklights, Feedback LEDs, and Integrated Worklight (dimmable)
Auto-Ranging Mains Input (90-250VAC)
Light Converse Visualizer Dongle Included
Dust Cover Included
Optional Custom Road Case
* Note: The Road Hog 4's DVI-D monitor connection does not support analog output to VGA displays such as those featured on the older Full Boar 3 playback and programming wings. A DVI-D to VGA adaptor will be needed in these cases.
Resources
Specification information
Guides/ Manuals
Related Categories
Specifications
CONNECTIVITY
Unlimited DMX Channels and Art-Net and E1.3.1 (sACN)
Universes via Ethernet DPsMIDI Input/Output, MIDI Show Control and MIDI Time Code via Optional External Widget
Multiple LTC Input via Optional External Widgets
Connectivity with Many Visualizers via Ethernet
Wired and Wireless Networking with Multiple Wholehog Console Systems
Remote Focus Capabilities w/Networked Tablet PC Running Hog 4PC Software
Supports USB Playback and Master Wings
SIZE / WEIGHT
Length: 26.7” (678.18mm)
Width: 27.61” (701.32mm)
Vertical Height: 8.10” (205.8mm)
Weight: 38.6 lbs (17.5 kg)
Specifications and documentation subject to change without notice.
