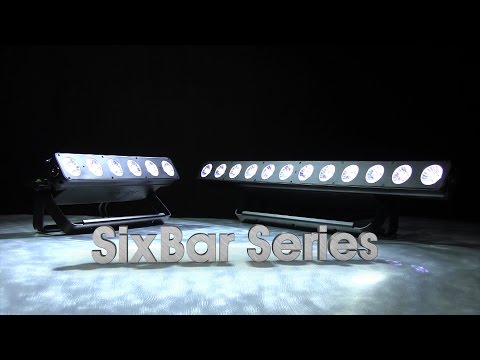

Elation SIX Bar Series: Beyond the Standard Elevate your lighting designs with the Elation SIX Bar Series, a benchmark in LED bar fixtures that promises to transform any space. This series, featuring the SIXbar 1000, SIXbar 500, and SIXbar 1000IP, harnesses a potent RGBWA+UV six-color LED engine for unmatched versatility and superior performance. Its state-of-the-art optics and meticulous control unlock intense brightness, vivid colors, and unique UV effects, enabling you to craft mesmerizing lighting scenarios across various applications. Ideal for stage, event, and architectural lighting, the SIX Series gives lighting designers the freedom to explore creative boundaries and achieve breathtaking visual experiences.

SIXBAR 500

6x 12W RGBAW+UV LED Batten Fixture
SKU# SIX074
Specifications Sheet DMX Traits

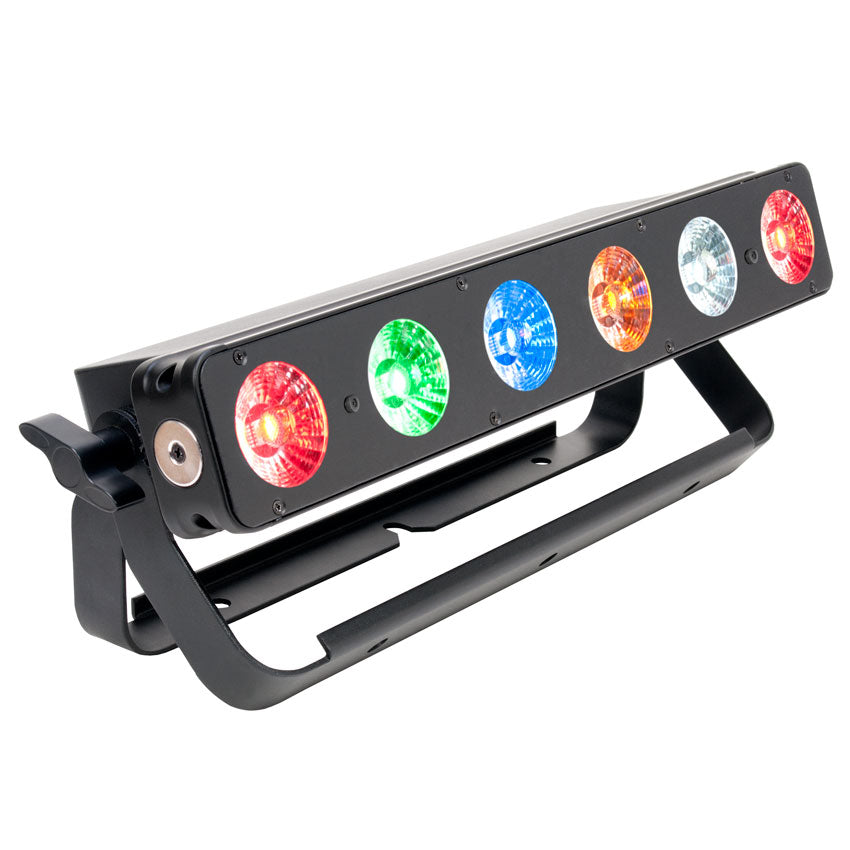

The SIXBAR 500™ features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, Locking Power Cable and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 93W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

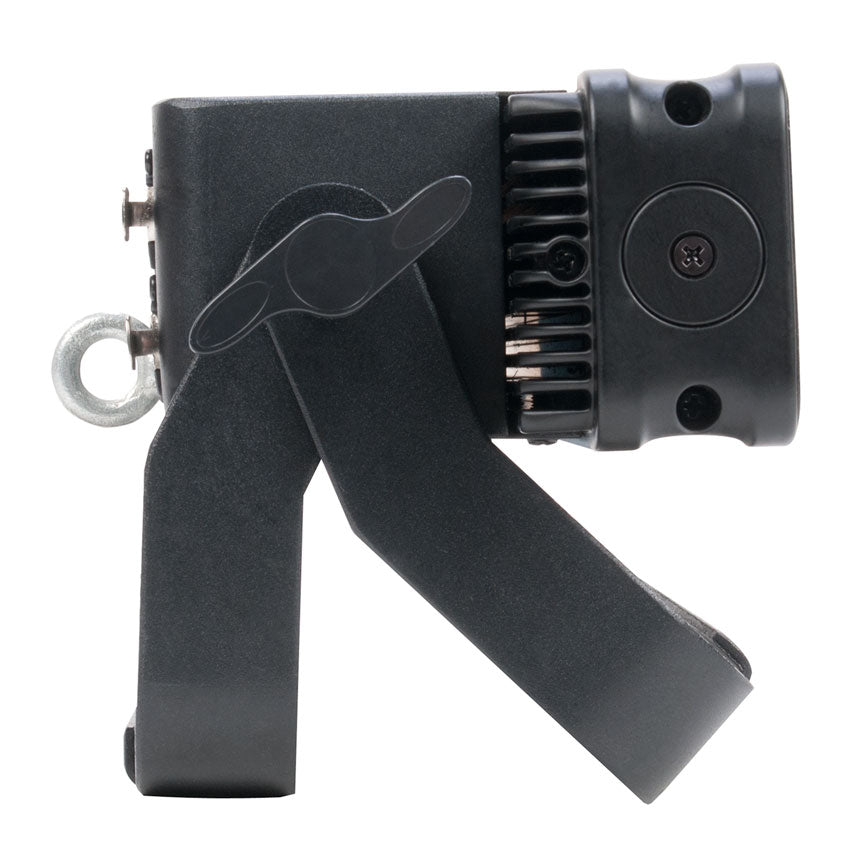

SIXBAR 500 Product Image
SIXBAR 500 Product Image
SIXBAR 500 Product Image
SIXBAR 500 Product Image
SIXBAR 500 Product Image
Gallery Features Specifications Resources Related Products Related News Related Categories

Features

30° Beam Angle
ArtNet and KlingNet Support
RDM - Remote Device Management
Individual LED Control
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

Resources

Specification information

Guides/ Manuals

PHOTOMETRIC DATA

DMX/ RDM Traits

Drawings

CAD File

Related Categories

Specifications

SOURCE
(6) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
6,500 LUX 604 FC @3.3’ (1m) (30° Full ON)
1,934 LUX 180 FC @6.6’ (2m) (30° Full ON)
901 LUX 84 FC @9.8’ (3m) (30° Full ON)
508 LUX 47 FC @13.1’ (4m) (30° Full ON)
318 LUX 30 FC @16.4’ (5m) (30° Full ON)

EFFECTS
Strobe and Chase Effects
Individual LED Control
Variable and Selectable Dimming Curves

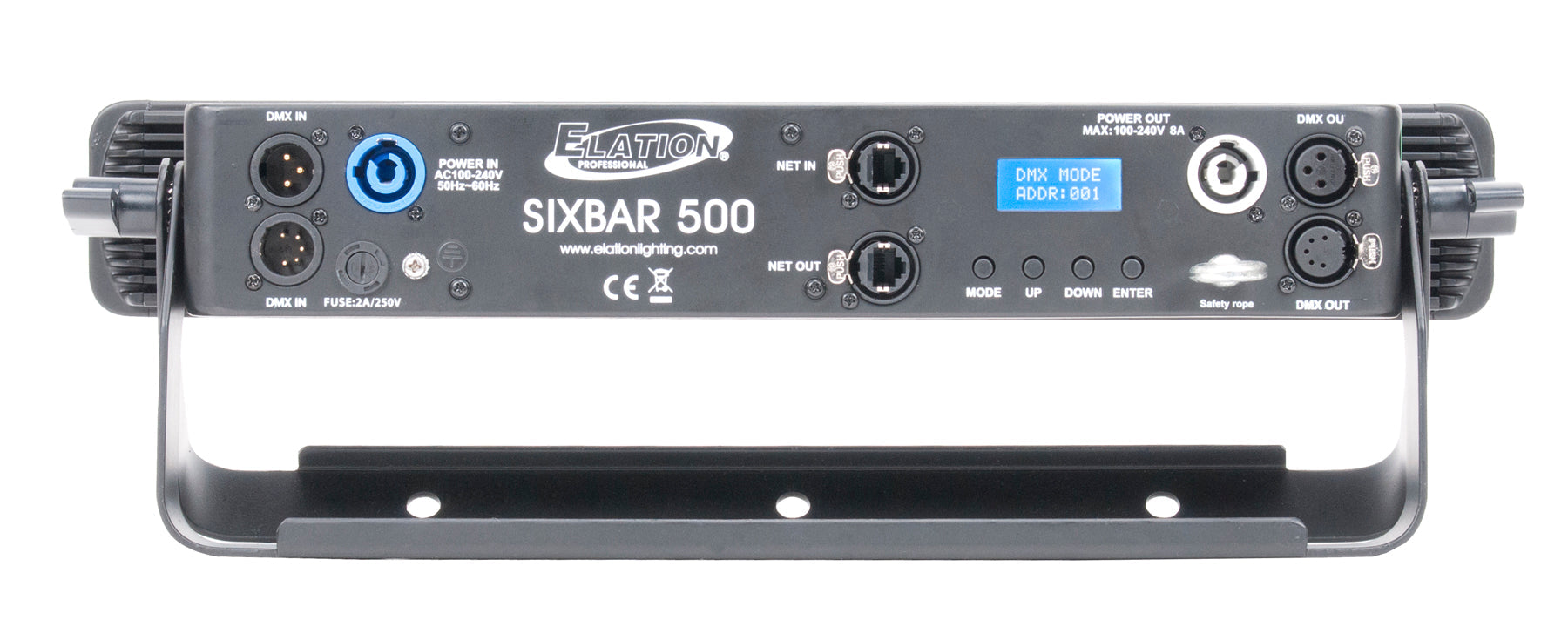

CONTROL / CONNECTIONS
8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43)
4 Button Control Panel and LCD Menu Display
ArtNet + KlingNET Protocol Support
RDM (Remote Device Management)
(2) ethernet Ports
3pin and 5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 17.7” (450mm)
Width: 8.1” (206.4mm) *with included glare shield
Vertical Height: 6.1” (155mm)
Weight: 9.0 lbs. (4.1 kg)

ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
93W Max Power Consumption
Power Linking: 11pcs @110V / 25pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

APPROVALS / RATINGS
CE | cETLus | IP20

INCLUDED ITEMS
Locking Power  Cable

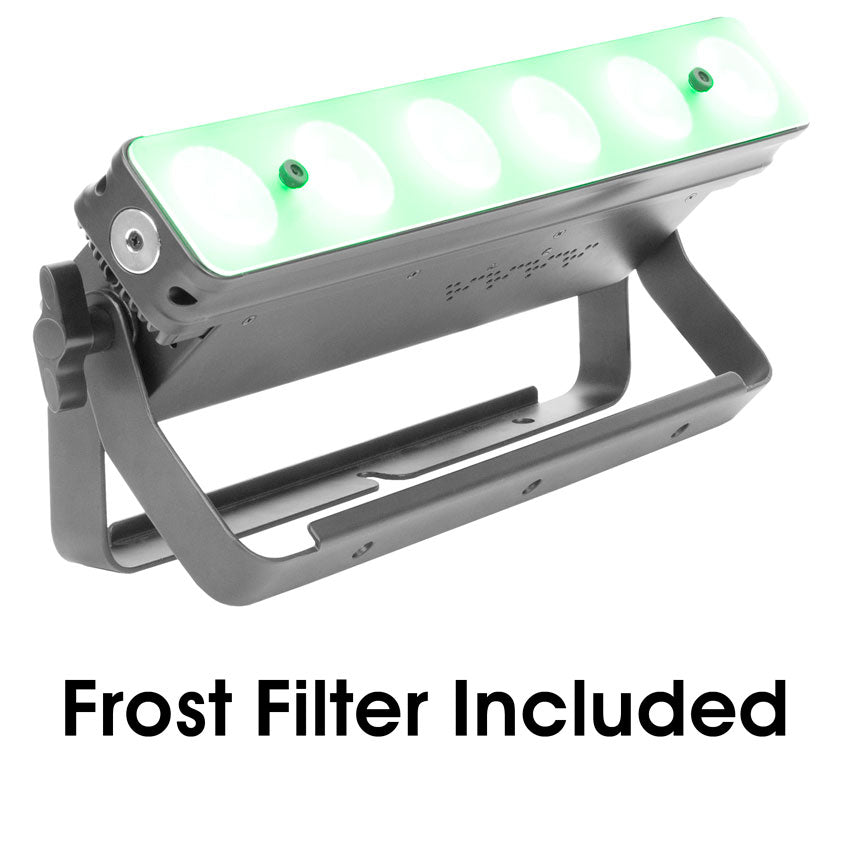

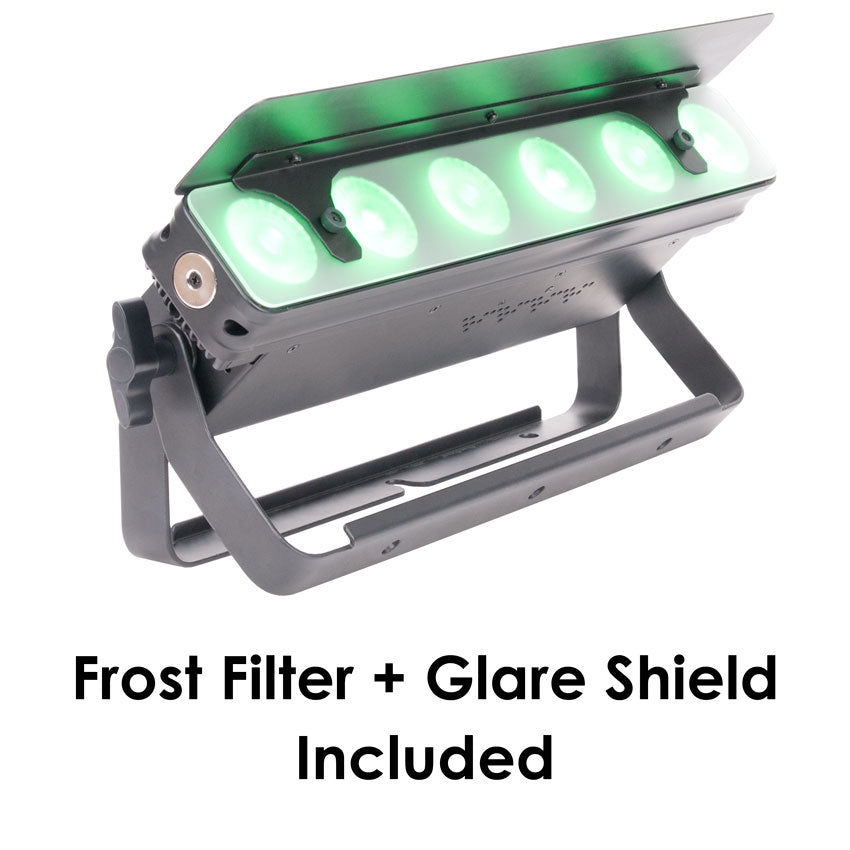

Frost Filter
Glare Shield

FIRMWARE UPDATES
Current Version: V1.15
Click HERE for software updates.


Specifications and documentation subject to change without notice.
