SIXBAR 500
Discontinued

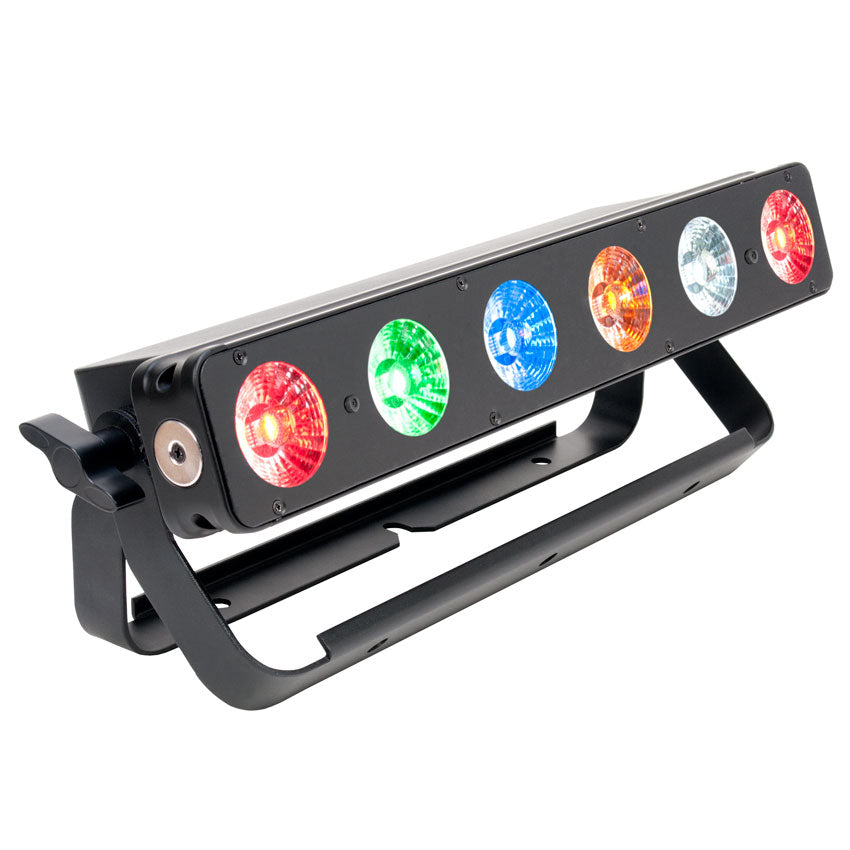

6x 12W RGBAW+UV LED Batten Fixture
The SIXBAR 500™ features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects.
SIXBAR 500
Sale price$0.00
SIXBAR 500
The SIXBAR 500™ features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, Locking Power Cable and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 93W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
30° Beam Angle
ArtNet and KlingNet Support
RDM - Remote Device Management
Individual LED Control
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
30° Beam Angle
ArtNet and KlingNet Support
RDM - Remote Device Management
Individual LED Control
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Specifications
SOURCE
(6) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
6,500 LUX 604 FC @3.3’ (1m) (30° Full ON)
1,934 LUX 180 FC @6.6’ (2m) (30° Full ON)
901 LUX 84 FC @9.8’ (3m) (30° Full ON)
508 LUX 47 FC @13.1’ (4m) (30° Full ON)
318 LUX 30 FC @16.4’ (5m) (30° Full ON)
EFFECTS
Strobe and Chase Effects
Individual LED Control
Variable and Selectable Dimming Curves

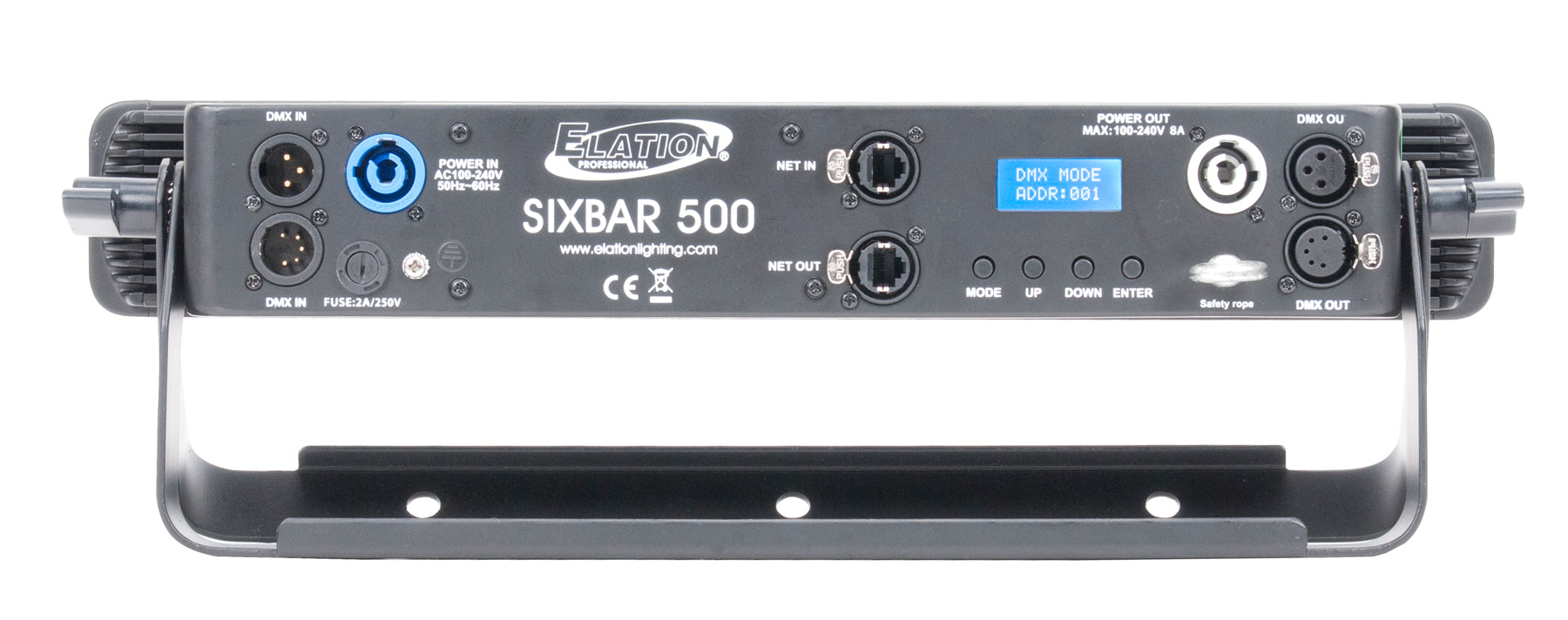

CONTROL / CONNECTIONS
8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43)
4 Button Control Panel and LCD Menu Display
ArtNet + KlingNET Protocol Support
RDM (Remote Device Management)
(2) ethernet Ports
3pin and 5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.7” (450mm)
Width: 8.1” (206.4mm) *with included glare shield
Vertical Height: 6.1” (155mm)
Weight: 9.0 lbs. (4.1 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
93W Max Power Consumption
Power Linking: 11pcs @110V / 25pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ITEMS
Locking Power Cable

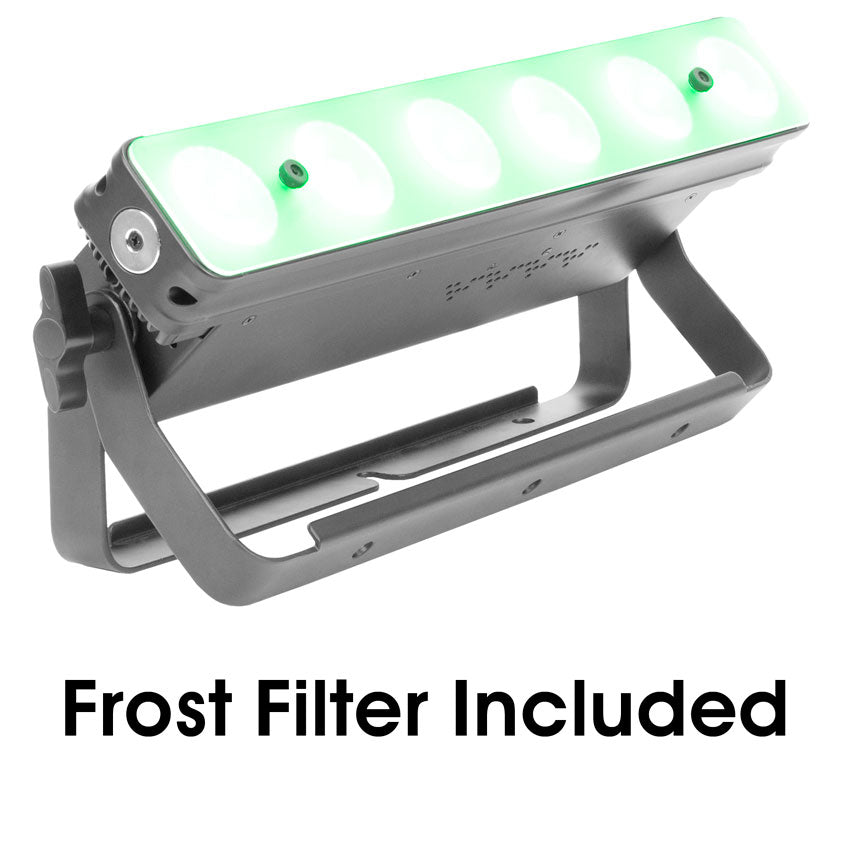

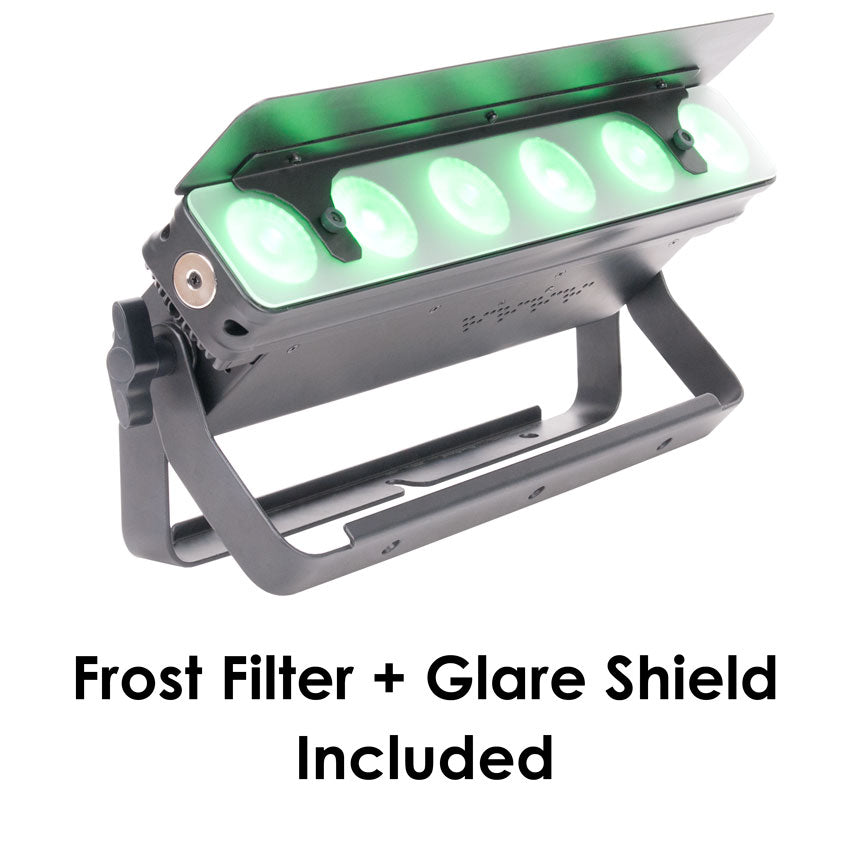

Frost Filter
Glare Shield
(6) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
6,500 LUX 604 FC @3.3’ (1m) (30° Full ON)
1,934 LUX 180 FC @6.6’ (2m) (30° Full ON)
901 LUX 84 FC @9.8’ (3m) (30° Full ON)
508 LUX 47 FC @13.1’ (4m) (30° Full ON)
318 LUX 30 FC @16.4’ (5m) (30° Full ON)
EFFECTS
Strobe and Chase Effects
Individual LED Control
Variable and Selectable Dimming Curves
CONTROL / CONNECTIONS
8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43)
4 Button Control Panel and LCD Menu Display
ArtNet + KlingNET Protocol Support
RDM (Remote Device Management)
(2) ethernet Ports
3pin and 5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.7” (450mm)
Width: 8.1” (206.4mm) *with included glare shield
Vertical Height: 6.1” (155mm)
Weight: 9.0 lbs. (4.1 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
93W Max Power Consumption
Power Linking: 11pcs @110V / 25pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ITEMS
Locking Power Cable
Frost Filter
Glare Shield
FIRMWARE UPDATES
Current Version: V1.17
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Photometrics
- Sixbar 500 - Photometric Data
- Sixbar 500 - Photometric Test Report
- Sixbar 500 - Photometric Test Report - Frost Filter
- Sixbar 500 - Photometrics IES File
- Sixbar 500 - Photometrics IES File - Frost Filter
Specification sheet
User manual
Vectorworks symbol
