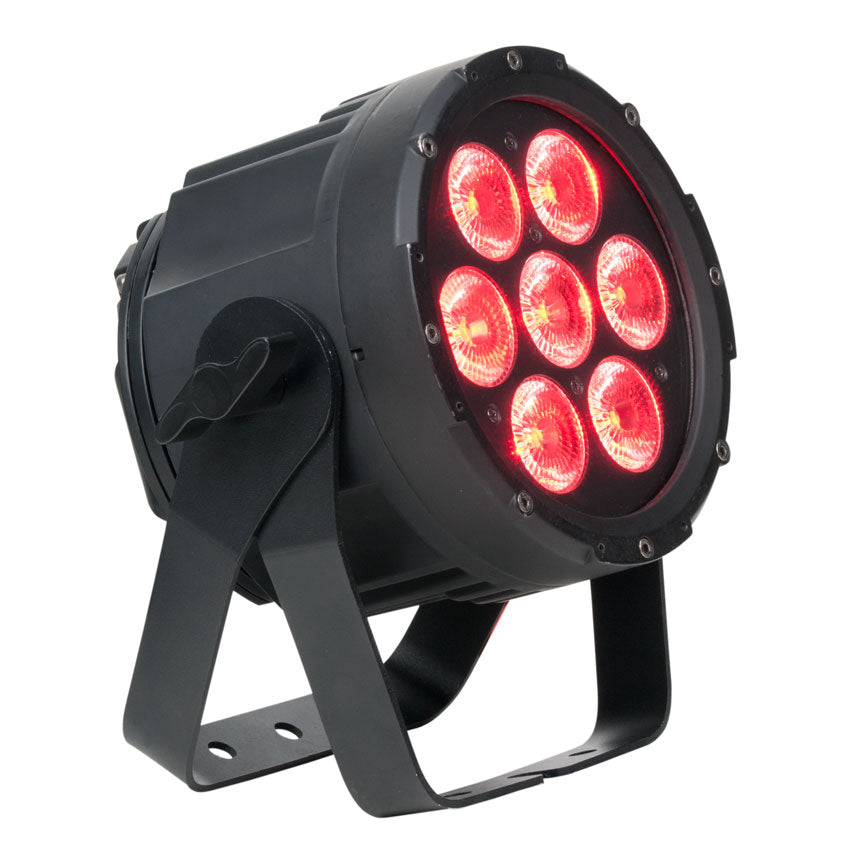

SIXPAR 100IP
SIXPAR 100IP
7x 12W RGBAW+UV LED IP65 Par
SKU# SIX001
The IP65 rated SIXPAR 100IP™ features (7) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Features
IP65 Rated
15° Beam 25° Field Angles
5 Variable Dimming Curve Modes
Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
- Sixpar 100IP - Photometric Data
- Sixpar 100IP - Photometric Test Report
- Sixpar 100IP - Photometrics IES Files
DMX/ RDM Traits
Drawings
CAD File
- Sixpar 100IP - Vectorworks Symbol - 2016
- Sixpar 100IP - 2D Cad Drawing
- Sixpar 100IP - Vectorworks Symbol - 2014
- Sixpar 100IP - Vectorworks Symbol - 2015
- Sixpar 100IP - 3D Cad Drawing
Related Categories
Specifications
SOURCE
(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
12,850 LUX 1,194 FC @3.3’ (1m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes

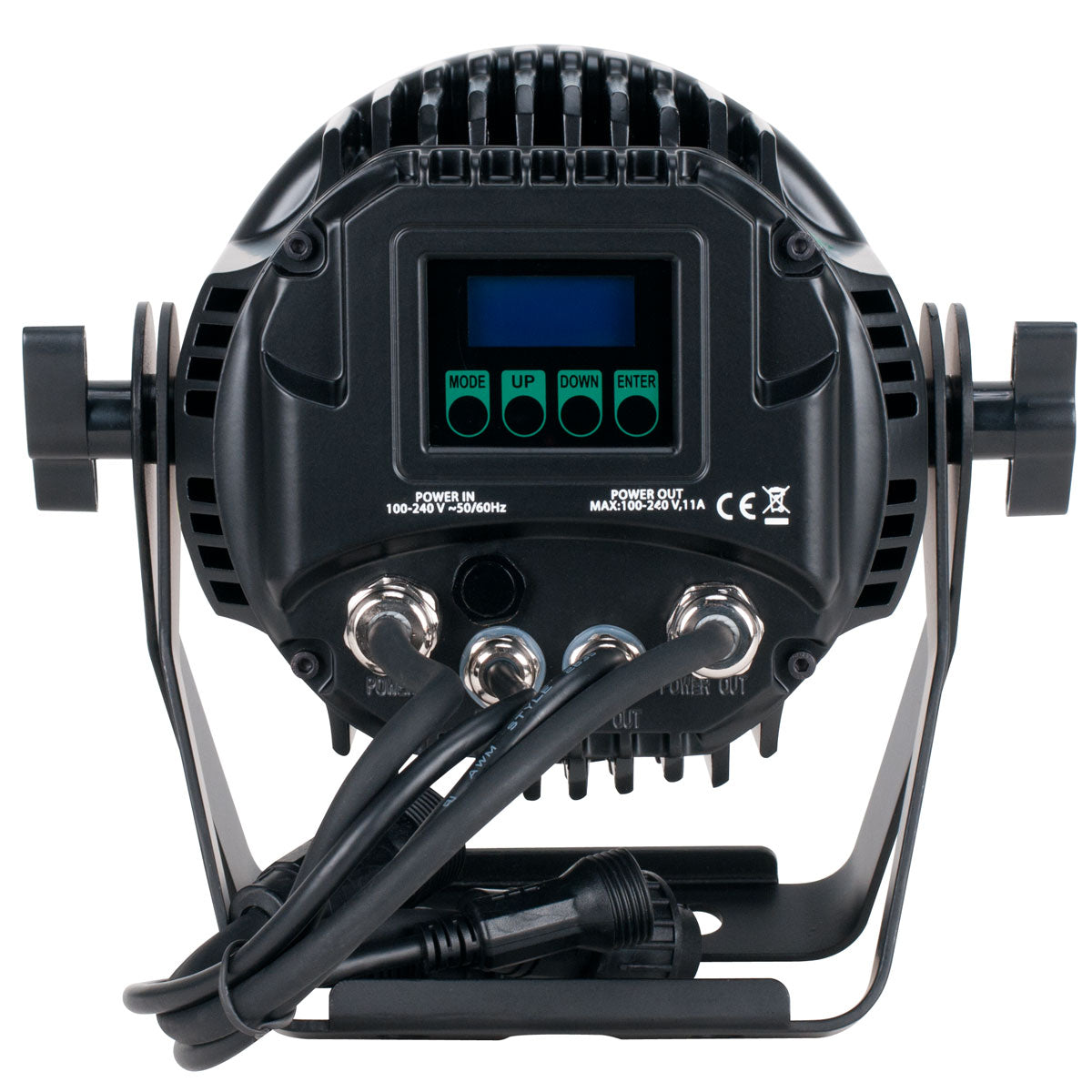

CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display

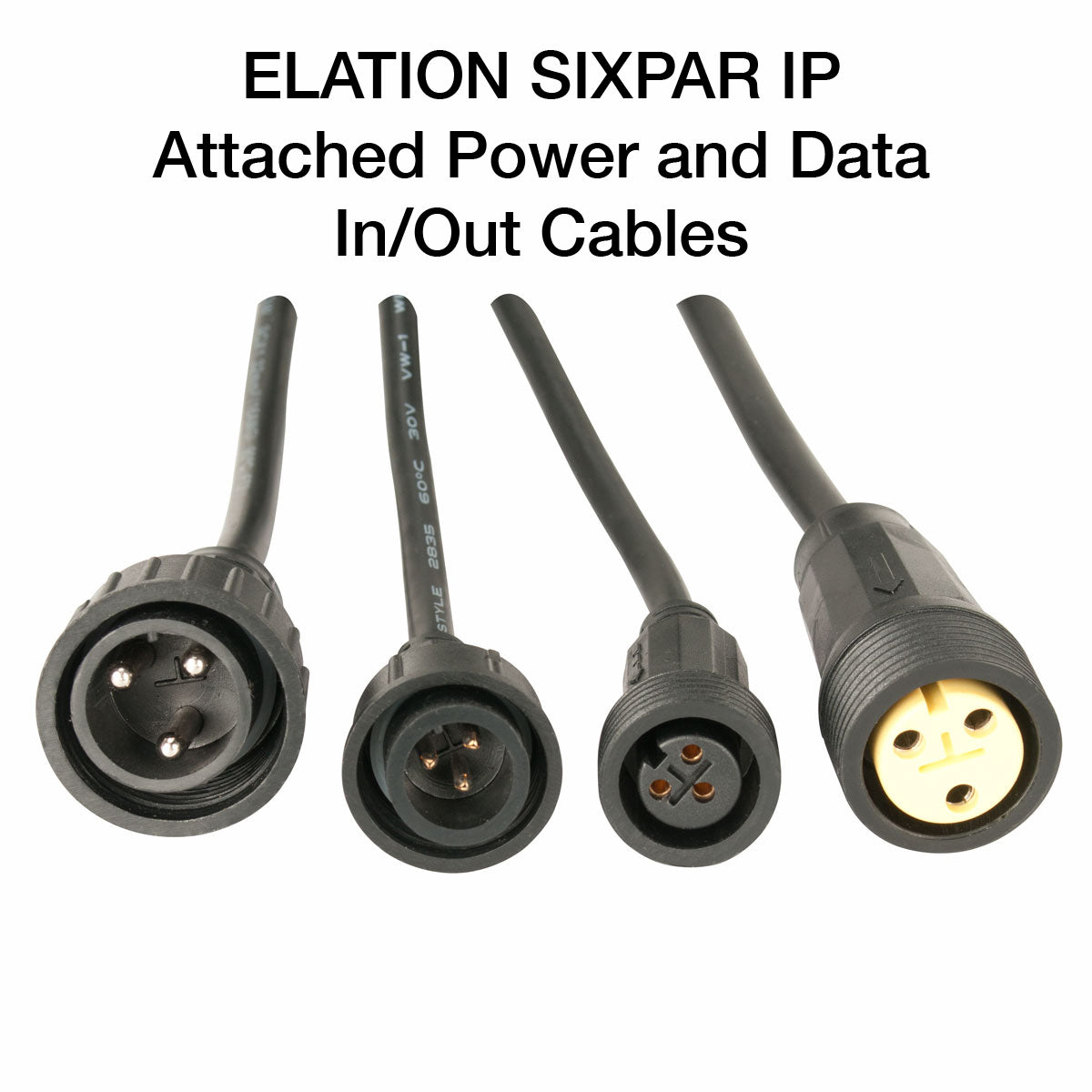

IP DMX In/Out
IP Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 10.1” (257mm)
Width: 6.2” (158mm)
Vertical Height: 9.6” (243mm)
Weight: 9.5 lbs. (4.3 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
89W Max Power Consumption
Power Linking: 12pcs @110V / 25pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS

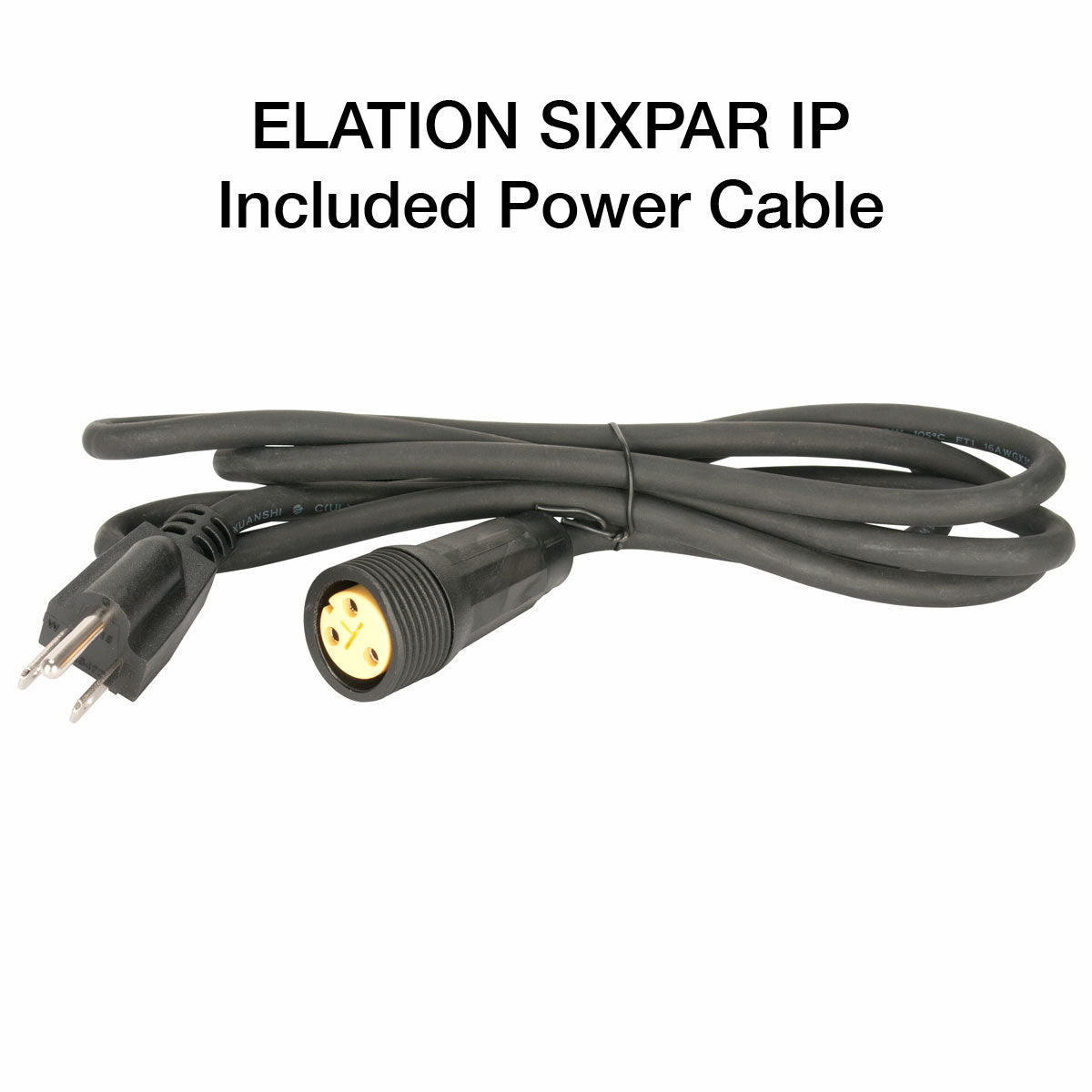

Male Edison to IP Female Power Cable 6,6 ft. (2m) (16AWG)

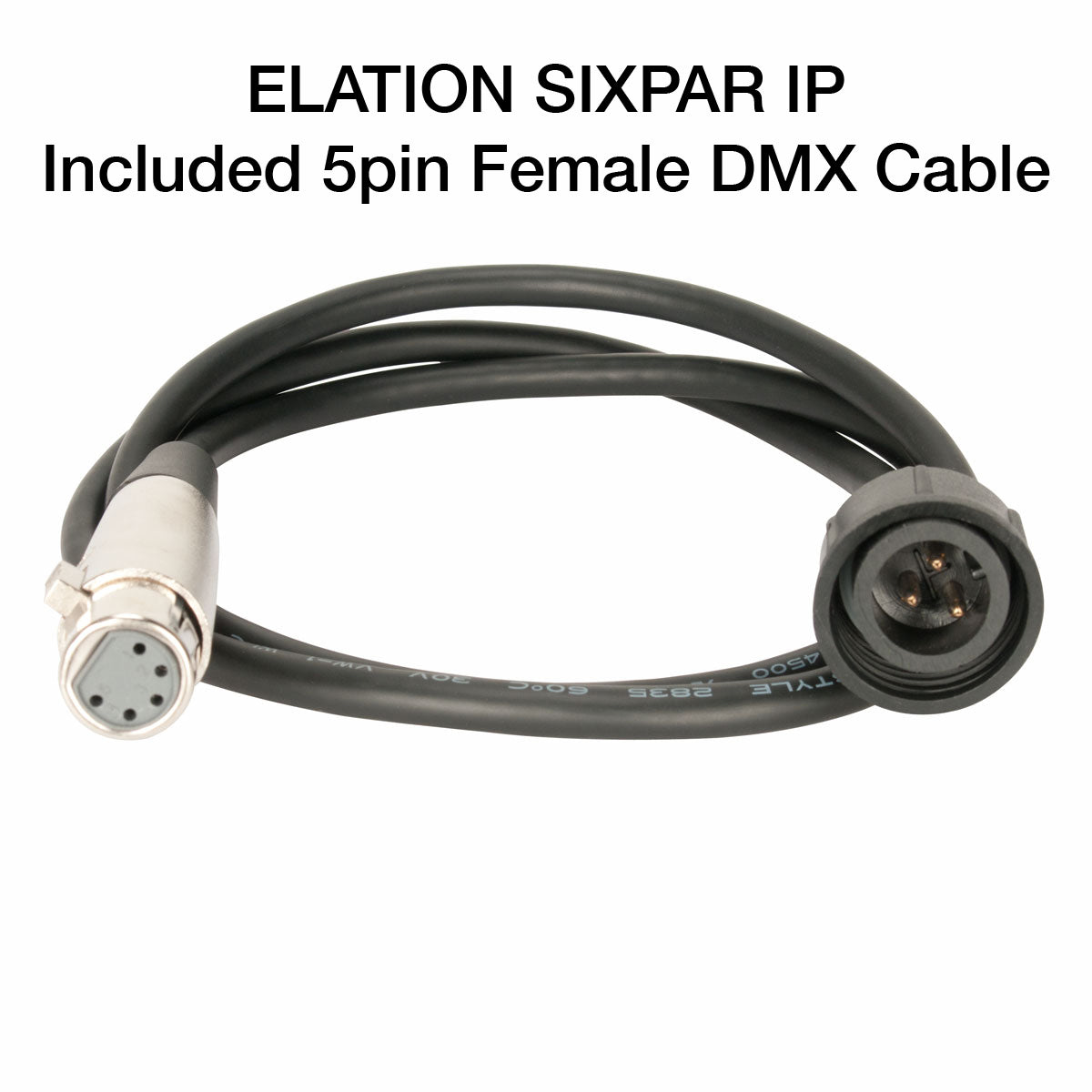

Male 5pin XLR to IP Female DMX Input Cable 3.3 ft (1m) 24AWG)

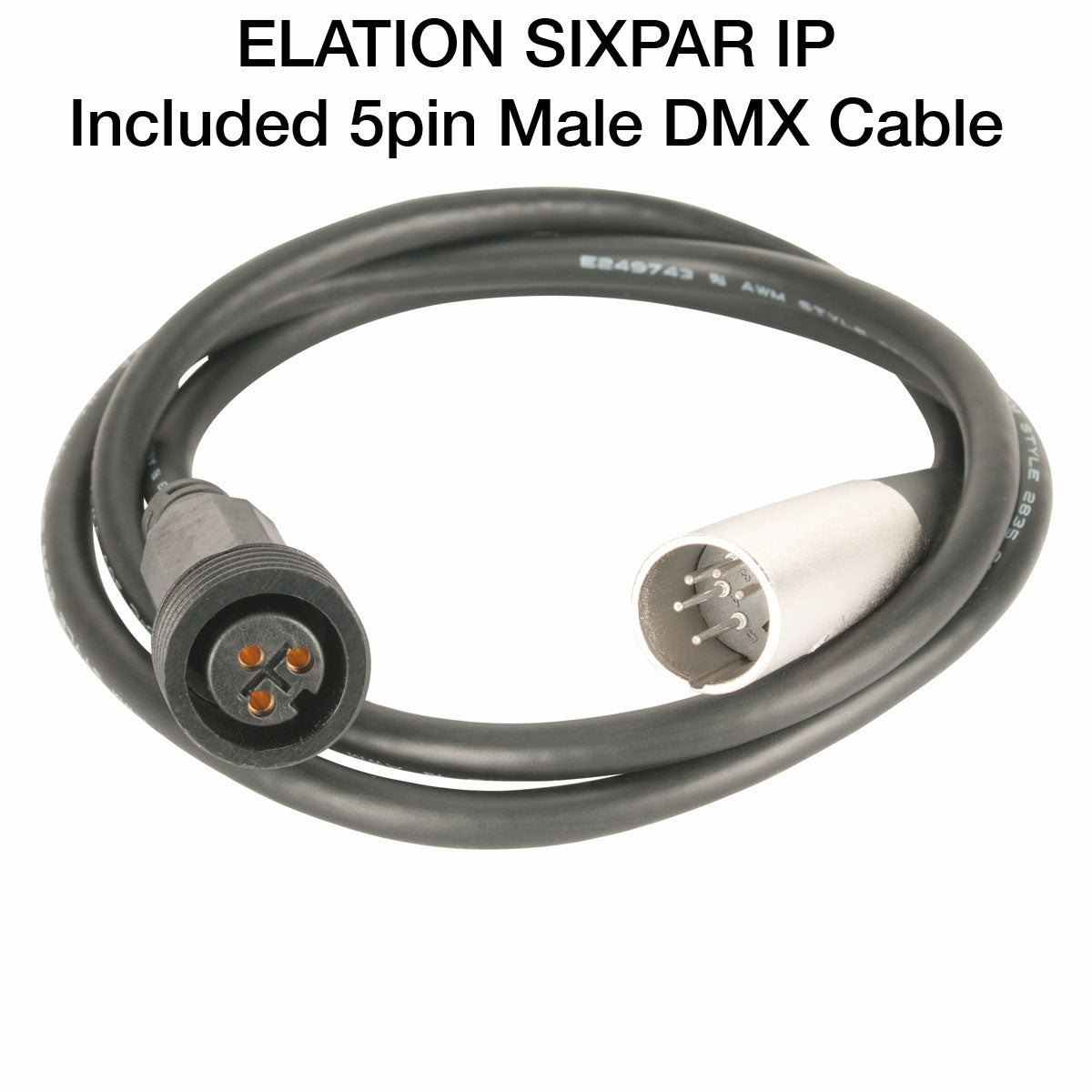

Female 5pin XLR to IP Male DMX Output Cable 3.3 ft (1m) 24AWG)
OPTIONAL ACCESSORIES:

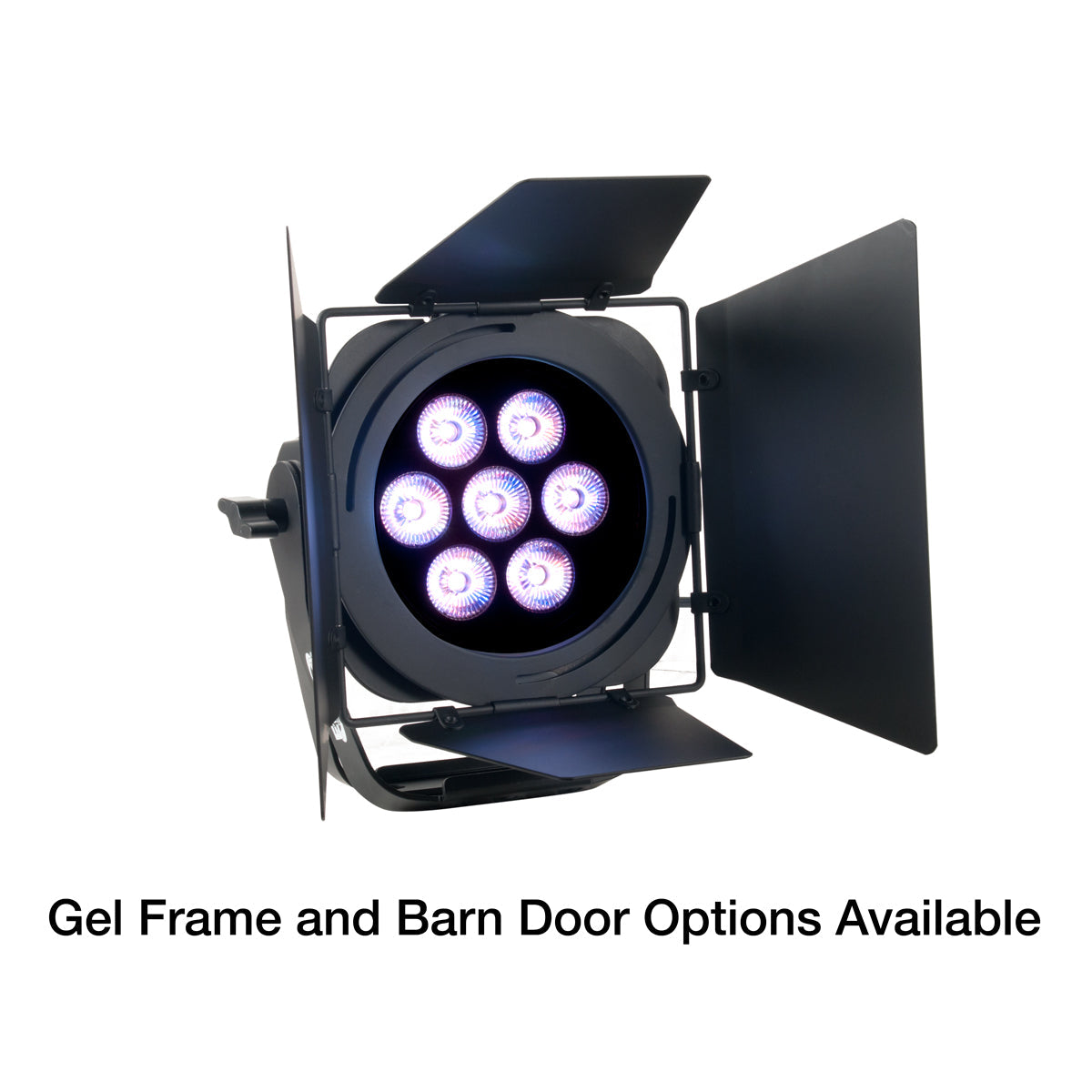

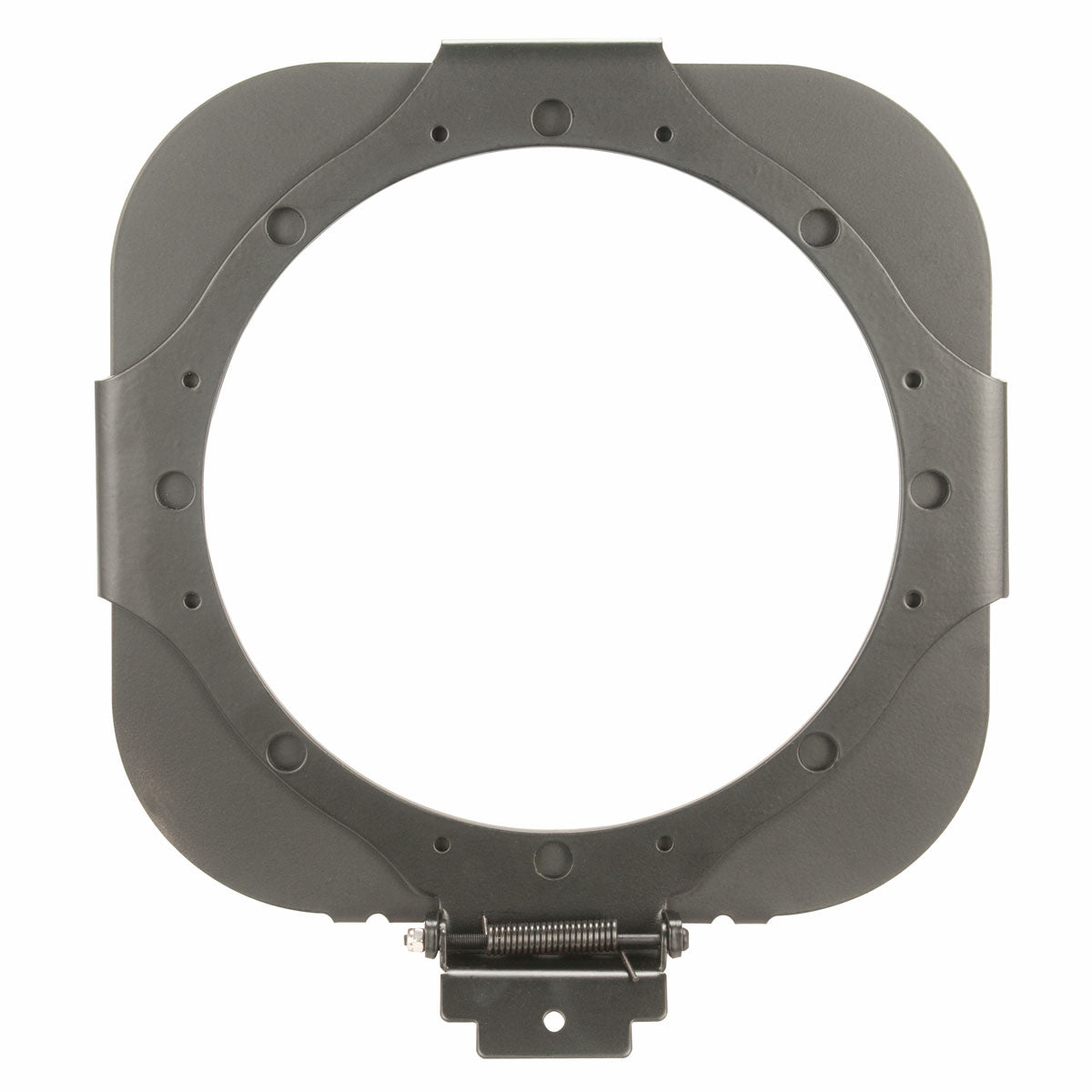

SIXPAR100/GFH - Gel Frame Holder Kit
SIXPAR/BD100 - Barn Door
NOTE: Gel Frame Holder Kit required to attach Barn Door.
(Sold separately)
SIXPAR/2MDLC - 6.6 ft. (2m) IP Data Link Cable
SIXPAR/2MPLC - 6.6 ft. (2m) IP Power Link Cable
SIXPAR/3MDLC - 9.8 ft. (3m) IP Data Link Cable
SIXPAR/3MDLC - 9.8 ft. (3m) IP Power Link Cable
SIXPAR/5MDLC - *SPECIAL ORDER* 16.4 ft. (5m) IP Data Link Cable
SIXPAR/5MPLC - *SPECIAL ORDER* 16.4 ft. (5m) IP Power Link Cable
SIXPAR/10MDLC - *SPECIAL ORDER* 32.8 ft. (10m) IP Data Link Cable
SIXPAR/10MPLC - *SPECIAL ORDER* 32.8 ft. (10m) IP Power Link Cable
SIXPAR/20MDLC - *SPECIAL ORDER* 65.6 ft. (20m) IP Data Link Cable
SIXPAR/20MPLC - *SPECIAL ORDER* 65.6 ft. (20m) IP Power Link Cable
SIXPAR/DIAC - Data IN IP Adapter Cable
SIXPAR/DOAC - Data OUT IP Adapter Cable
SIXPAR/PIAC - Power IN IP Adapter Cable
SIXPAR/POAC - Power OUT IP Adapter Cable
SIXPAR/TERMINATOR - DMX Terminator End Cap
(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
12,850 LUX 1,194 FC @3.3’ (1m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display
IP DMX In/Out
IP Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 10.1” (257mm)
Width: 6.2” (158mm)
Vertical Height: 9.6” (243mm)
Weight: 9.5 lbs. (4.3 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
89W Max Power Consumption
Power Linking: 12pcs @110V / 25pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS
Male Edison to IP Female Power Cable 6,6 ft. (2m) (16AWG)
Male 5pin XLR to IP Female DMX Input Cable 3.3 ft (1m) 24AWG)
Female 5pin XLR to IP Male DMX Output Cable 3.3 ft (1m) 24AWG)
OPTIONAL ACCESSORIES:
SIXPAR100/GFH - Gel Frame Holder Kit
SIXPAR/BD100 - Barn Door
NOTE: Gel Frame Holder Kit required to attach Barn Door.
(Sold separately)
SIXPAR/2MDLC - 6.6 ft. (2m) IP Data Link Cable
SIXPAR/2MPLC - 6.6 ft. (2m) IP Power Link Cable
SIXPAR/3MDLC - 9.8 ft. (3m) IP Data Link Cable
SIXPAR/3MDLC - 9.8 ft. (3m) IP Power Link Cable
SIXPAR/5MDLC - *SPECIAL ORDER* 16.4 ft. (5m) IP Data Link Cable
SIXPAR/5MPLC - *SPECIAL ORDER* 16.4 ft. (5m) IP Power Link Cable
SIXPAR/10MDLC - *SPECIAL ORDER* 32.8 ft. (10m) IP Data Link Cable
SIXPAR/10MPLC - *SPECIAL ORDER* 32.8 ft. (10m) IP Power Link Cable
SIXPAR/20MDLC - *SPECIAL ORDER* 65.6 ft. (20m) IP Data Link Cable
SIXPAR/20MPLC - *SPECIAL ORDER* 65.6 ft. (20m) IP Power Link Cable
SIXPAR/DIAC - Data IN IP Adapter Cable
SIXPAR/DOAC - Data OUT IP Adapter Cable
SIXPAR/PIAC - Power IN IP Adapter Cable
SIXPAR/POAC - Power OUT IP Adapter Cable
SIXPAR/TERMINATOR - DMX Terminator End Cap
FIRMWARE UPDATES
Current Version: V1.17
