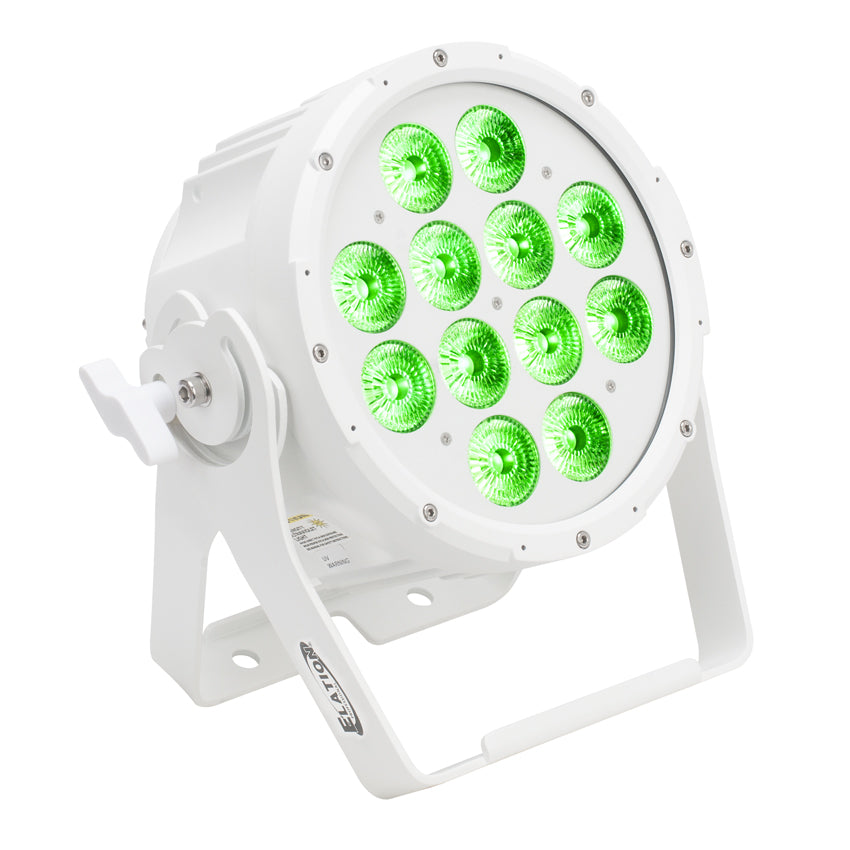

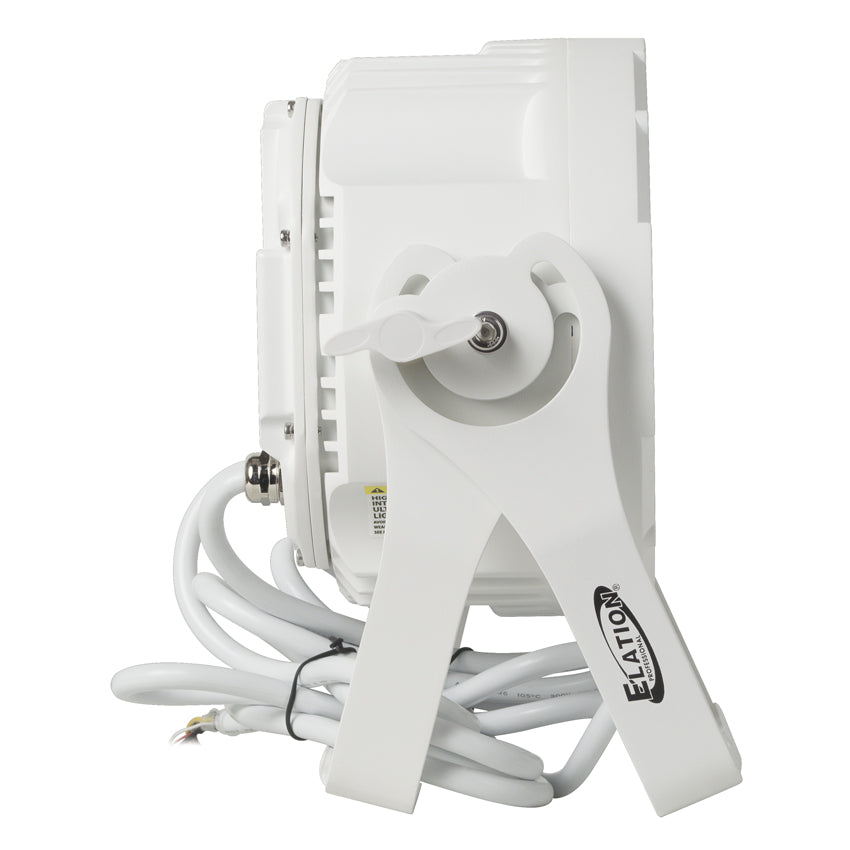

SIXPAR 200WMG HW
12x 12W RGBAW+UV LED IP65 Par, White Marine Grade Housing with Hardwired Tails
SIXPAR 200WMG HW is a professional-grade lighting solution. The IP65 outdoor rated SIXPAR 200WMG HW includes the same features as the standard SIXPAR 200IP model but a special added White Marine Grade exterior coating and Hard Wired (bare wire) IP-rated power/data combo in/out cables attached, designed for permanent marine/coastal environment installations.
SIXPAR 200WMG HW
Specifications
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
coming soon
EFFECTS
Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros
CONTROL / CONNECTIONS
Manual and DMX-512 Control
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch LCD Menu Display

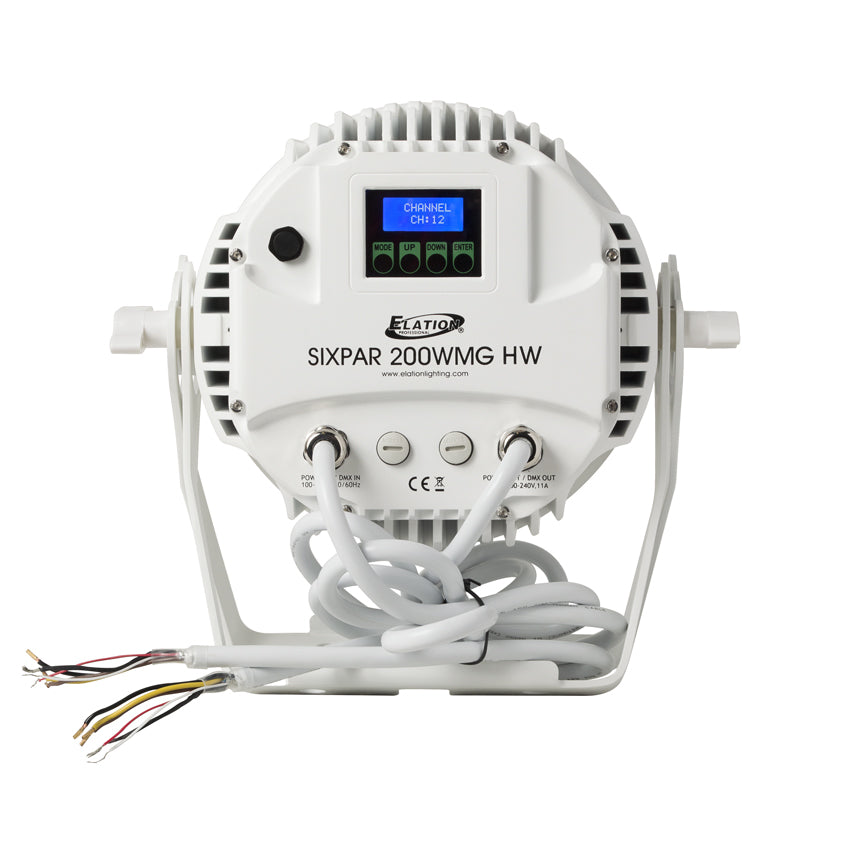

Hard Wired (Bare Wire) IP Rated Power/Data Combo In/Out Cables Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 6.2” (157mm)
Vertical Height: 11.8” (300mm)
Weight: 12.6 lbs. (5.7 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
150W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
Downloads
Dimensional drawings
Dmx traits
