T16F

Features

This product is distributed by authorized American DJ Dealers only – Click here for details

 System includes:
 1x T16F, foot control chaser pack
 1x T16F FC, foot controller
 1x 15’ XLR-XLR cable

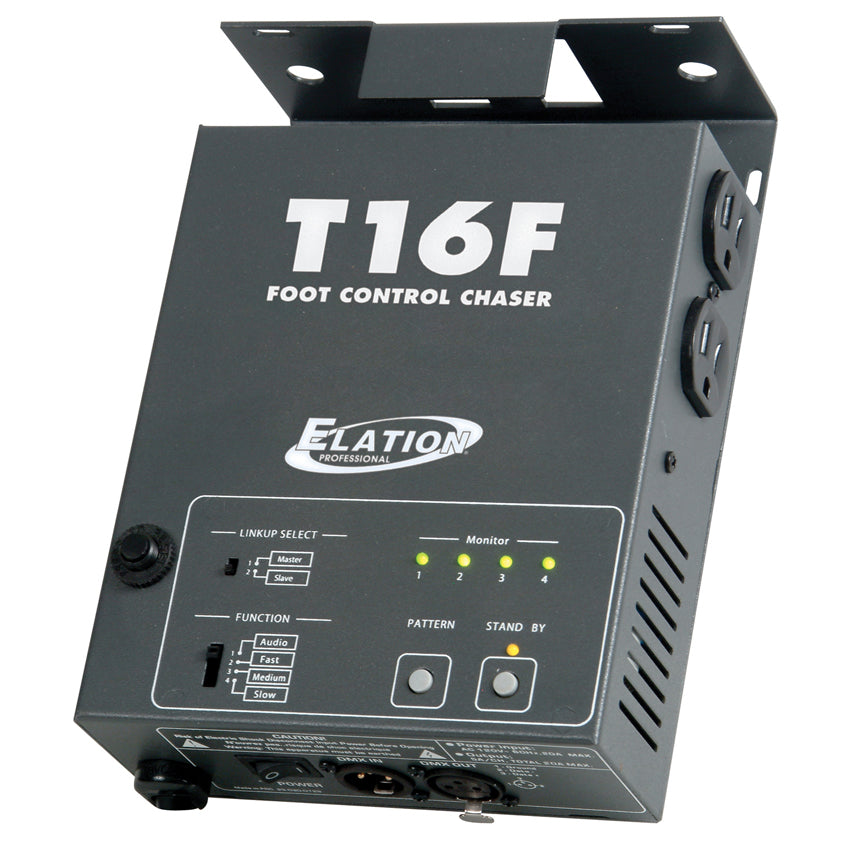

 T16F Features:

• 4-channel chase control pack (Four 3-prong Edison sockets)

• Great for the Musician or DJ that wants manual control of his light show
• DMX XLR In/Out for linking to other T16F

• 16 built-in programs: 8 normal chase programs and 8 chase programs with fade time

• 7 pre-set scenes (holding the Black out for 2-3 seconds):
 Scene 1= Channel 1 On
 Scene 2= Channel 2 On
 Scene 3= Channel 3 On
 Scene 4= Channel 4 On
 Scene 5= Channel 1 and 3 On
 Scene 6= Channel 2 and 4 On
 Scene 7= All On

• Black out mode

• Pattern (chase program) selection

• Primary/Secondary mode

• Chase by way of Audio (sound activation) or 3 chase speeds

• Max Load: 5A per channel or 20A max

• Circuit breaker protection

• Built-in hanging/pole bracket

• Dimensions (LxWxH): 8.5” x 6”x 2.5” / 215 x 180 x 61mm

• Weight: 4 lbs. / 1.8 kgs.

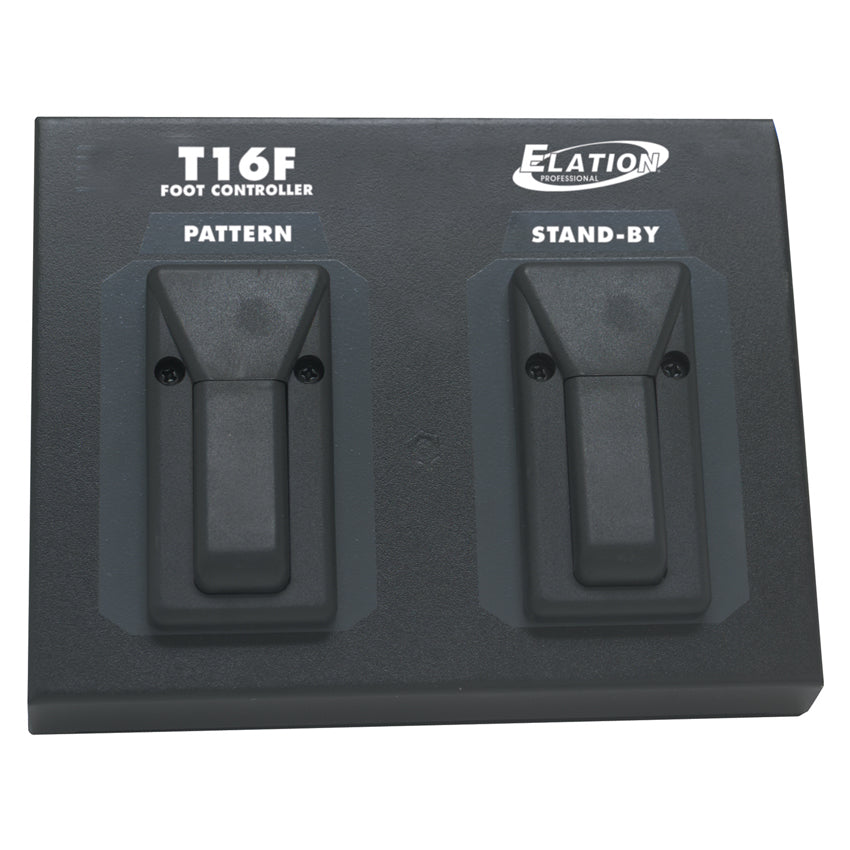

 T16F Foot Controller Features:
• Pattern (chase program) selection foot switch

• Black out foot switch
