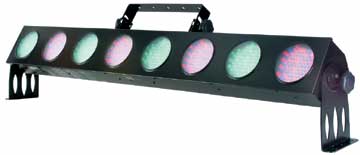

Trackpod 80
Features
The Alkalite LED lighting system offers endles color possibilities to modify your surrounding.
This system does not produce infra-red and ultra violet light. Therefore, heat production is minimized, avoiding discoloration of objects being lit. This specila feature gives the Alkalite LED lighting systems the flexibility for numerous types of applications such as architectural/ retail spaces, stage, video/film productions, night clubs, art gallaries museums and much more.
This solid-state lighting system has been designed for easy installation and safe energy efficient, long life operation. The combination of Red, Green and Blue LEDs offers a tremendous range of colors with smooth transitions from one color to the next.
SYSTEM FEATURES
• 1 Track of 8 self contained octopod 80’s
• 80 x LEDs per surface
• 27 red, 35 blue, 18 green
CONTROL FEATURES
• USITT DMX-512
• 4 Channel Modes
• 6,12,24 or 48 DMX Channel
• 4 Digit Digital LED Display
• Self Test & Stand Alone settings
• 3 pin XLR serial input/output
• Sound Active mode. (Sensitivy Knob)
• PreProgrammed Chases via DMX
This system does not produce infra-red and ultra violet light. Therefore, heat production is minimized, avoiding discoloration of objects being lit. This specila feature gives the Alkalite LED lighting systems the flexibility for numerous types of applications such as architectural/ retail spaces, stage, video/film productions, night clubs, art gallaries museums and much more.
This solid-state lighting system has been designed for easy installation and safe energy efficient, long life operation. The combination of Red, Green and Blue LEDs offers a tremendous range of colors with smooth transitions from one color to the next.
SYSTEM FEATURES
• 1 Track of 8 self contained octopod 80’s
• 80 x LEDs per surface
• 27 red, 35 blue, 18 green
CONTROL FEATURES
• USITT DMX-512
• 4 Channel Modes
• 6,12,24 or 48 DMX Channel
• 4 Digit Digital LED Display
• Self Test & Stand Alone settings
• 3 pin XLR serial input/output
• Sound Active mode. (Sensitivy Knob)
• PreProgrammed Chases via DMX
Resources
Guides/ Manuals
Related Categories
Specifications
DMX CHANNELS
• Ch1: Color Macros / Speed
• Ch2: Red 0-100% Dimming / Fade
• Ch3: Green 0-100% Dimming
• Ch4: Blue 0-100% Dimming
• Ch5: Strobe 1-29fps
• Ch6: Pre programmed Chases
COLORS
• R,G,B Additive Color Mixing
• Color Macros
SHUTTER/DIMMER
• Electronic Dimming 0-100%
• Electronic Strobing 1-29fps
• Variable speed strobe Pulse effect
MOUNTING
• 1 x 12” Hanging Yoke (Bracket)
• 2 x Side Mounting Brackets
SPECIFICATIONS
• Cooling: 2 x 3" silent fans
• Power on/off switch
• IEC power cord
DIMENSIONS & WEIGHT
• Dims: 47.5”x5.5”x5”
• Weight: 21 lbs
POWER SUPPLY
• Electronic Ballast
• 90-240V 50/60Hz
• Fuse: 2 Amp
• Power Draw: 70 Watts
• Ch1: Color Macros / Speed
• Ch2: Red 0-100% Dimming / Fade
• Ch3: Green 0-100% Dimming
• Ch4: Blue 0-100% Dimming
• Ch5: Strobe 1-29fps
• Ch6: Pre programmed Chases
COLORS
• R,G,B Additive Color Mixing
• Color Macros
SHUTTER/DIMMER
• Electronic Dimming 0-100%
• Electronic Strobing 1-29fps
• Variable speed strobe Pulse effect
MOUNTING
• 1 x 12” Hanging Yoke (Bracket)
• 2 x Side Mounting Brackets
SPECIFICATIONS
• Cooling: 2 x 3" silent fans
• Power on/off switch
• IEC power cord
DIMENSIONS & WEIGHT
• Dims: 47.5”x5.5”x5”
• Weight: 21 lbs
POWER SUPPLY
• Electronic Ballast
• 90-240V 50/60Hz
• Fuse: 2 Amp
• Power Draw: 70 Watts
