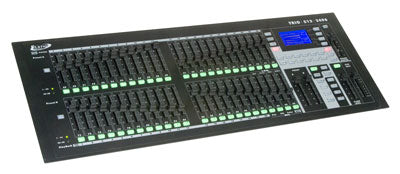

TRIO 2496
Features
Resources
Guides/ Manuals
- TRIO 2496 Profile Creator v1.06
- TRIO 2496 Falsh Converter v1.0
- TRIO 2496 Cutsheet
- TRIO 2496 User Manual
- TRIO 2496 Software V1.218 & Fixture Profiles
Related Categories
Specifications
• 48 configurable faders
• 2 DMX universes
• Additional artNET output
• DMX input
• VGA monitor output option
• Built-in FX generator
• LCD step-by-step instruction
• DMX512 console allows for control of conventional lights, moving lights and LED’s.
• Six operation modes; Single Scene, Two Scene, Sub Master Moving Light, LED and Memory playback modes.
• 1152 recordable scenes (24 pages x 48 scenes) in sub master mode for conventional lights.
• 12 built in FX include movement for ML’s and
color chases for LED’s.
• LCD display offers detailed information.
• 48 faders to control conventional, moving light
nd LED fixture channels
• Control 24 ML fixtures up to 40 channels each
• 20 playbacks x 99 steps in Moving Light mode
• Control 24 LED (RGBA) fixtures
• 20 playbacks x 99 steps in LED mode
• Memory playback mode allows for a combination of
Sub Master, LED playback and Moving Light playback
• Back lit buttons (by RGB LED’s) change color
depending on their state
• Grand Master fader for total output control
• A & B fader’s for two scene operation
• USB Input for uploading and downloading data
• ArtNET for faster communication with compatible devices
• 3 pin XLR DMX Input to connect external console
• Two sets of 3 & 5 pin DMX Outputs
• On/Off Power Switch
• 9-12VDC 2A power supply (Included)
• 800x600 VGA monitor output (optional)
• Dimensions (HxWxL): 2.75“ x 28.25“ x 10.4“ /
70 x 718 x 264 mm
• Weight: 14.33 lbs. 6.5 kg
