VOLT Q5E SIX PACK
VOLT Q5E SIX PACK
The Volt Q5E Six Pack™ charging road case includes (6) of the new IP65 rated Volt Q5E™ units which are ideal for event uplighting and exterior wash applications, each having (5) 10W QUAD color RGBW LEDs, 9° beam 17° field angles, 180°+ manual LED head positioning, variable color correction (2,700K - 7,200K), magnetic frost filter gel frame, electronic strobe and dimming curves, flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base, retractable carrying handle, an internal wireless EWDMX receiver, and powered by a rechargeable Lithium-Ion battery.
Features
IP65 Rated
9° Beam and 17° Field Angles
180°+ Manual LED Head Positioning
Variable Color Correction (2,700K - 7,200K)
Internal Wireless EWDMX Receiver
Rechargeable Lithium-Ion Battery
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Rubber Padded Base and Retractable Carrying Handle
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
Related Categories
Specifications
(5) 10W QUAD Color RGBW LEDs
100,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
38,450 LUX 3,572 FC @3.3 ft (1m) (9° Full ON)
EFFECTS
Variable Color Correction (2,700K - 7,200K)
Magnetic Frost Filter Gel Frame
Electronic Strobe and Dimming Curves
Multiple Color and Chase Macros
CONTROL / CONNECTIONS
(4) DMX Channel Modes (4 / 5 / 11 / 12)
Internal Wireless EWDMX Receiver (Not compatible with E-FLY)

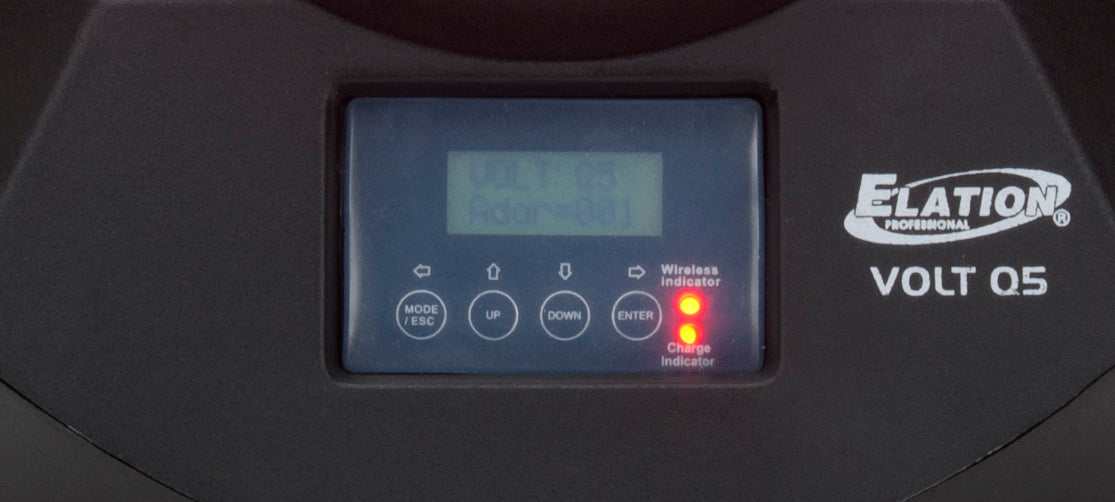

(4) Button Control Panel
LCD Menu Display

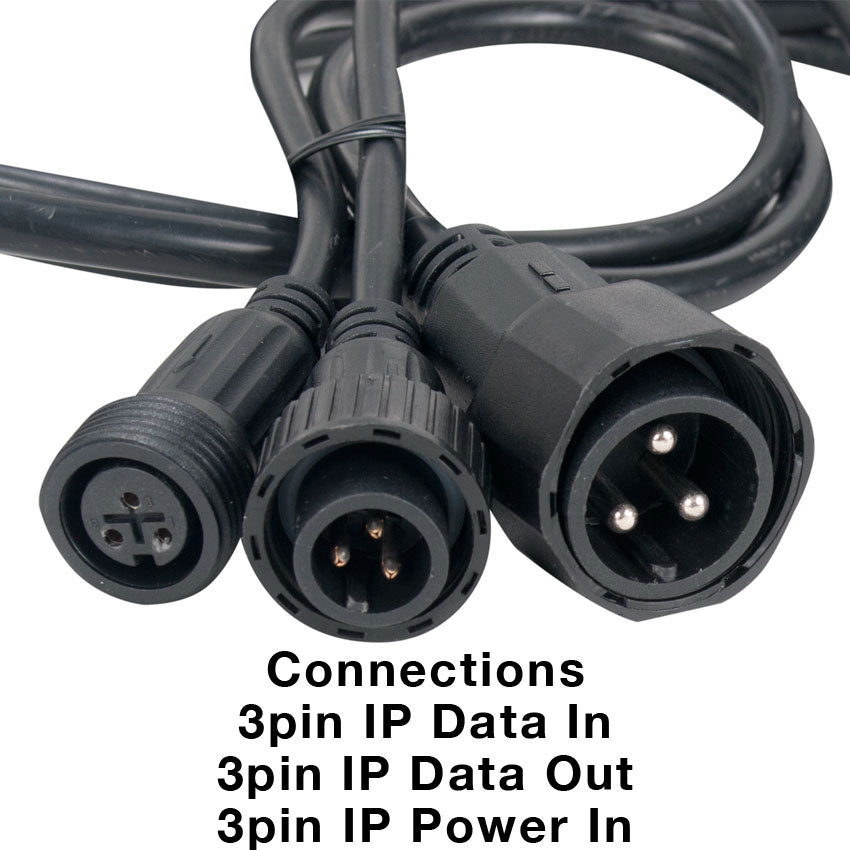

3pin IP DMX In/Out
2pin IP Power Charger In
With Wired Digital Communication Network
SIZE / WEIGHT (single unit)
Length: 11.4” (290mm)
Width: 9.9” (252mm)
Vertical Height: 11.4” (289mm)
Weight: 17.4 lbs. (7.9 kg)
ELECTRICAL / THERMAL
DC 22.2-26.2V
70W Max Power Consumption (each unit)
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
INSTALLATION
Rigging: Clamps (Not Included) / Floor
Working Position: Any (360°)

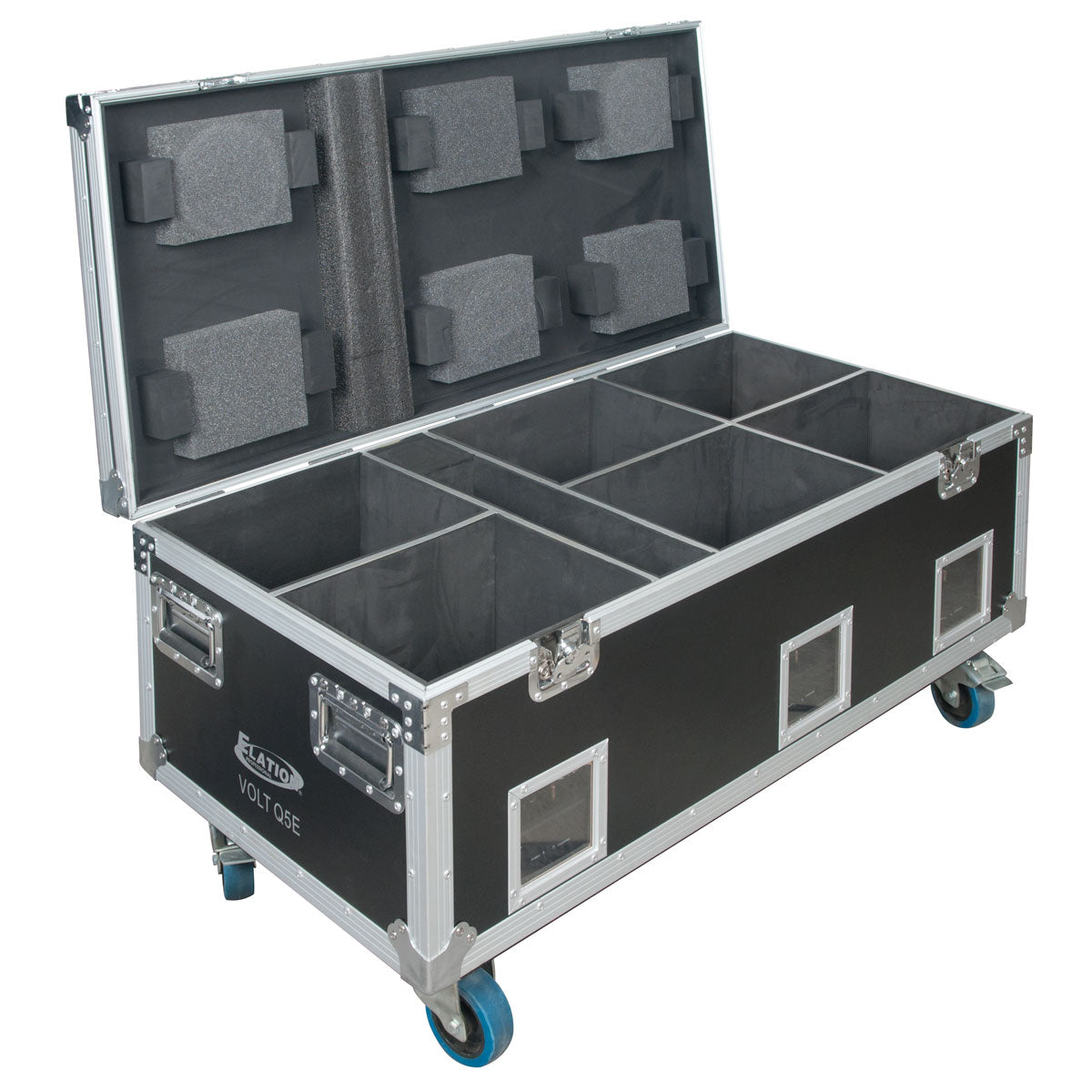

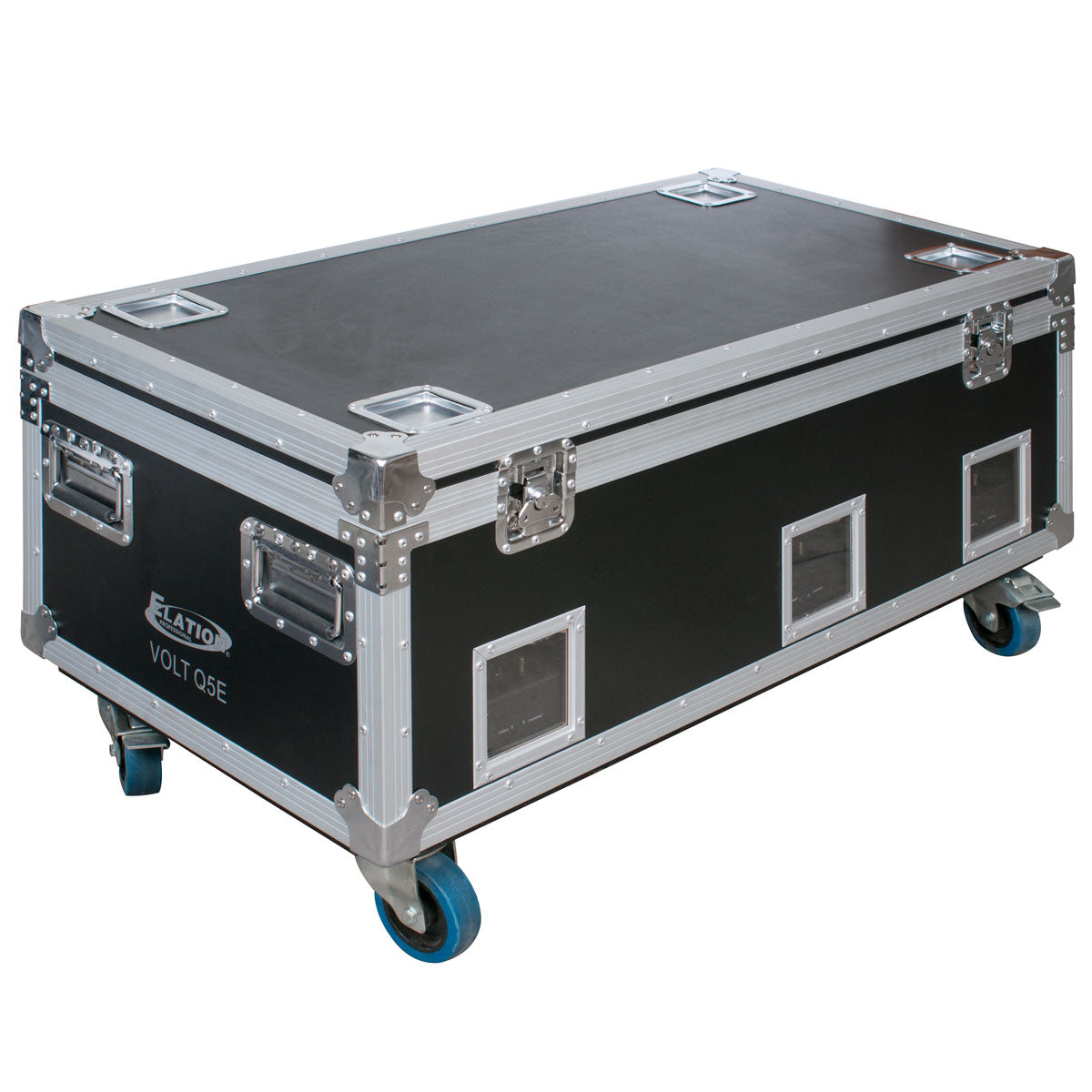

VOLT Q5™ CHARGING ROAD CASE
FEATURES
Charges (6) Volt Q5™ Units
Charge Status Windows for each unit
SIZE / WEIGHT (loaded case with 6 units)
Length: 44.0” (1118mm)
Width: 22.0” (560mm)
Vertical Height: 21.6” (548mm)
Loaded Weight: 240.0 lbs. (109 kg)
ELECTRICAL / THERMAL
Max Power Consumption: 265 Watts
In-Rush Current: 325 Watts
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
(6) Volt Q5E™ Units
(6) IP to DMX Data Input Cables
(6) Omega Brackets
(6) Magnetic Frost Filters
(1) Locking power Cable
OPTIONAL ACCESSORIES:
VOL113 -VOLT Q5™ CHARGING ROAD CASE (empty)
VOLT/3MDLC - VOLT Series 9.8 ft (3m) IP DATA LINK Cable
VOLT/DIAC - VOLT Series 9.8 ft (3m) IP to 3pin DMX INPUT Cable
VOLT/DOAC - VOLT Series 9.8 ft (3m) IP TO 3pin DMX OUTPUT Cable
FIRMWARE UPDATE
Current Version: V1.0.4
Click HERE for software updates
Specifications and documentation subject to change without notice.
