Waterfall 250 Pro
Specifications
CONTROL FEATURES
• USITT DMX-512
• 6 DMX Channels
• Dip switches

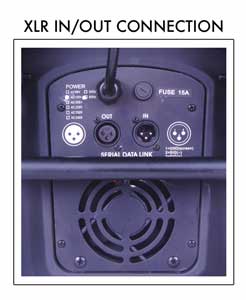

• 3 pin XLR serial input/output
• Sound active mode
OPTICAL SYSTEM
• High output luminous-parabolic dichroic reflector
• 45-degree beam angle
• Anti-reflection coated lens
• Barn Doors
COLORS
• 5 dichroic Color filters + white
• 2 multi-colored segmented dichroic color filters for: Multi-color combinations, continuous, variable speed, color scrolling in both directions (rainbow effect)
• Various effect movement options
RIPPLE SIMULATOR EFFECT
• 2 glass wheels, independent control
SHUTTER/DIMMER
• 100% dimming
FOCUS
• Motor driven focus from near to far

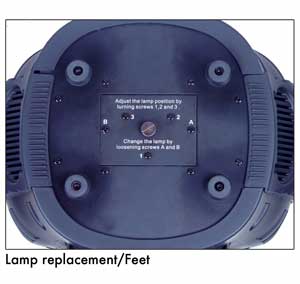

LAMPS
• Phillips MSD 250/2 (250W, 8500°K, 3000 HRS)

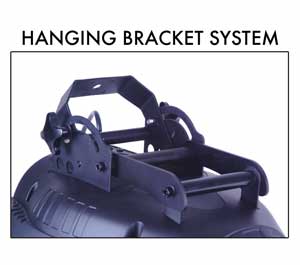

RIGGING
• 1 x Heavy Duty yoke
• 1 x Safety cable hole
POWER SUPPLY
• 8A or 4A Fuse
• Magnetic Ballast
• Voltage: AC 98, 120, 208, 220, 230, 240V 50/60Hz
• Power Consumption: 400W
