X-510II

Features

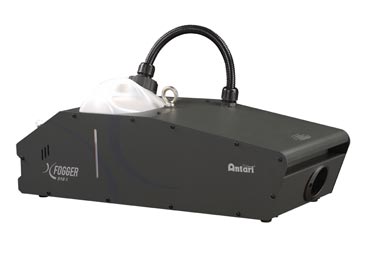

 This 1000W machine is equipped with Antari’s new technology aluminum cast heat exchanger and can generate more fog than any other machines in its class due to its greater mass and higher efficiency. Optimum fluid vaporization is achieved thanks to this ground-breaking heater core technology which ensures only the driest, purest white fog is produced to the satisfaction of all industry professionals. An electronic fluid level detecting sensor will stop operation and offer complete protection to the pump whenever the fog liquid is running low. The high specification electronics design is modular and the control interface offers the user the ultimate in X-Series control options, whether it DMX Analogue Auto Timer or Wireless. Just plug in the desired module and you are free to fog. This extremely affordable machine has all the innovative X Series features. It is the perfect solution for all effect intensive productions.

Resources

Guides/ Manuals

Related Categories

Specifications

Specifications

• Heater: 1,000W

• Output: 10,000 Cu.Ft / Min.

• Heat up Time: 12 Min.

• Liquid Consumption Rate: 24 Min. / Liter (100% Output)

• Tank Capacity: 2.5 Liter

• Low Fluid Indicator: Blue LED

• Control Module Included: X-10 Timer Control Module

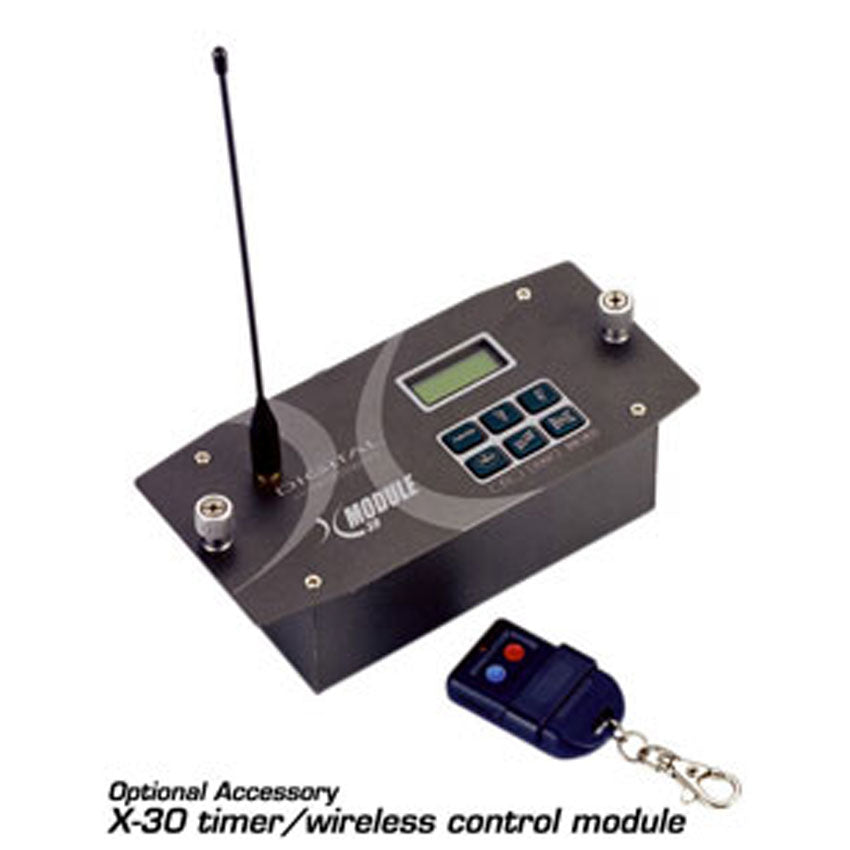

• Optional Control Module: X-20II DMX Control Module, X-30 Wireless Control Module

• Optional Accessories: HB-10 (Hanging Bracket and Drip Tray). Fog Hose Adaptor, Flight Case

• Weight: 35lbs. / 13 kg

• Dimensions (LxWxH): 21.5” x 9” x 6” / 550 x 230 x 155mm
