ZW19
ZW19
Discontinued
SKU# ZW1901

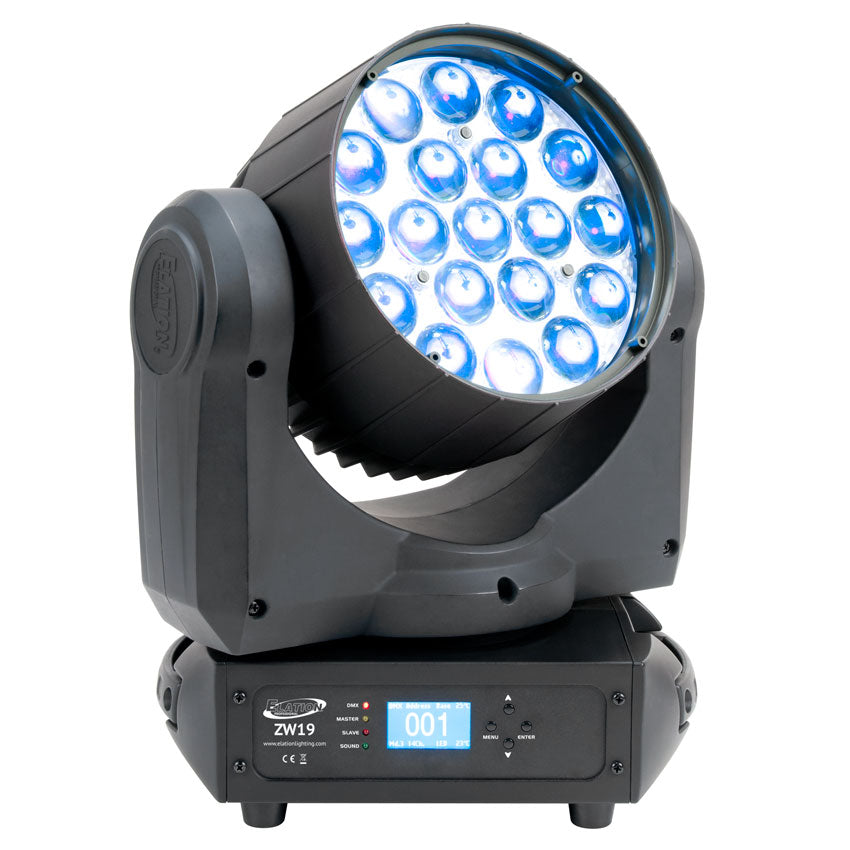

The ZW19™ is an LED moving head beam/wash effect luminaire featuring (19) 10W RGBW 4-in-1 LEDs, motorized 10° to 60° zoom, 64 color macros, fast and precise 540° pan and 220° tilt rotation, 16-bit fine resolution adjustable movement, strobe, and selectable dimming curve effects, 3/5pin XLR and powerCON in/out connections, (4) button control LCD menu display, 245W max power consumption, and a multi-voltage universal auto switching power supply (100-230v).
Features
LED Moving Head Beam/Wash Effect Luminaire
(19) 10W RGBW 4-in-1 LEDs
10° - 60° Motorized Zoom
64 Color Macros
Fast and Precise 540° Pan / 220° Tilt Rotation
16-Bit Fine Resolution Adjustable Movement
Strobe and Selectable Dimming Curve Effects
Multiple Unit Power Linking
(19) 10W RGBW 4-in-1 LEDs
10° - 60° Motorized Zoom
64 Color Macros
Fast and Precise 540° Pan / 220° Tilt Rotation
16-Bit Fine Resolution Adjustable Movement
Strobe and Selectable Dimming Curve Effects
Multiple Unit Power Linking
Resources
Specifications Sheet
User Manual
Photometric Data
DMX Traits
Dimensional Drawing
CAD Drawing
Vectorworks Symbol
Related Categories
Specifications
SOURCE
(19) 10W RGBW 4-in-1 LEDs
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (31° Full ON)
65,000 LUX 6,039 FC @3.3’ (1m)
29,500 LUX 2,741 FC @6.6’ (2m)
12,600 LUX 1,171 FC @9.8’ (3m)
6,900 LUX 641 FC @13.1’ (4m)
4,400 LUX 409 FC @16.4’ (5m)
EFFECTS
(64) Color Macros
Motorized Zoom: 10° - 60°
Electronic Dimming: 0% - 100%
Strobe and Selectable Dimming Curves
COLOR
RGBW Color Mixing
CONTROL / CONNECTIONS
(2) DMX Channel Modes (14 / 22)
4 Button Touch Control Panel
Pan: 540° / Tilt: 220°
Pan/Tilt Inverse Mode
LCD Menu Display
16-Bit Fine Resolution Adjustable Movement

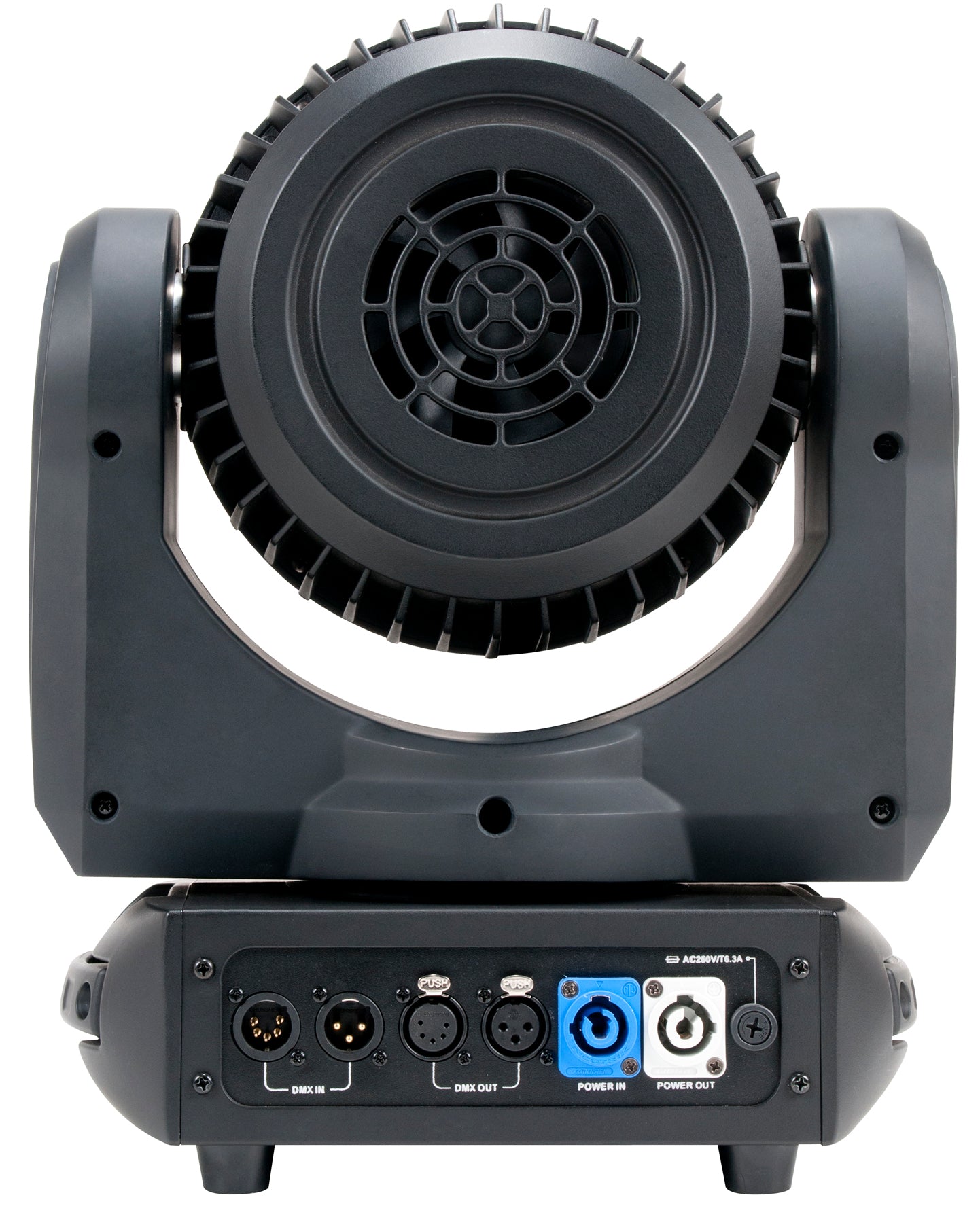

3pin/5pin DMX In/Out
powerCON Power In/Out
Power Link Up To (5) Units at 120V (11) Units at 230V
SIZE / WEIGHT
Length: 12.6” (321mm)
Width: 8.1” (206mm)
Vertical Height: 15.6” (395mm)
Weight: 19.0 lbs. (8.6 kg)
ELECTRICAL / THERMAL
AC 100-230V - 50/60Hz
245W Max Power Consumption
-4°F (-20°C) to 104°F (40°C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
Omega Bracket
powerCON Cable
