ZW37
ZW37
Discontinued
SKU# ZW3701

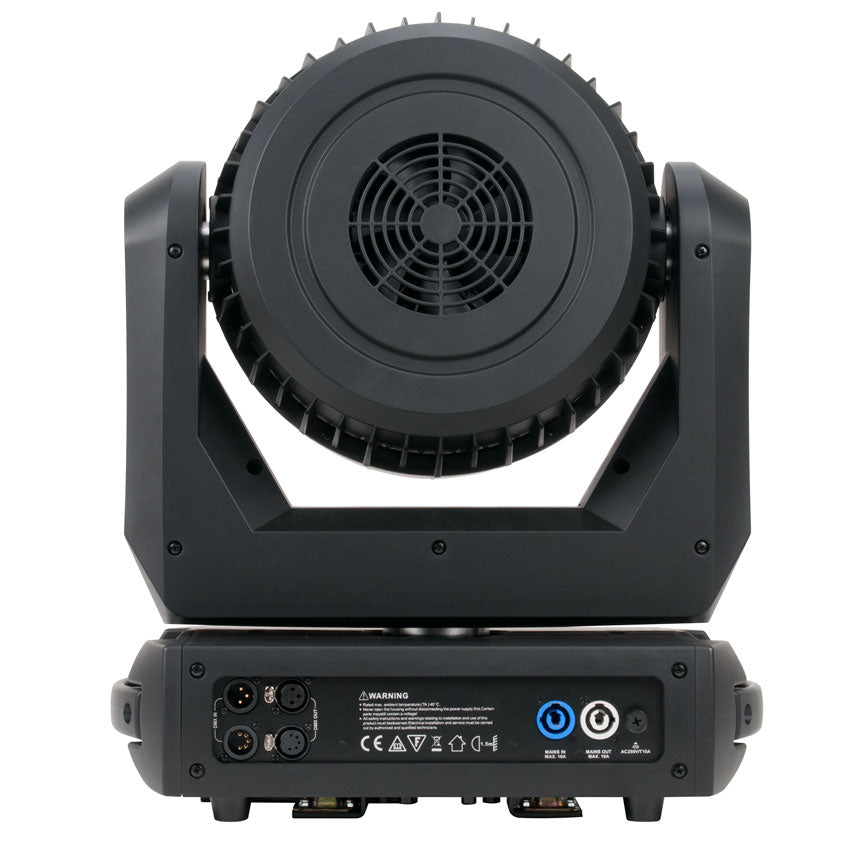

The ZW37™ is an LED moving head beam/wash effect luminaire featuring (37) 15W RGBW 4-in-1 LEDs, motorized 10° to 60° zoom, 64 color macros, fast and precise 540° pan and 220° tilt rotation, 16-bit fine resolution adjustable movement, strobe, and selectable dimming curve effects, 3/5pin XLR and powerCON in/out connections, (4) button control LCD menu display, 715W max power consumption, and a multi-voltage universal auto switching power supply (100-230v).
Features
LED Moving Head Beam/Wash Effect Luminaire
(37) 15W RGBW 4-in-1 LEDs
10° - 60° Motorized Zoom
64 Color Macros
Fast and Precise 540° Pan / 220° Tilt Rotation
16-Bit Fine Resolution Adjustable Movement
Strobe and Selectable Dimming Curve Effects
Multiple Unit Power Linking
(37) 15W RGBW 4-in-1 LEDs
10° - 60° Motorized Zoom
64 Color Macros
Fast and Precise 540° Pan / 220° Tilt Rotation
16-Bit Fine Resolution Adjustable Movement
Strobe and Selectable Dimming Curve Effects
Multiple Unit Power Linking
Resources
Specifications Sheet
User Manual
Photometric Data
Photometric Test Report
Photometric IES File
DMX Traits
Dimensional Drawing
CAD Drawing
Vectorworks Symbol
Related Categories
Specifications
SOURCE
(37) 15W RGBW 4-in-1 LEDs
20,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (31° Full ON)
28,650 LUX 2,662 FC @9.8’ (3m)
11,440 LUX 1,063 FC @16.4’ (5m)
5,528 LUX 514 FC @23.0’ (7m)
2,660 LUX 247 FC @32.8’ (10m)
EFFECTS
(64) Color Macros
Motorized Zoom: 10° - 60°
Electronic Dimming: 0% - 100%
Strobe and Selectable Dimming Curves
COLOR
RGBW Color Mixing
CONTROL / CONNECTIONS
(3) DMX Channel Modes (14 / 22 / 42)
4 Button Touch Control Panel
Pan: 540° / Tilt: 220°
Pan/Tilt Inverse Mode
LCD Menu Display
16-Bit Fine Resolution Adjustable Movement
3pin/5pin DMX In/Out
powerCON Power In/Out
Power Link Up To (3) Units at 120V (6) Units at 230V
SIZE / WEIGHT
Length: 16.9” (430mm)
Width: 12.0” (304mm)
Vertical Height: 20.2” (512mm)
Weight: 43.0 lbs. (19.5 kg)
ELECTRICAL / THERMAL
AC 100-230V - 50/60Hz
715W Max Power Consumption
-4°F (-20°C) to 104°F (40°C)
APPROVALS / RATINGS
CE | IP20
INCLUDED ITEMS
Omega Bracket
powerCON Cable
Specifications and documentation subject to change without notice.
