ZW37-II
ZW37-II
Discontinued
SKU# ZW4702

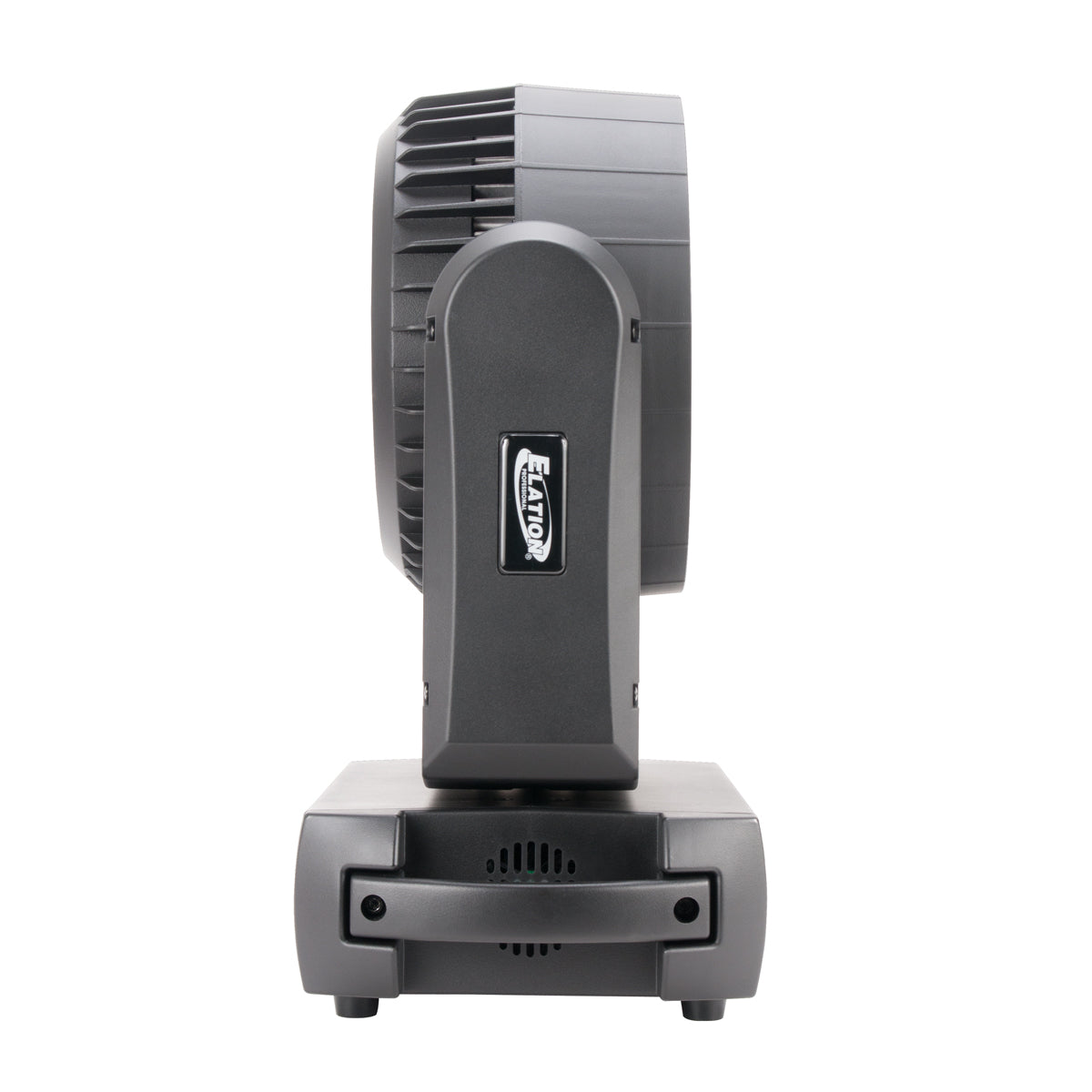

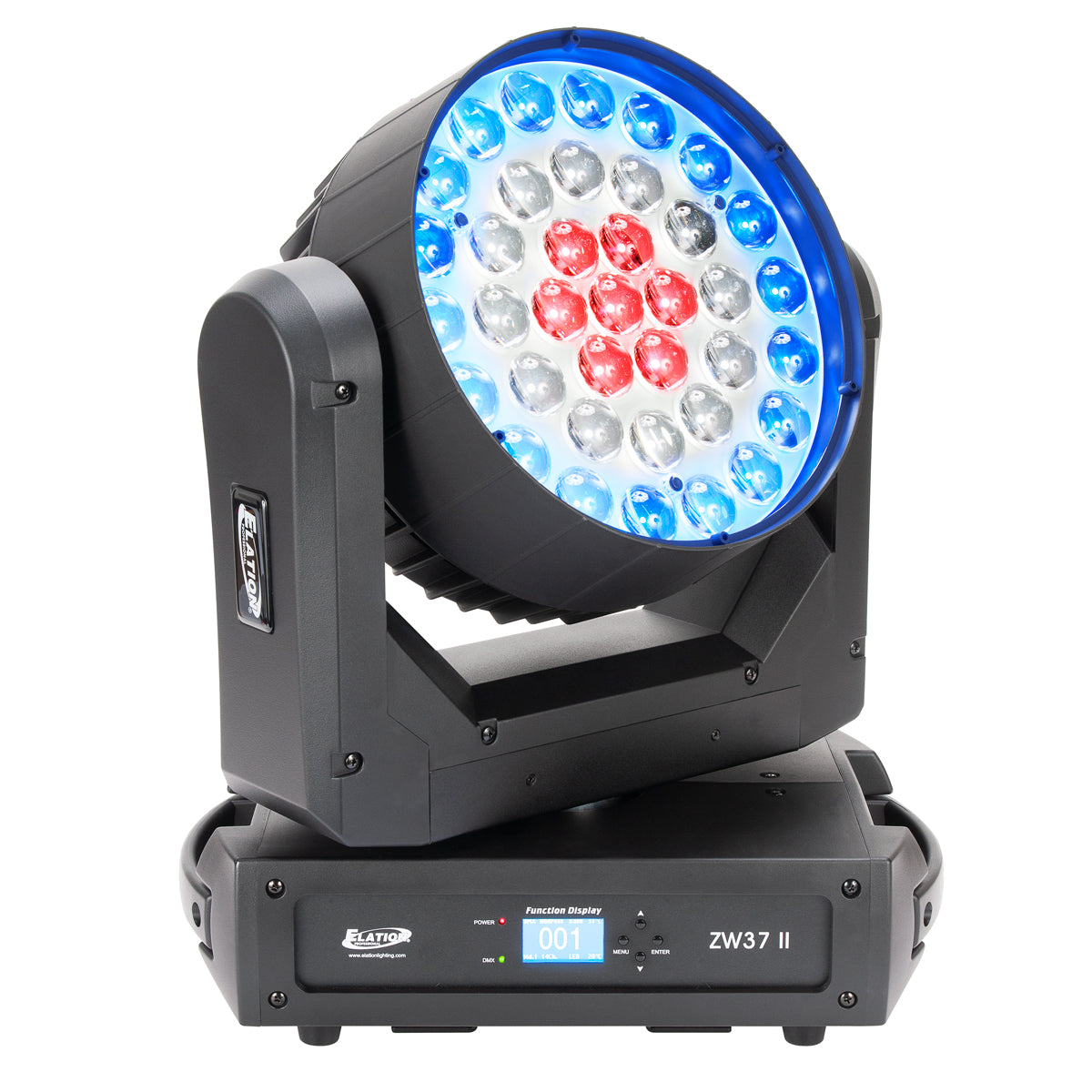

The ZW37-II™ is an LED moving head beam/wash effect luminaire featuring (37) 15W RGBW 4-in-1 LEDs, motorized 10° to 60° zoom, 64 color macros, fast and precise 540° pan and 220° tilt rotation, 16-bit fine resolution adjustable movement, strobe, and selectable dimming curve effects, 3/5pin XLR and powerCON in/out connections, (4) button control LCD menu display, 715W max power consumption, and a multi-voltage universal auto switching power supply (100-230v).
Features
LED Moving Head Beam/Wash Effect Luminaire
(37) 15W RGBW 4-in-1 LEDs
10° - 60° Motorized Zoom
64 Color Macros
Fast and Precise 540° Pan / 220° Tilt Rotation
16-Bit Fine Resolution Adjustable Movement
Strobe and Selectable Dimming Curve Effects
Multiple Unit Power Linking
Resources
Guides/ Manuals
Related Categories
Specifications
SOURCE
(37) 15W RGBW 4-in-1 LEDs
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
EFFECTS
(64) Color Macros
Motorized Zoom: 10° - 60°
Electronic Dimming: 0% - 100%
Strobe and Selectable Dimming Curves
COLOR
RGBW Color Mixing
CONTROL / CONNECTIONS
(3) DMX Channel Modes (14 / 22 / 42)
4 Button Touch Control Panel
Pan: 540° / Tilt: 220°
Pan/Tilt Inverse Mode
LCD Menu Display
16-Bit Fine Resolution Adjustable Movement

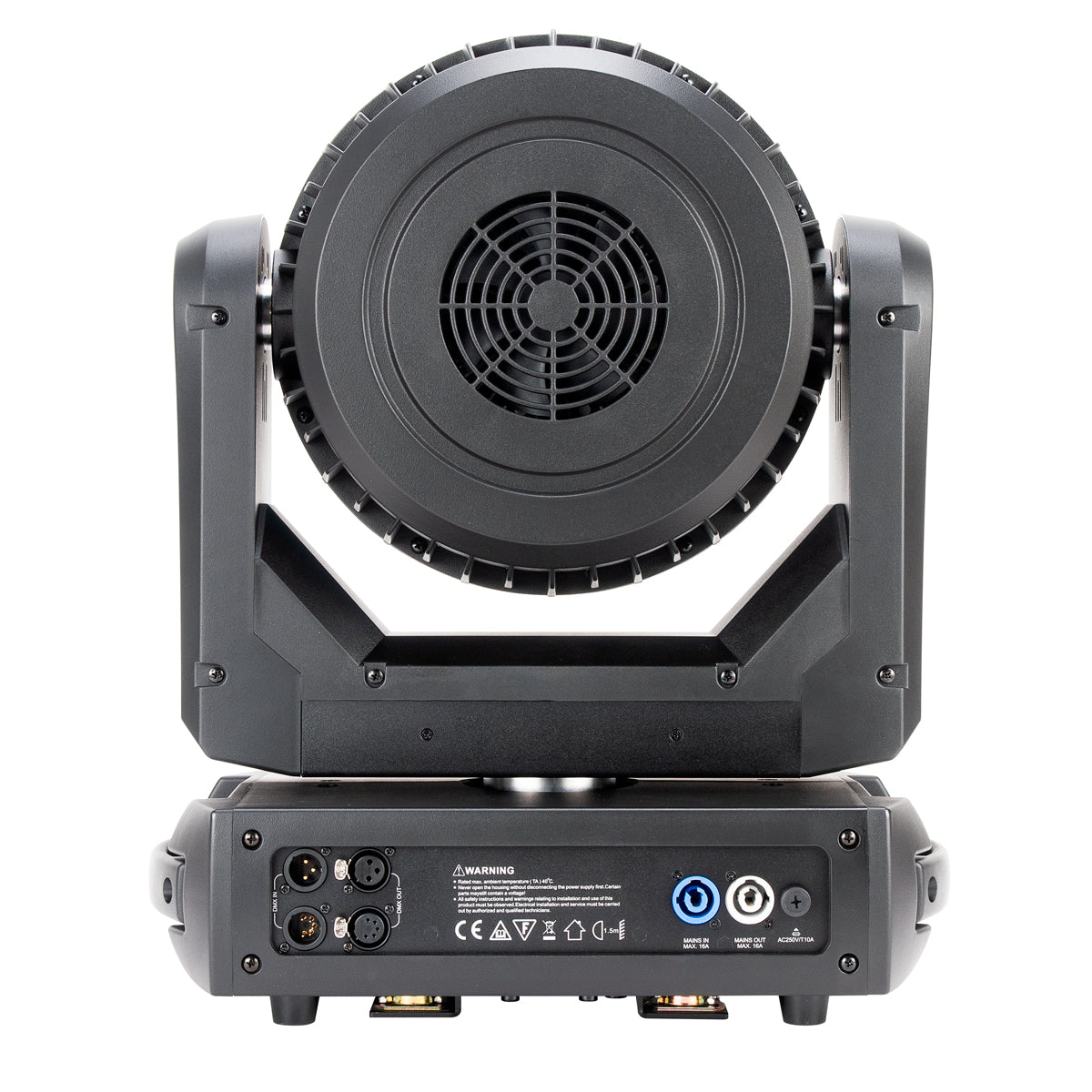

3pin/5pin DMX In/Out
powerCON Power In/Out
Power Link Up To (3) Units at 120V (6) Units at 230V
SIZE / WEIGHT
Length: 16.9” (430mm)
Width: 12.0” (304mm)
Vertical Height: 20.2” (512mm)
Weight: 43.0 lbs. (19.5 kg)
ELECTRICAL / THERMAL
AC 100-230V - 50/60Hz
715W Max Power Consumption
-4°F (-20°C) to 104°F (40°C)
APPROVALS / RATINGS
CE | IP20
Specifications and documentation subject to change without notice.
