Arena Par CW
Arena Par CW
Discontinued
SKU# ARE944

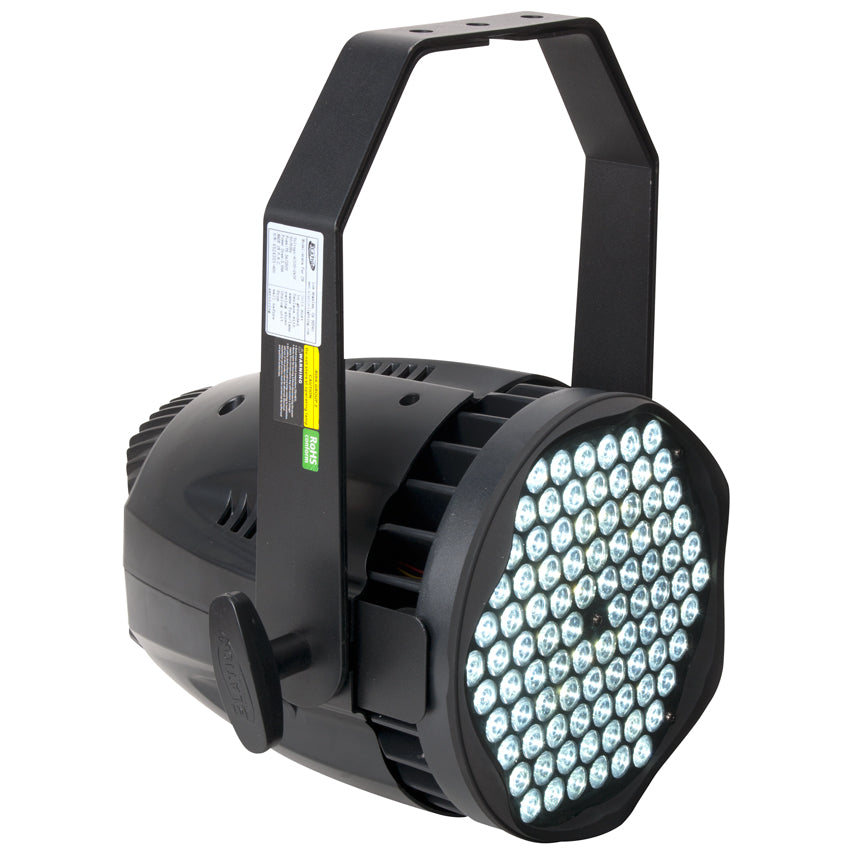

The Arena Par CW™ is a fan cooled die-cast aluminum Cool White par can featuring (90) 3W CREE XP-E LEDs, 15° standard beam angel, electronic dimming, flicker free operation for TV and FILM, 4 digit LED control display, DMX controlled via 2 DMX modes (1/2), master/slave modes, 5pin DMX in/out, and an integrated dual rigging yoke / floor stand.
Features
• Die Cast Aluminum LED Par Can
• DMX intelligent Cool White LED wash
• 90 x 3W CREE XP-E LEDs
• 15º standard beam angle
• Rated IP 20
• Case Color: Black
• Cooling: Fan Cooled
• Electronic power supply
• Electronic dimming (0-100%)

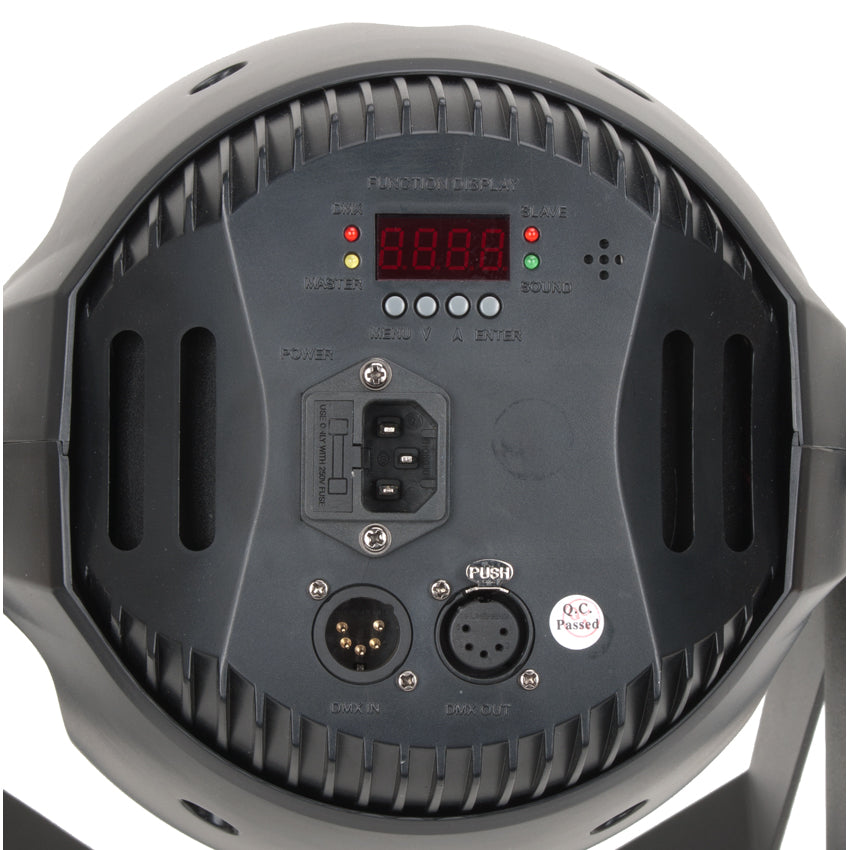

• 4 Digit LED display
• DMX controllable via 2 DMX modes: 1 or 2
• Primary/Secondary Mode
• On Board Control
• Stand Alone
• Flicker Free
Resources
Guides/ Manuals
Related Categories
Specifications
DMX Channels: 2 DMX modes: 1Ch & 2Ch
Control: USITT DMX-512, 5 pin XLR data input & output
Dimmer: Master Dimmer (1 ch mode)
Strobe: Yes
IP Rating: IP 20
Power Supply: 100 - 240v, 50/60Hz
Power Consumption: 280W
Fuse: T 6.3A
Lamp: 90x 3W CREE XP-E LED
6,500k color temperature
LED Life: 50,000 hrs. life
Lux: 11800 Lux @ 3M @ Full
Dimensions: (L x W x H) 14.25” x 12” x 16.5” / 356 x 299 x 414mm (with handle)
(L x W x H) 10.5” x 12” x 9.25” / 265 x 299 x 234mm (no handle)
Weight: 18 lbs / 7.9 kg
Rigging: Split Yoke Bracket /safety and data cable optional
CE Approved
