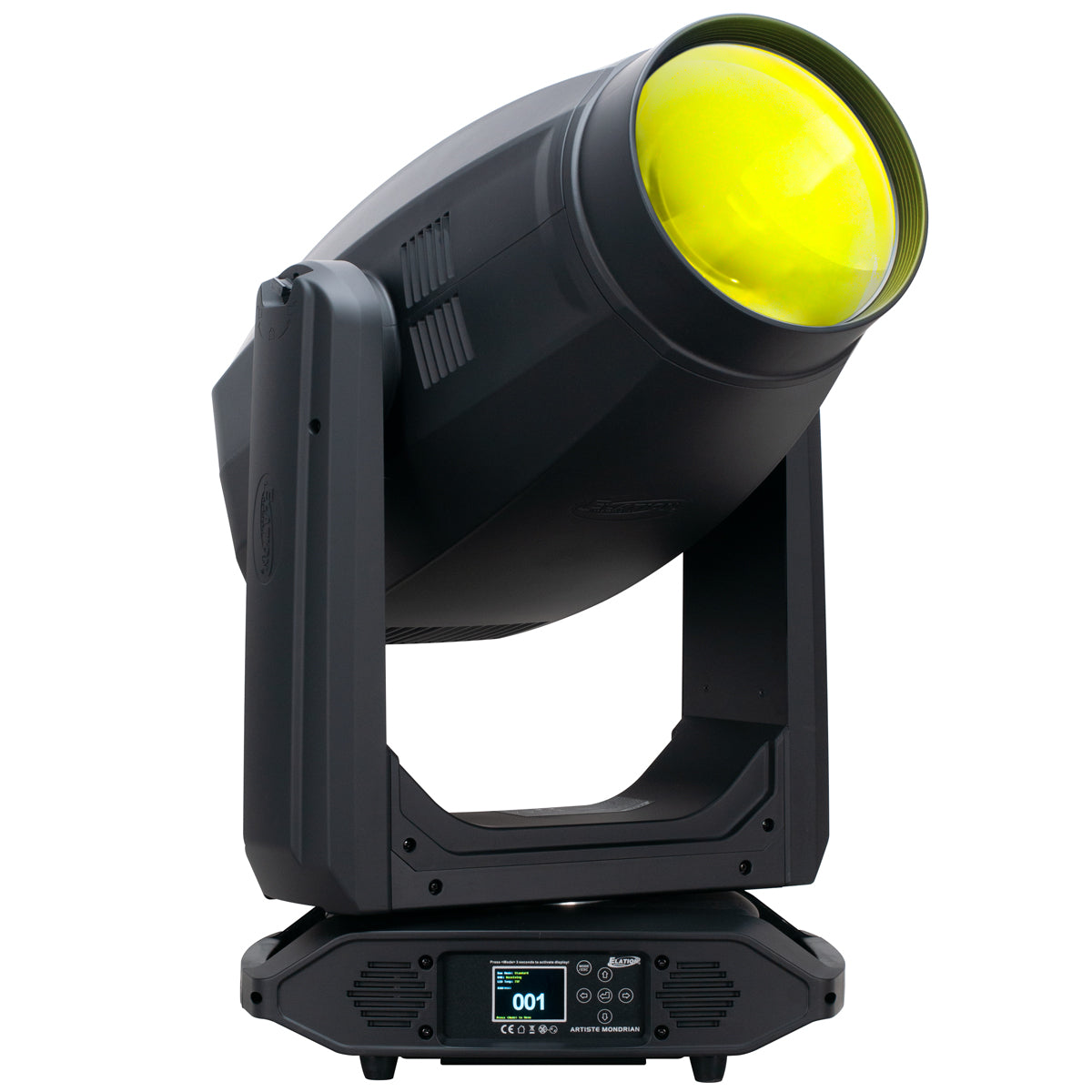

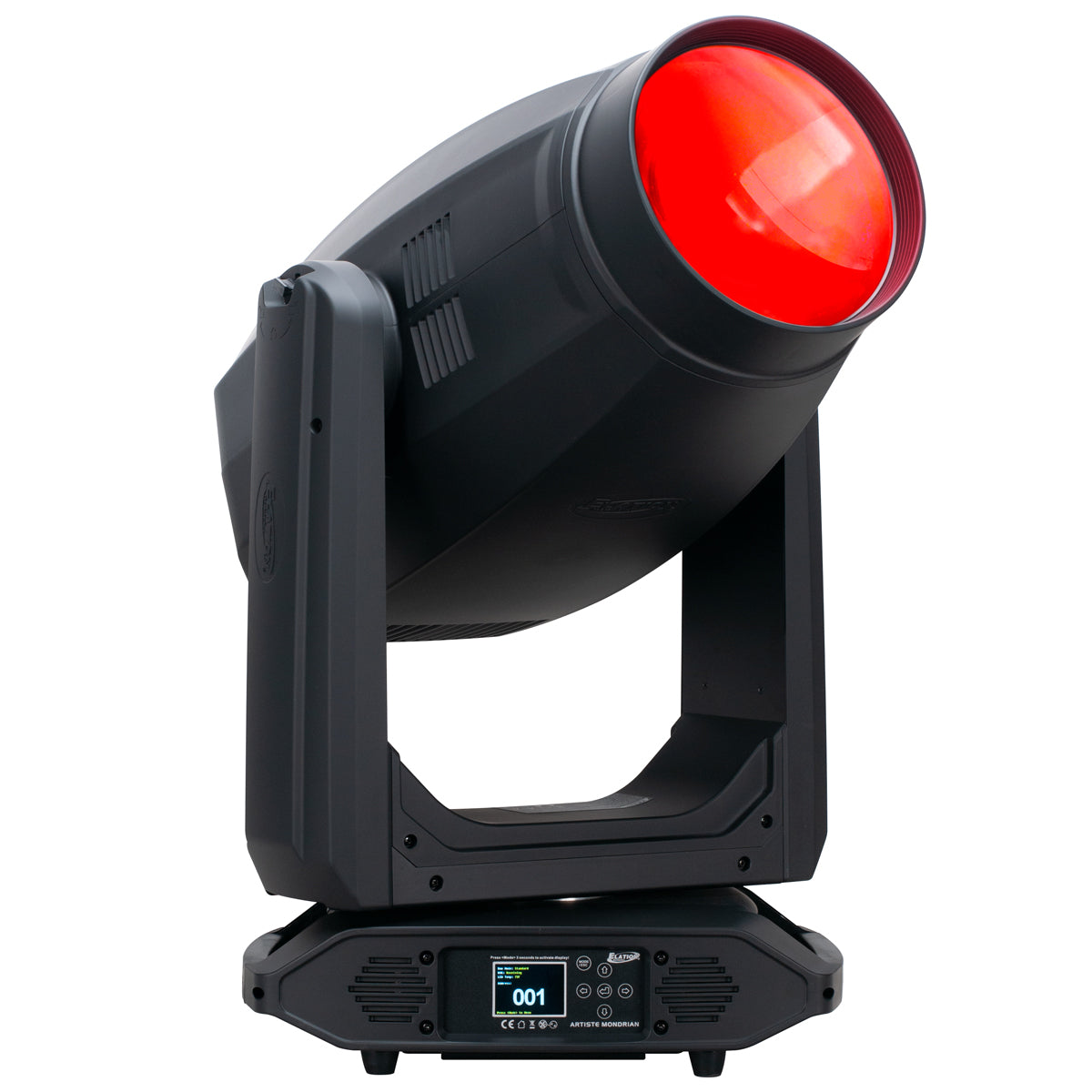

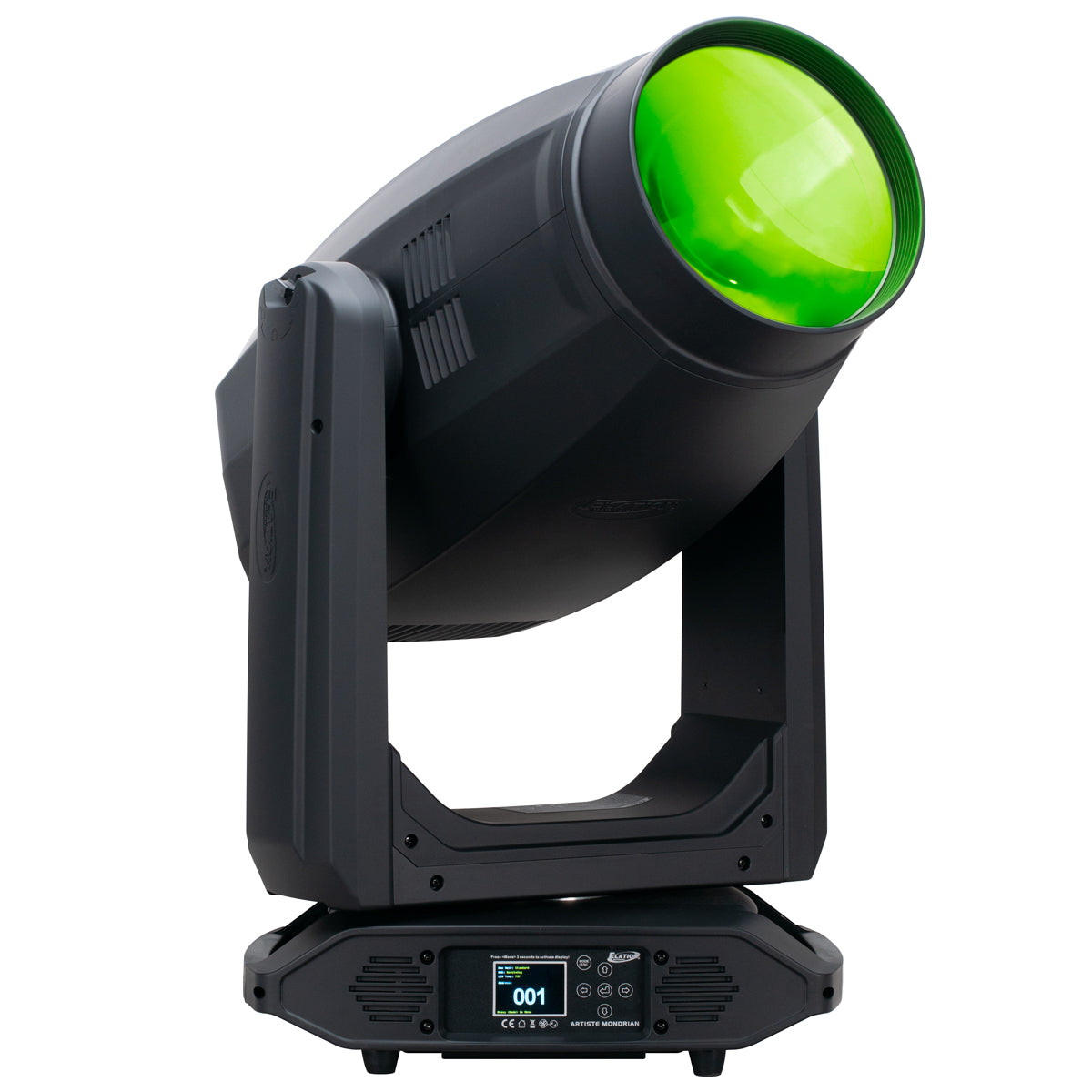

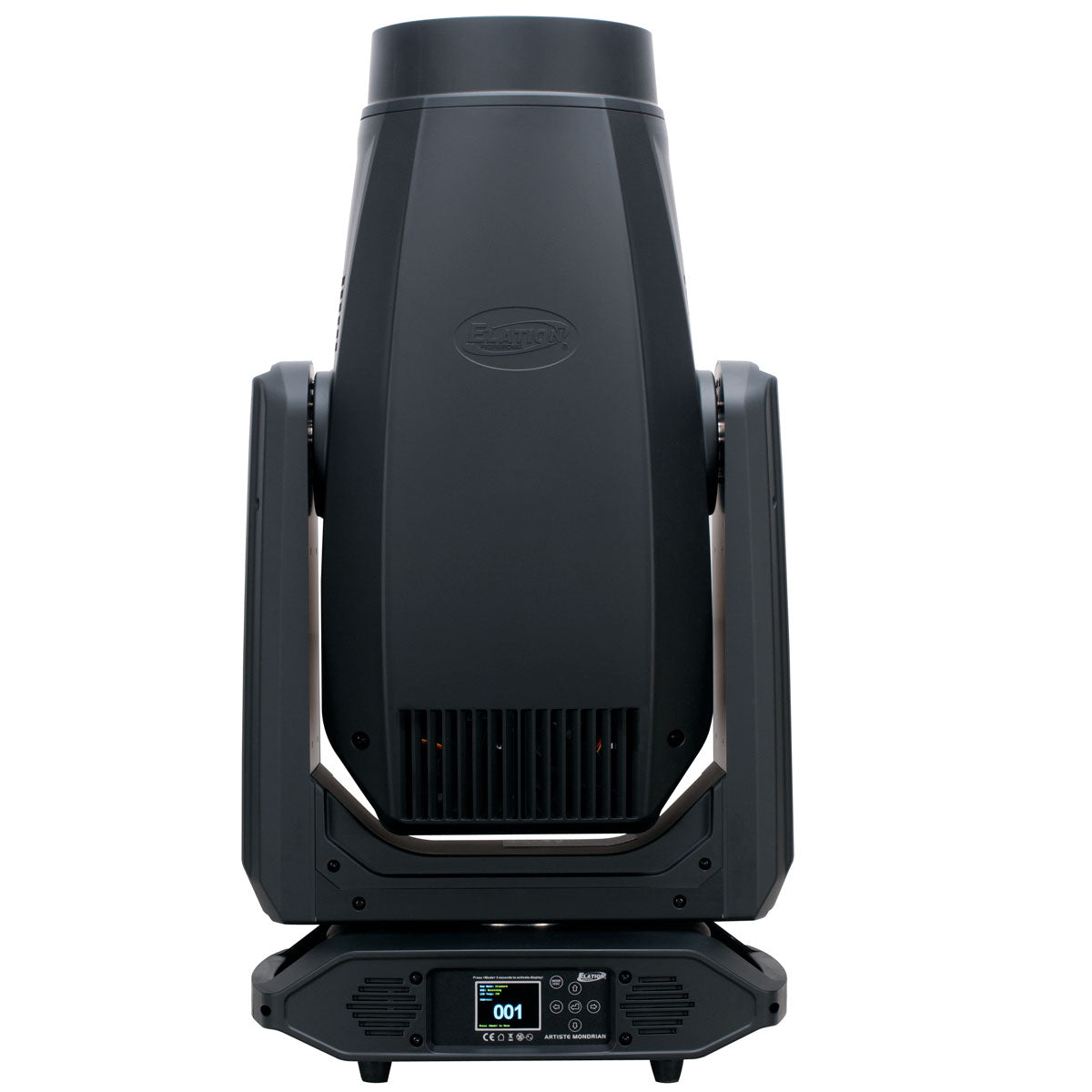

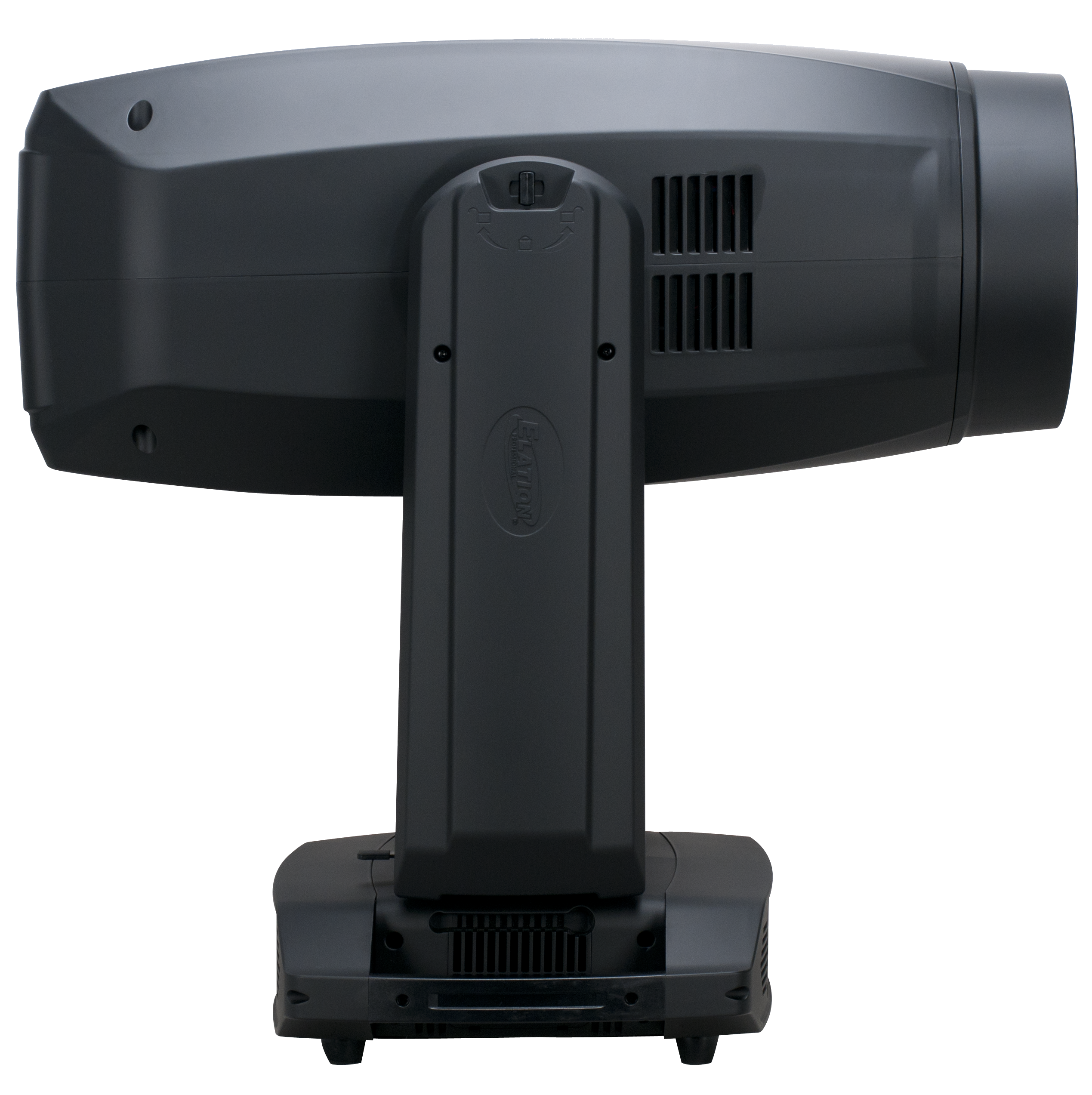

Artiste Mondrian
Artiste Mondrian is a professional-grade lighting solution. Providing up to 51,000 lumens from its efficient 950W 6,500K LED engine, the Mondrian is the ideal fixture for any application requiring superior output, bright and powerful narrow beams, and quiet operation, as well as stunning effects and colors. Mondrian integrates Elation's new SpectraColor system, which offers traditional CMY mixing but adds a variable RGB color mix for rich, saturated primaries.
Related Products
Artiste Mondrian
Specifications
SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
51,000 Total Lumen Fixture Output
CRI 72+ (84+ with HCRI Filter)
Zoom Range 3° - 45°
Beam Angle 2.8° - 34.9°
Field Angle 4° - 46.1°
EFFECTS
Motorized Zoom (226mm / 8 3/4" front lens)
4 Rotating Full Blackout Framing Blades
360° Continuous Framing Index and Rotation
Full 360° Bi-Directional Animation Wheel
2 Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
SpectraColor CMY + RGB Color Mixing Array
6 Dichroic Colors including High CRI Filter and UV
Linear CTO Color Correction
GOBOS
2 Gobo Wheels
12 Rotating / Indexing Interchangeable Glass Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (42/ 68)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
Locking 5pin XLR DMX, RJ45 Ethernet, and Power
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.55 in. (472mm)
Width: 26.5 in. (673mm)
Height: 34.2 in. (870mm)
Center-to-Center: 30.9 in. (784.3mm)
Weight: 104.7 lbs. (47.5kg)
ELECTRICAL / THERMAL
AC 120-240V 50/60Hz
Max Power Consumption 1,500W
BTU/hr (+/- 10%) 5115
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: V1.4.0
Click HERE for software update
Specifications and documentation subject to change without notice.
