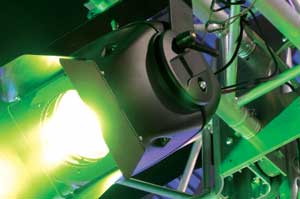

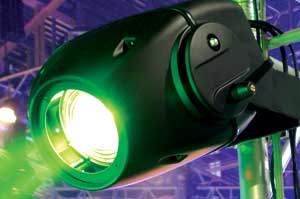

CMY Zoom-250
CMY Zoom-250
Discontinued
SKU# CMY Zoom-250
CONTROL FEATURES • USITT DMX-512 • 11 DMX channels • 4 Digit L.E.D. Display • 3 pin XLR serial input/output
Specifications
OPTICAL SYSTEM
• High Output Luminous-Efficiency parabolic mirror
• Glass Dichroic reflector
• 8º - 22º Motorized zoom
• 150mm Fresnel Lens
CMY - COLORMIXING SYSTEM
• The CMY Color mixing system is based on graduated cyan, magenta and yellow filters.
• A continuous range of colors may be achieved by varying the amount of each filter from 0-100%
COLOR
• 7 Dichroic Filters: 5 Colors, CTB, CTC + White
• Continuous Color Scroll using color filters
BEAM EFFECTS
• 180º Beam Shaper (Flatten and position beam)
• Frost Filter for softer beam
• Automated Beam from 8-22º via DMX
SHUTTER/DIMMER
Mechanical Dimming 0-100%
Mechanical High Speed shutter & Pulse Effect
RIGGING
1 x Hanging Yoke (Bracket)
1 x Base Plate
1 x Safety Eyelet
DIMENSIONS & WEIGHT
15”L x 18”W x 13.5”H
36 lbs
POWER SUPPLY
Lamp: PHILIPS MSD-250/2 (250W, 8500ºK, 2000HR)
Fuse: 10A
Magnetic Ballast
Voltage: 115/208/230/240V AC
