ELAR Q1 Service, Support & Parts Page

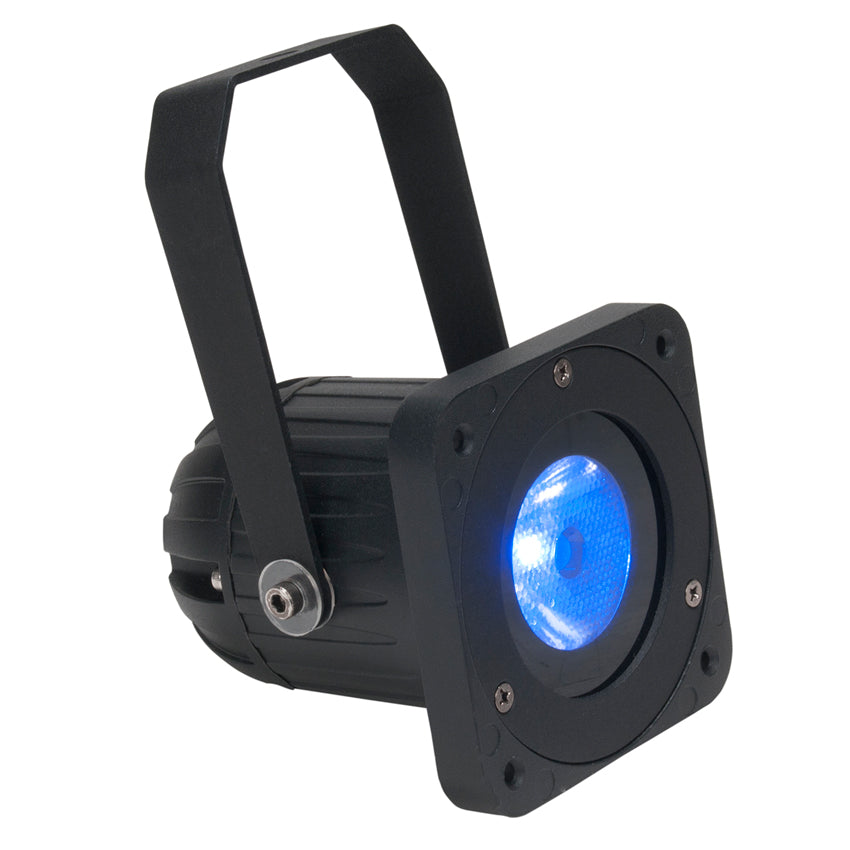

ELAR Q1 is a professional-grade lighting solution. The IP65 rated ELAR Q1™ features a single 18W RGBW Quad LED, a 7° beam 14° field angles, 4 DMX channels, RDM (remote device management) with direct DMX auto addressing option, 24VDC, flicker free operation for broadcast TV and FILM, 18W max power consumption, and an integrated adjustable yoke or flush mounting options. IP65 Rated 7° Beam 14° Field Angles RDM (Remote Device Management) Direct DMX Auto Addressing Option.
ELAR Q1 Service, Support & Parts Page
ELAR Q1 is a professional-grade lighting solution. The IP65 rated ELAR Q1™ features a single 18W RGBW Quad LED, a 7° beam 14° field angles, 4 DMX channels, RDM (remote device management) with direct DMX auto addressing option, 24VDC, flicker free operation for broadcast TV and FILM, 18W max power consumption, and an integrated adjustable yoke or flush mounting options. IP65 Rated 7° Beam 14° Field Angles RDM (Remote Device Management) Direct DMX Auto Addressing Option.
Downloads
| Filename | Document type | File type |
|---|---|---|
| ELAR Q1 + ELAR PSU 10 Specification Sheet | Specification Sheet | |
| ELAR Q1 User Manual ver 1 | User Manual | |
| ELAR Q1 Dimensional Drawings | Dimensional Drawings | |
| ELAR Q1 2D CAD | CAD Drawing | DWG |
| ELAR Q1 3D CAD | CAD Drawing | DWG |
| ELAR Q1 DMX Traits ver 1 | DMX Traits | |
| ELAR Q1 Photometric Data | Photometrics | |
| ELAR Q1 System Install Diagram Example | Other | |
| ELAR Q1 Vectorworks 2014 Symbol | Vectorworks Symbol | VWX |
| ELAR Q1 Vectorworks 2015 Symbol | Vectorworks Symbol | VWX |
| ELAR Q1 Vectorworks 2016 Symbol | Vectorworks Symbol | VWX |
